Glass Door Fittings

Hidayath Group manufactures high-quality Glassdoor Fittings, offering hinges, handles, locks, connectors, and other accessories.

Our glassdoor fittings are designed with expertise and innovation, ensuring they are aesthetically pleasing, highly functional, and durable, providing security for your spaces. Available in Gold, Black, with Brush and Mirror finishes, our fittings cater to diverse design preferences.

Home > Architectural Products > Glass Door Fittings

Product Line

Architectural Products

Glass Door Fittings

Metal Mesh

Stainless Steel Bollards

Gratings & Channels

Expanded Metals

Handrail Fittings

Metal Finishes

HF-DT55SET

HF-DC-BLACK

HF-DC-SILVER

HF-DC-WHITE

HF-3001

HF-3003

HF-3004

HF-3008

HF-3017

HF-3026

DT-65 SET L /R

HF/DC

HF-109

HF-650/D

HF-840/D

HF-850/B

HF-860/D

HF-9003B Mab Type

HF-9003/Set Dorma Type

HF-8700-SET

HF8700A-1

HF8700A-6

HF8700A-10

HF8700A-11

HF8700A-12

HF8700A-13

HF8700A-14

HF8700A-15

HF-8700A-16

HF8700A-17

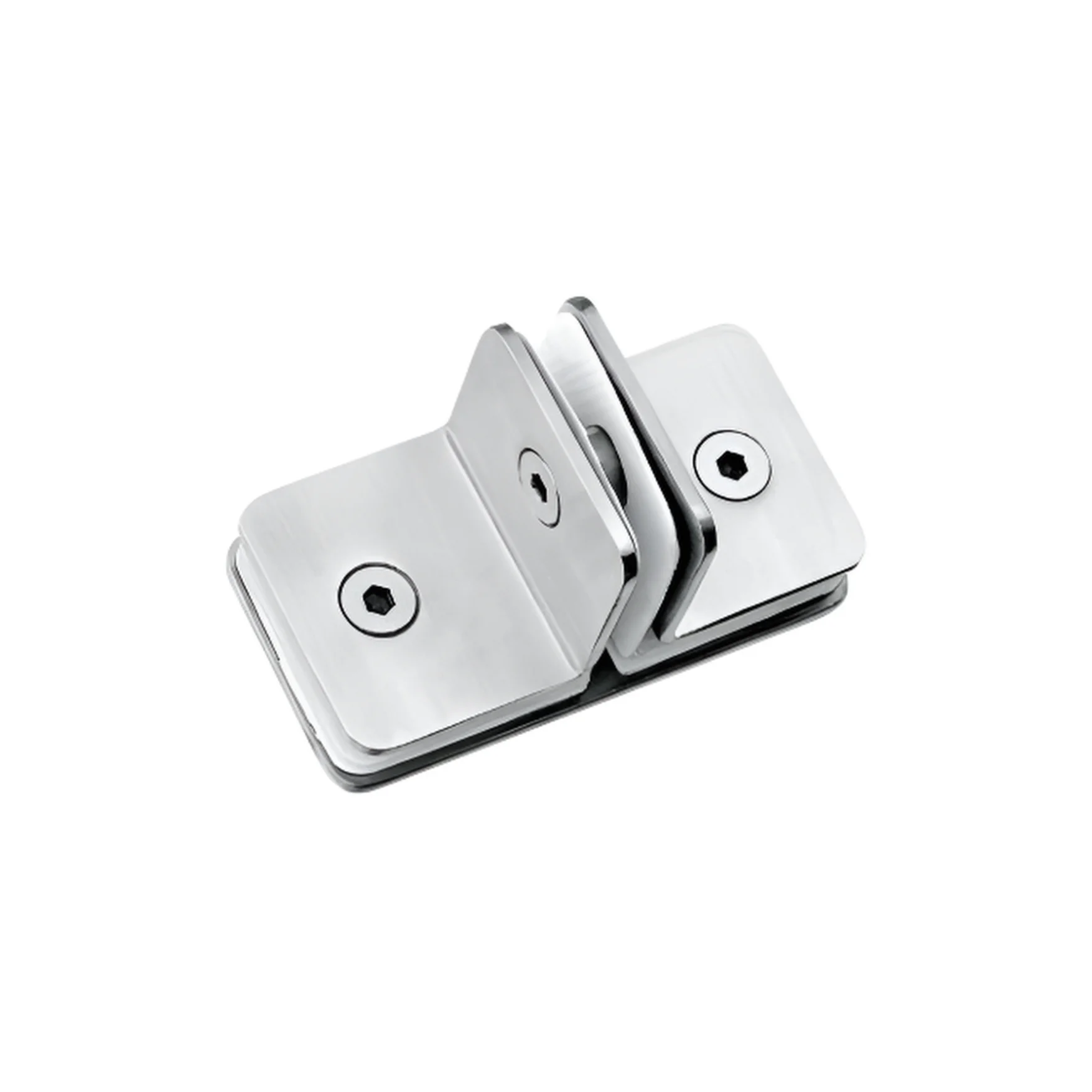

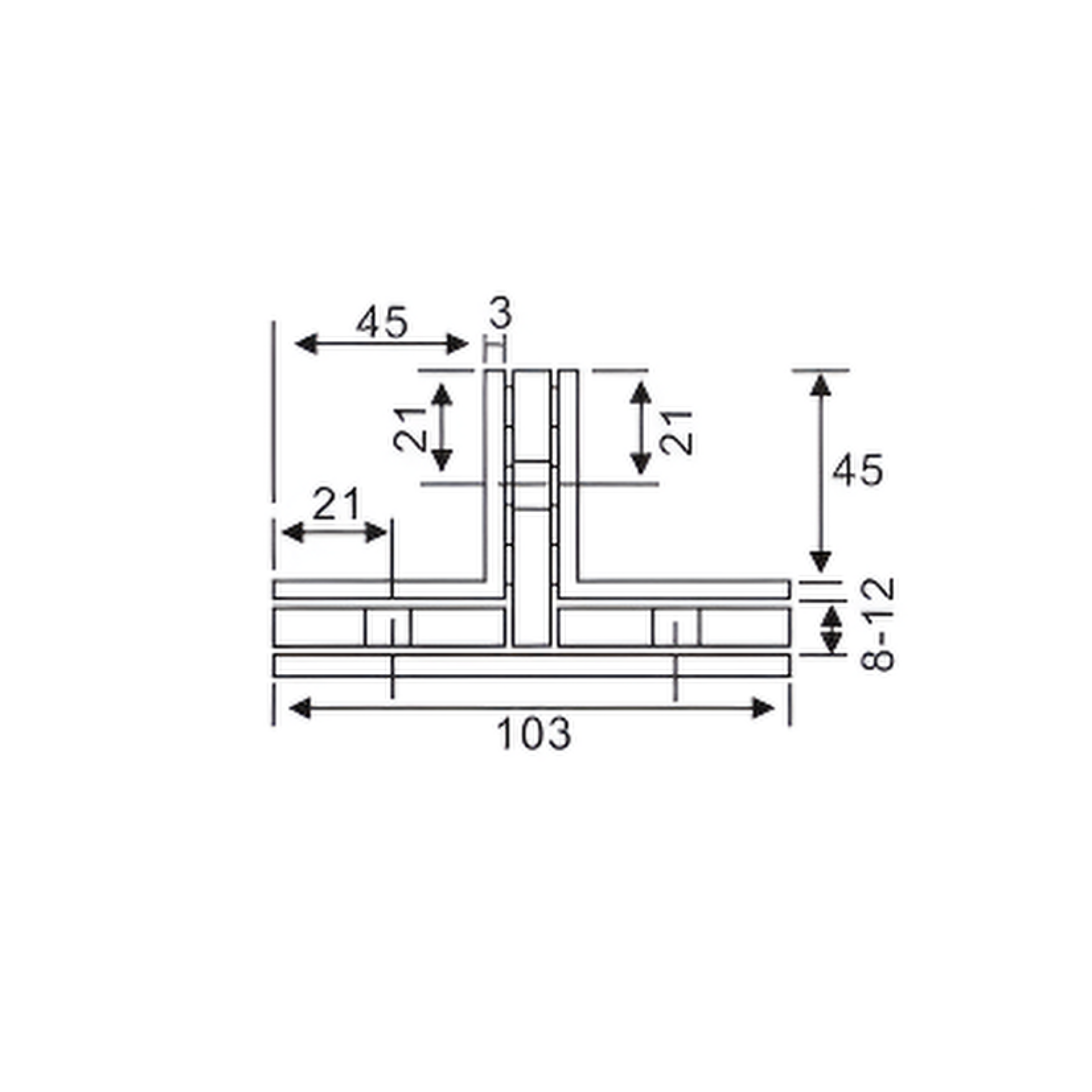

HF-128

HF-151

HF-152

HF-153

HF-154

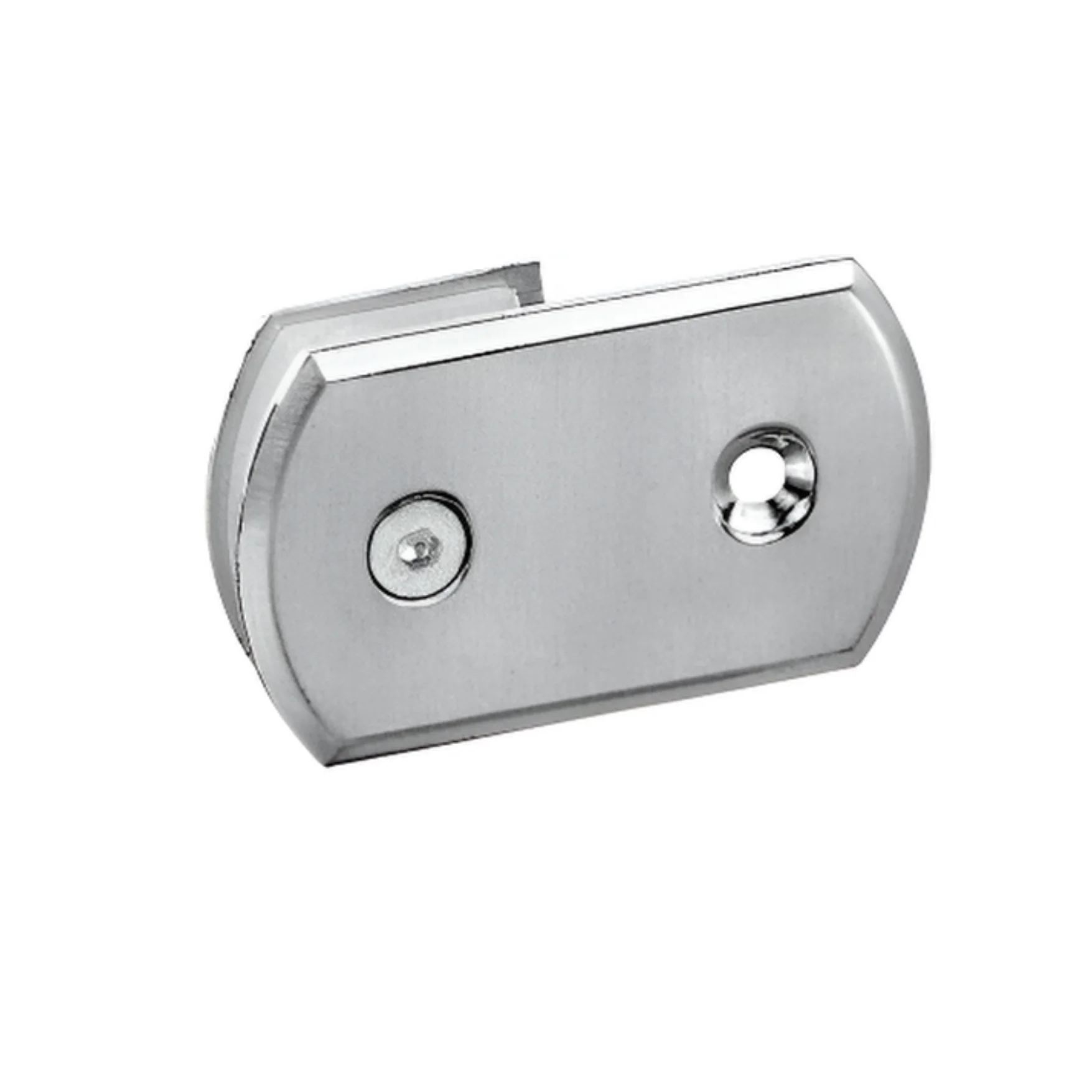

HF-156

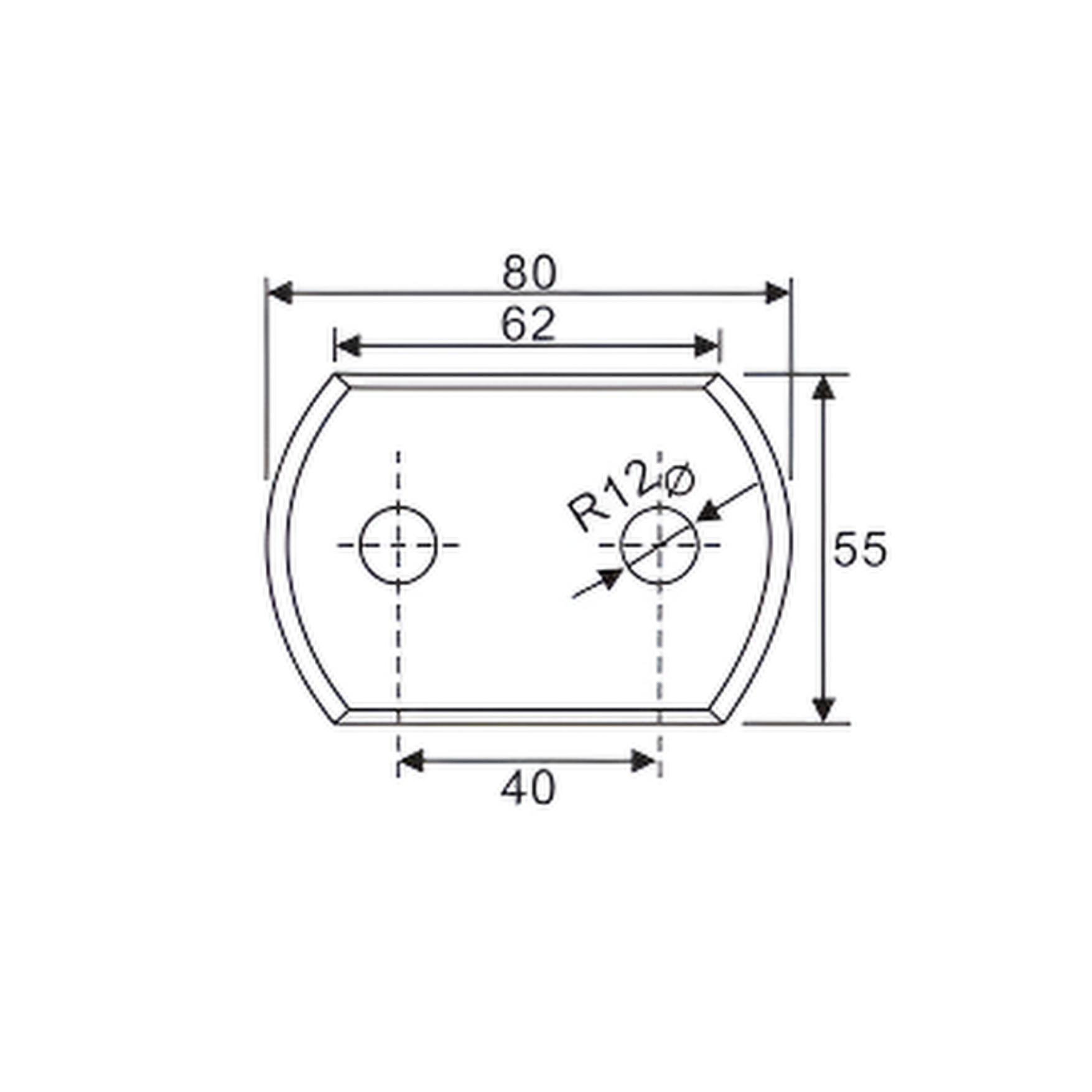

HF-157

HF-9011

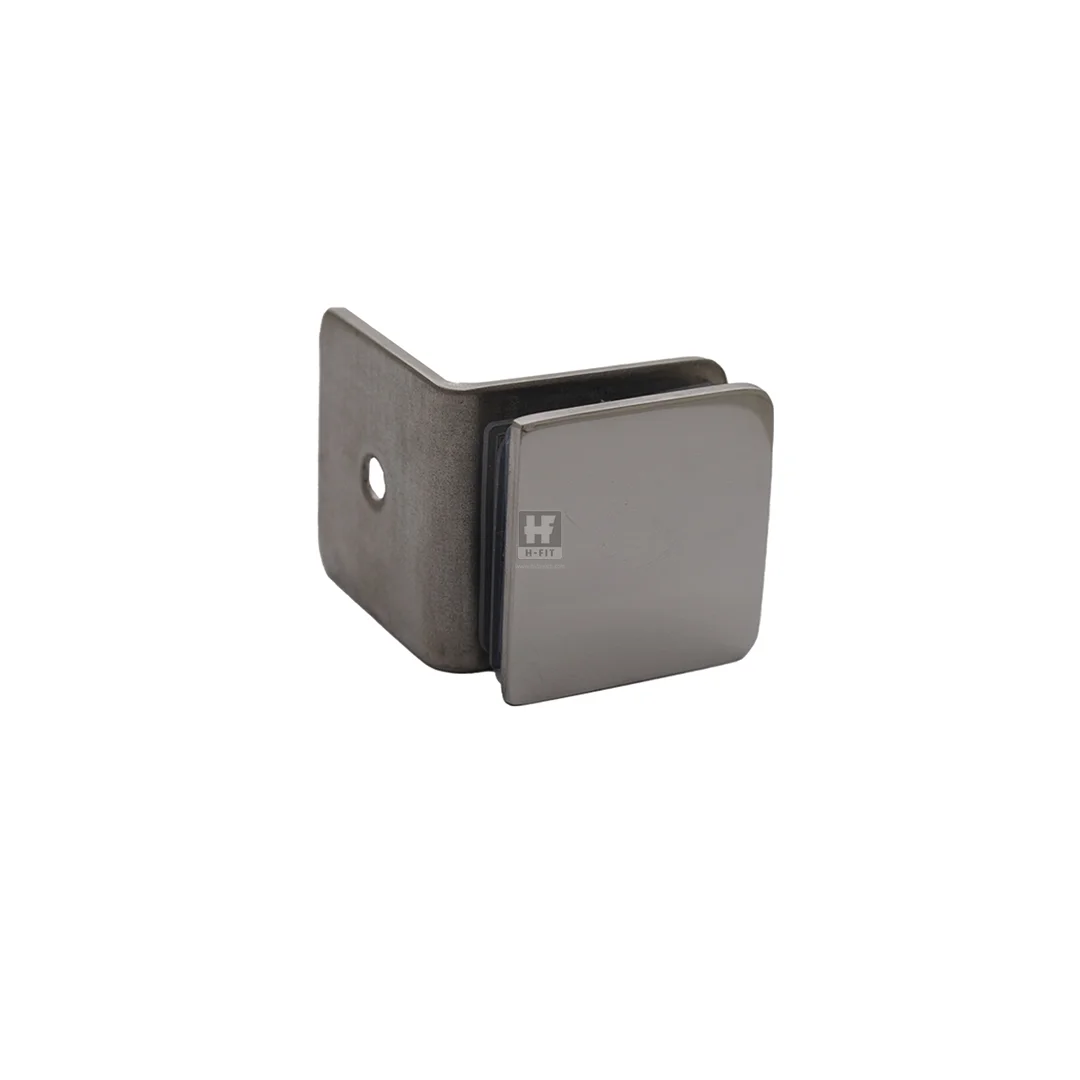

HF-9012

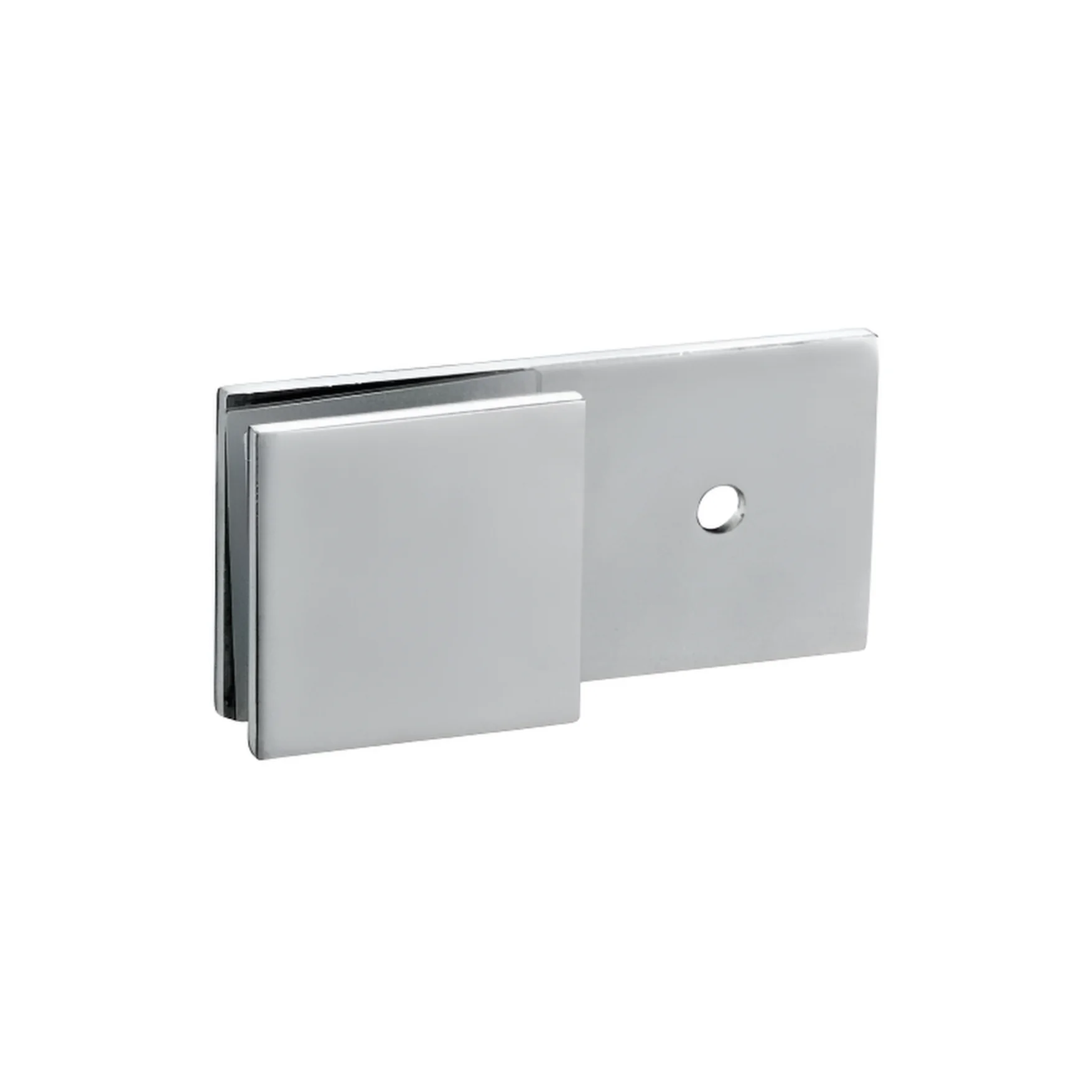

HF-9013

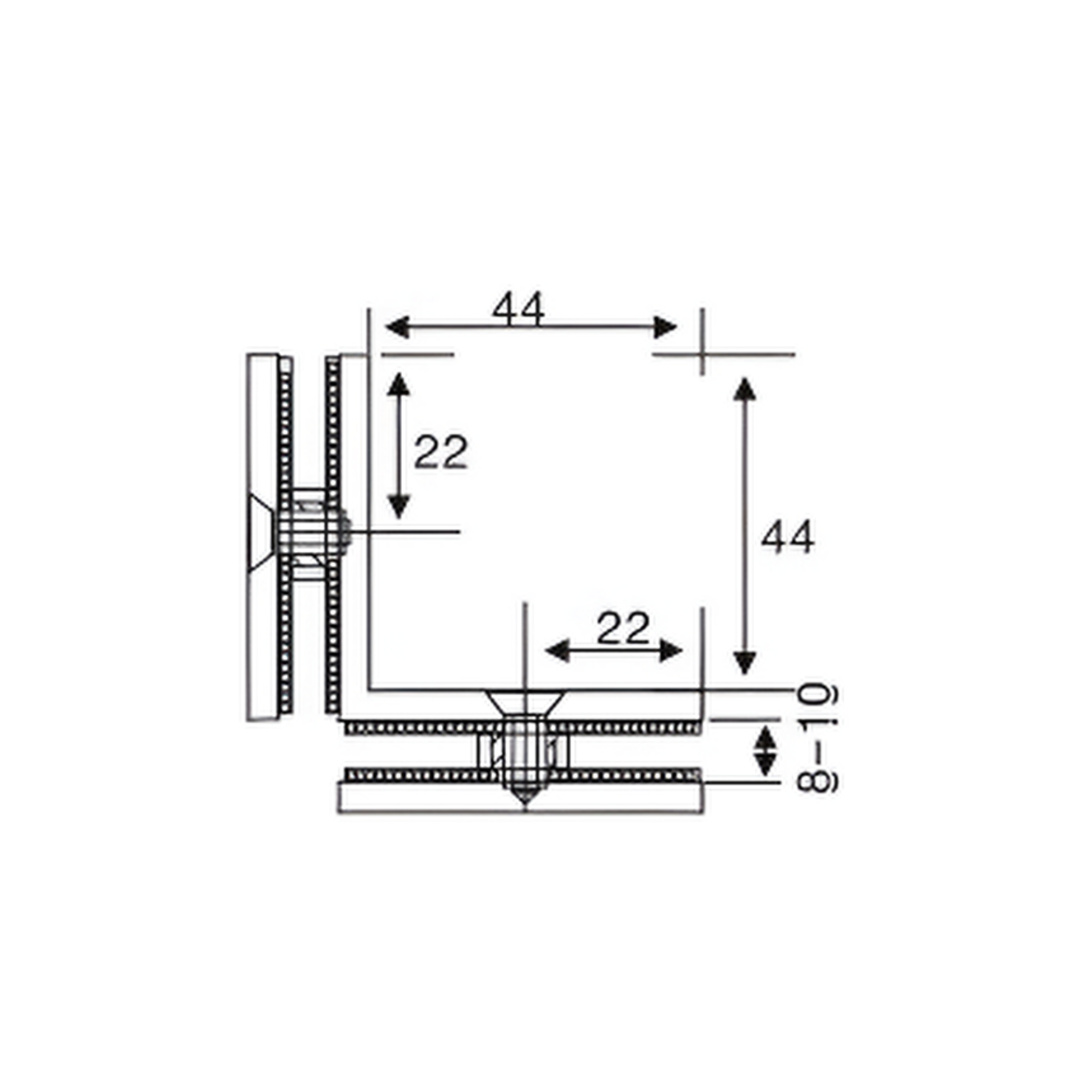

HF-9014

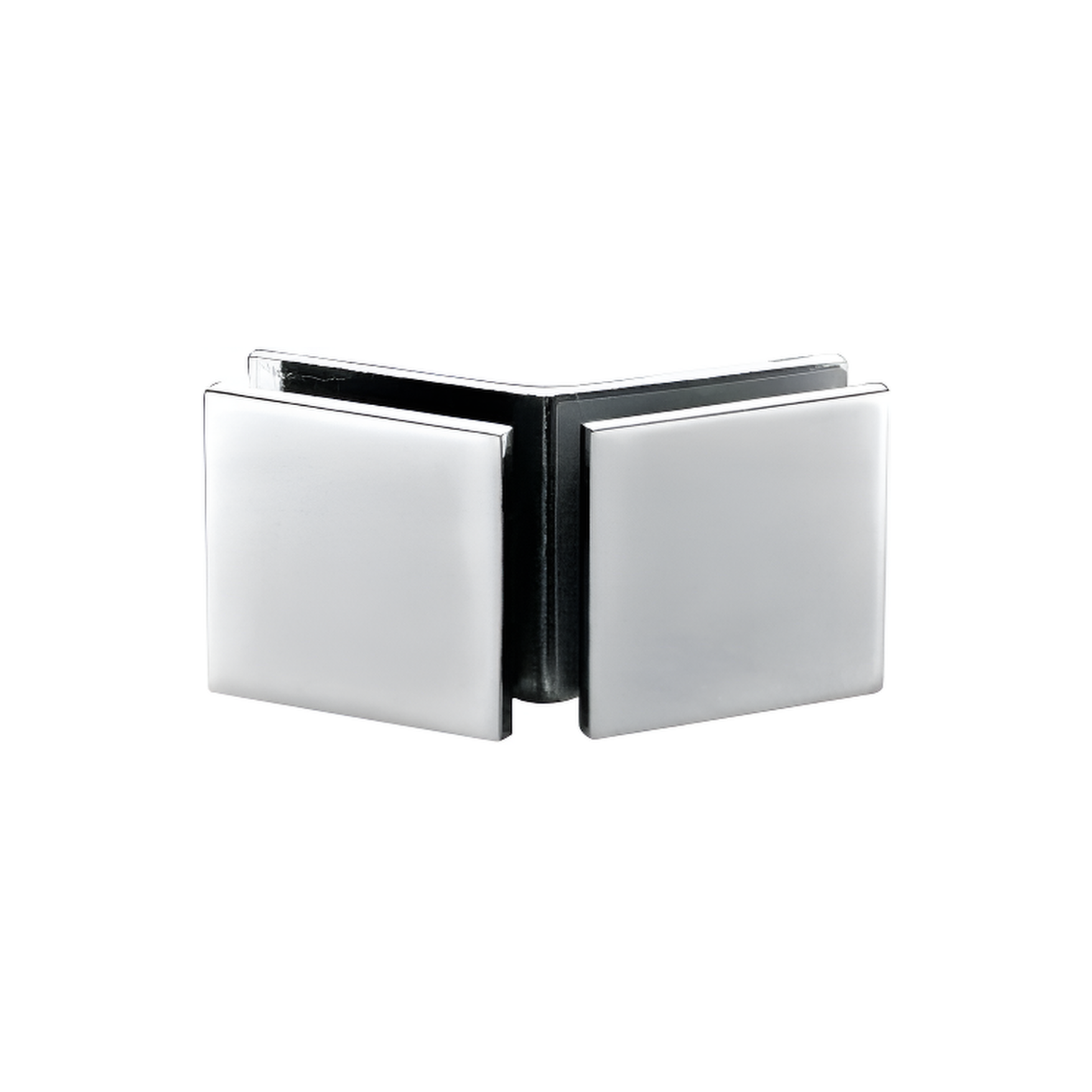

HF-9015

HF-9016

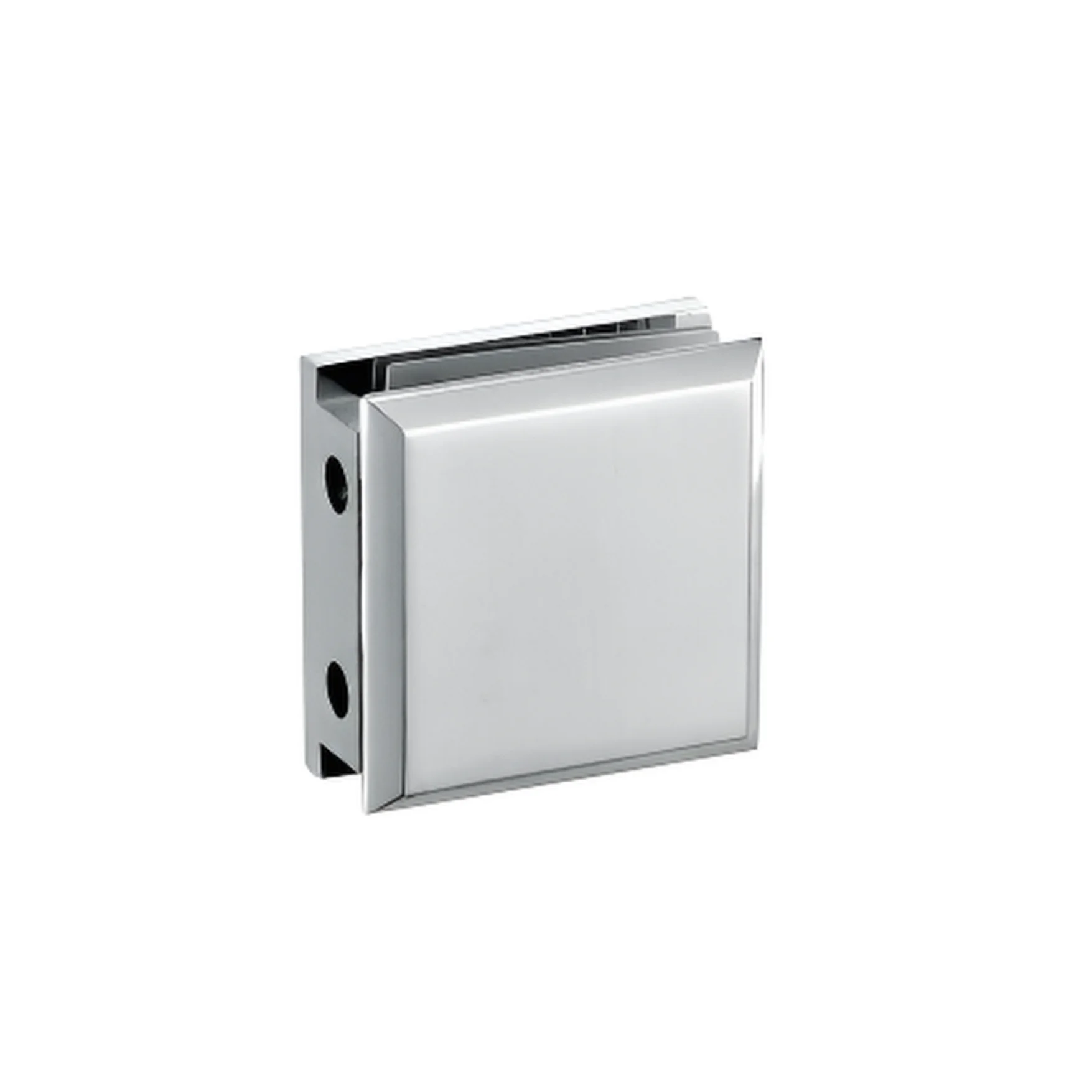

HF-9021

HF-9022

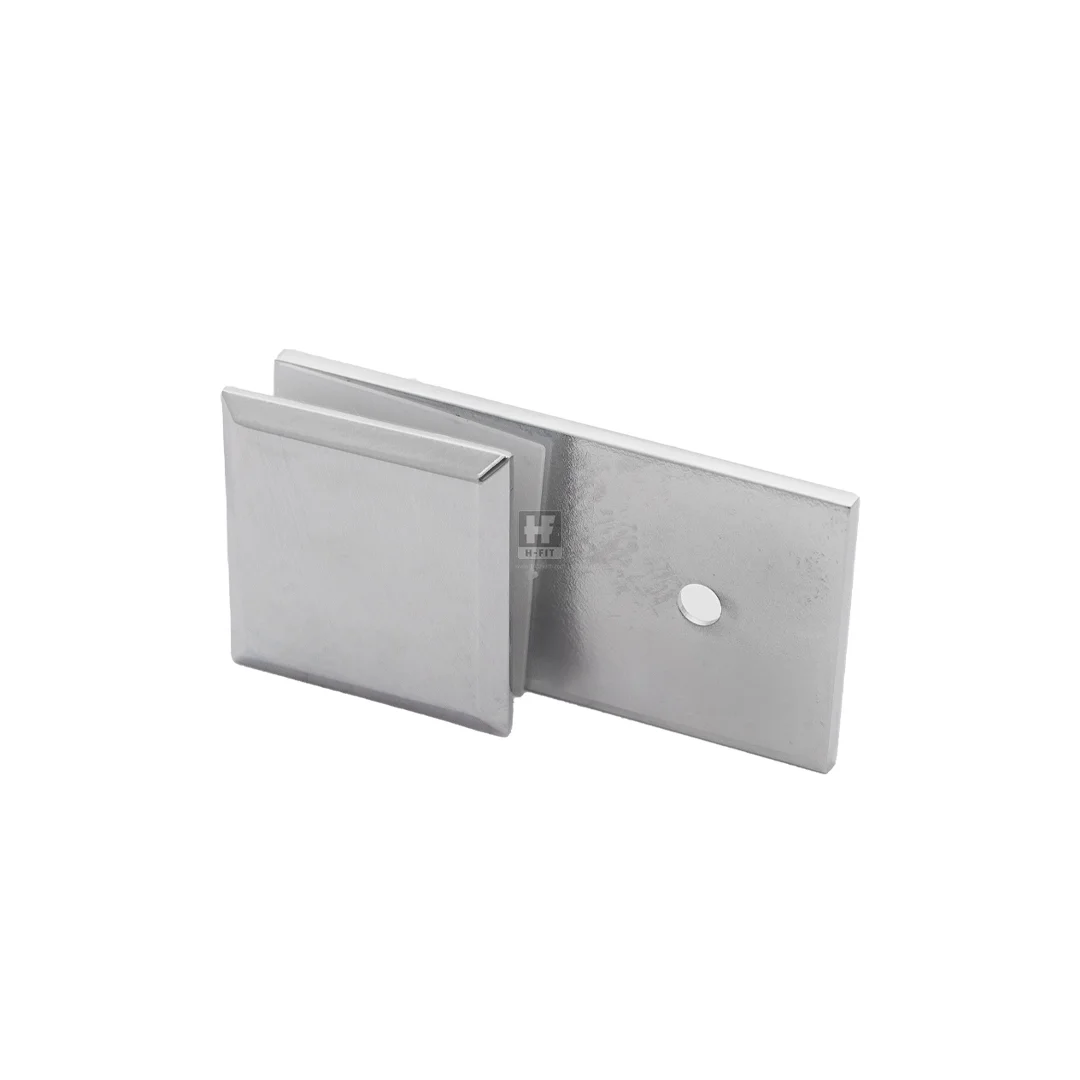

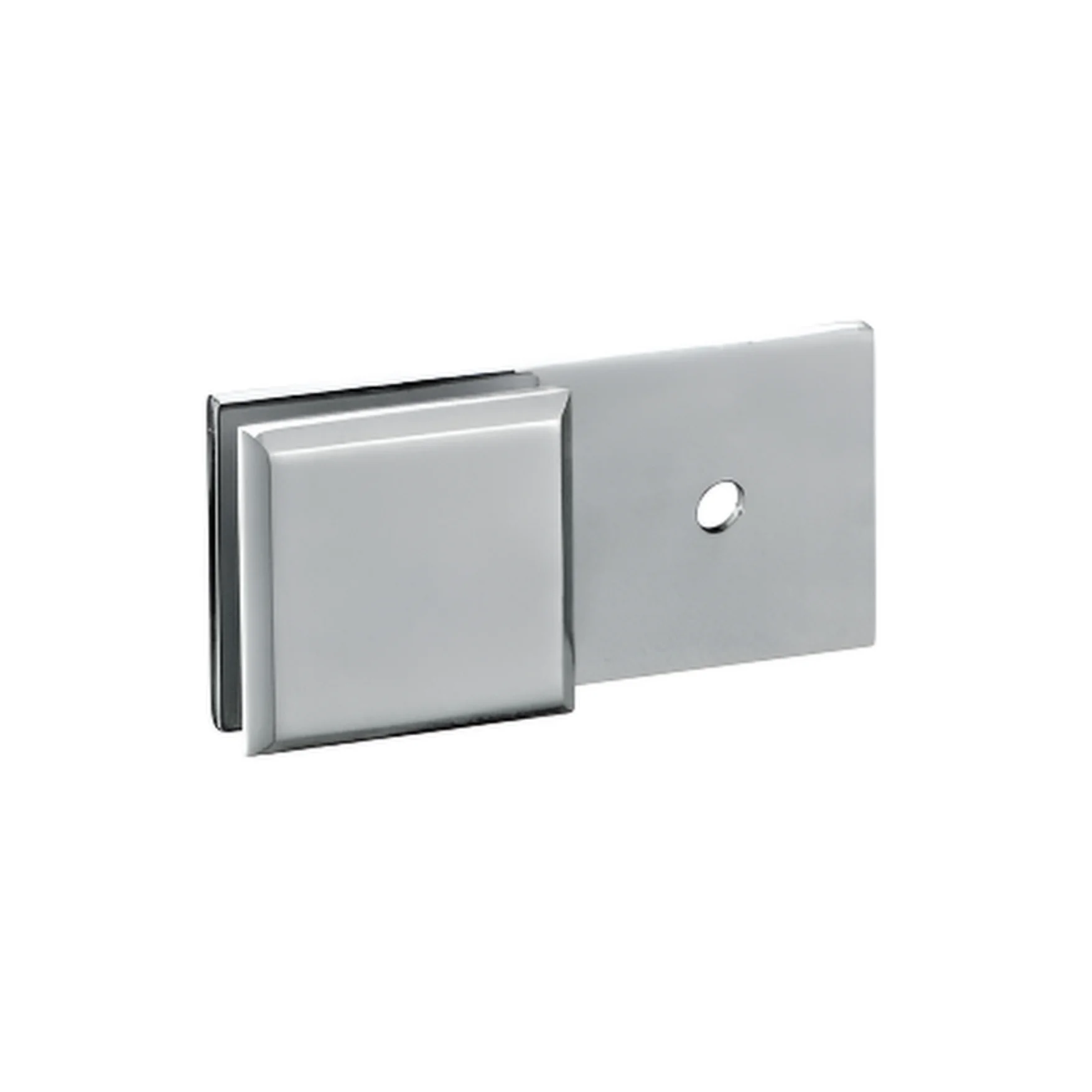

HF-9023

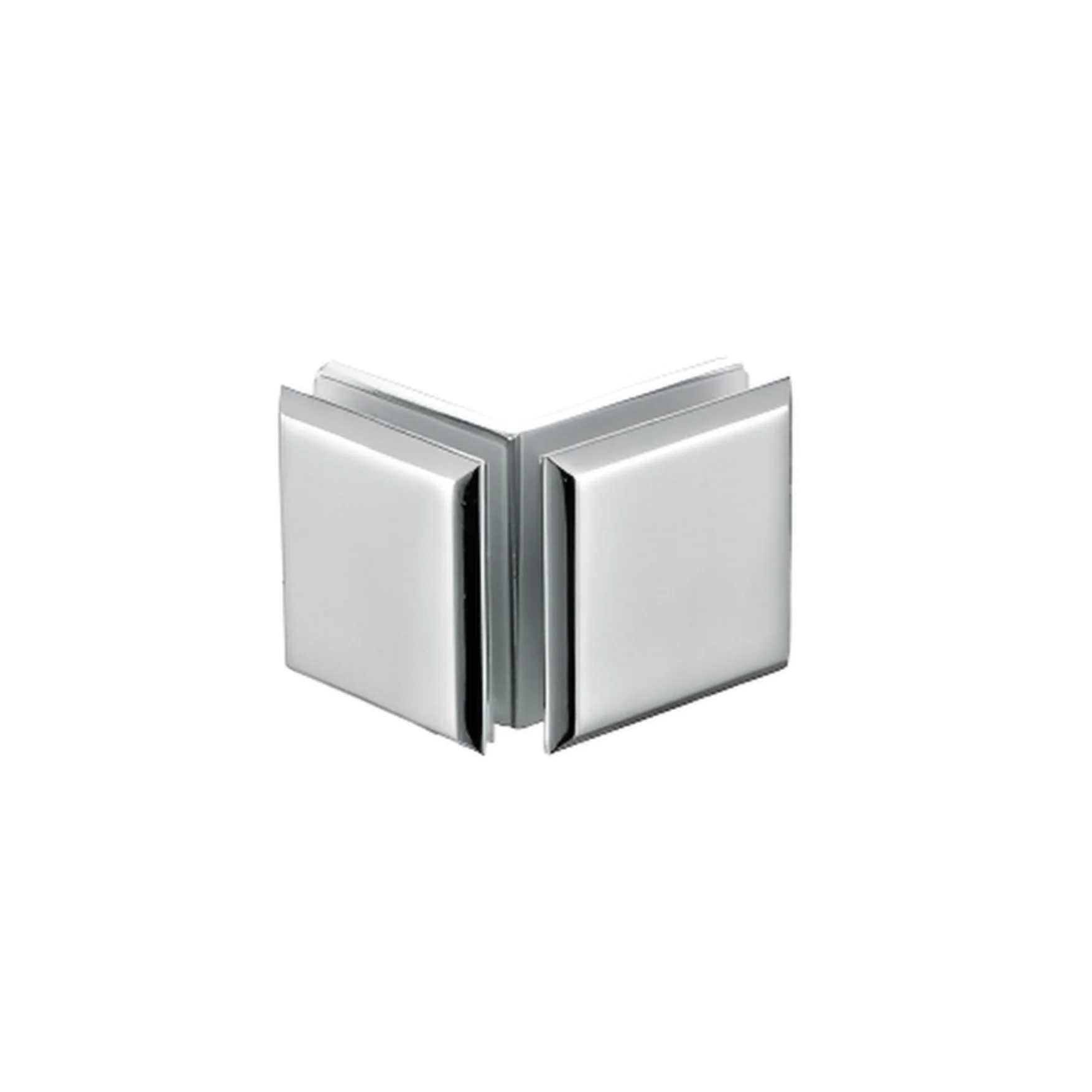

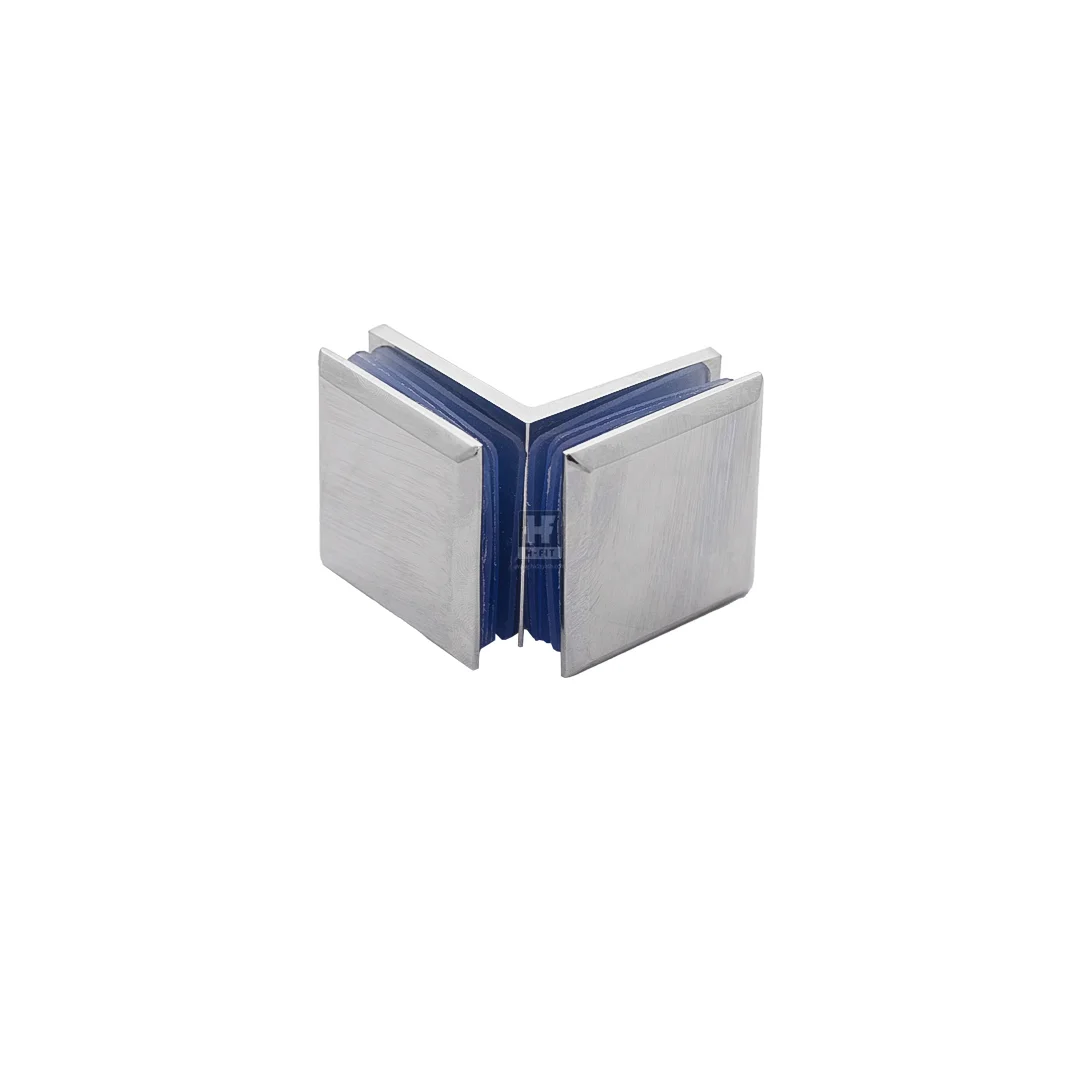

HF-9024

HF-9025

HF-9026

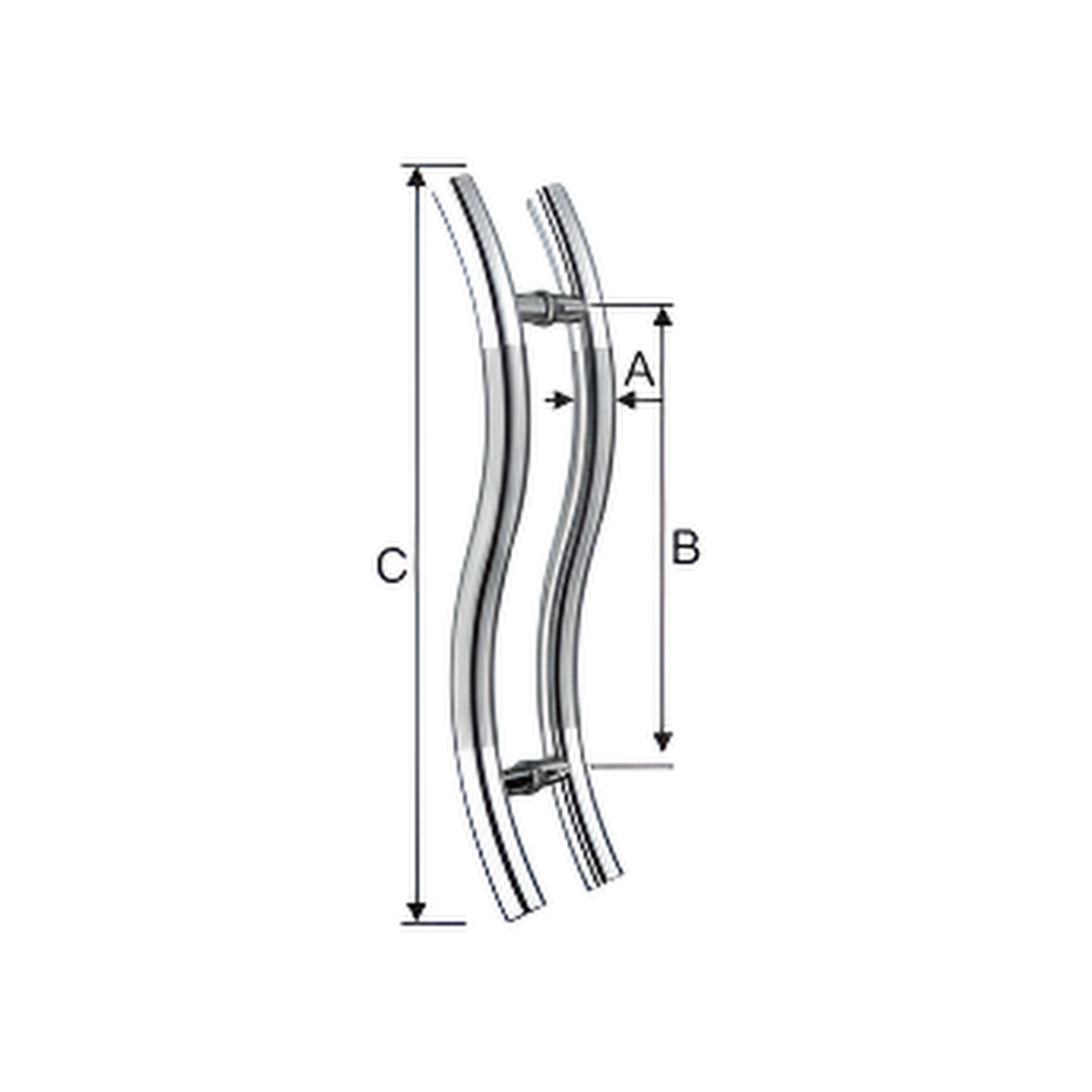

HF-233

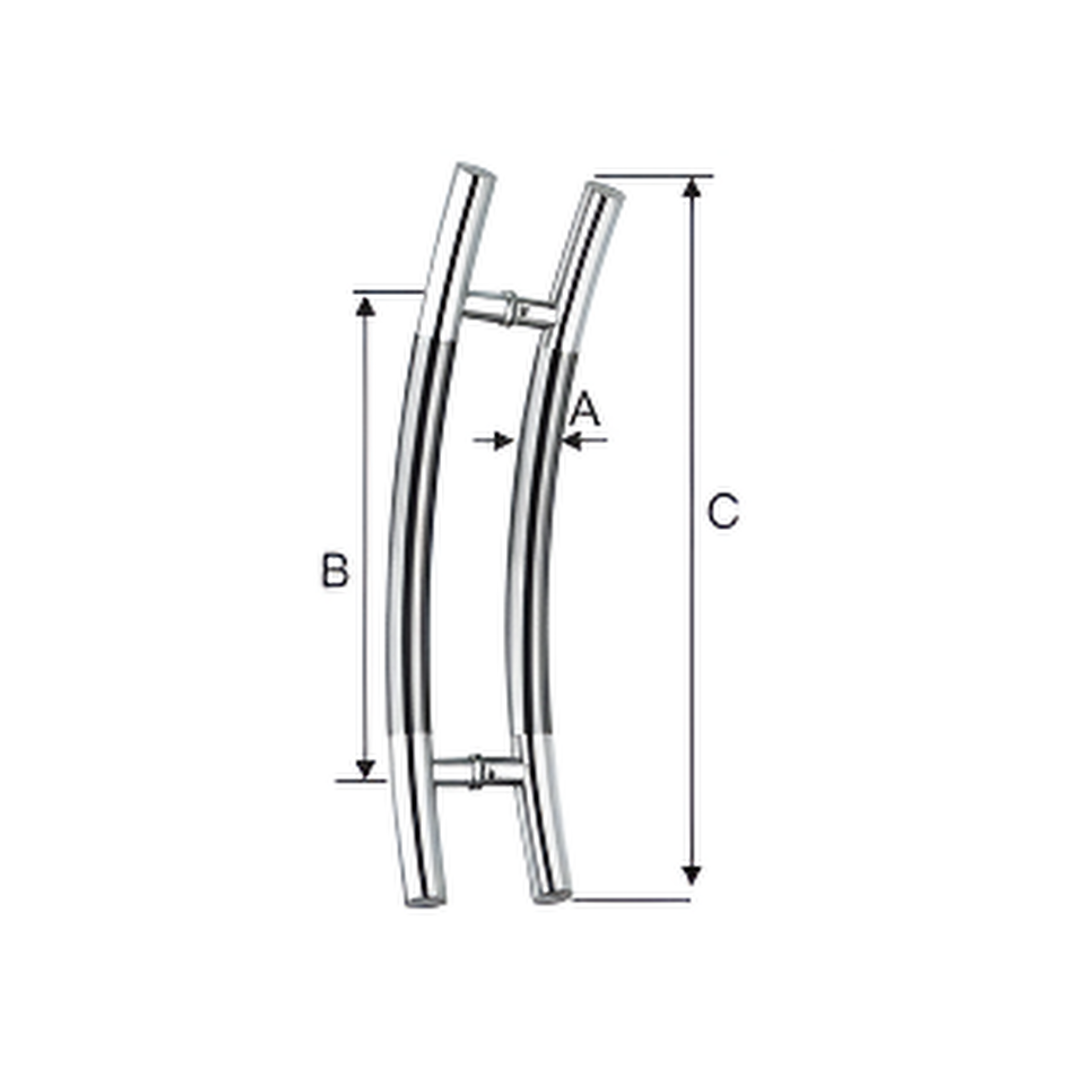

HF-334

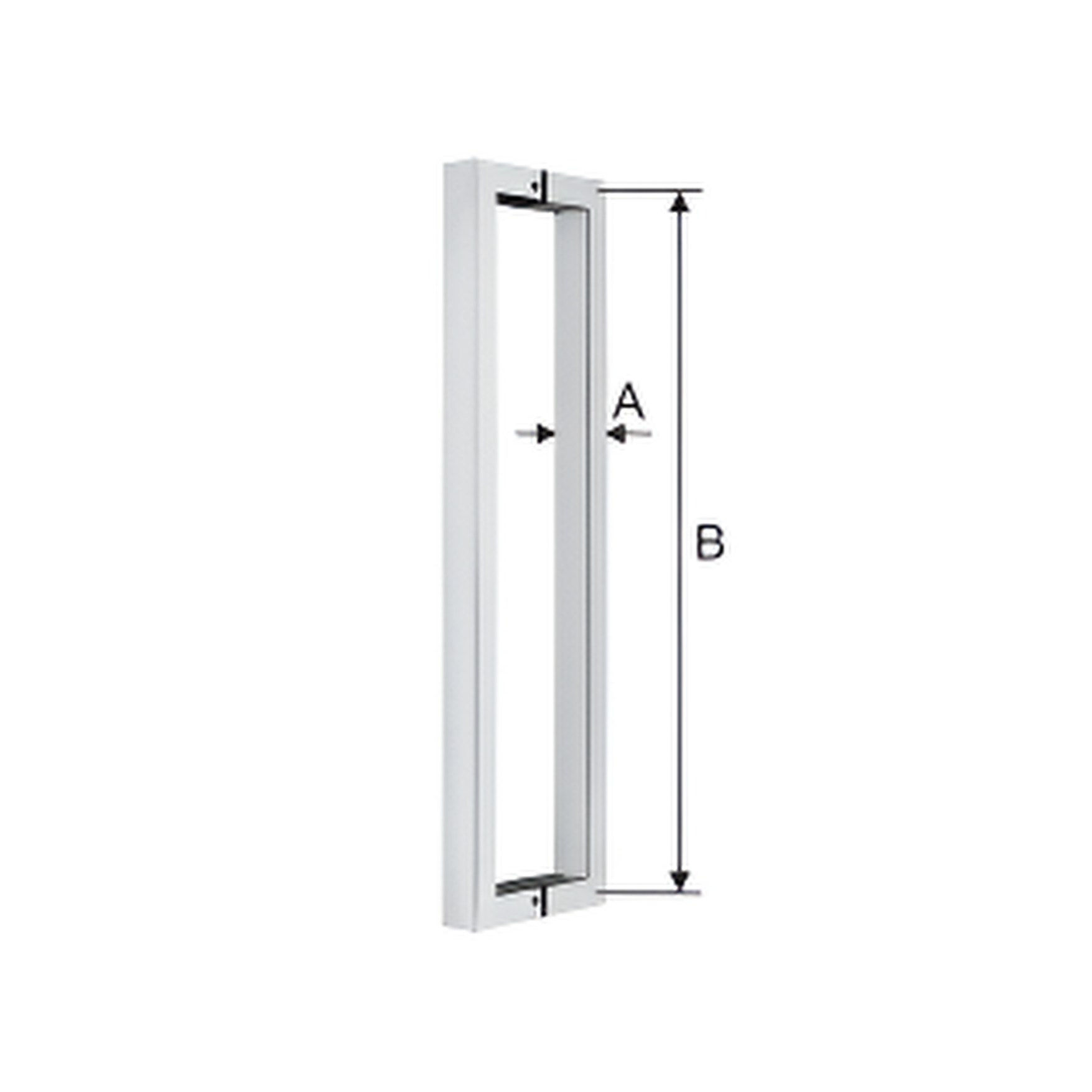

HF-620

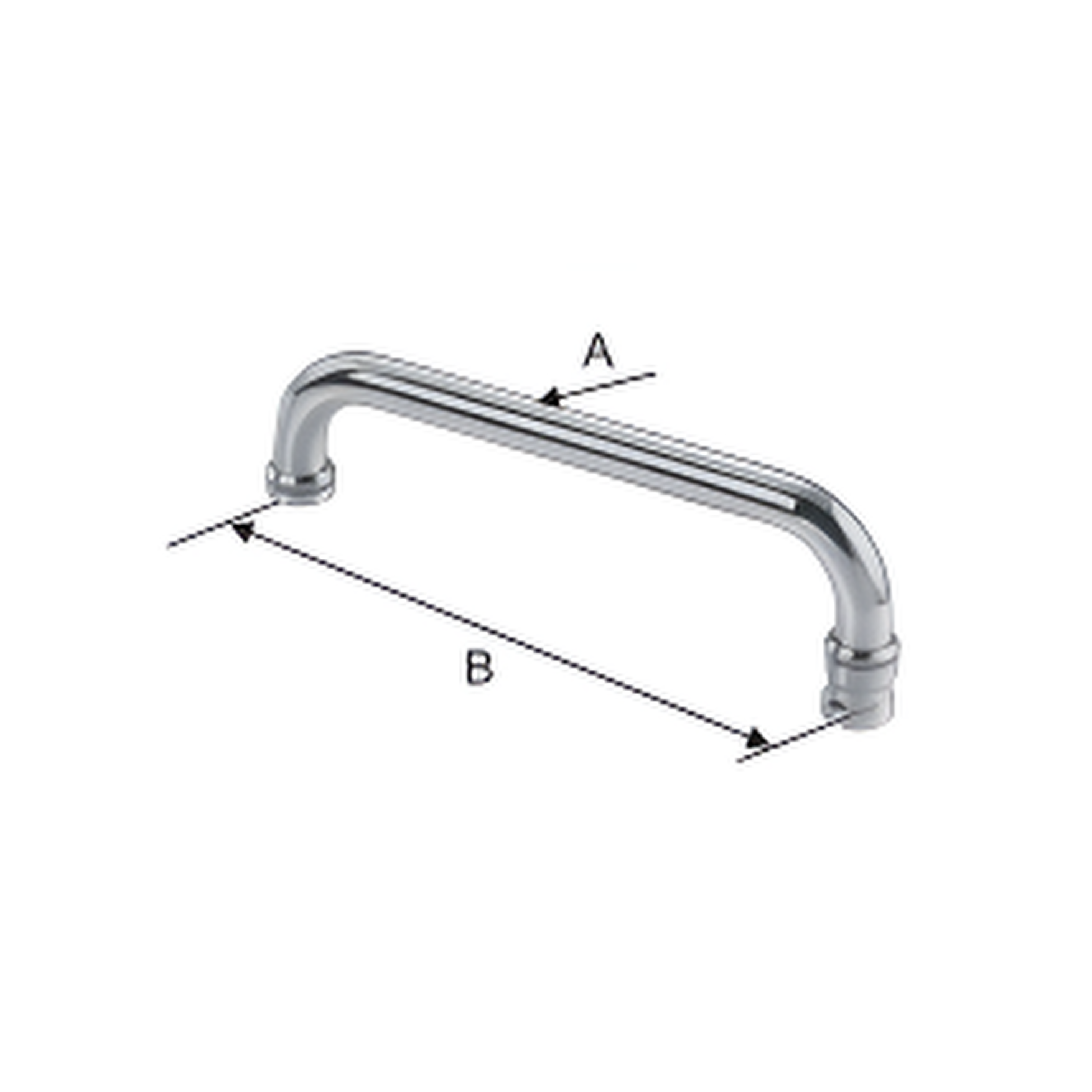

HF-621

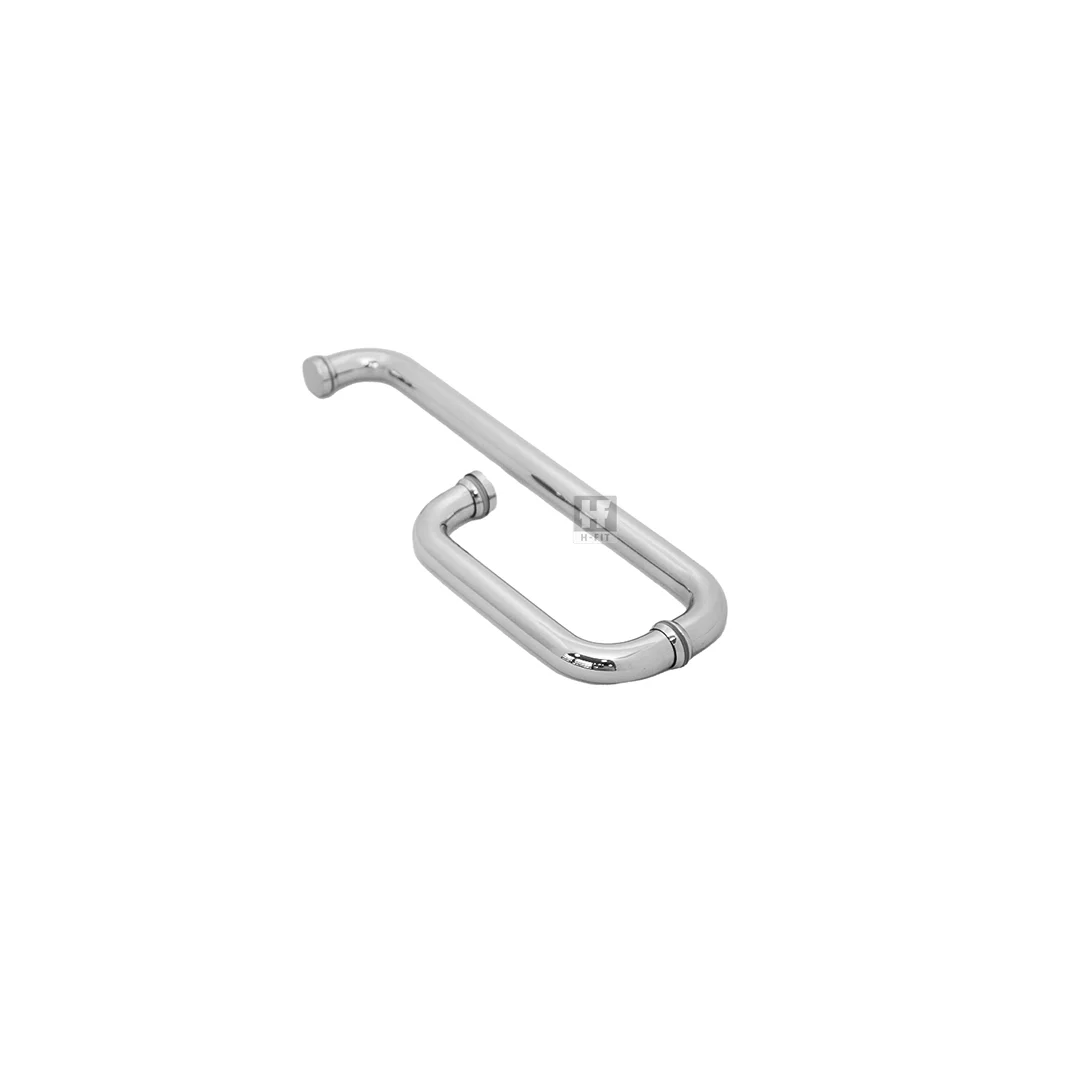

HF-626

HF-626/SQ/E

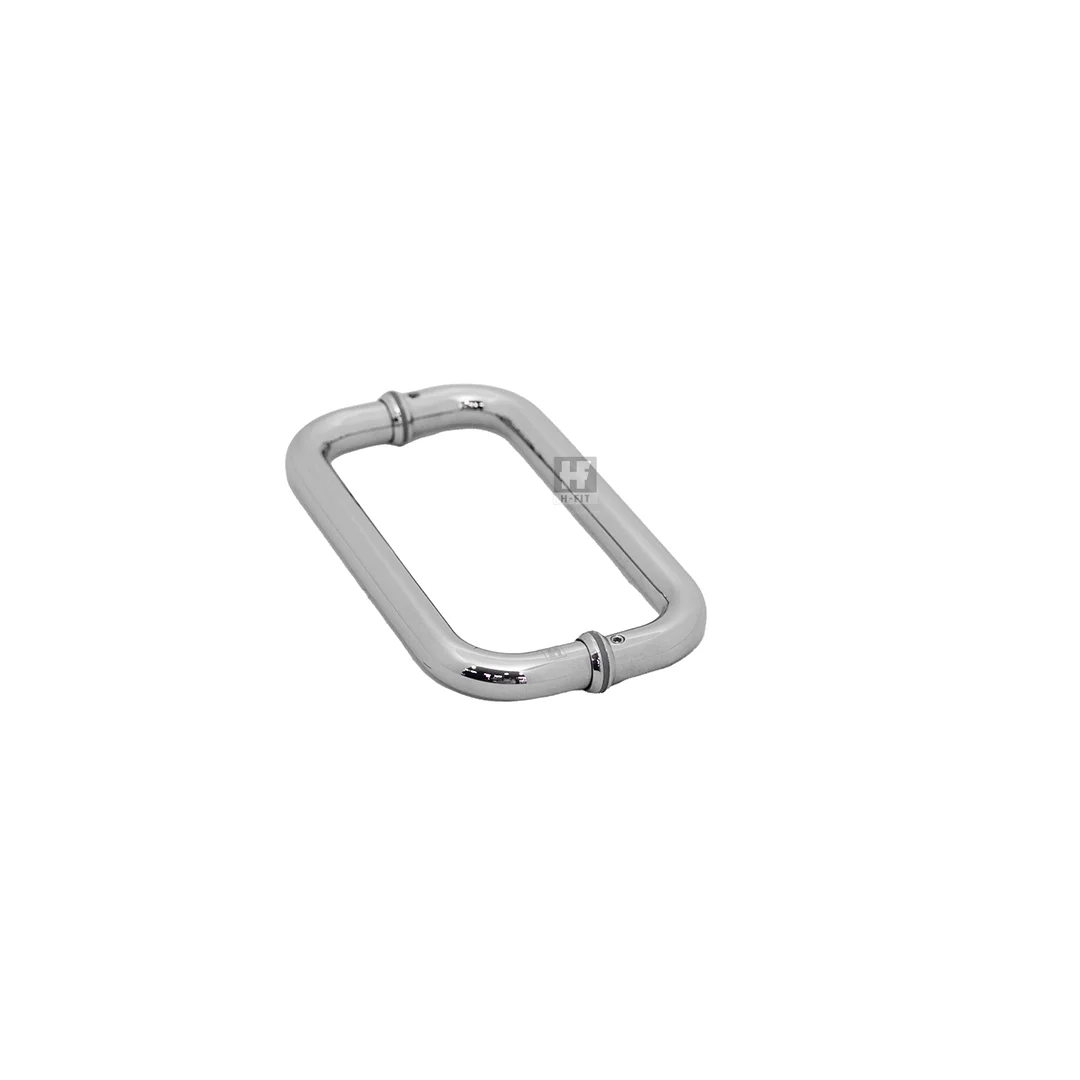

HF-627

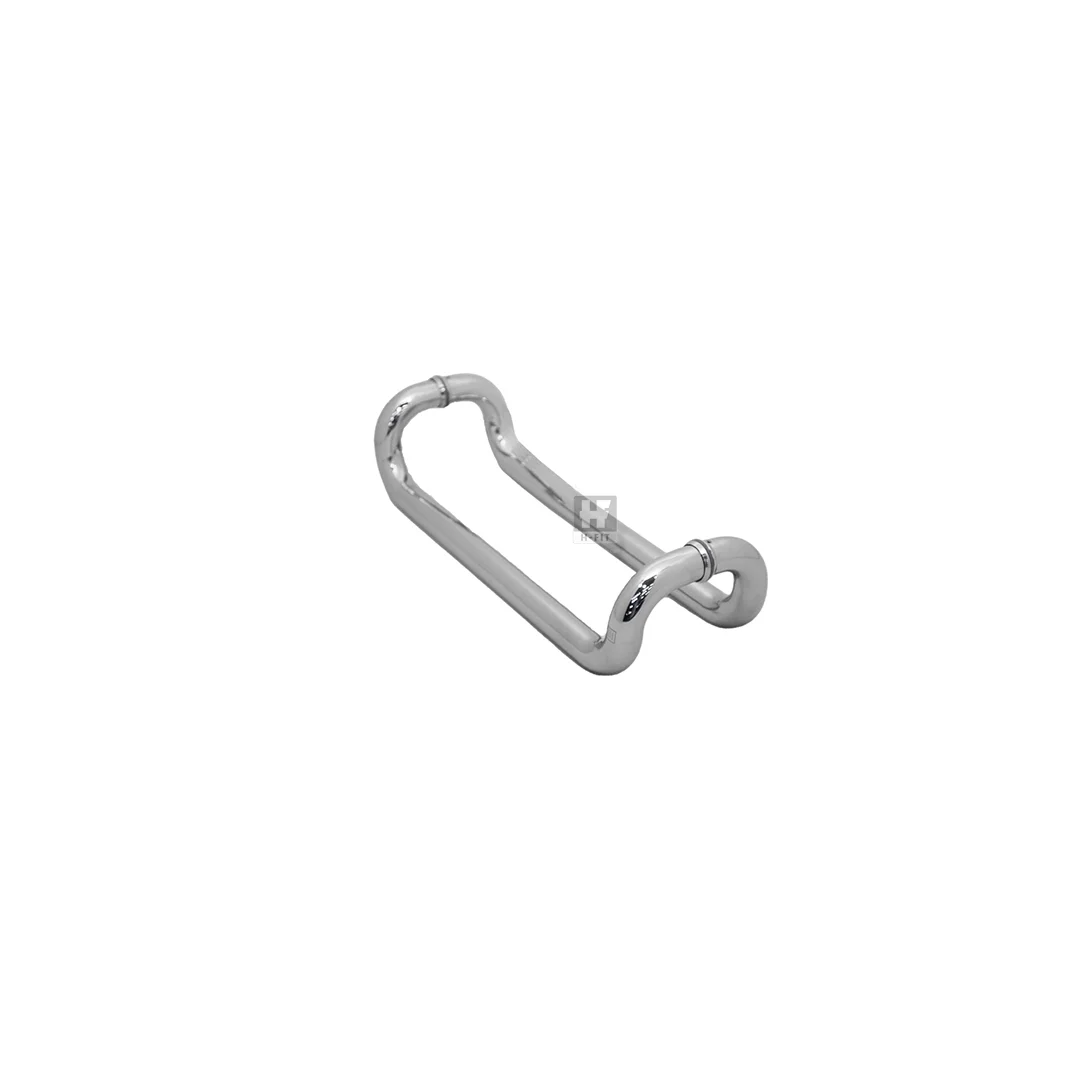

HF-628

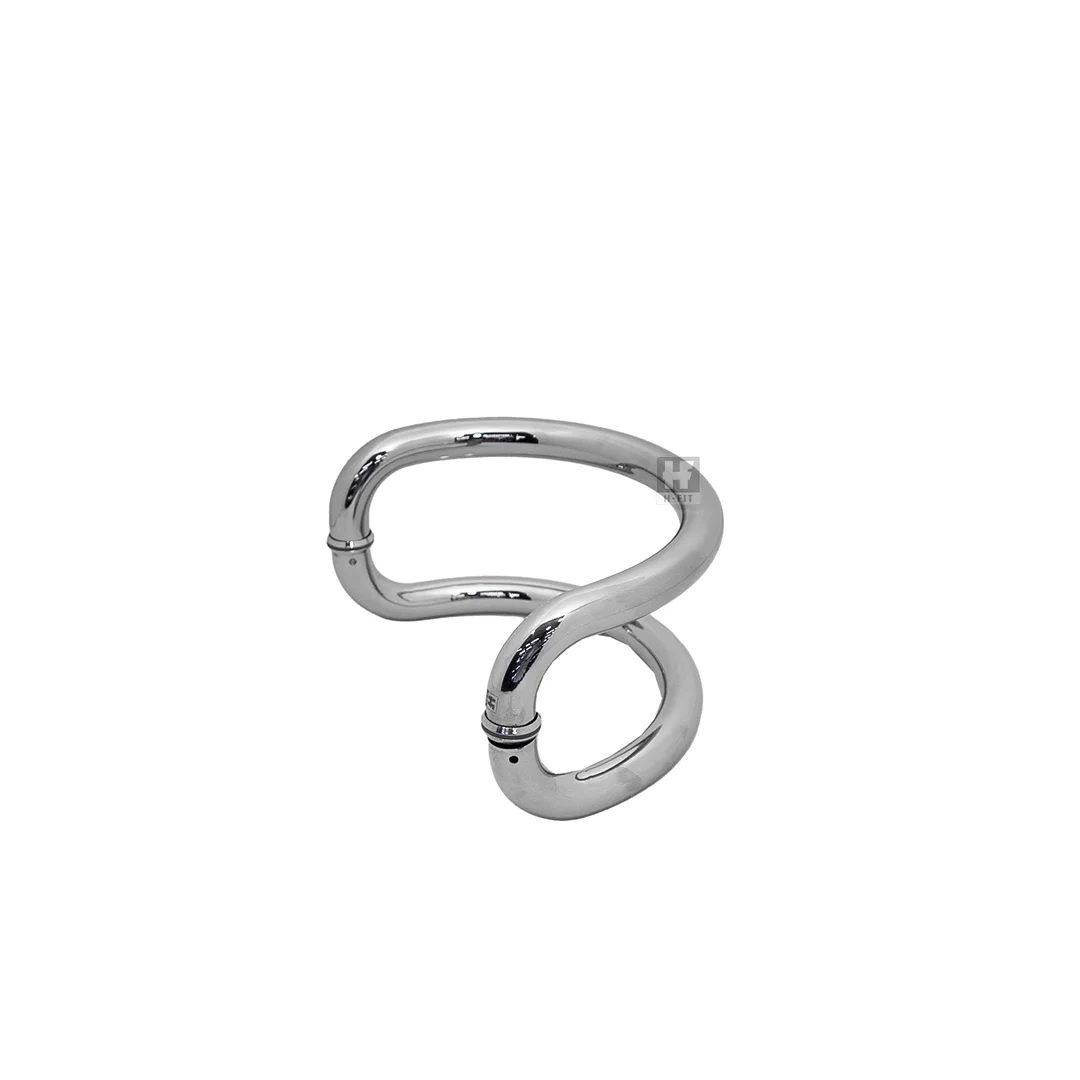

HF-629

HF-633

HF-633/SQ/B

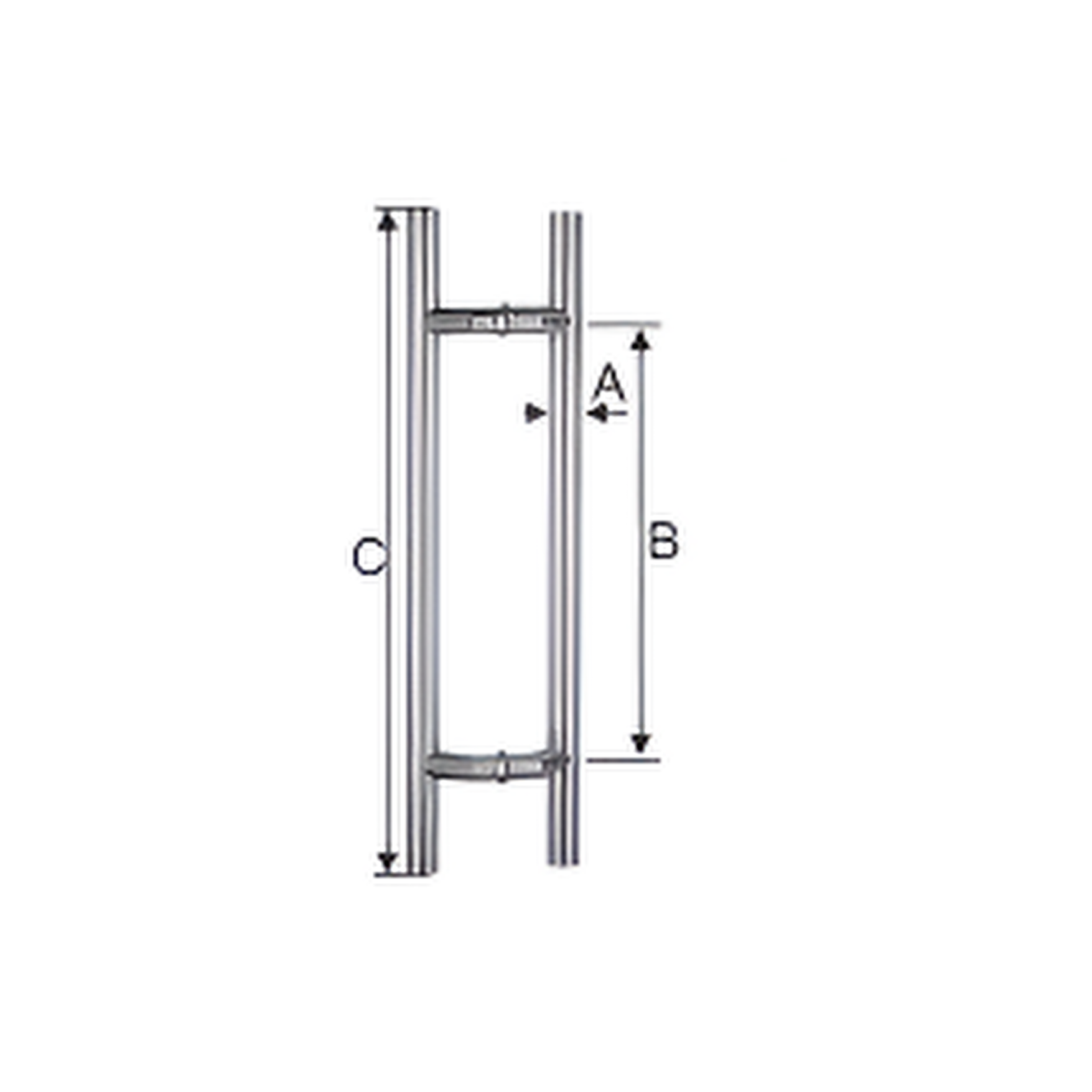

HF-633/DV

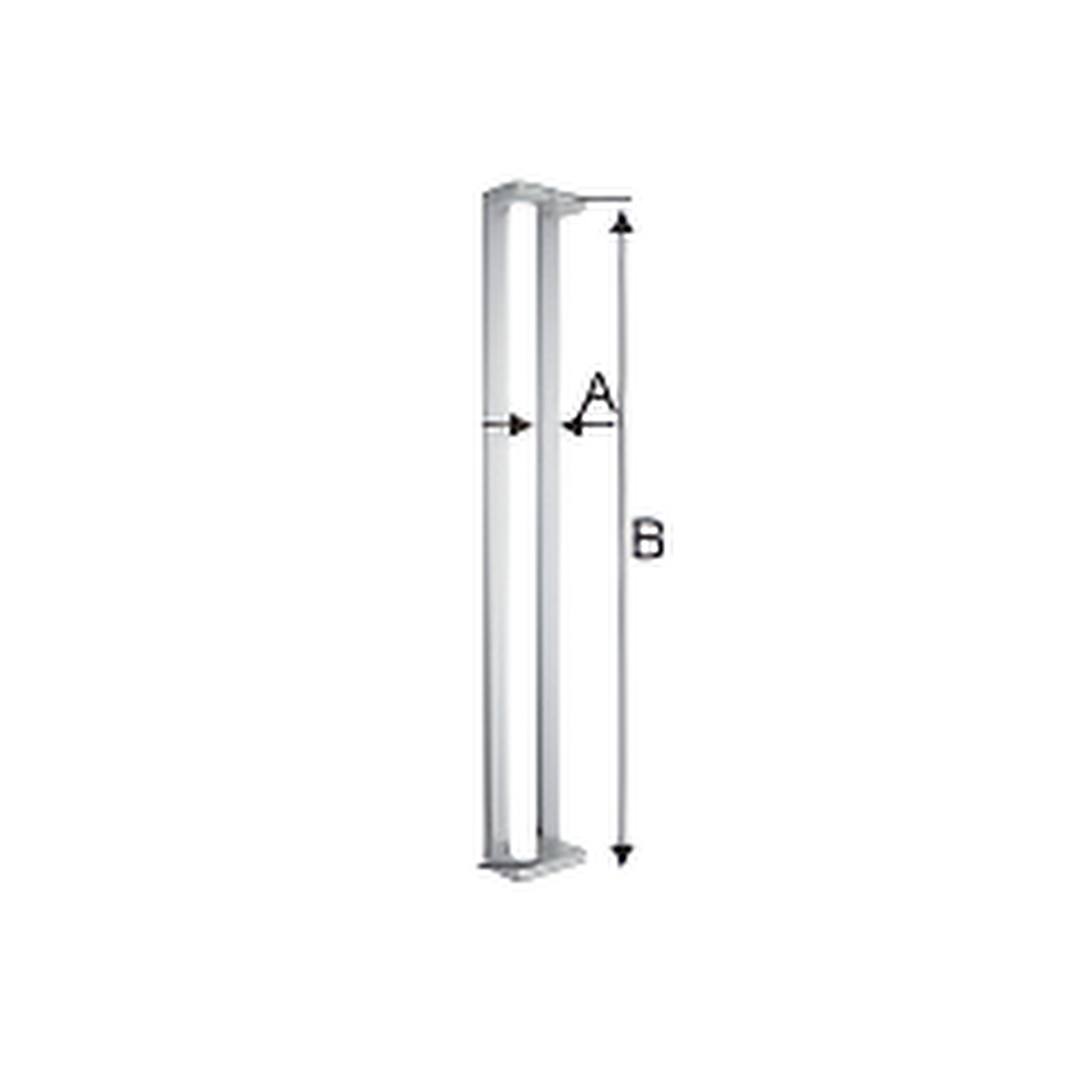

HF-634

HF-23

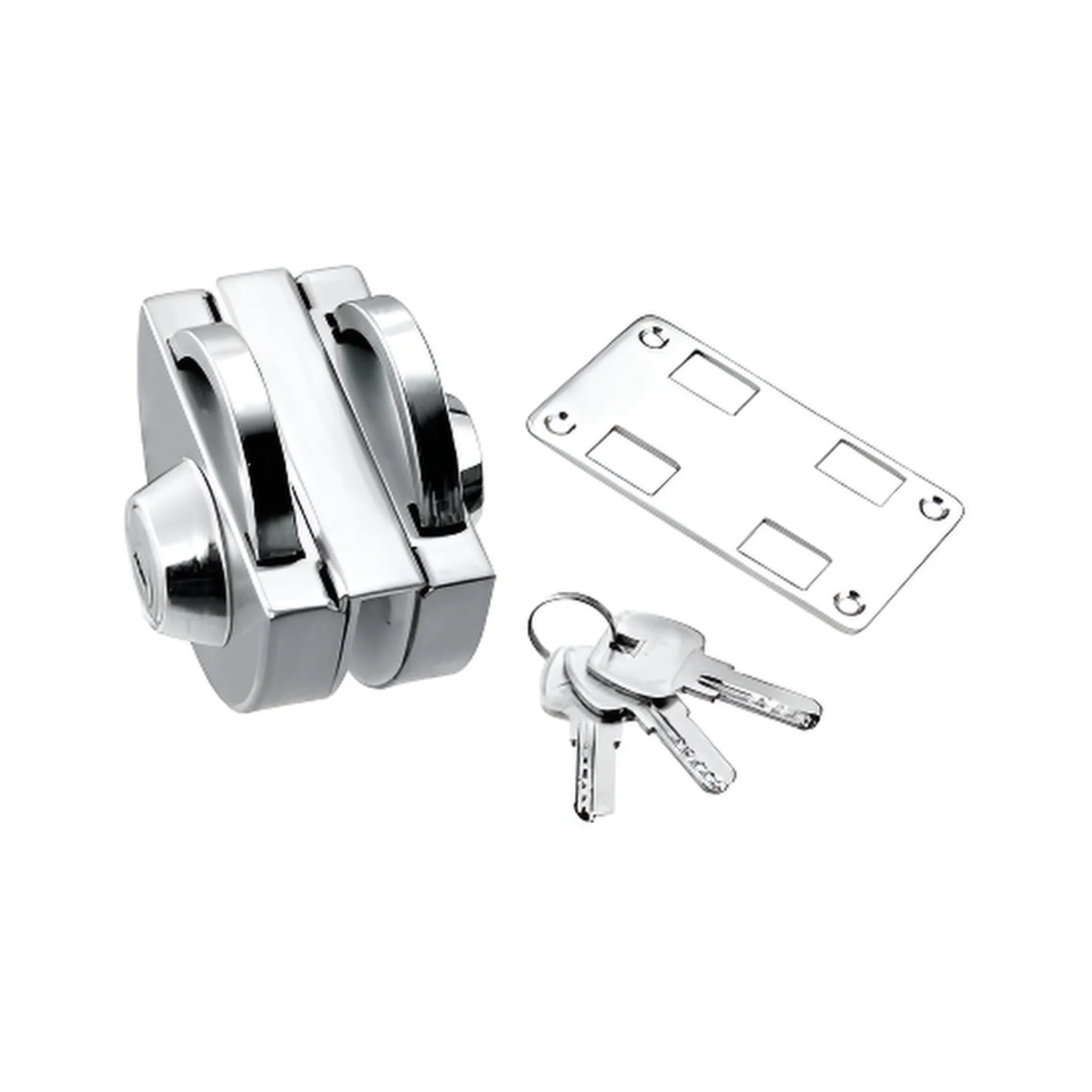

HF-24

HF-25

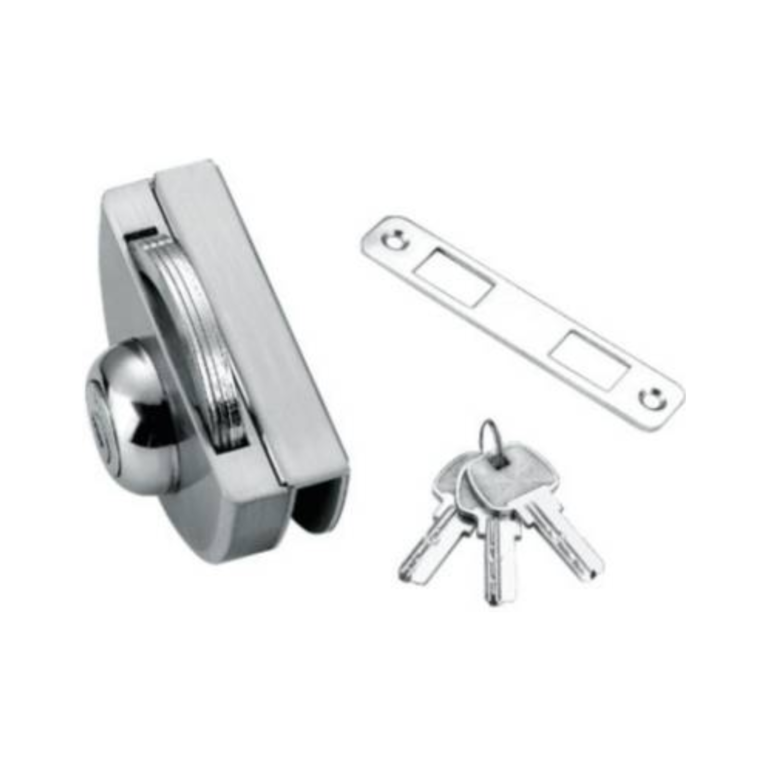

HF-26

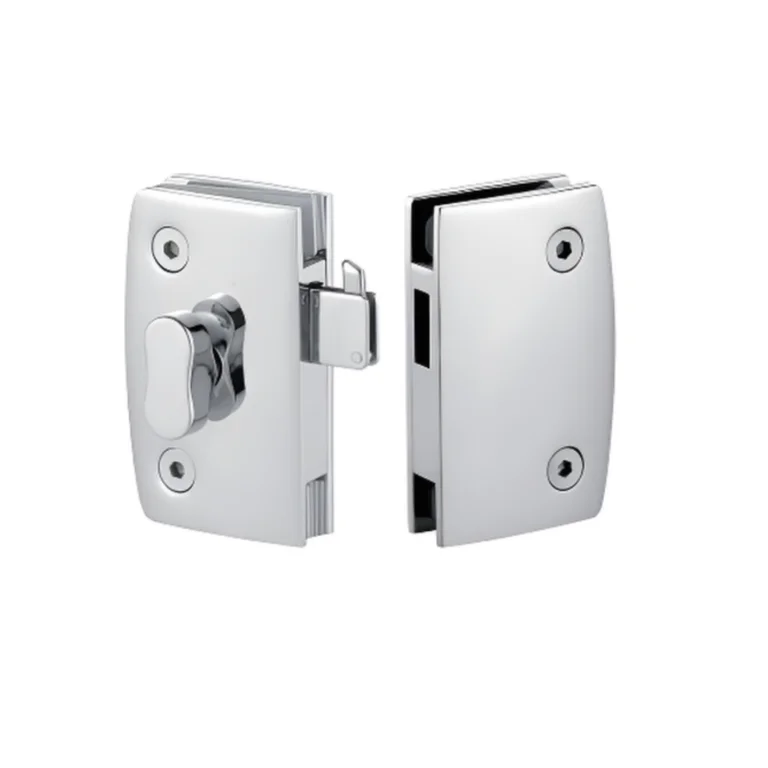

HF-33 Pair

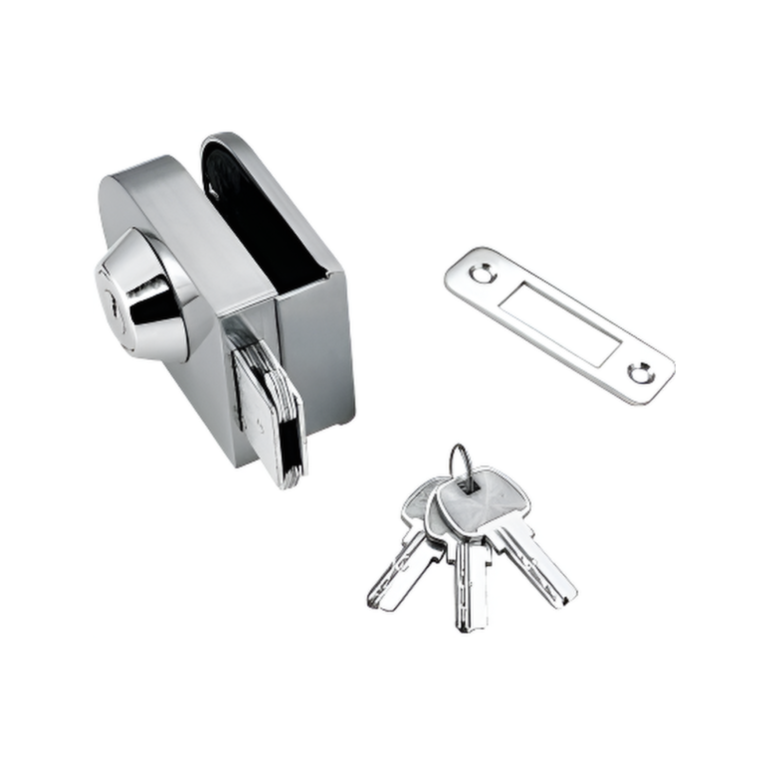

HF-35

HF-36

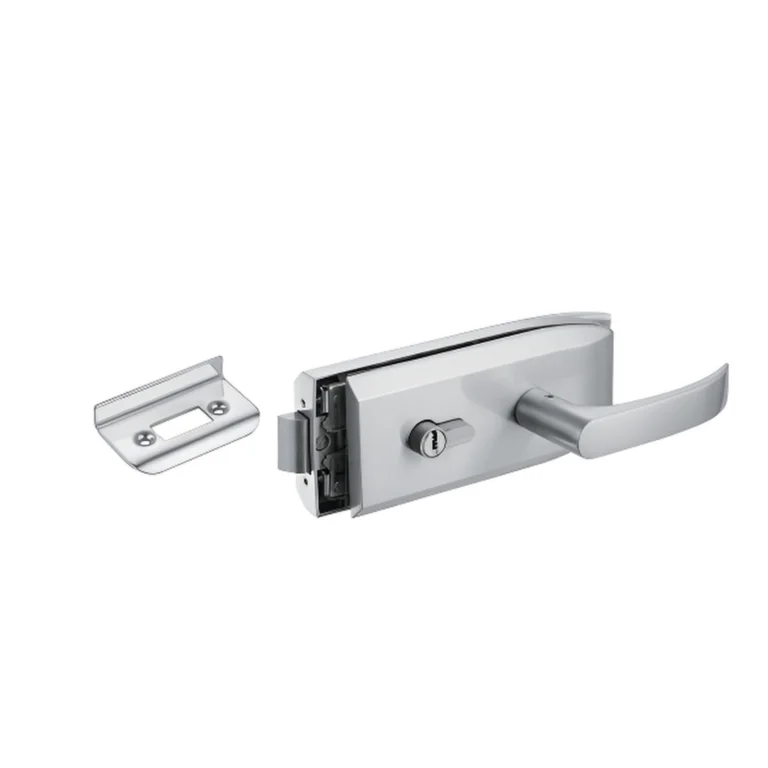

HF-37

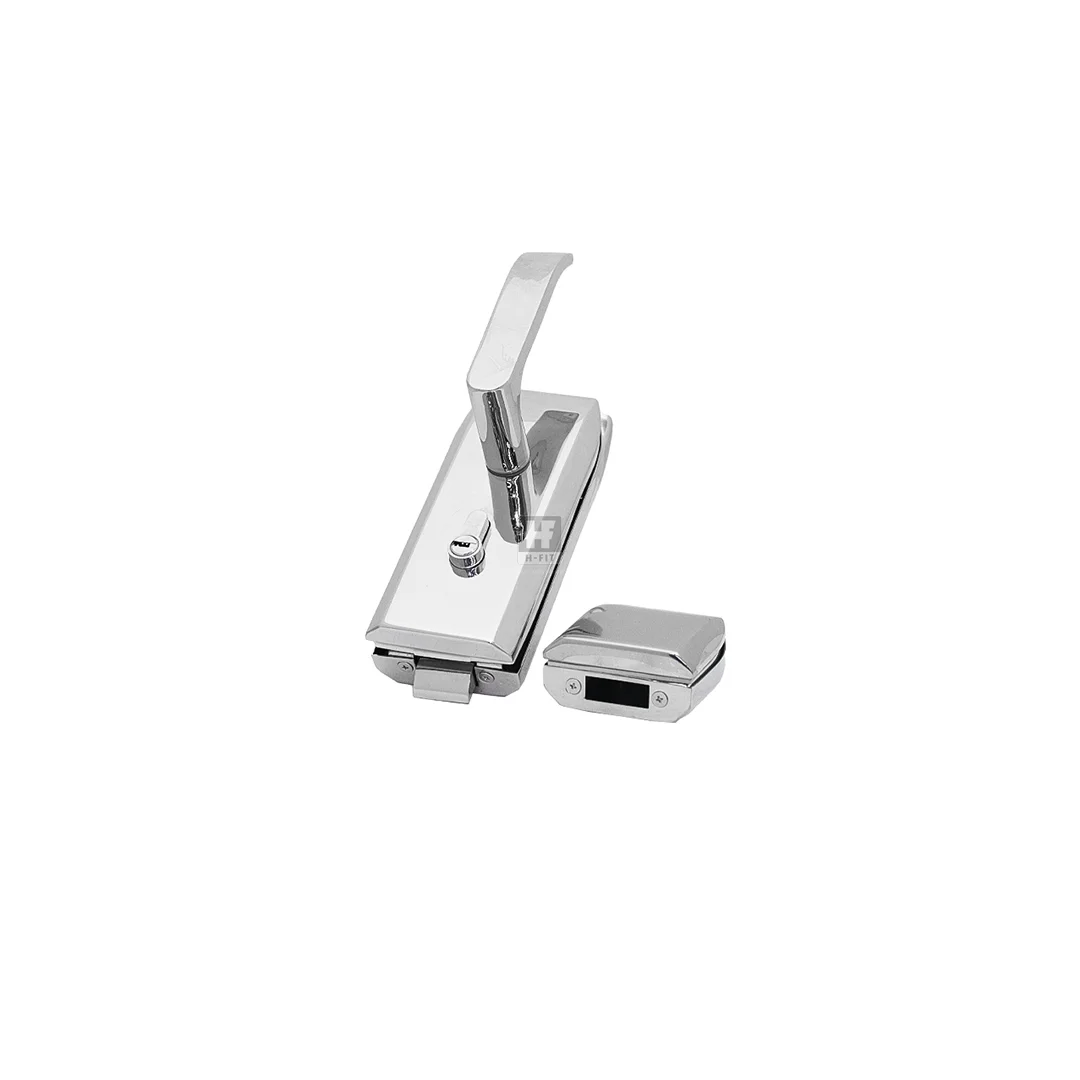

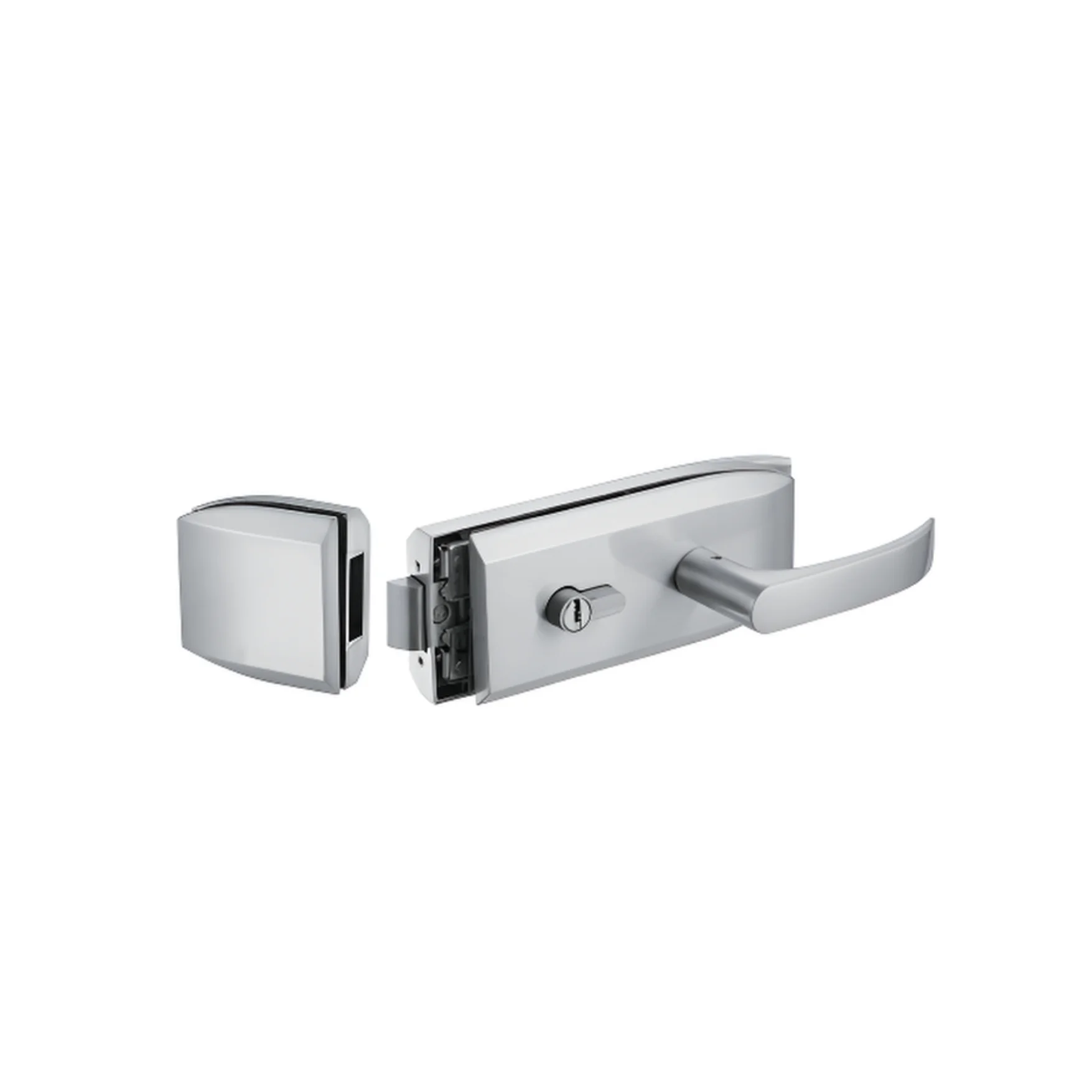

HF-37 Pair

HF-38

HF-51

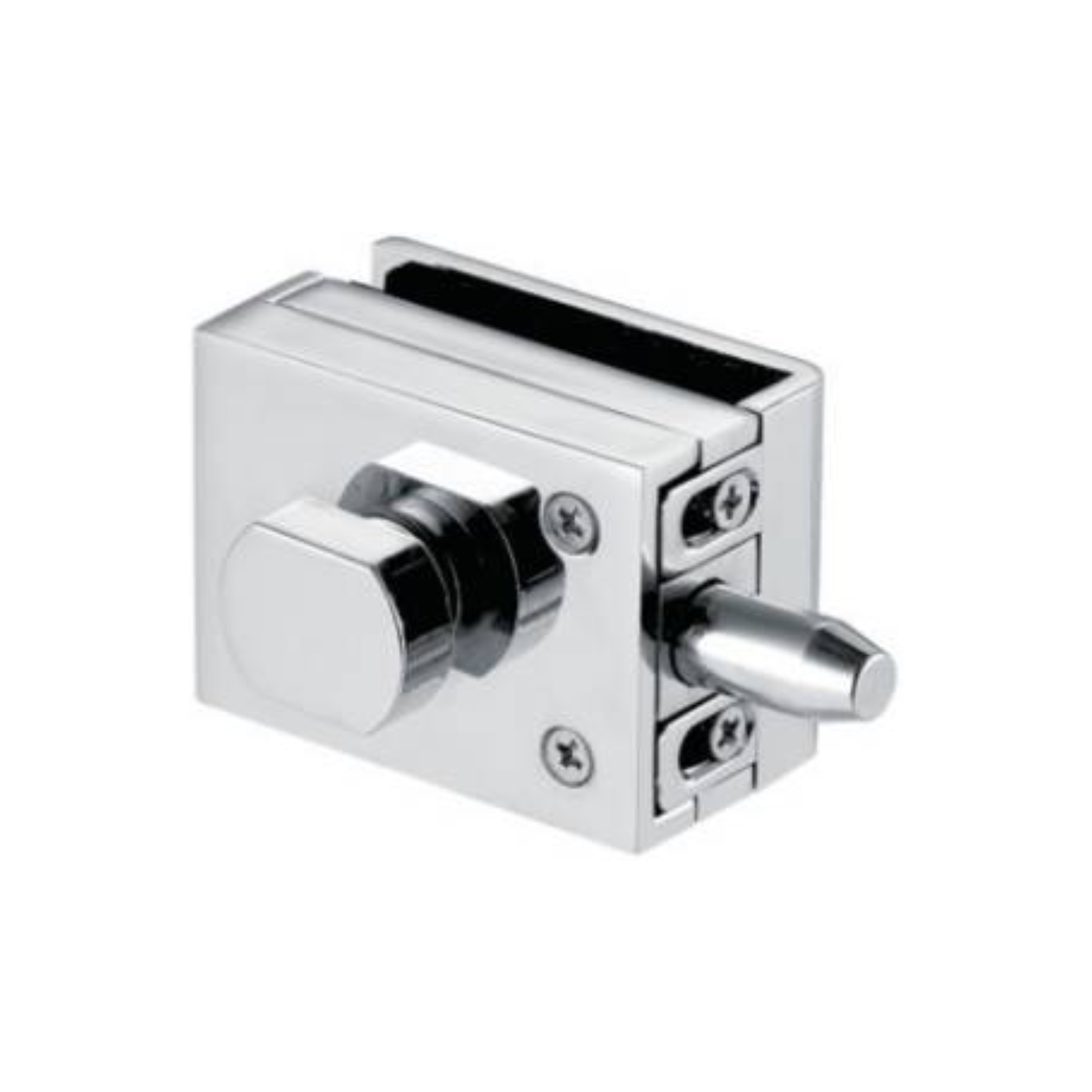

HF-52

HF-192/S

HF-378

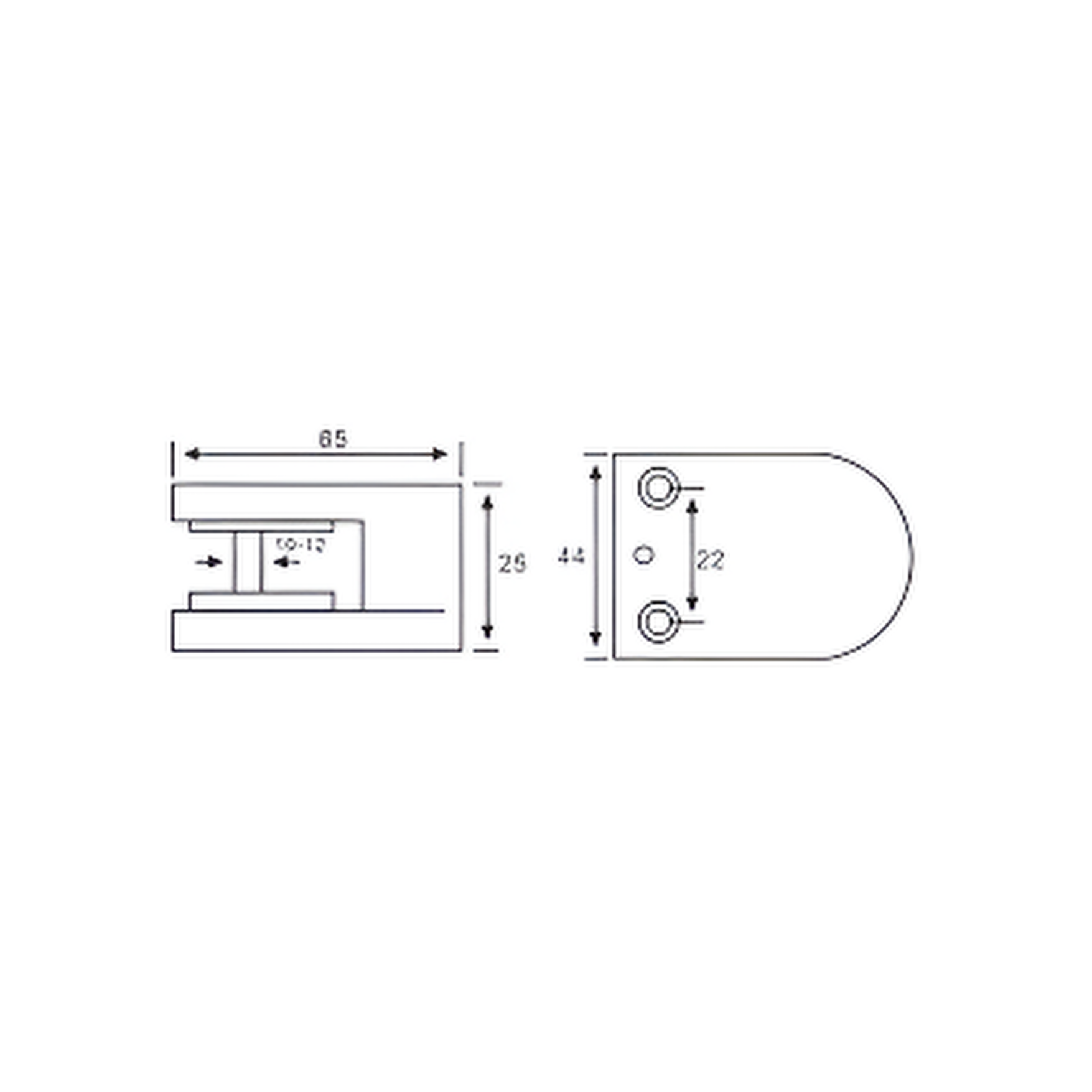

HF-61/R

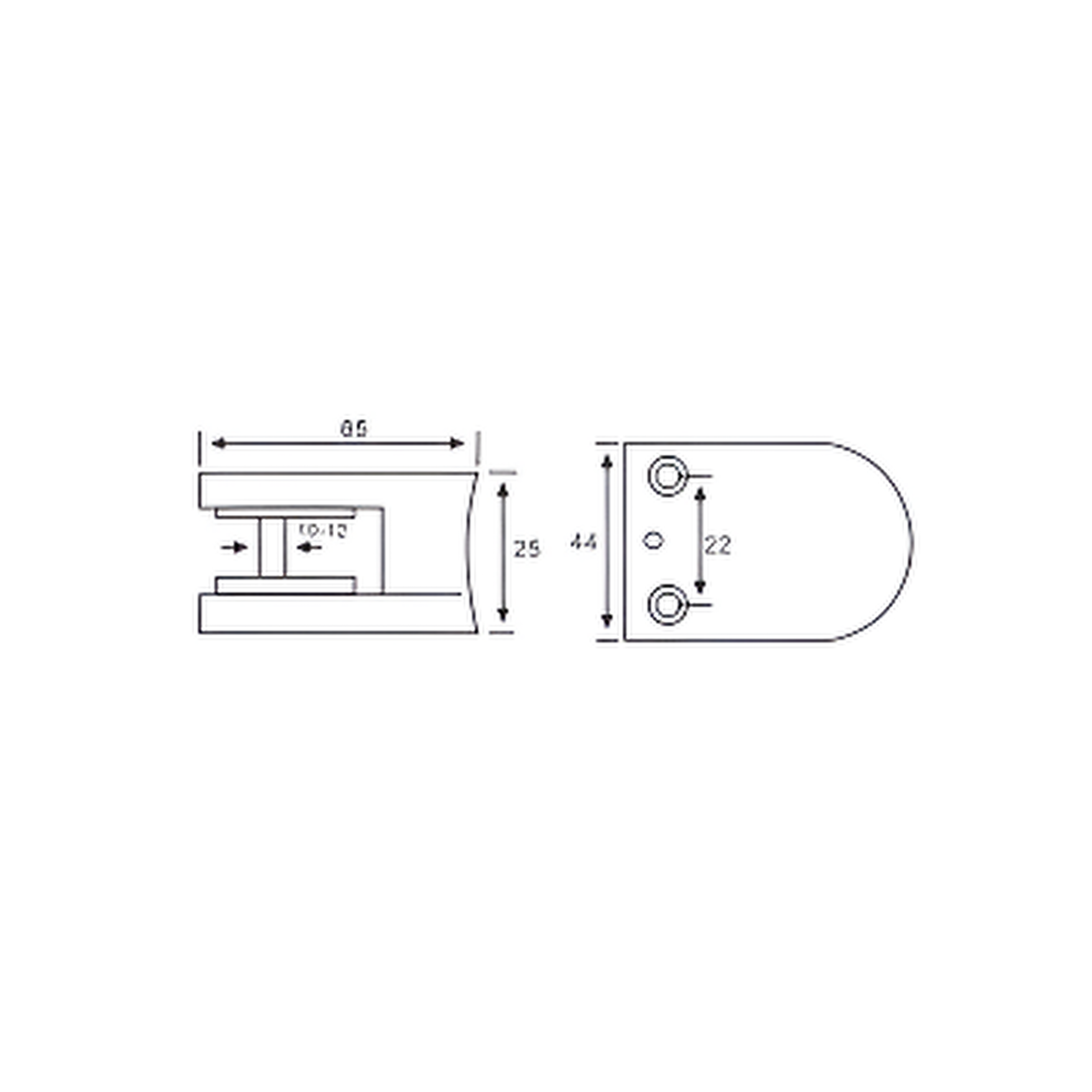

HF-62/F

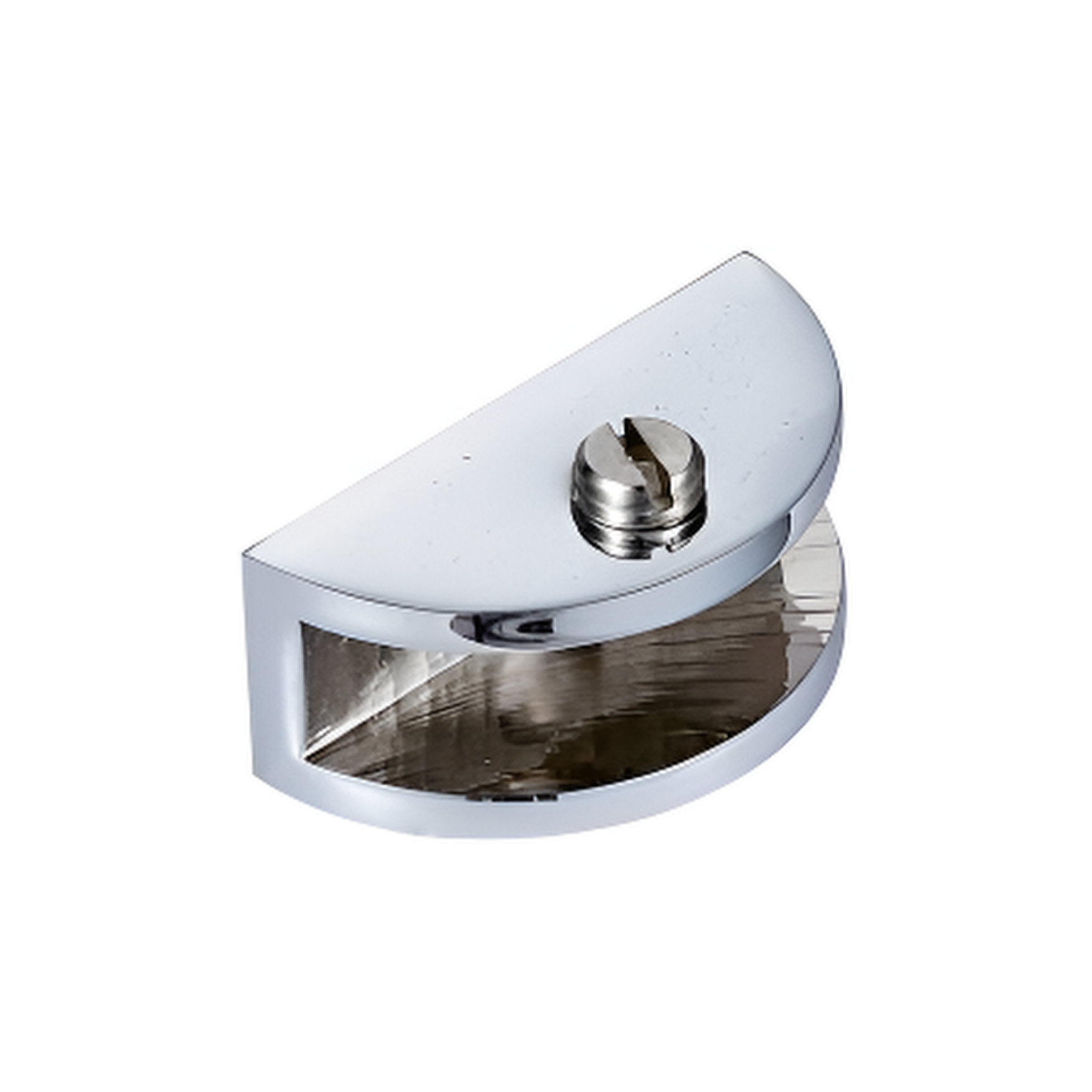

HF-215

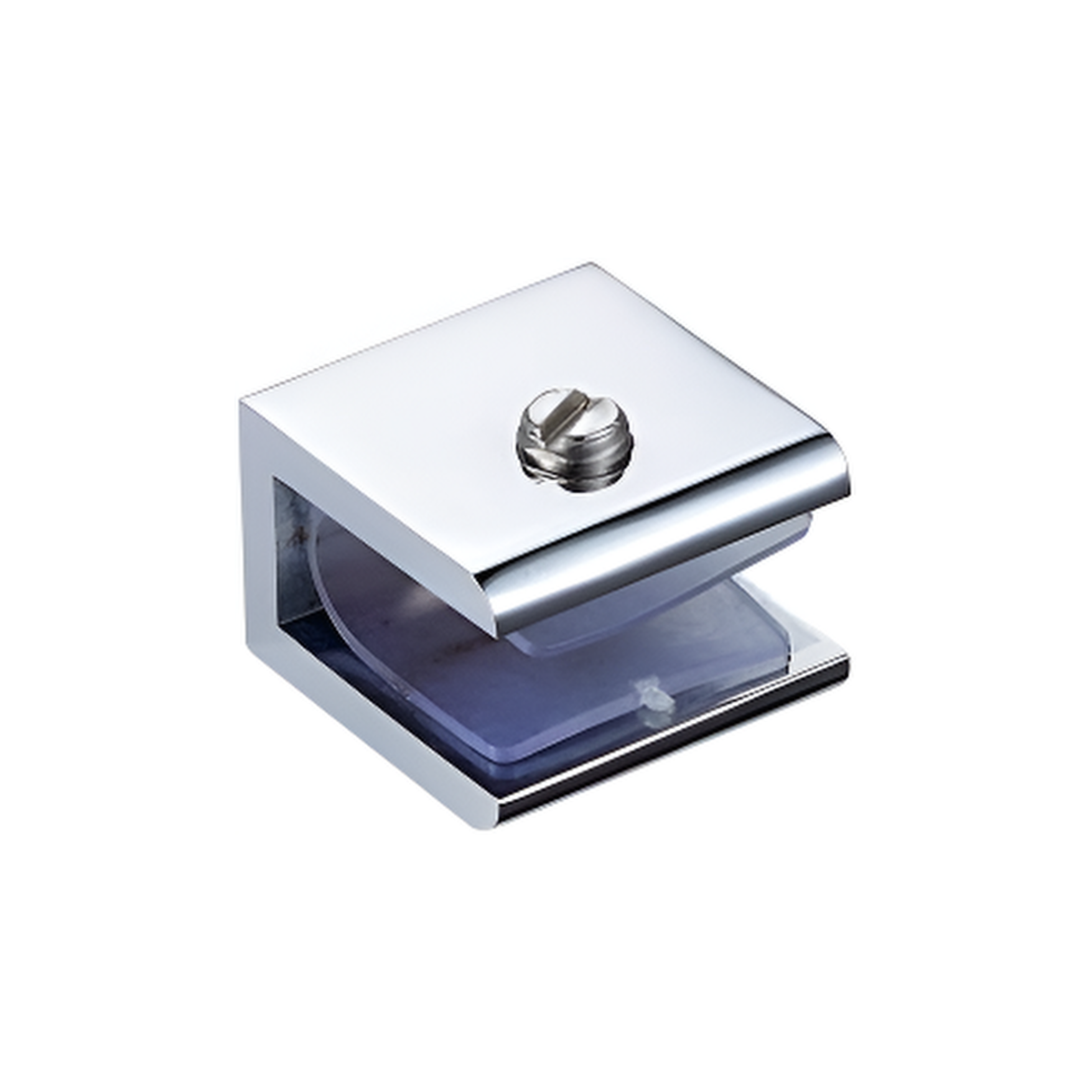

HF-232

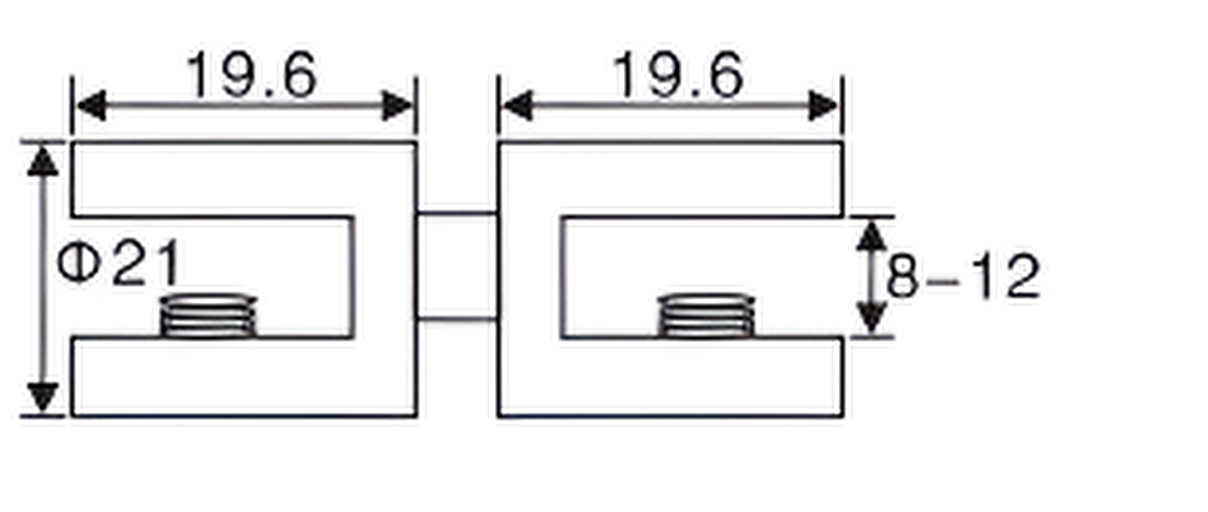

HF-235

HF-352

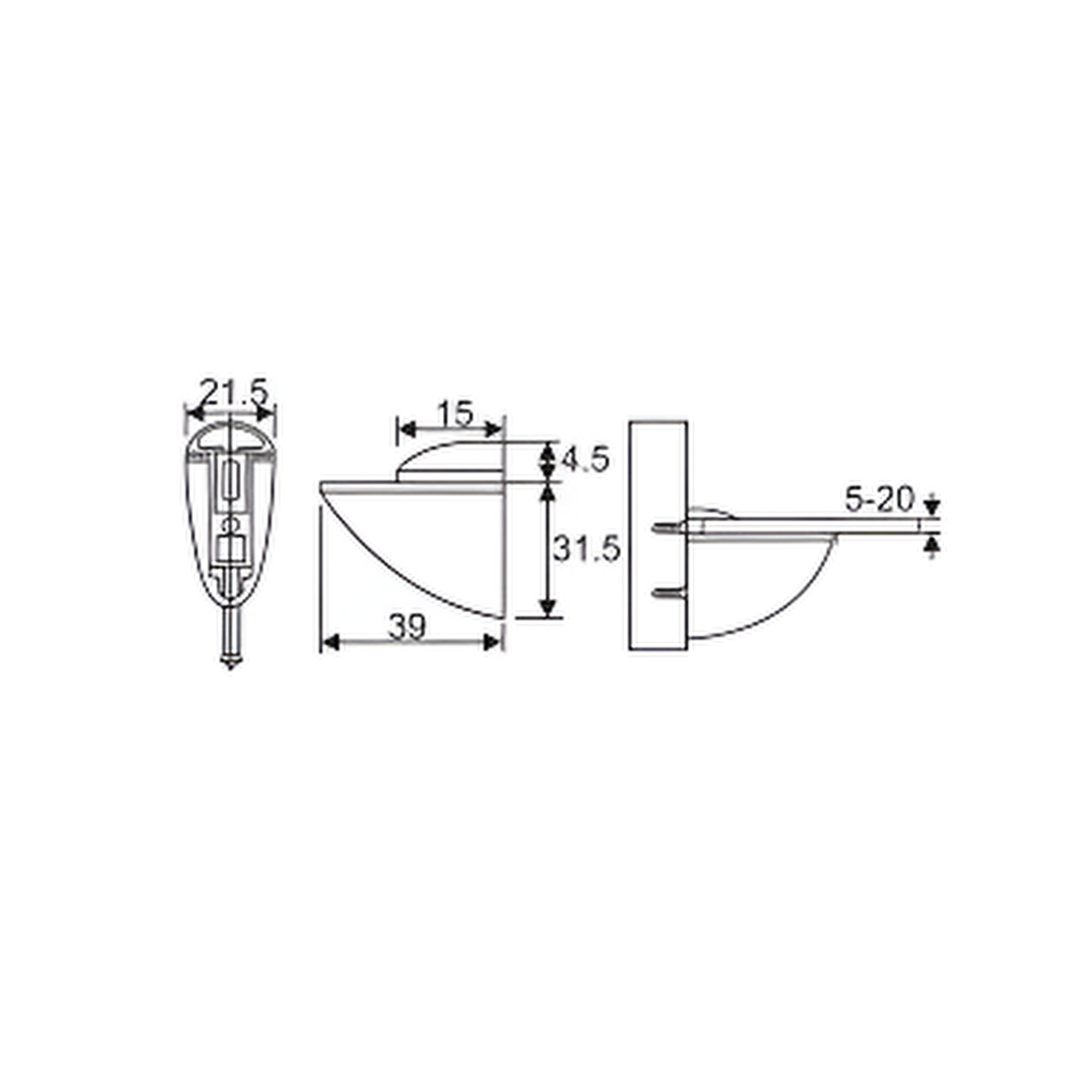

HF-452

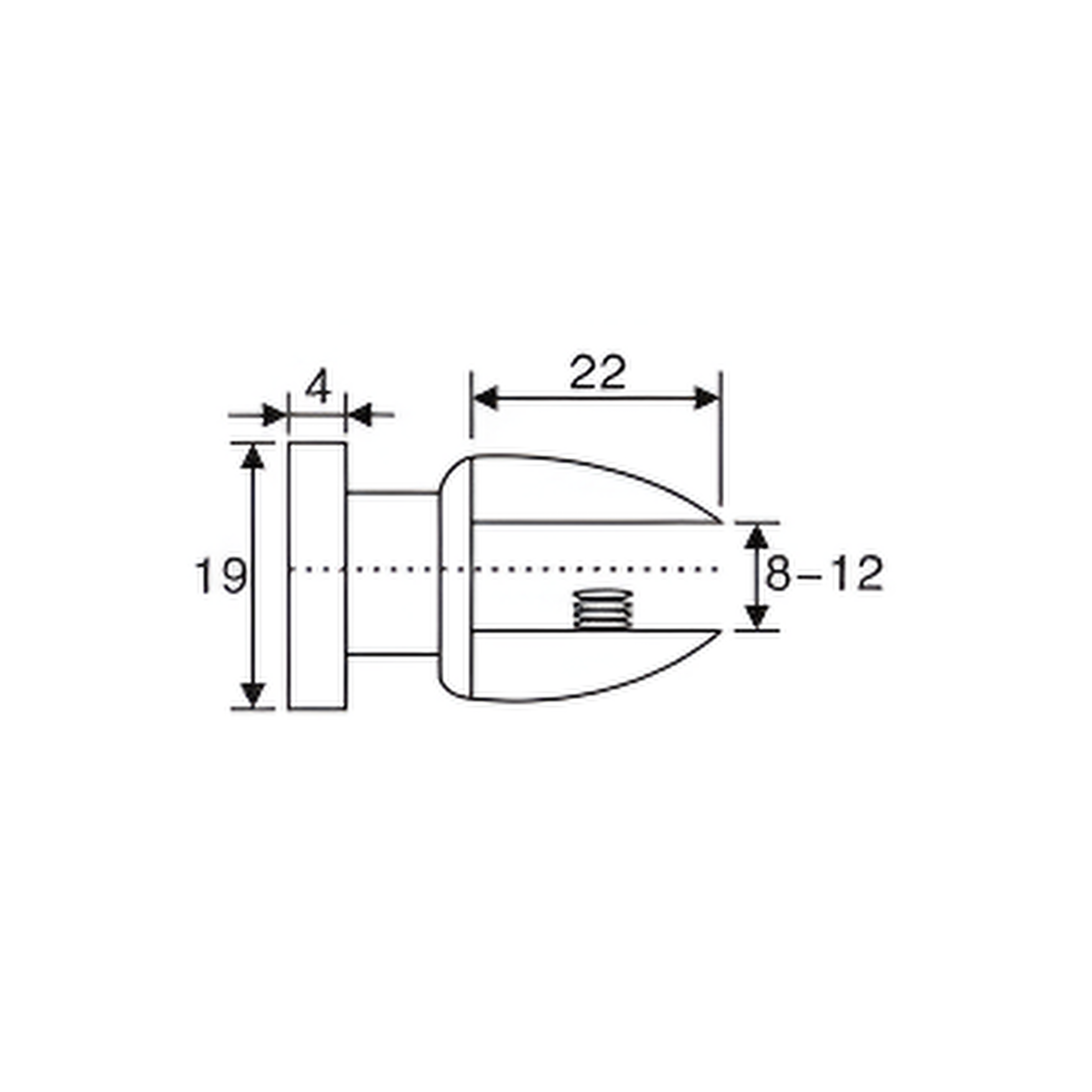

HF-492

HF-532

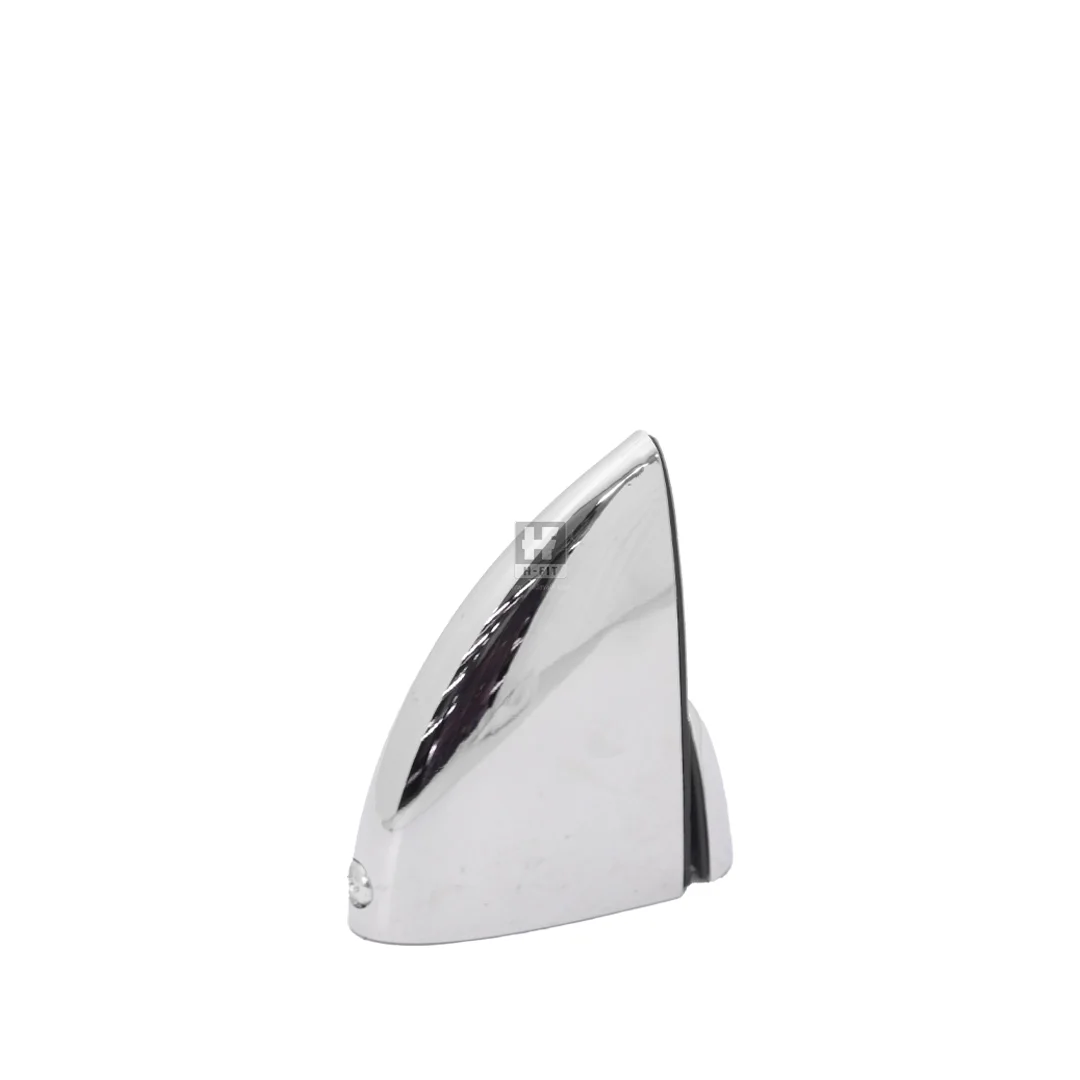

HF-652

HF-842

HF-843

HF-942

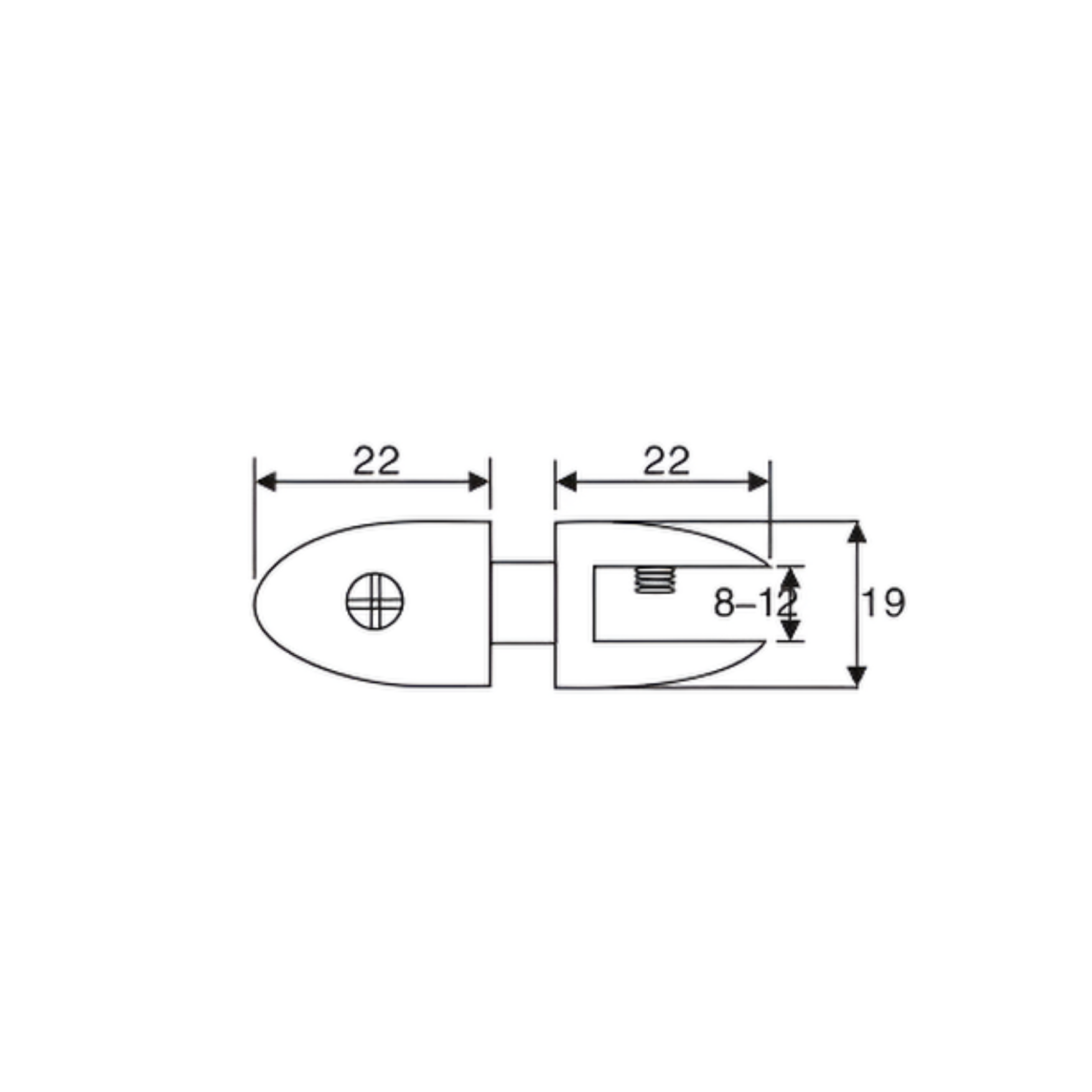

HF-502

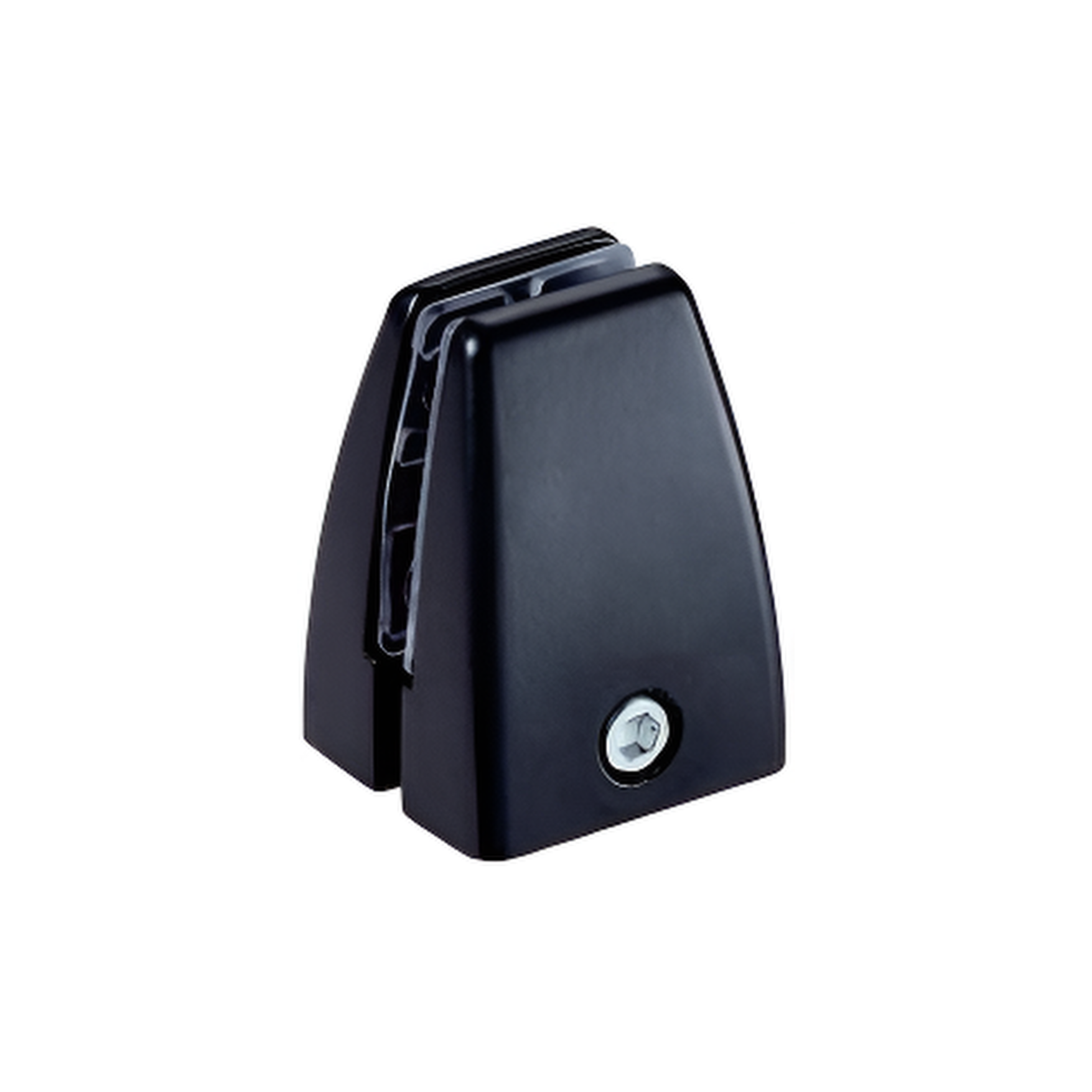

HF-A268

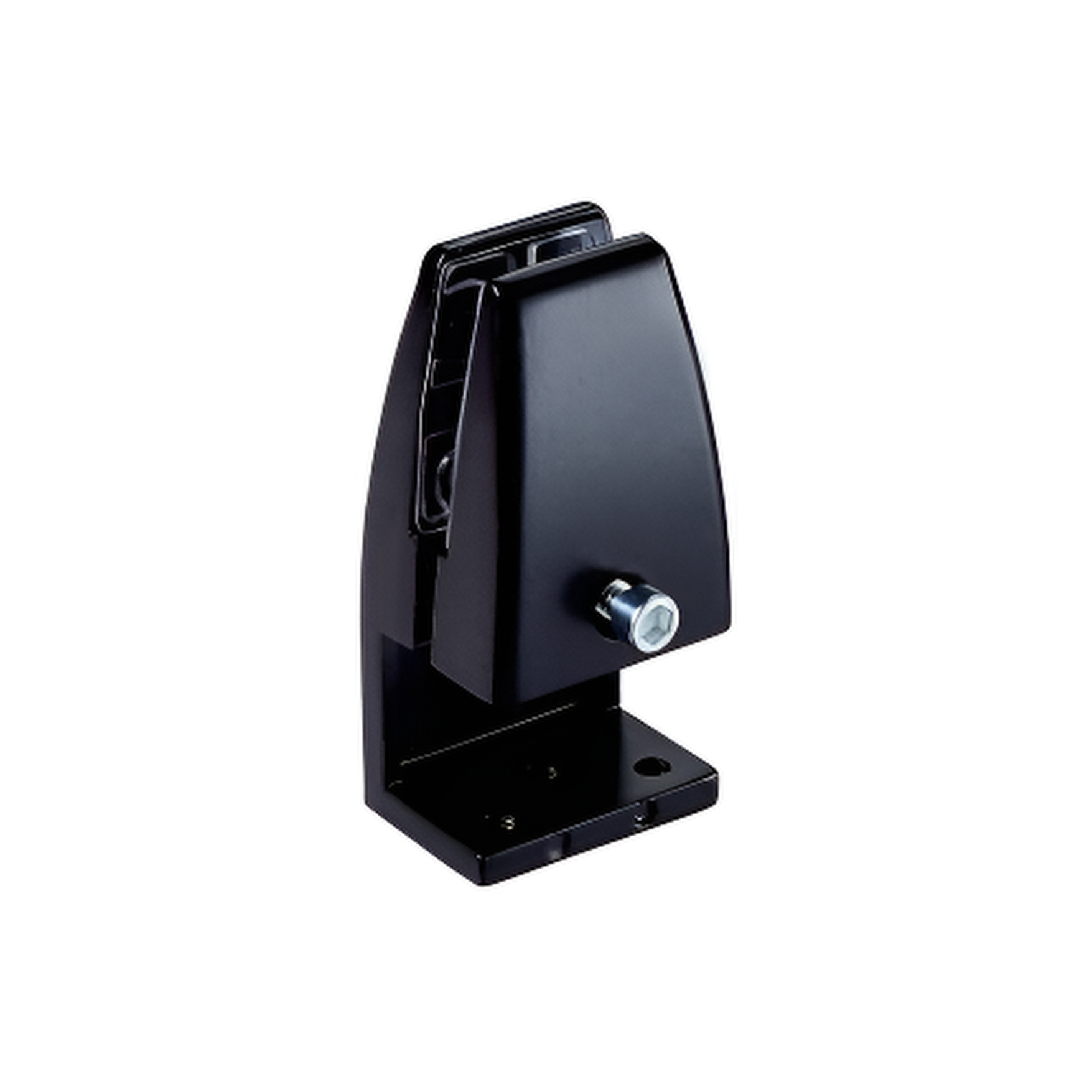

HF-A269

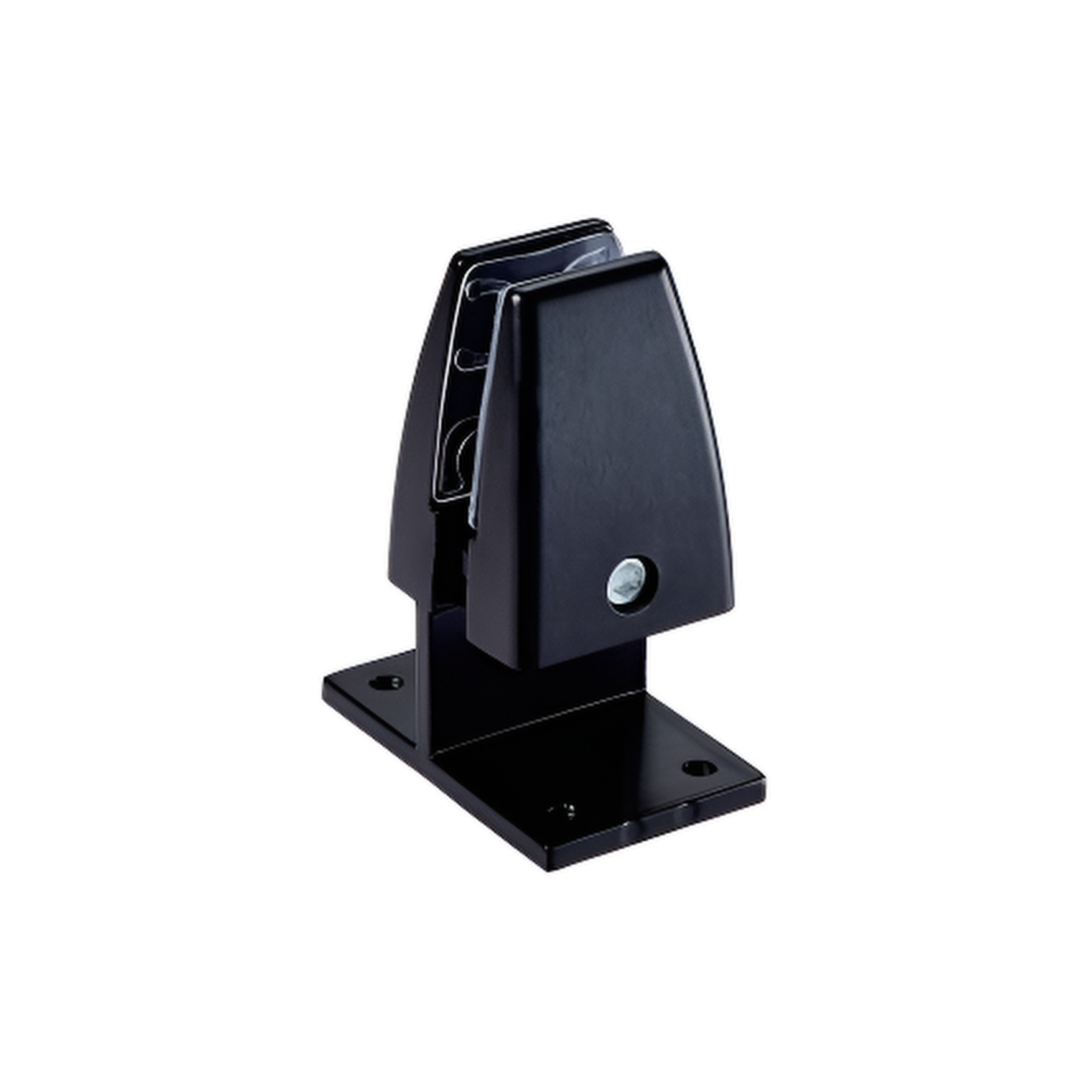

HF-A270

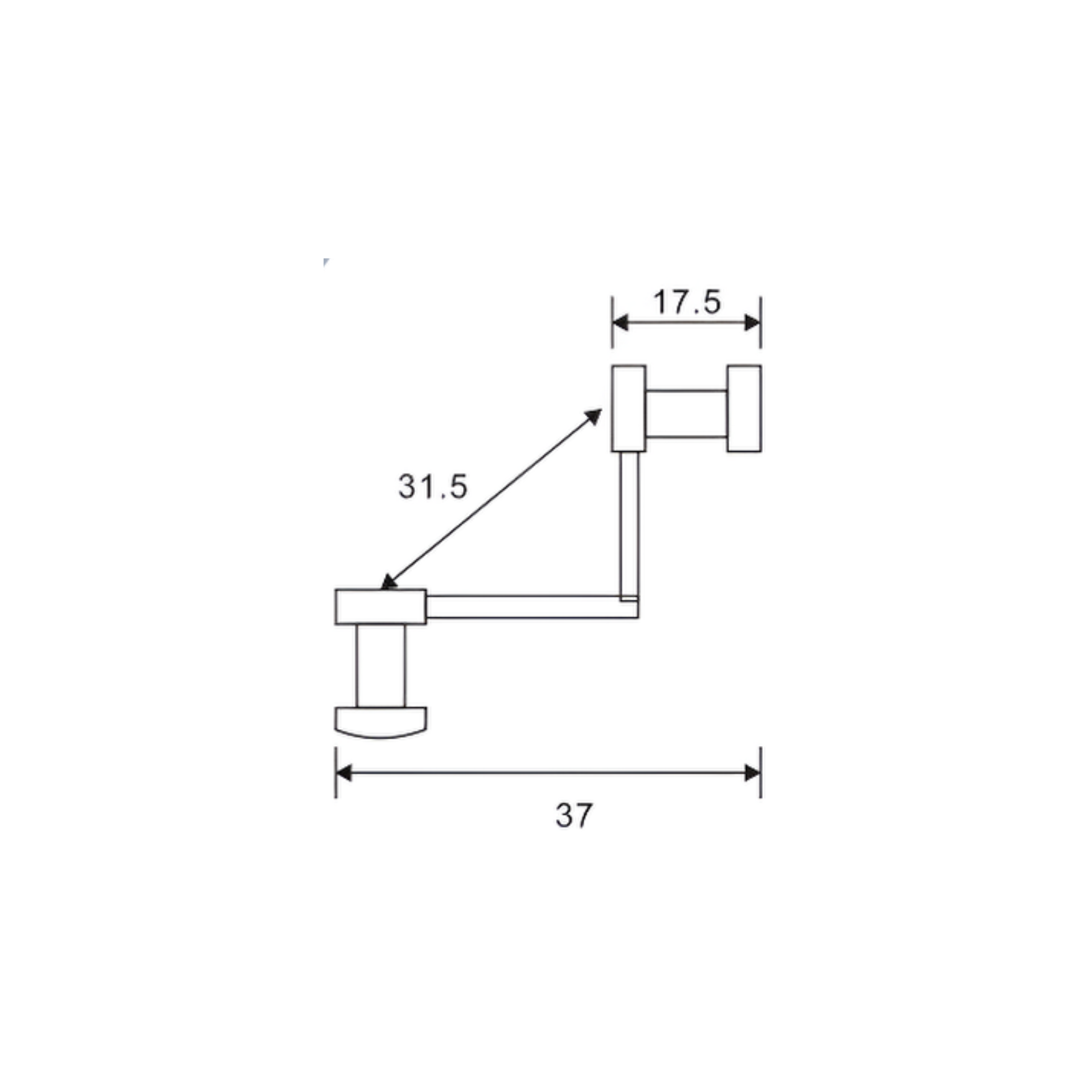

HF-2196

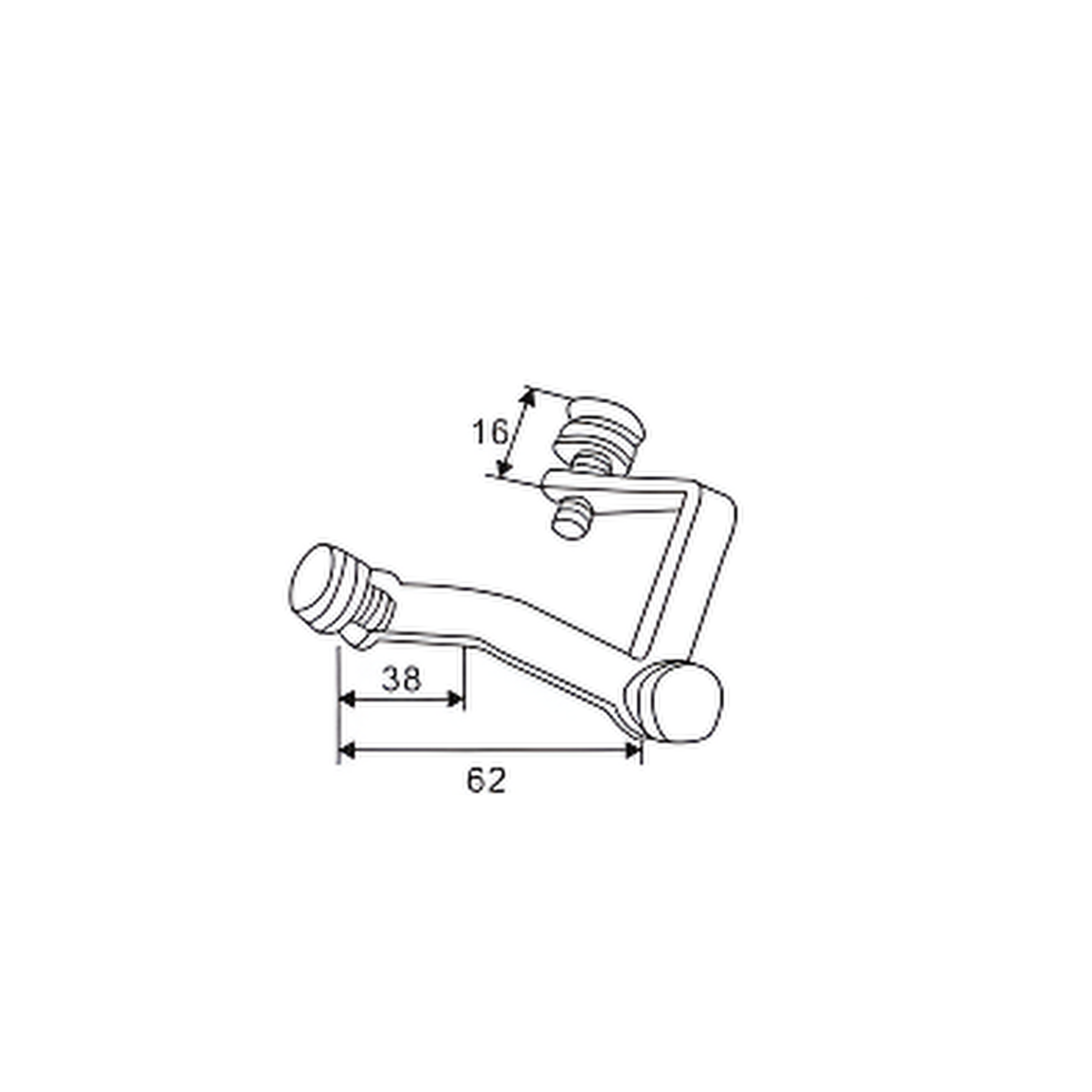

HF-2197

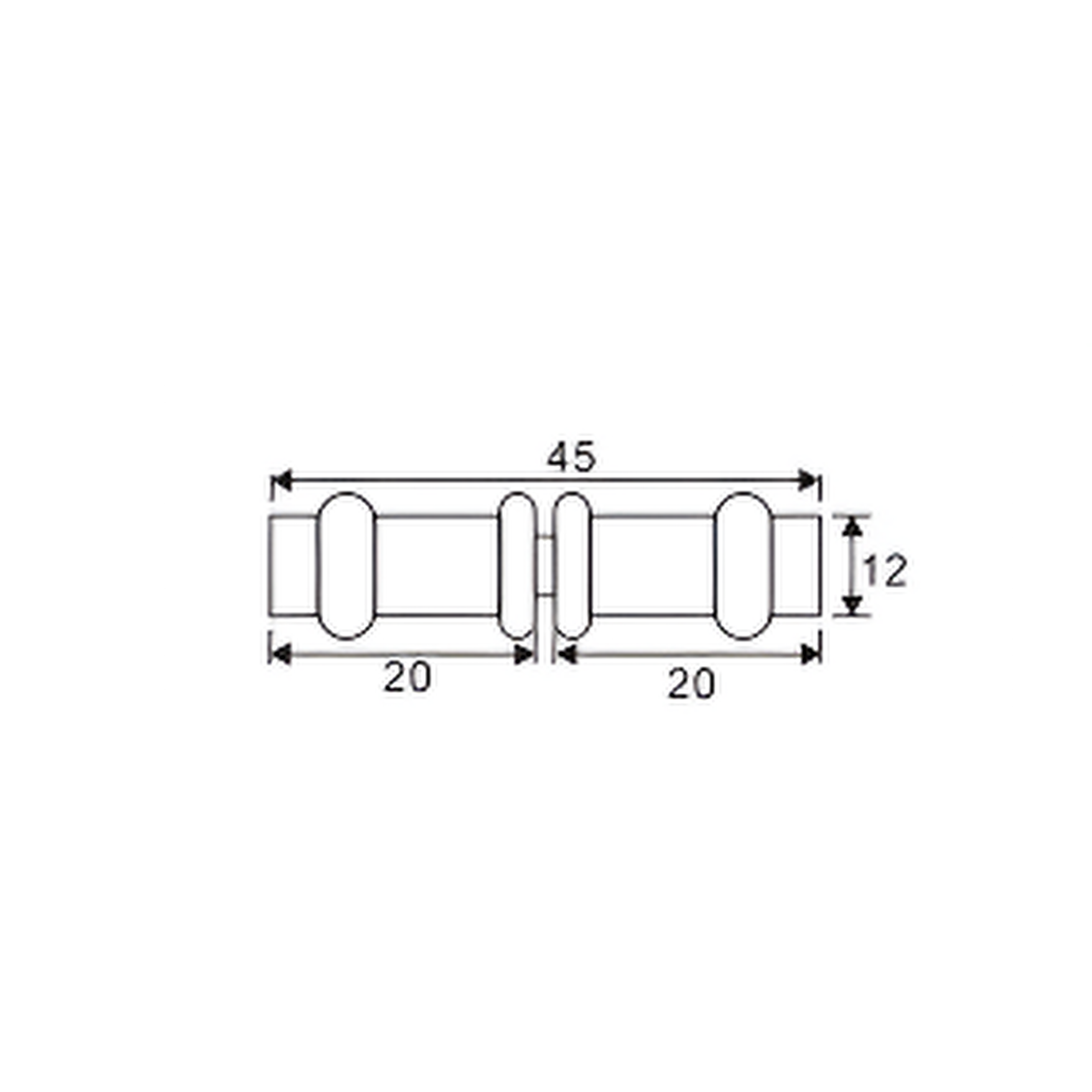

HF-2198

HF-2199

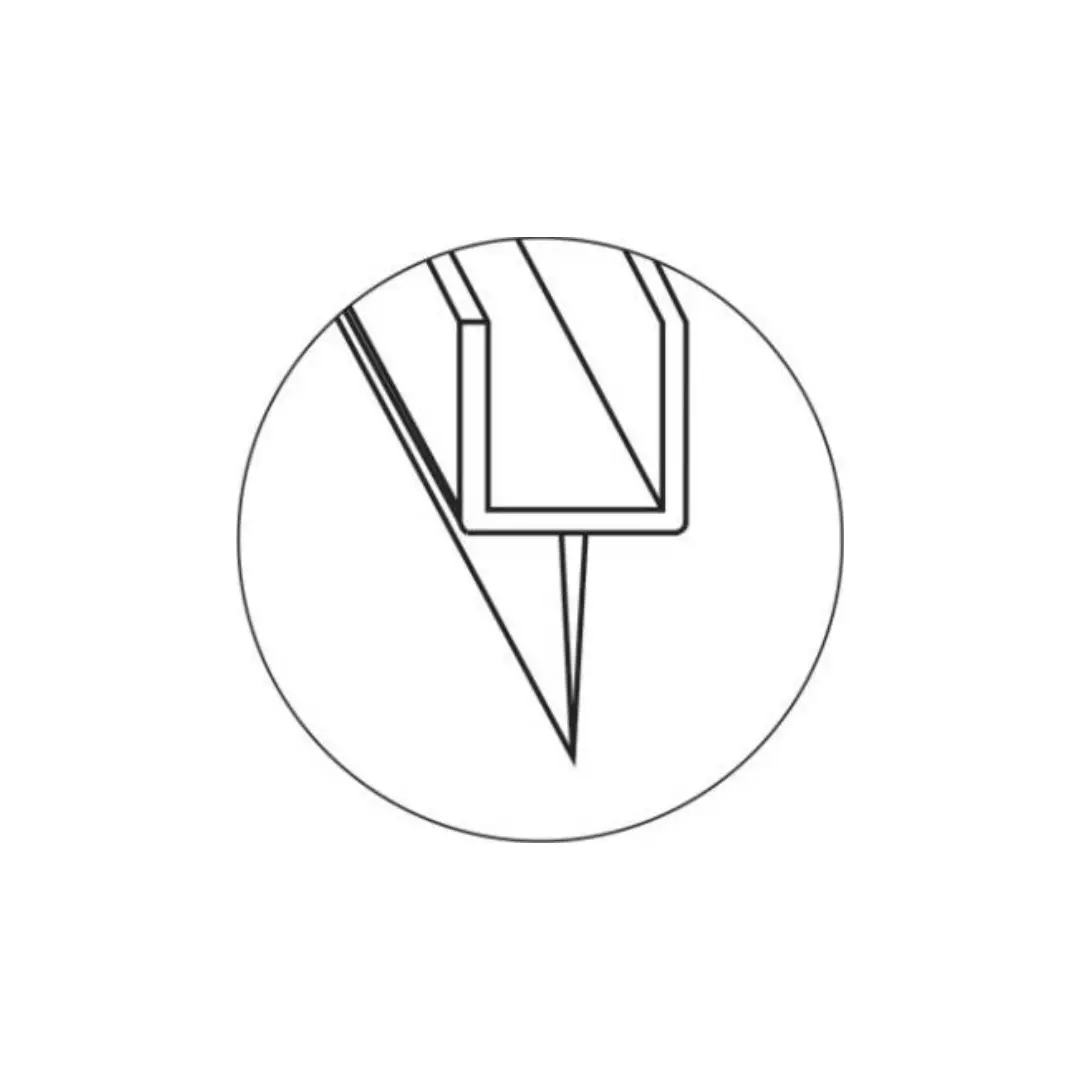

HF-001

HF-002

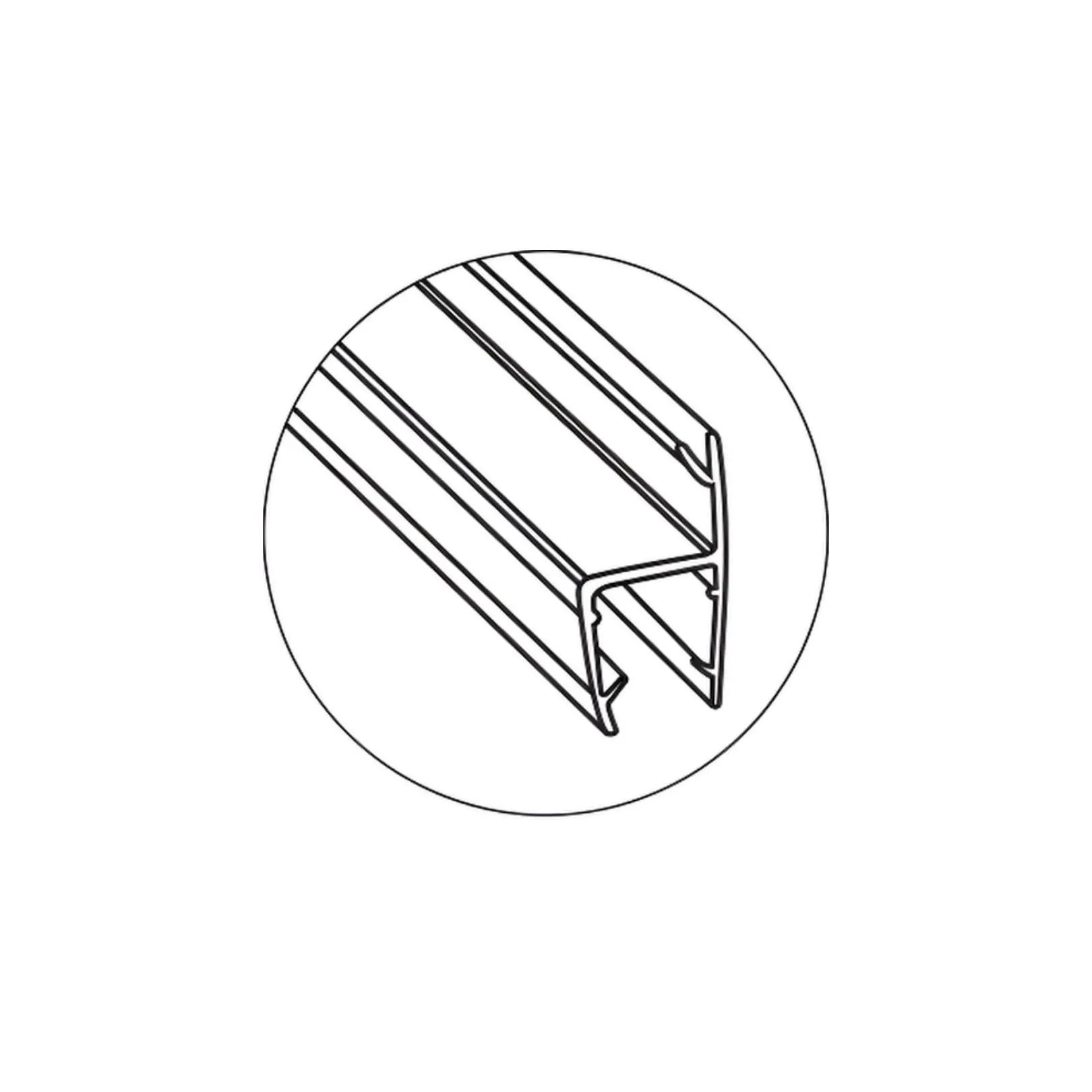

HF-003

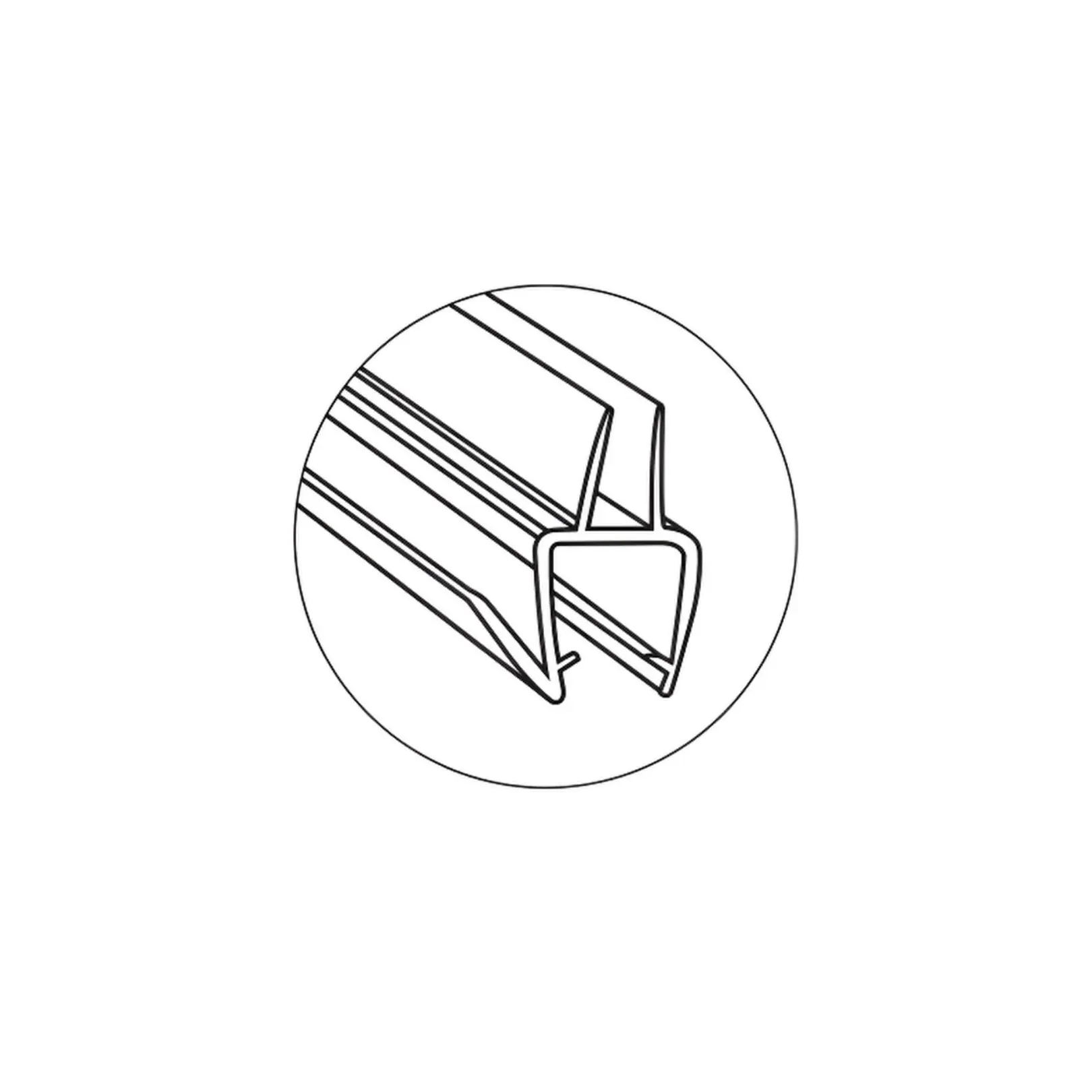

HF-004

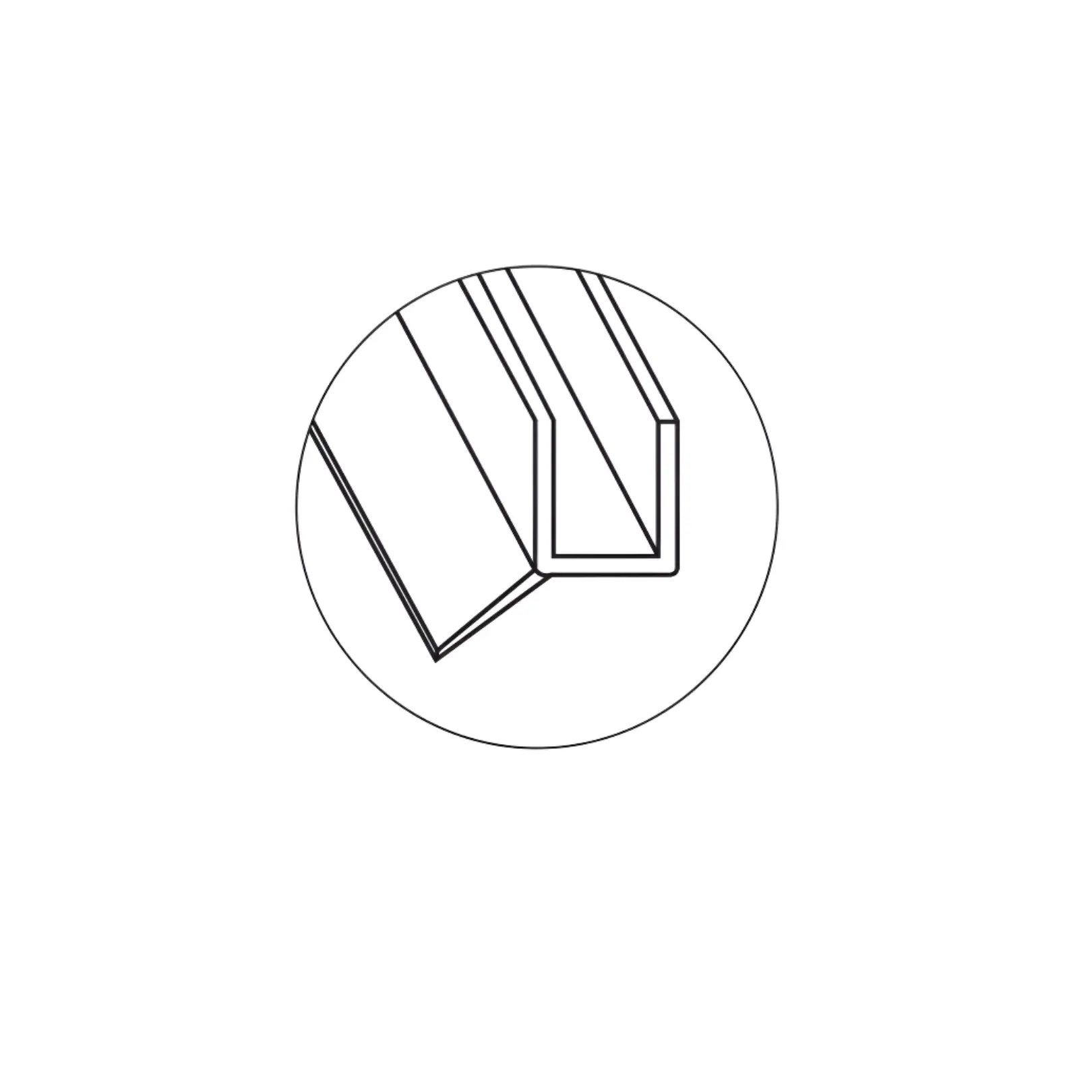

HF-005

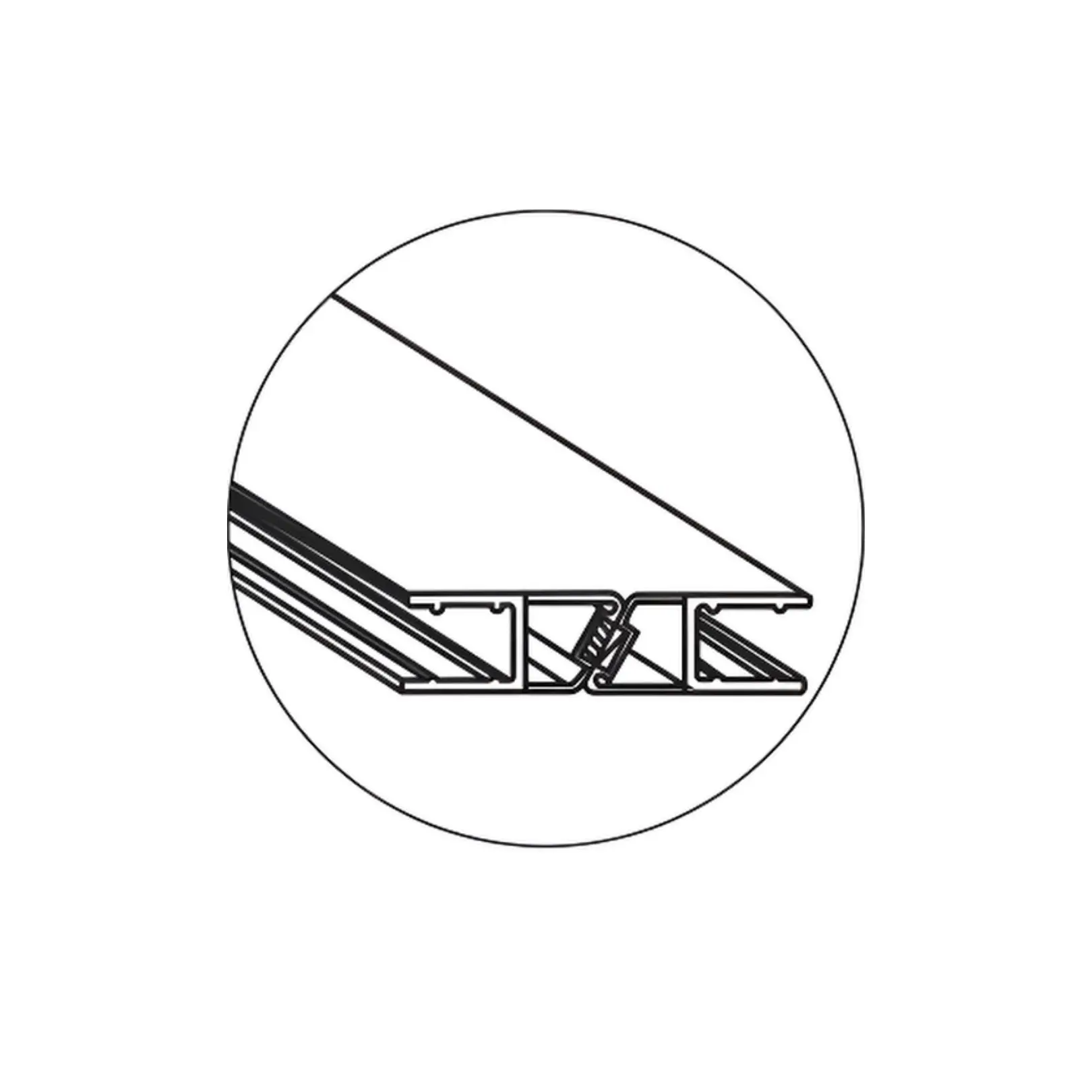

HF-008

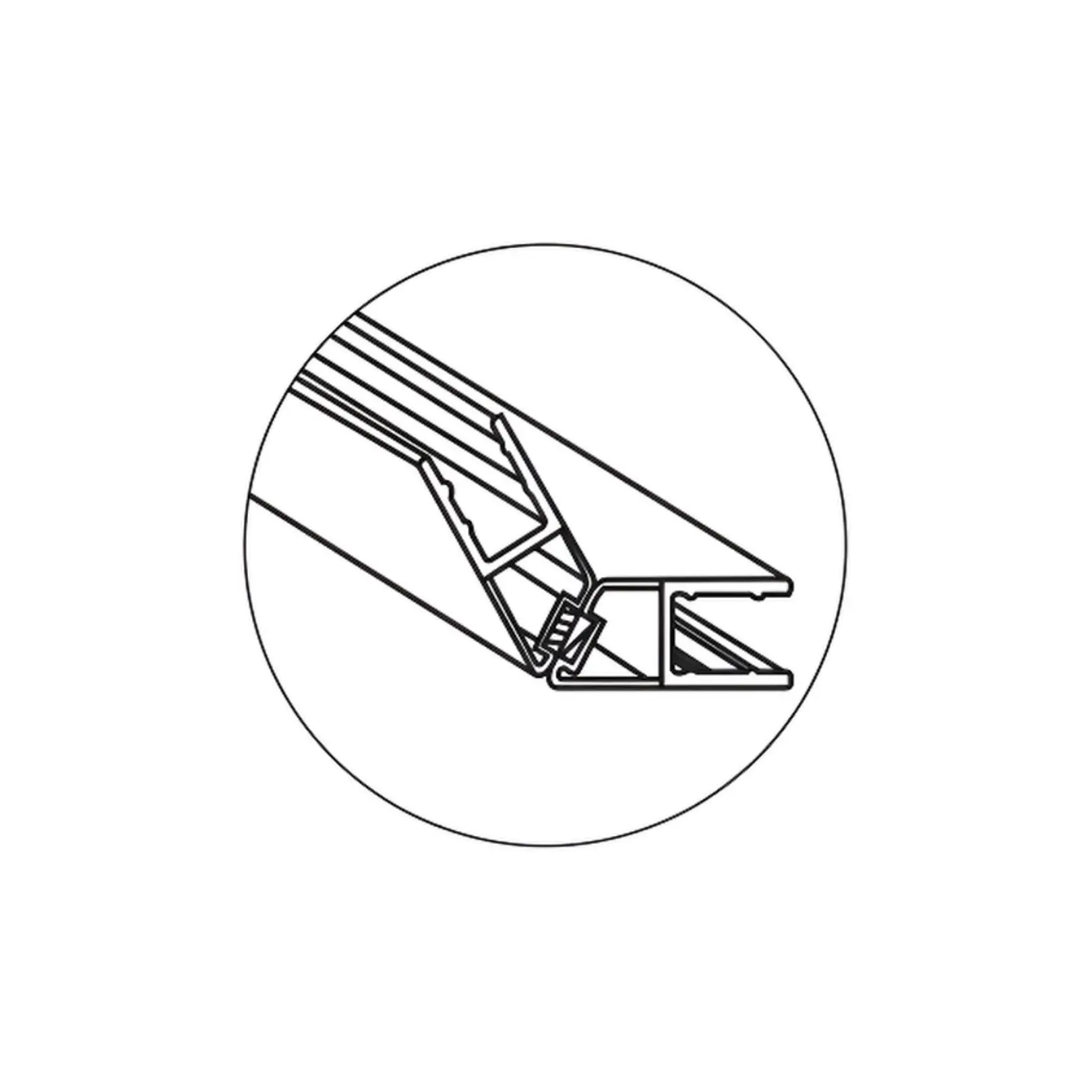

HF-010

HF-011

HF-012

HF-014

HF-015

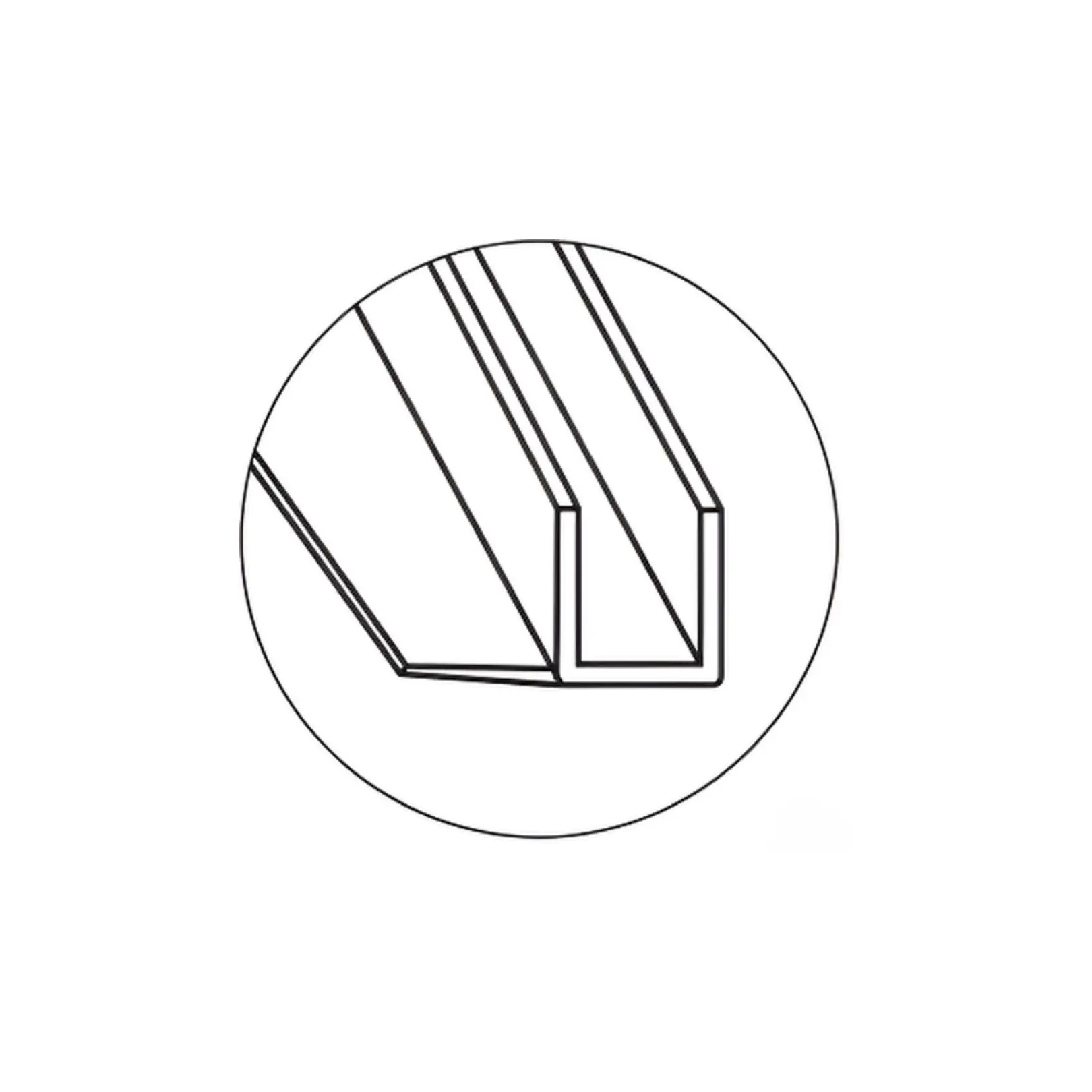

HF-020

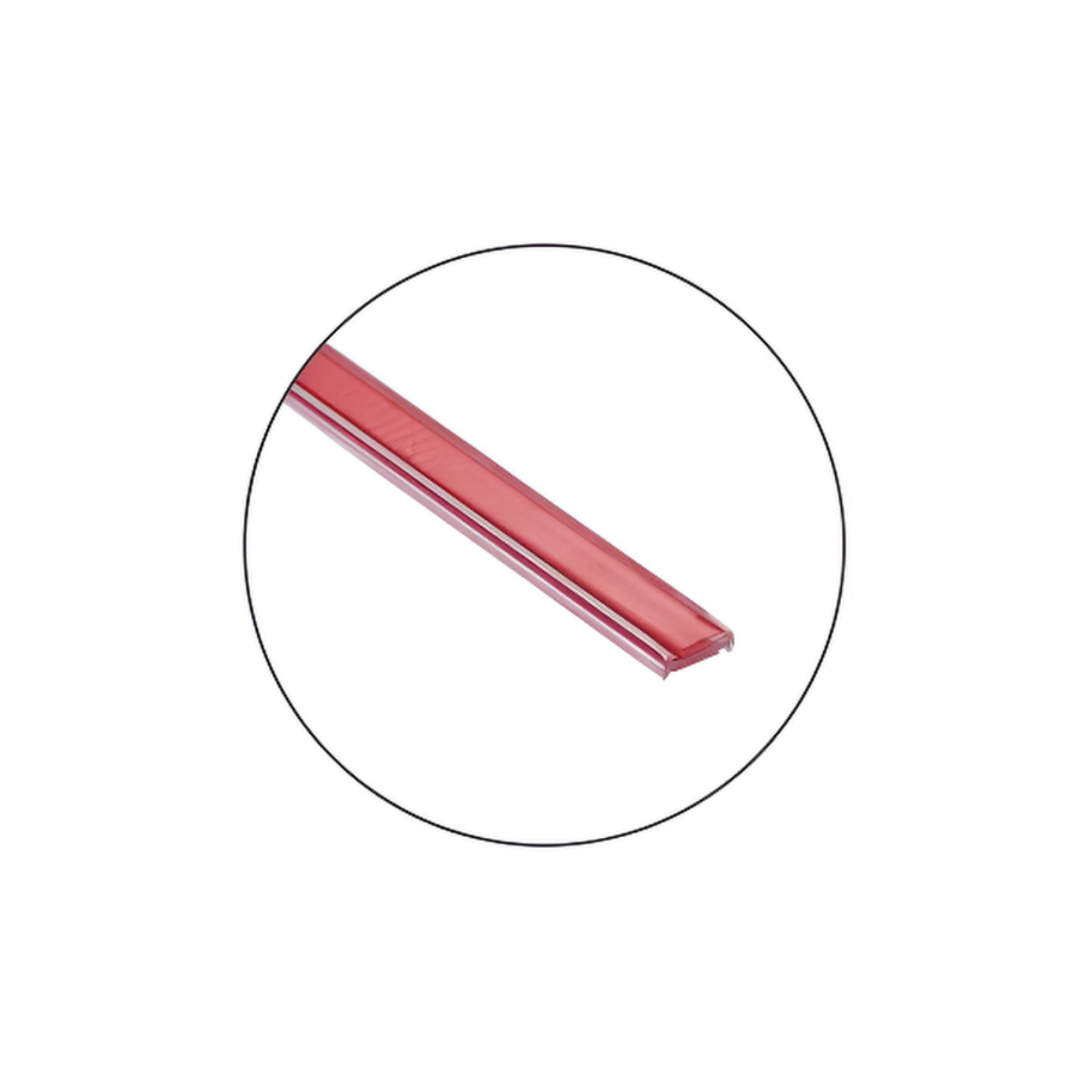

HF-022-10MM

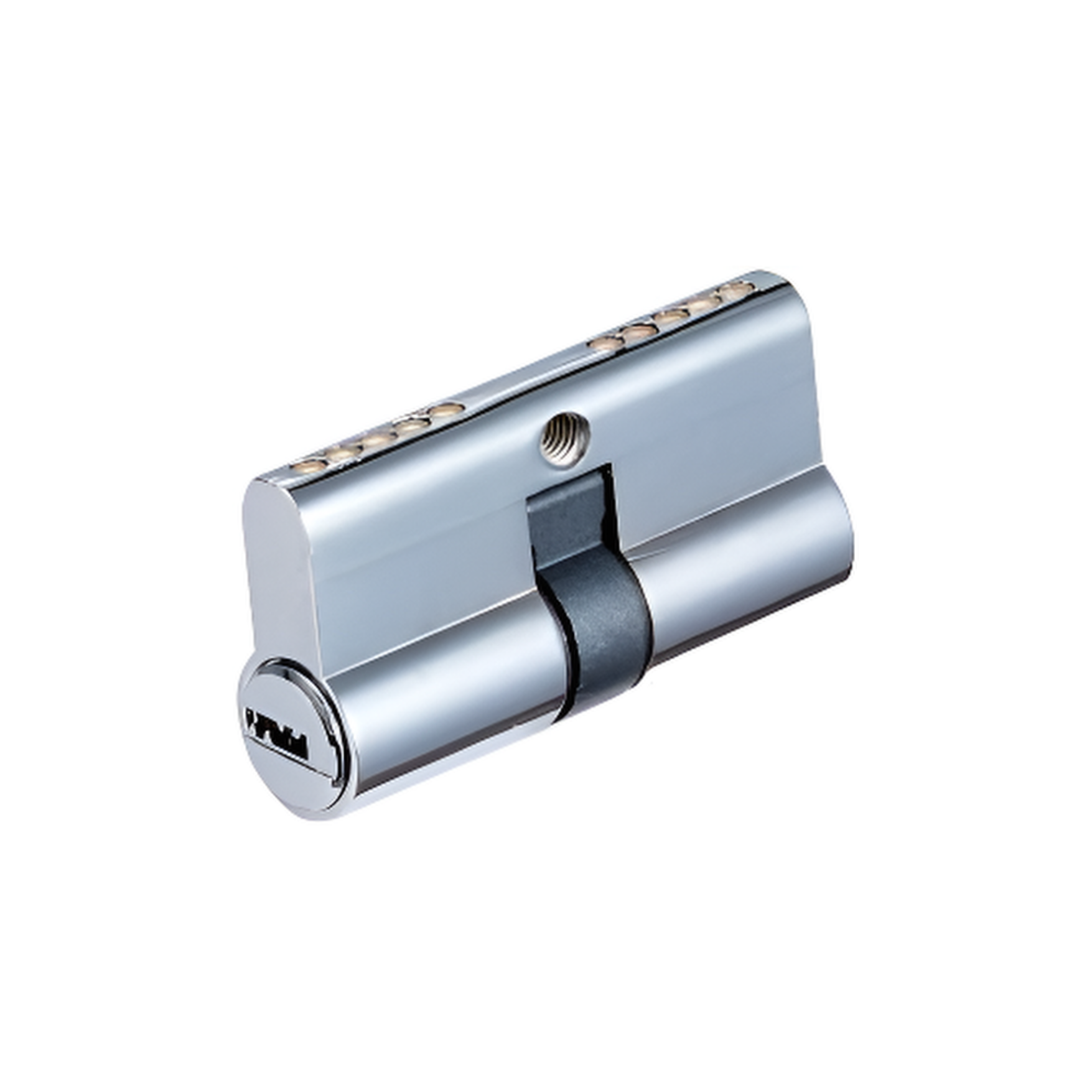

Cylinder Key-60

HF-07

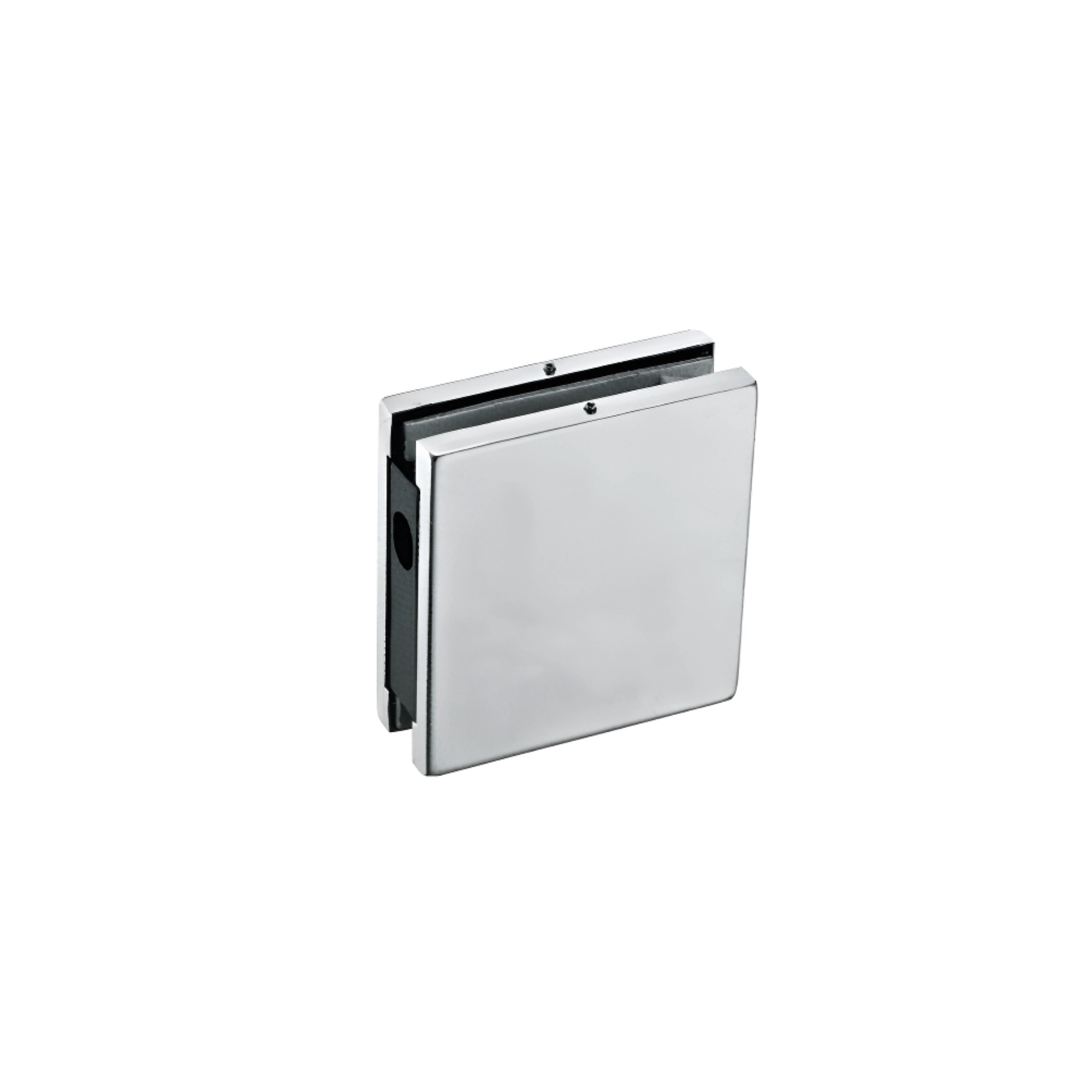

HF-07K

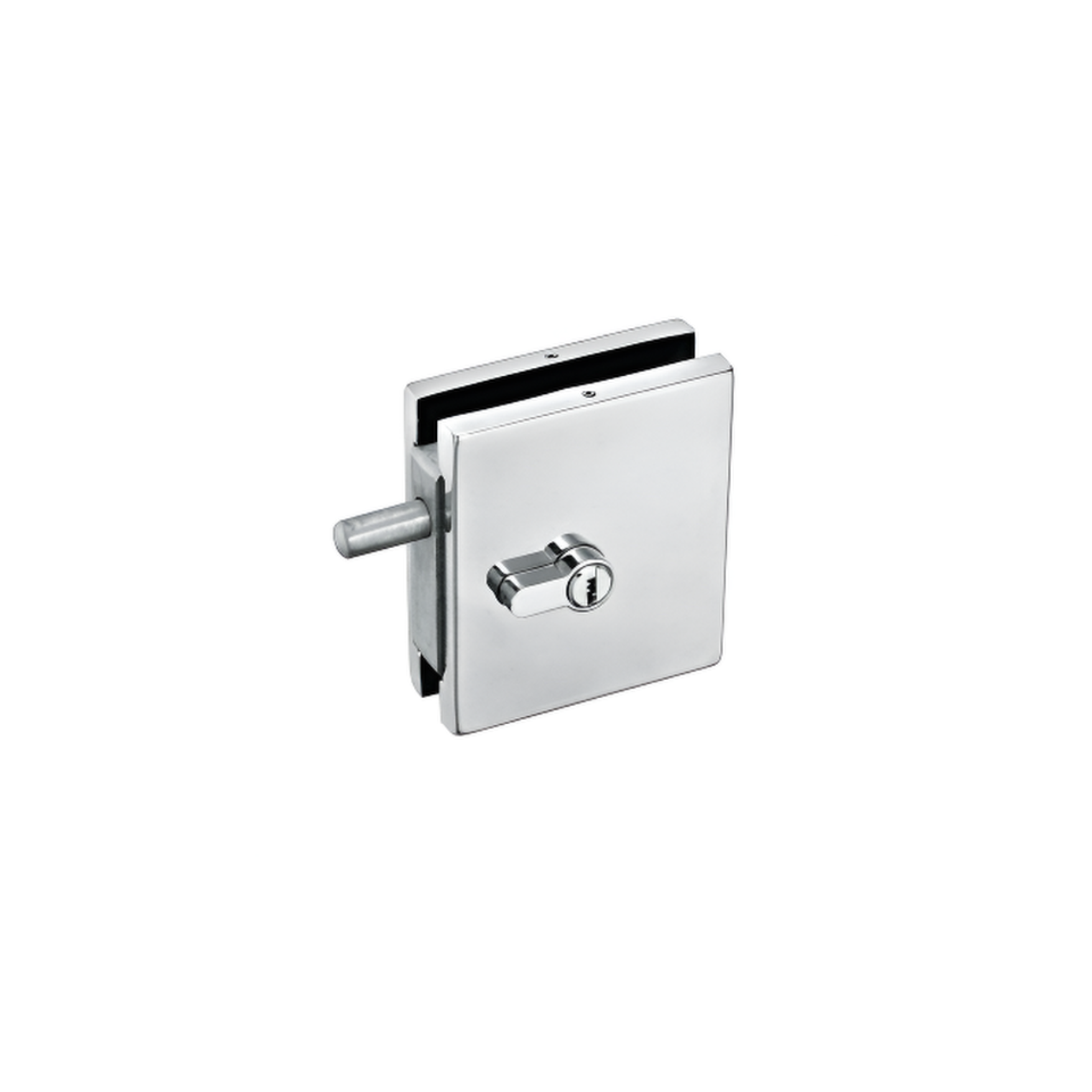

HF-08

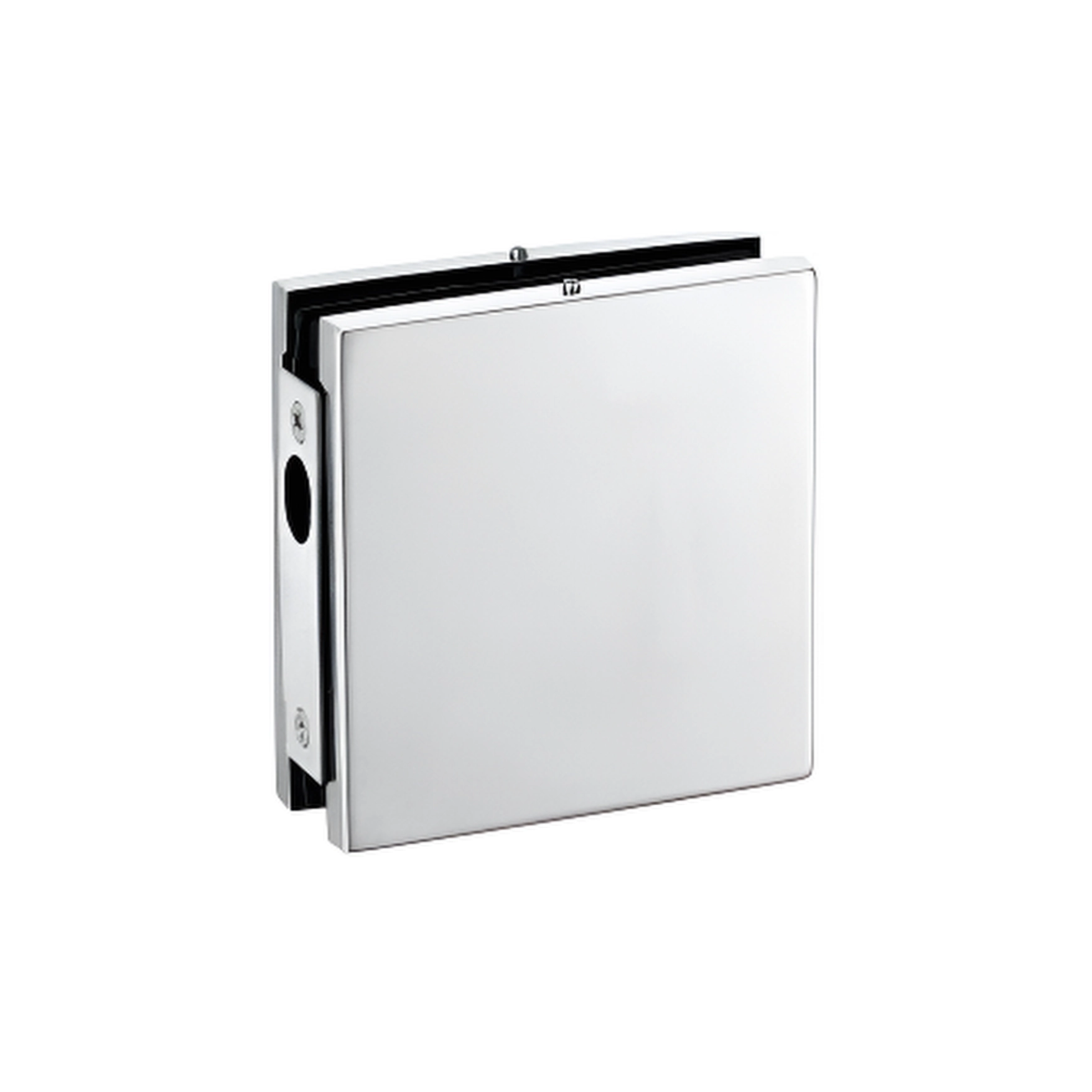

HF-08k

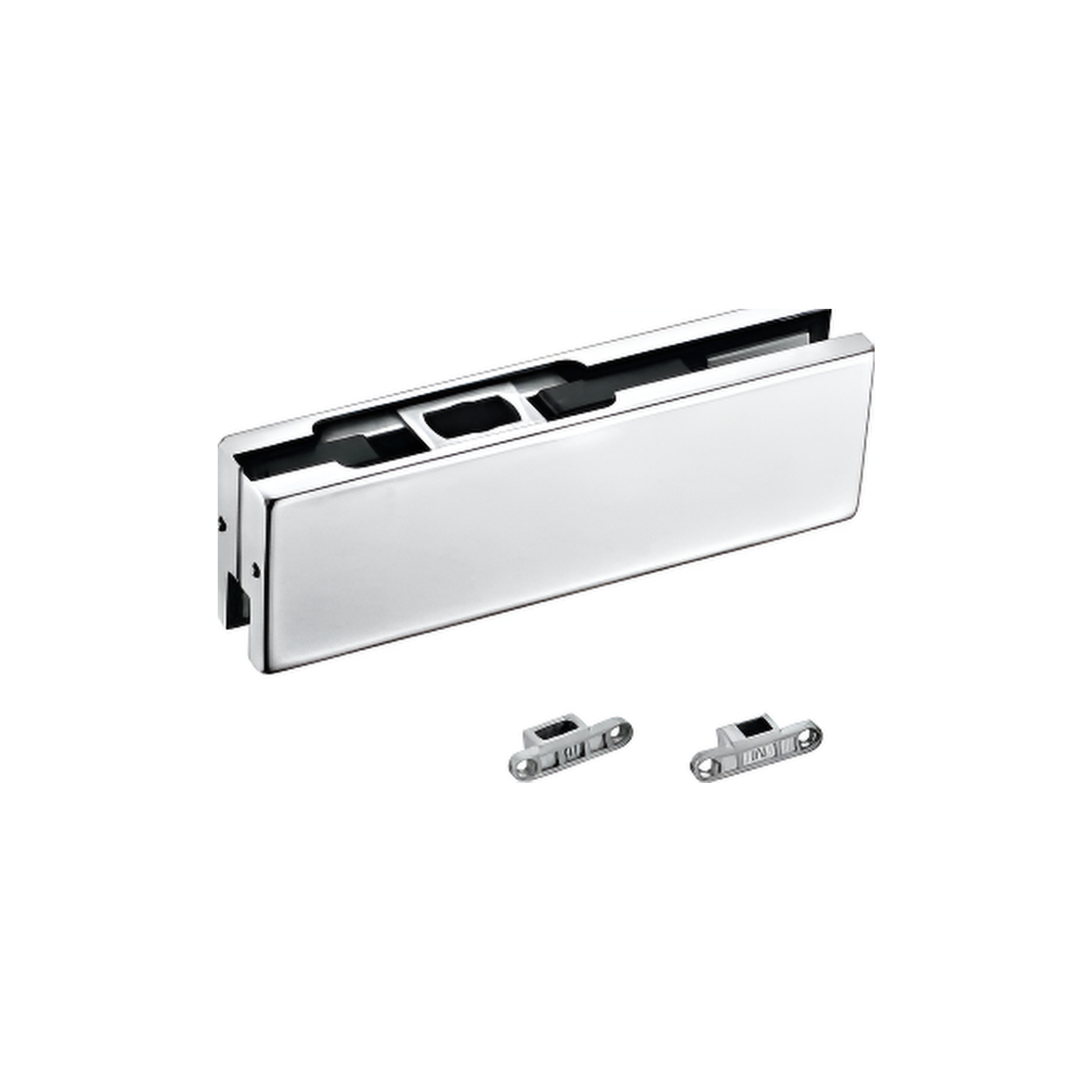

HF-10 Bottom Door Patch

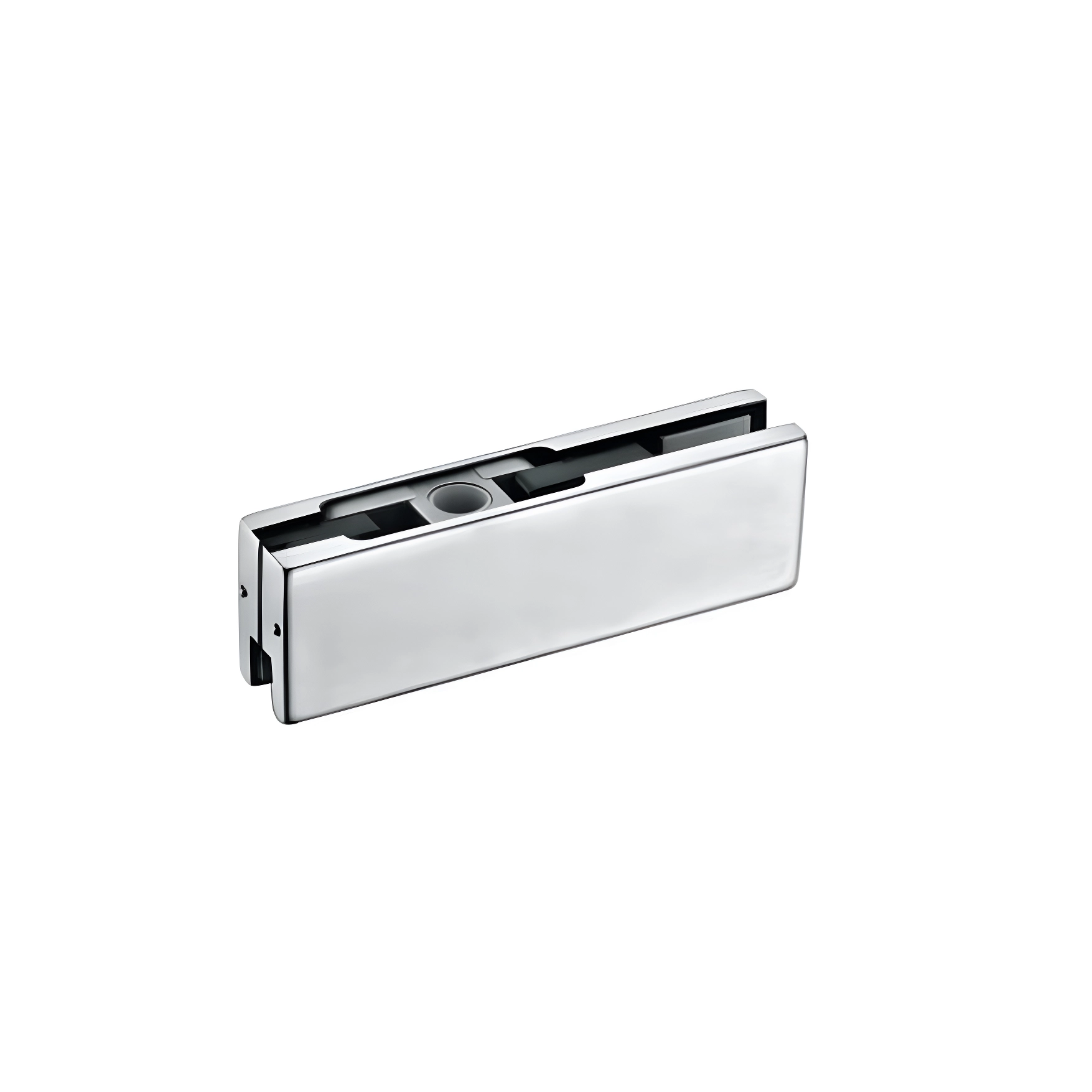

HF-20 Top Door Pivot Patch

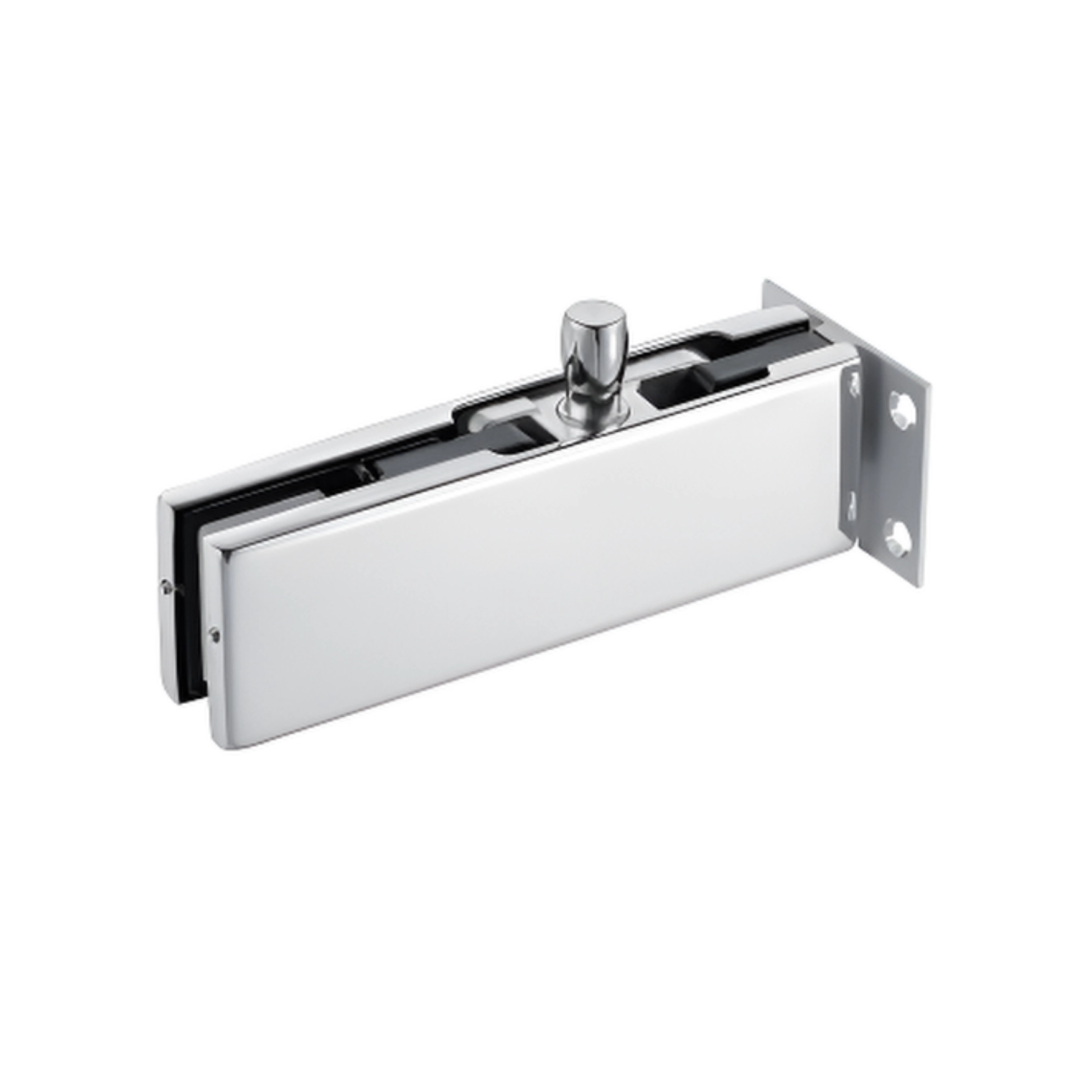

HF-30 Top Fixed Panel Pivot Patch

HF-30K Top Fixed Panel Lock Slot Patch

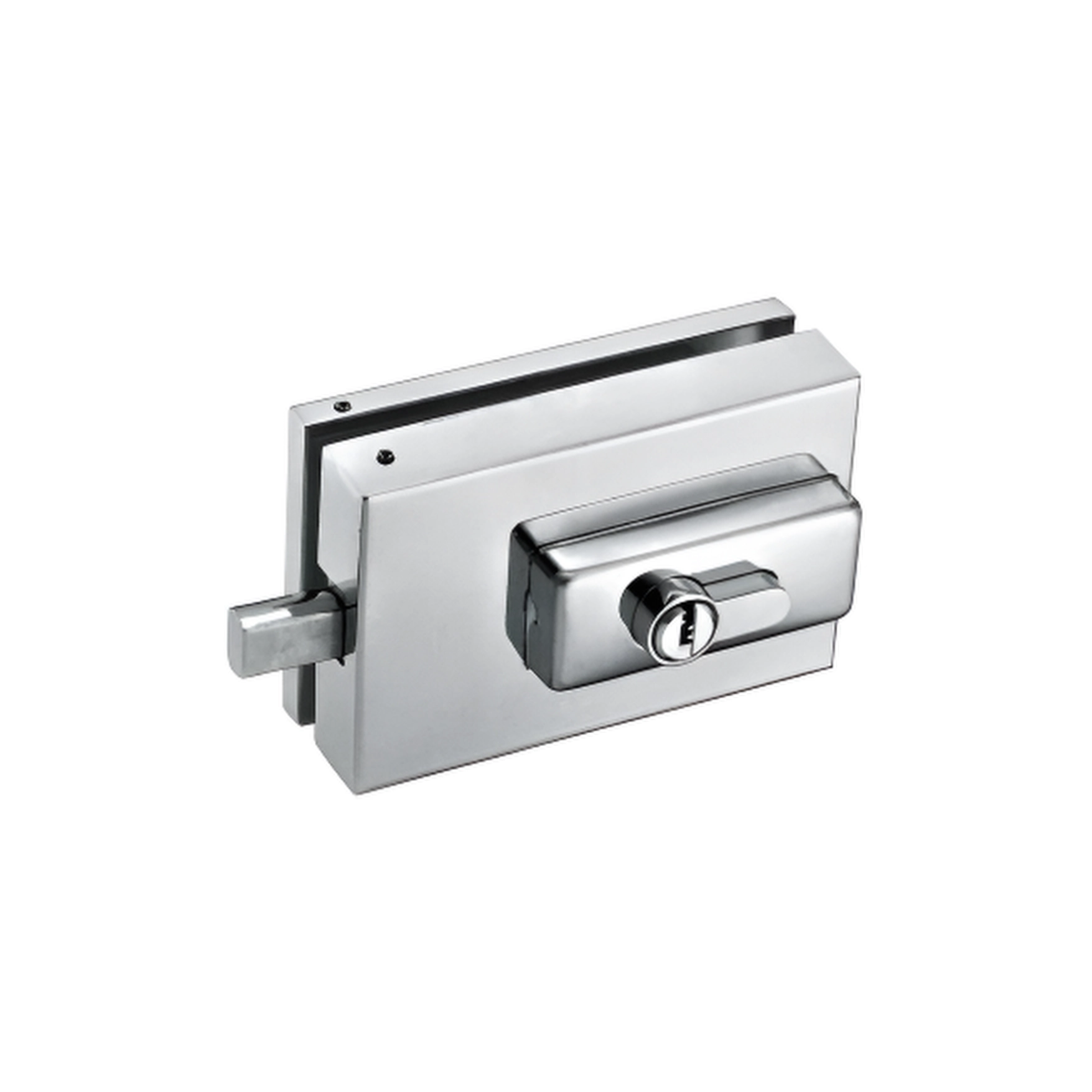

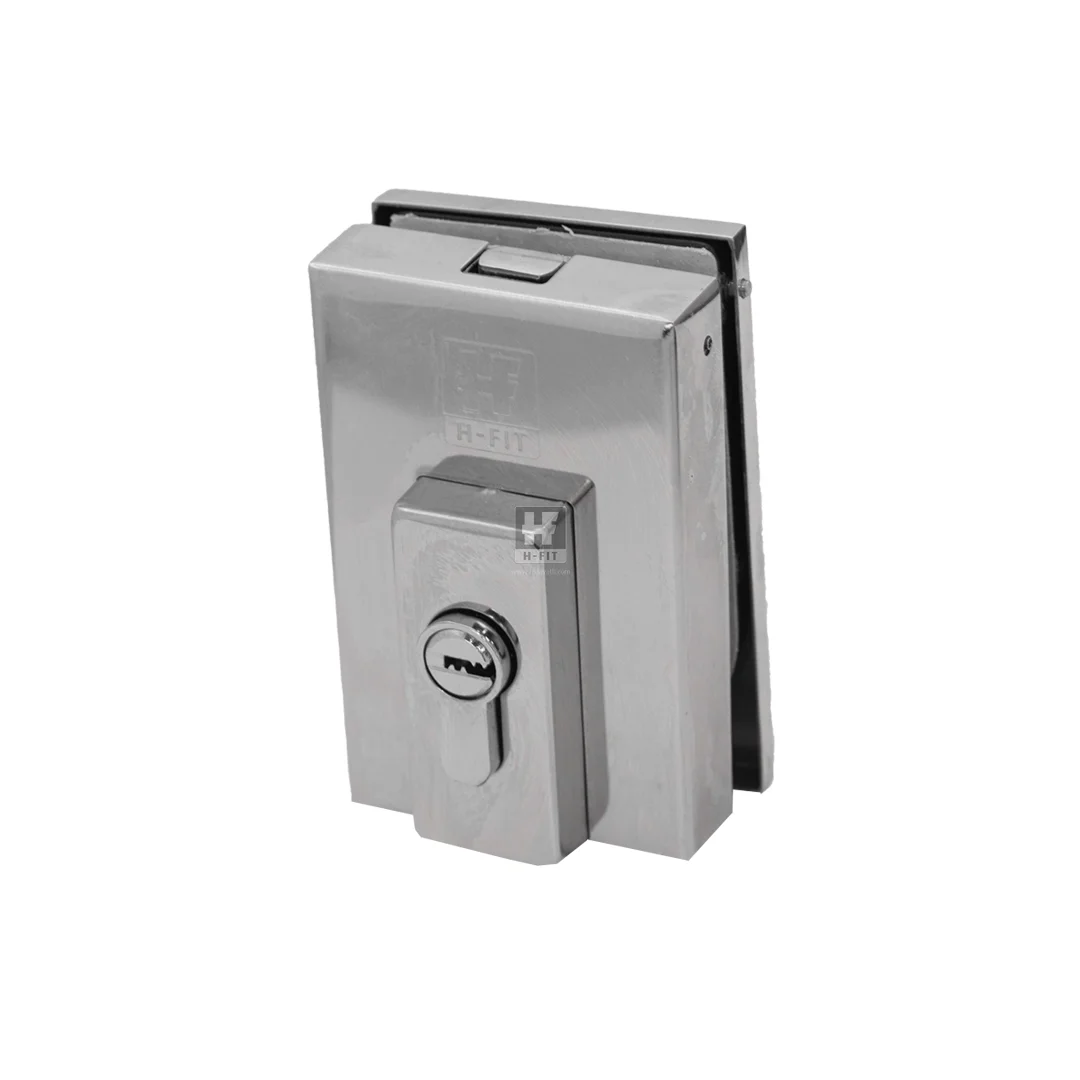

HF-34

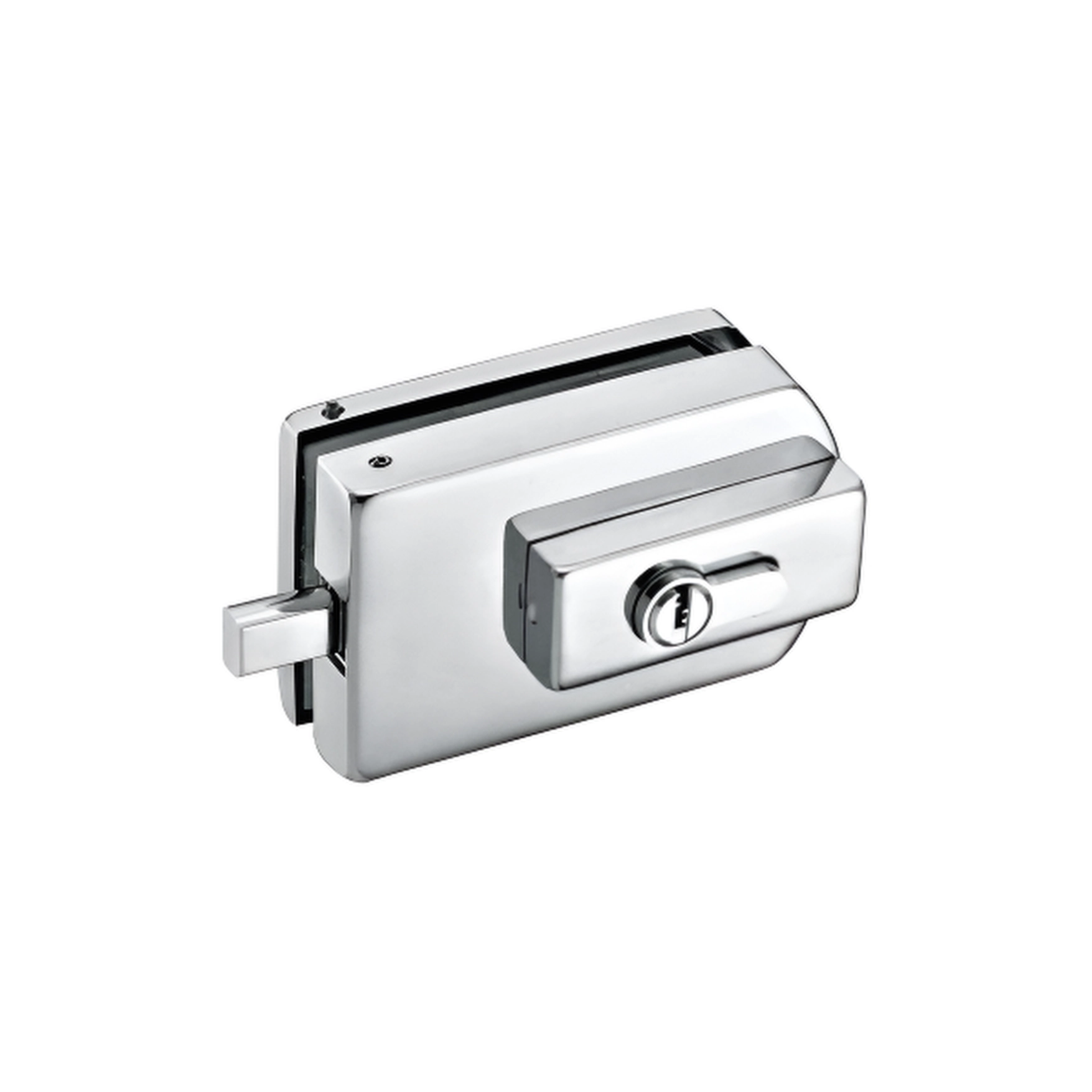

HF-34R

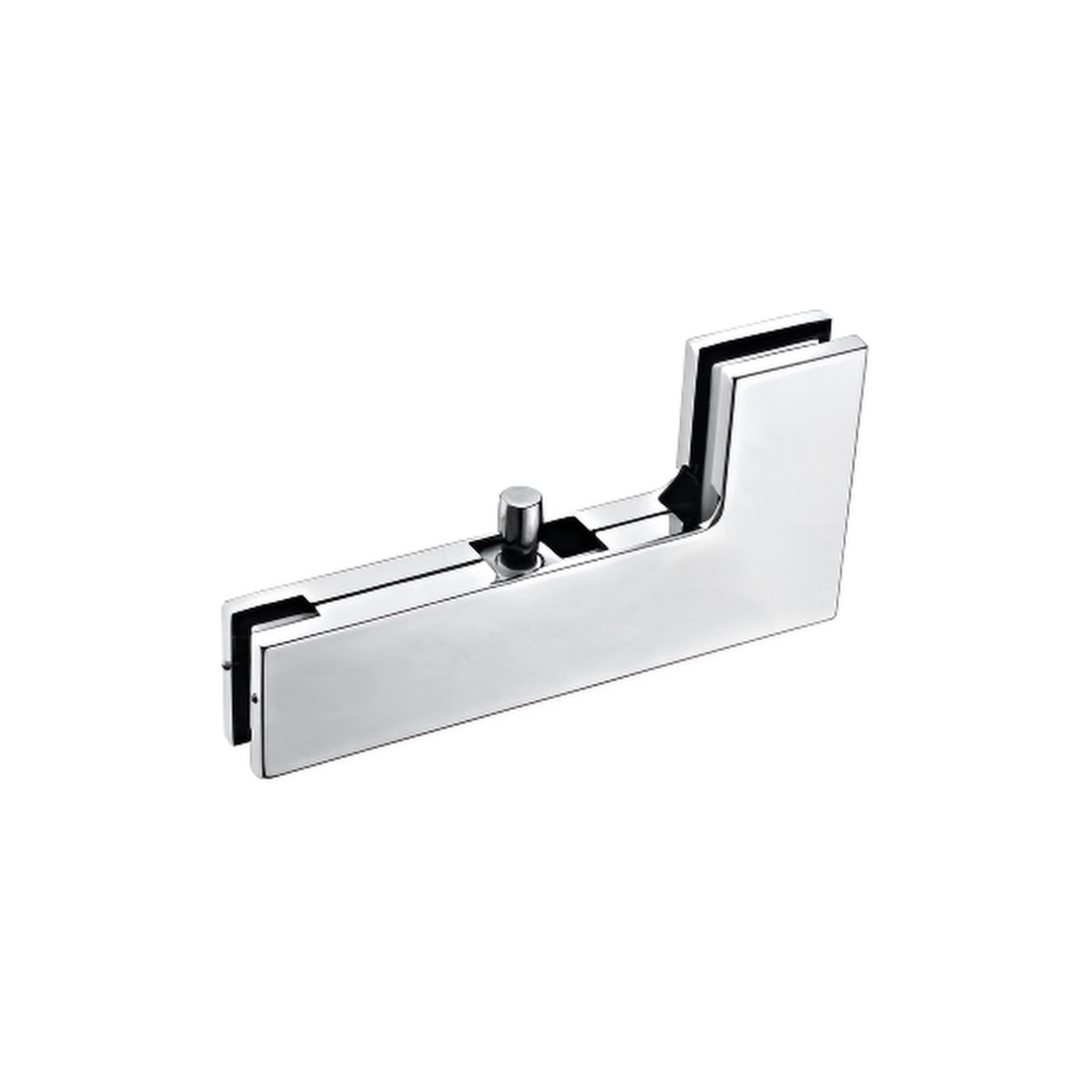

HF-40 Over Panel Patch With Pivot

HF-40K Over Panel Patch Without Pivot

HF-45

HF-50K Mid Panel With Lock Slot

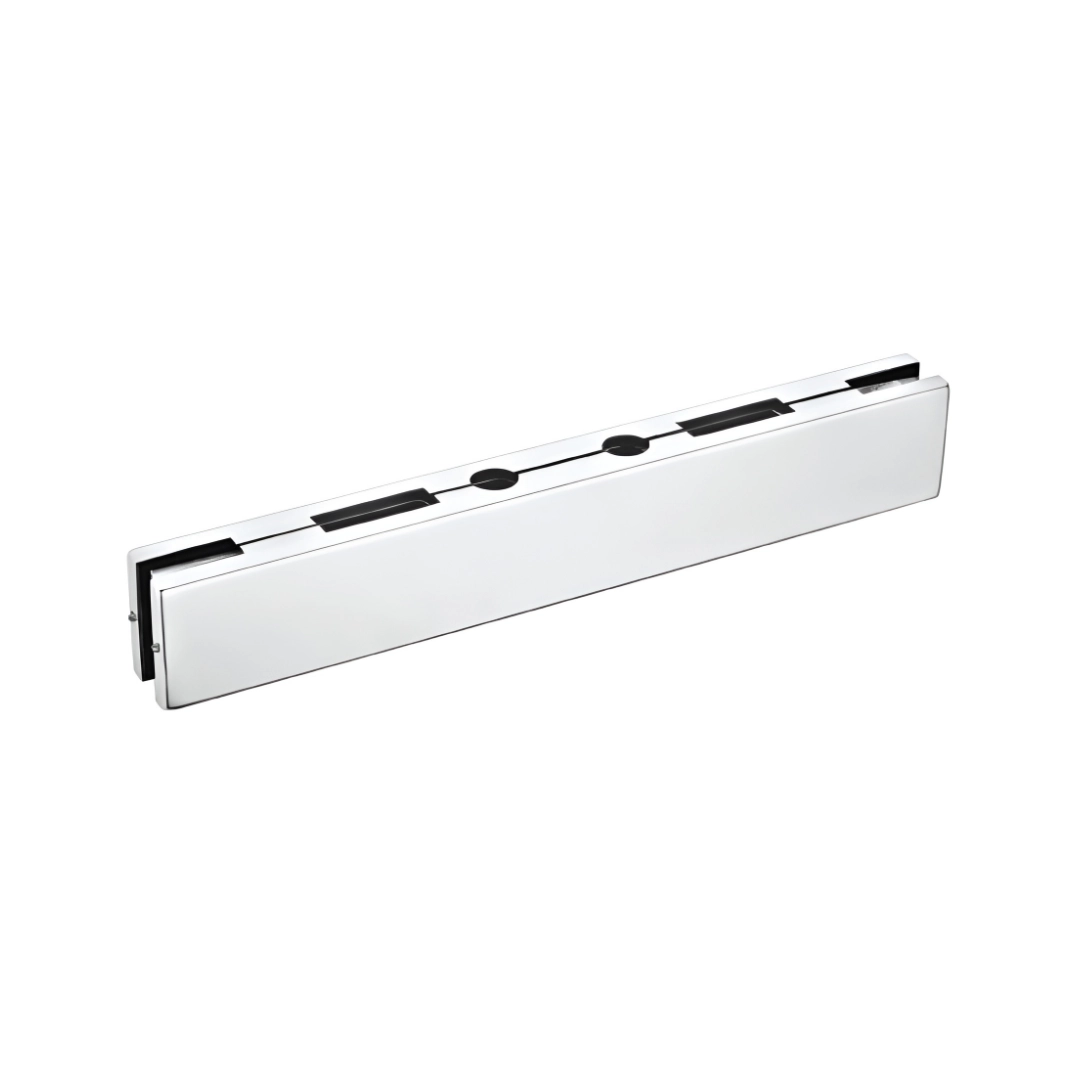

HF-50 2K Mid Panel With Lock Slot

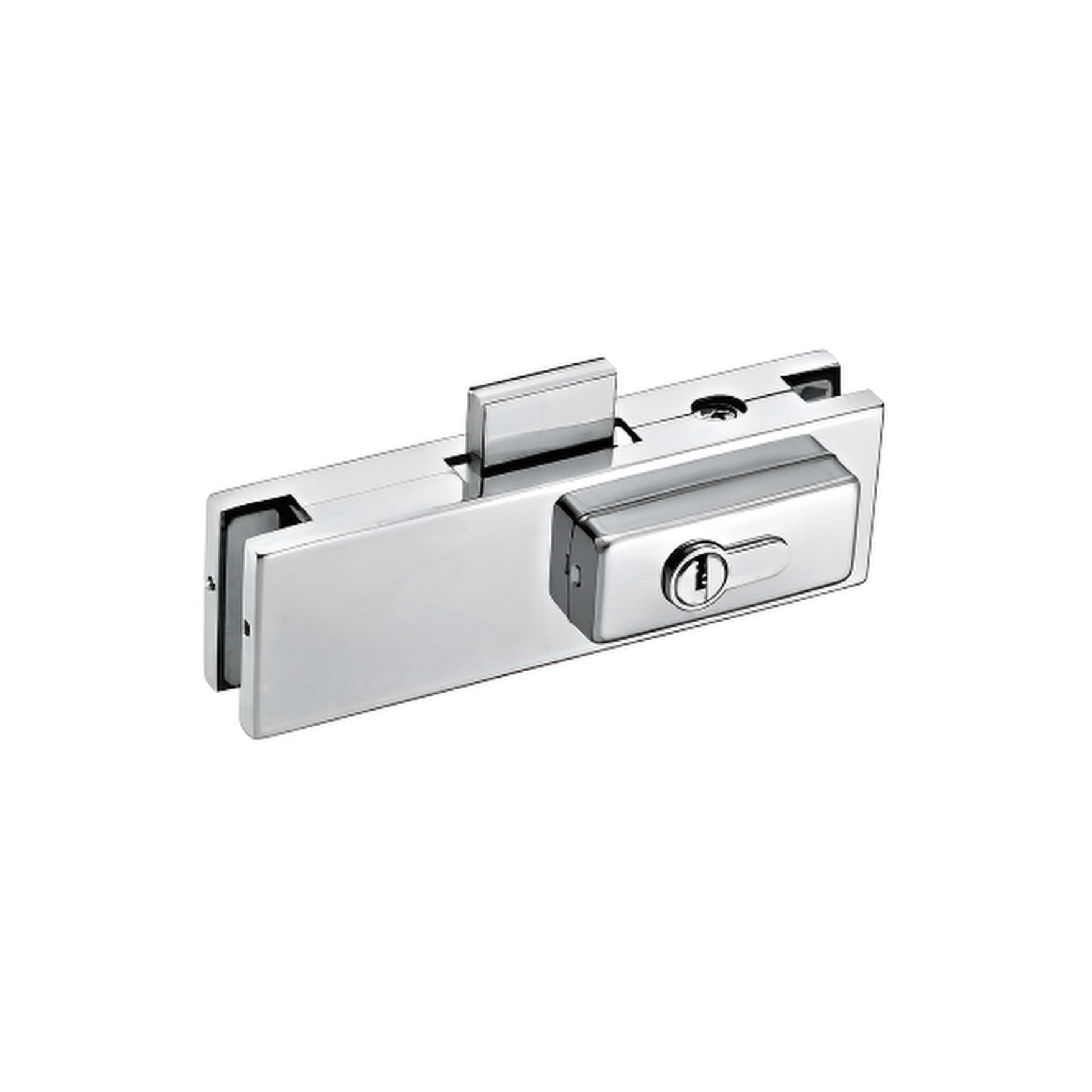

HF-50S/CL Door Centre Lock Patch

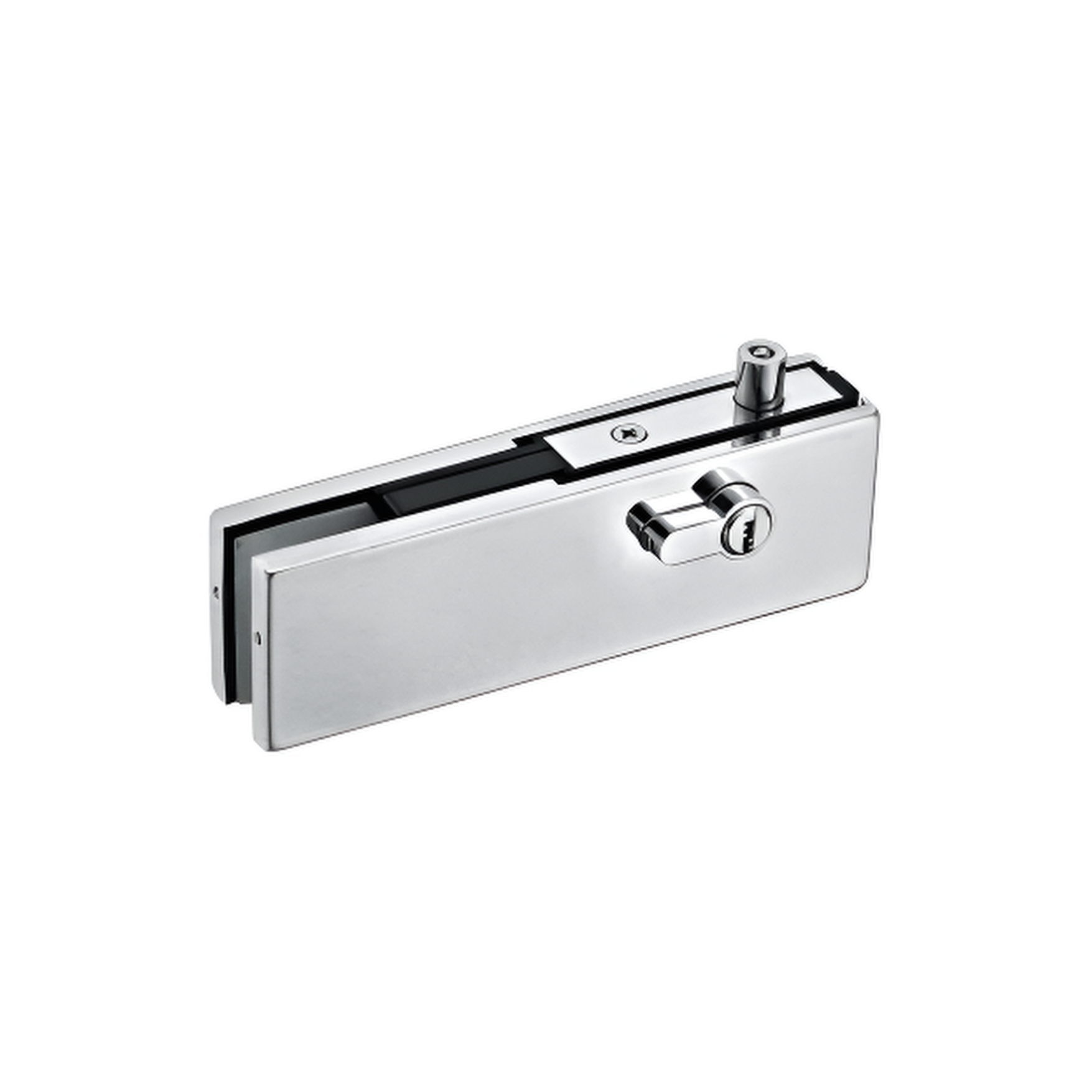

HF-50S/R Door End Corner Patch

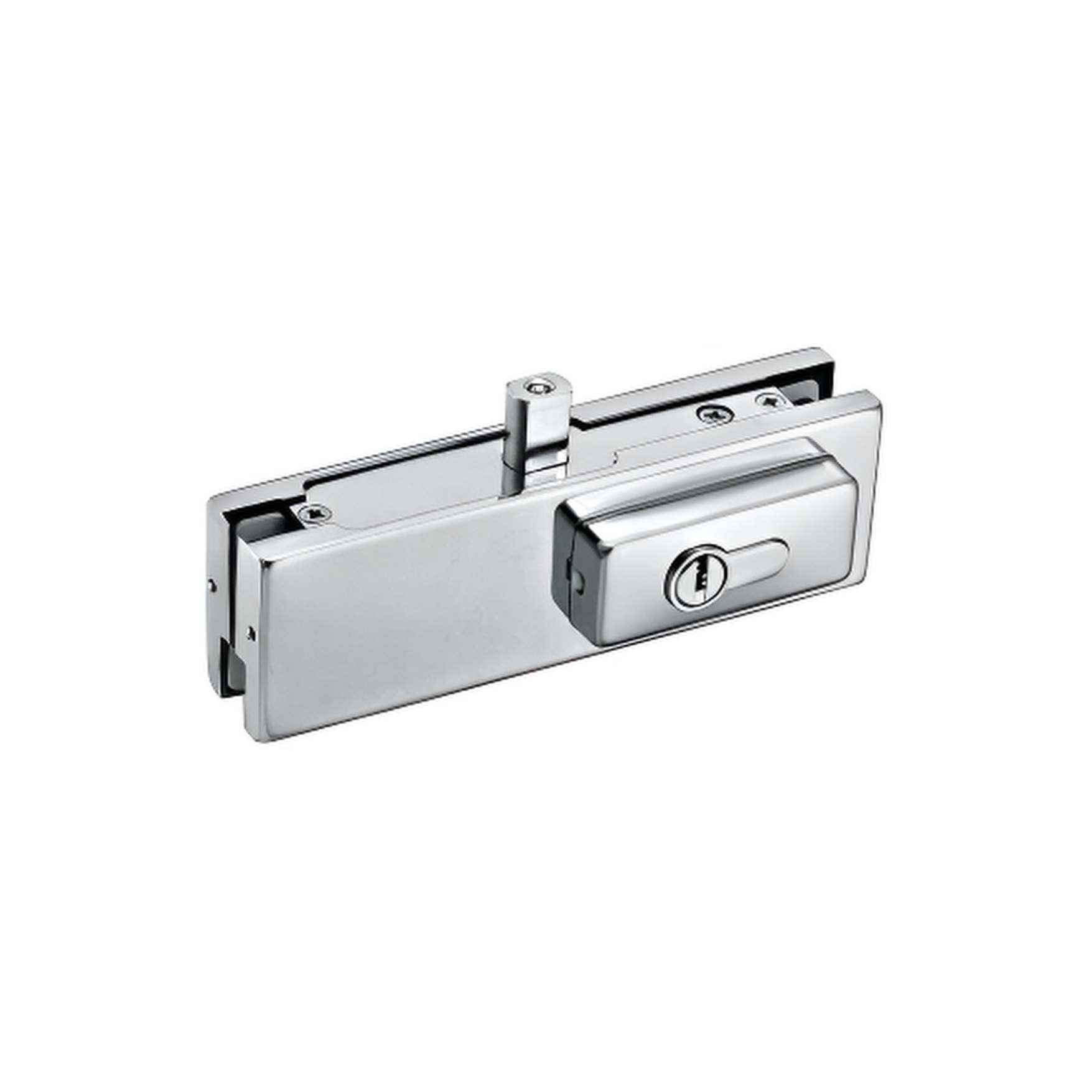

HF-50S/T Door End Corner Patch

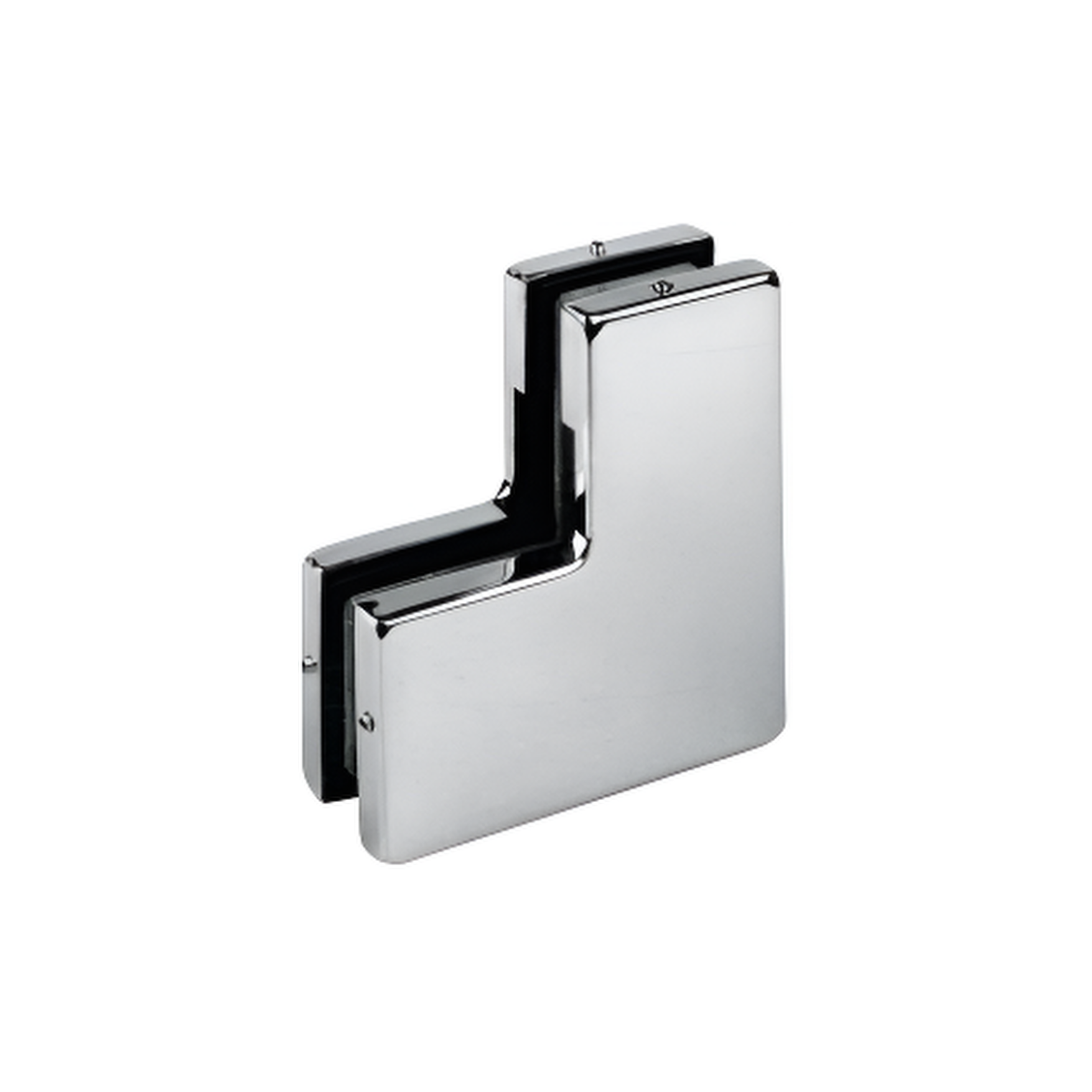

HF-60 Top Door Pivot Patch

HF-65/D

HF-67 Bottom Door Patch

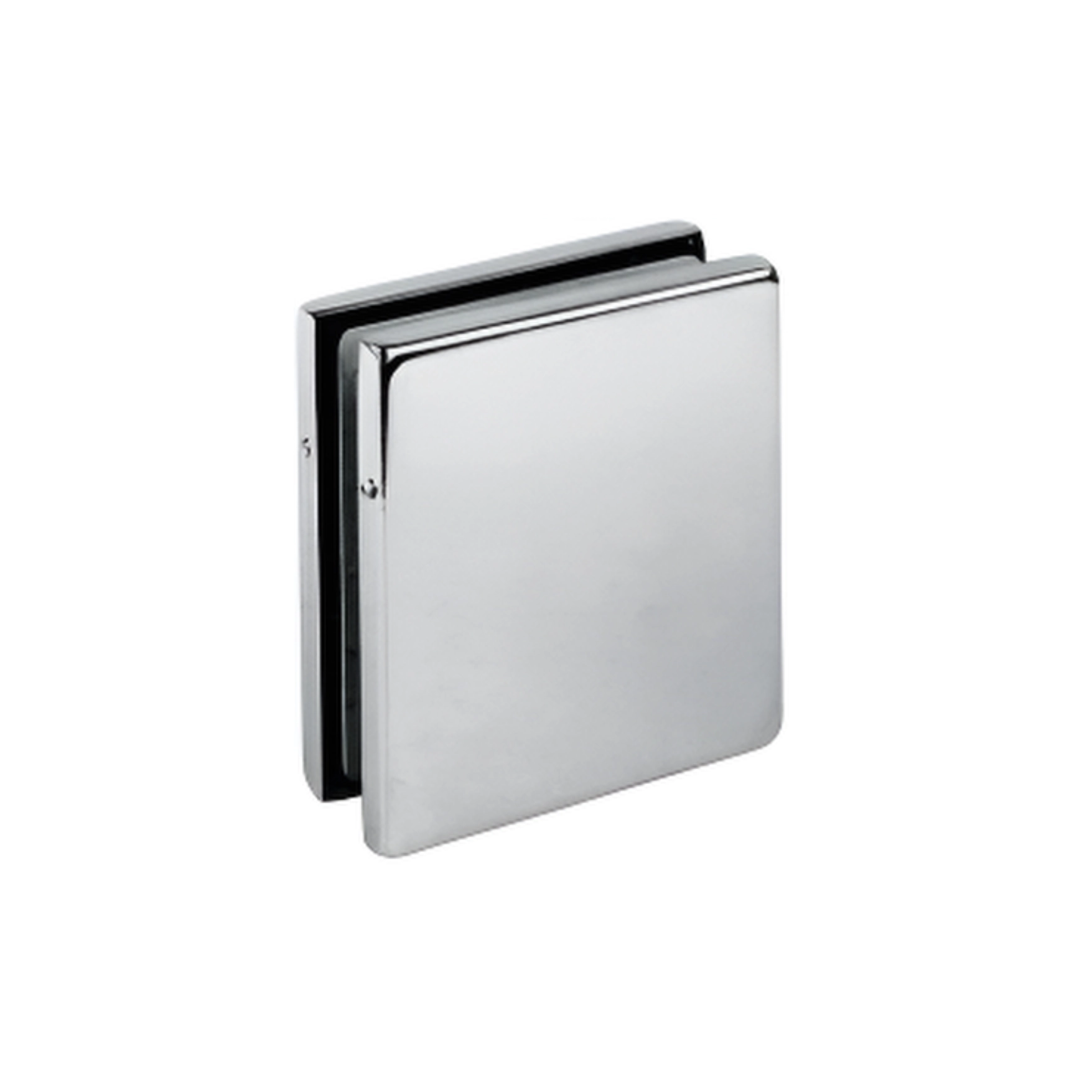

HF-80 Square Type

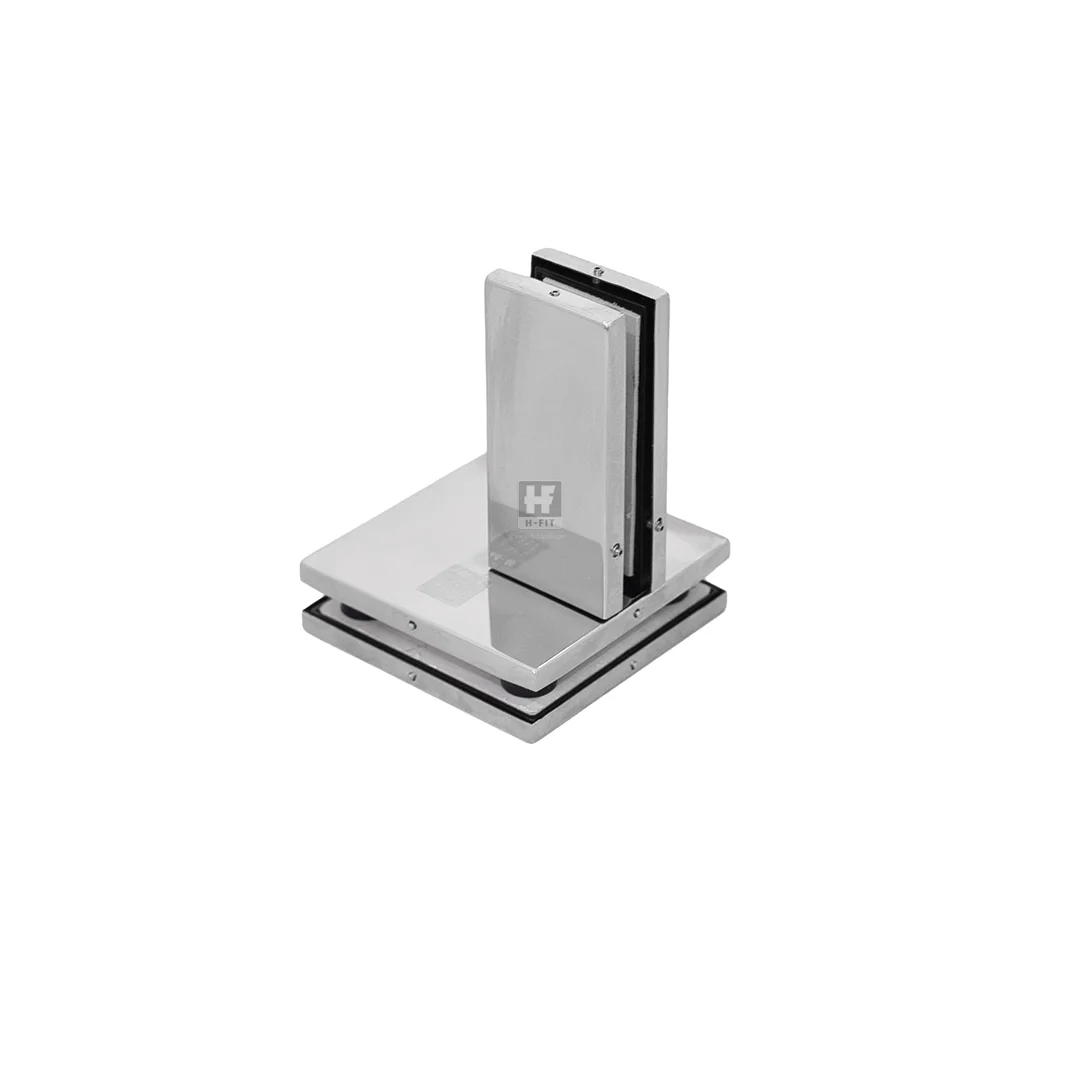

HF-81

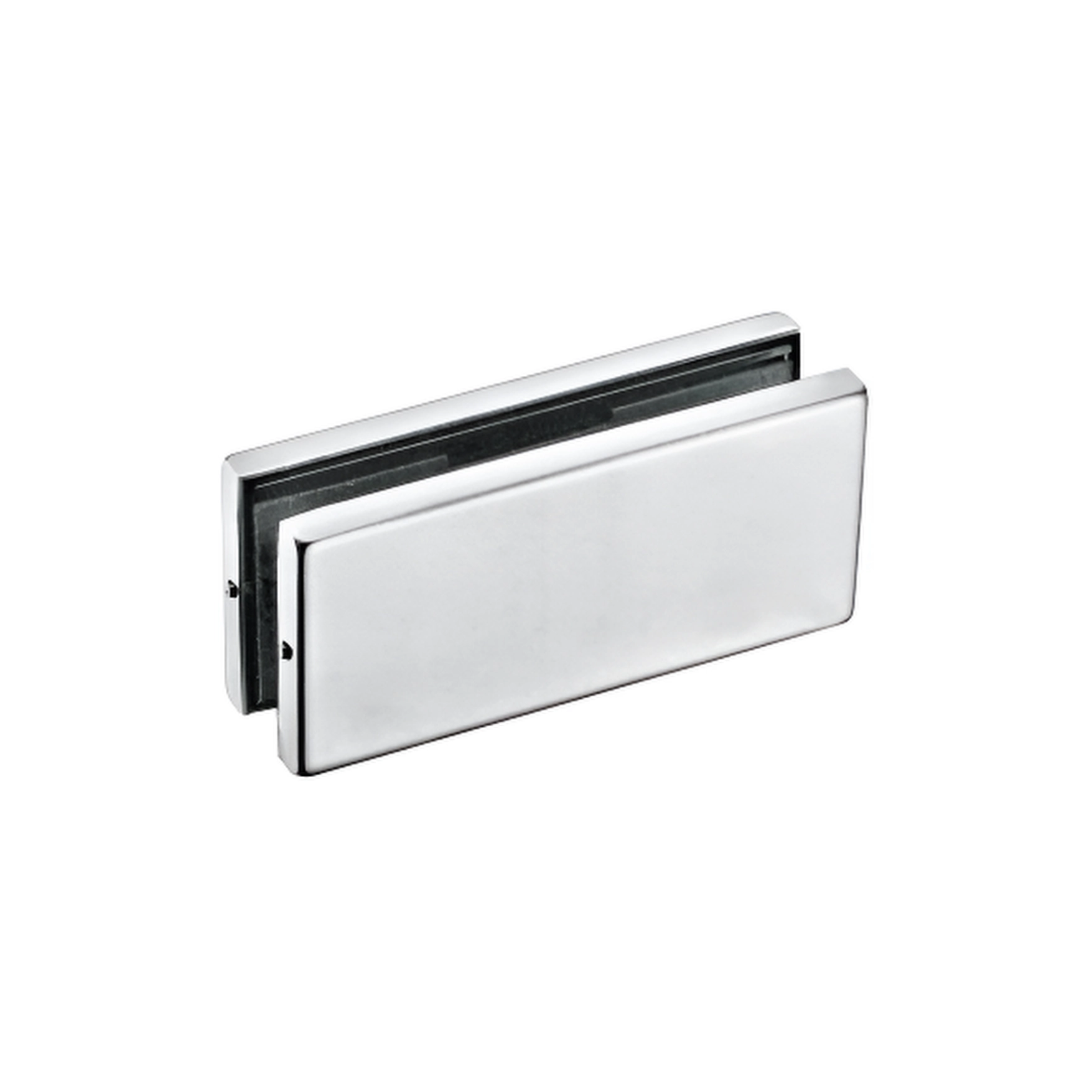

HF-82 Top Door Pivot Patch

HF-84

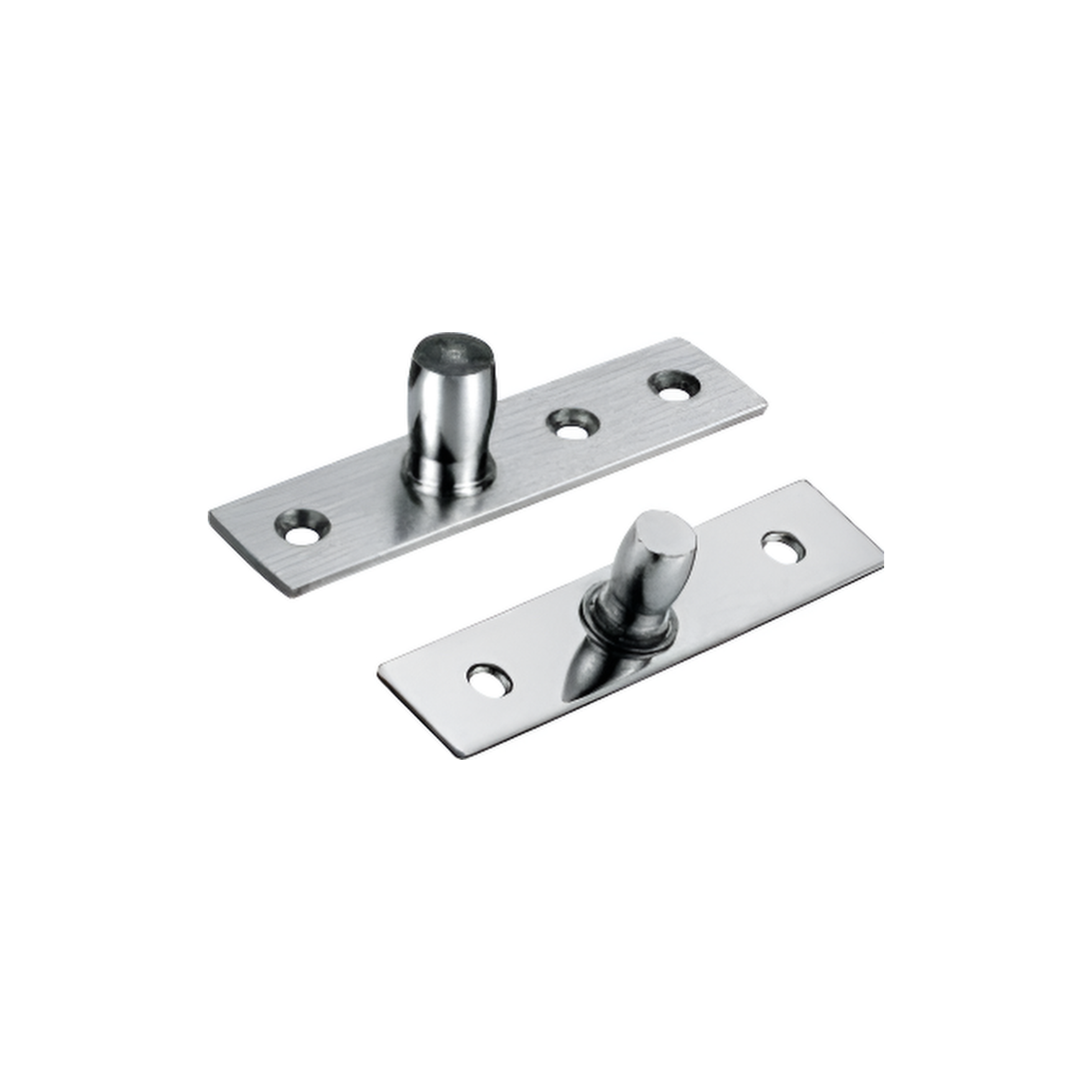

HF-9001 Bottom Door Pivot

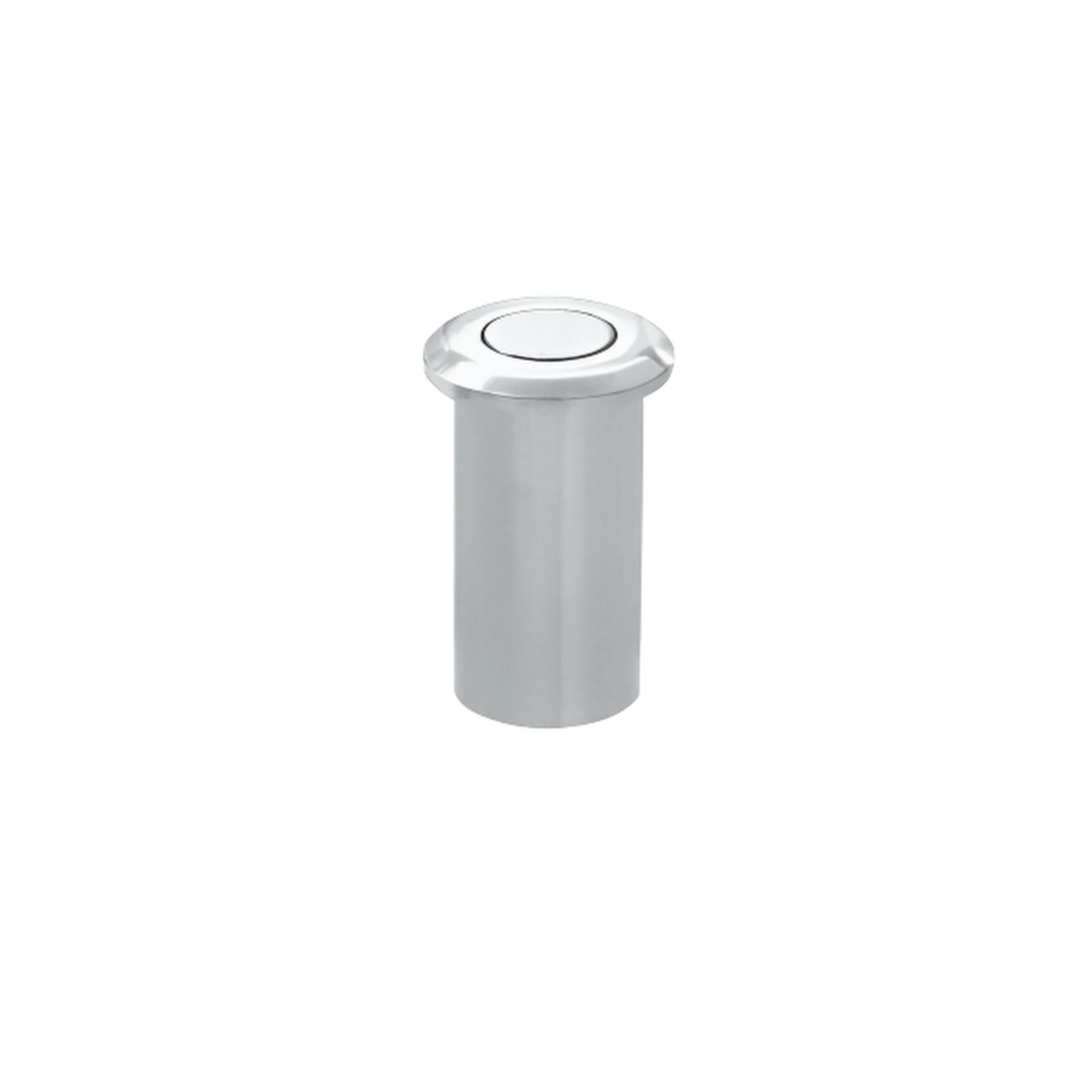

HF-9002 Top Door Pivot Patch

HF-960

HF-961

HF-962

HF-9907

HF-9913

HF-9914

HF-9915

HF-9916

HF-9917

HF-9918/25/ZN/3-WAY

HF-9918/25/ZN/4-T

HF-9918/25/ZN/4-WAY

HF-9919/25/SQ

HF-9920/25/SQ

HF-9923/25/SQ

HF-9927/25

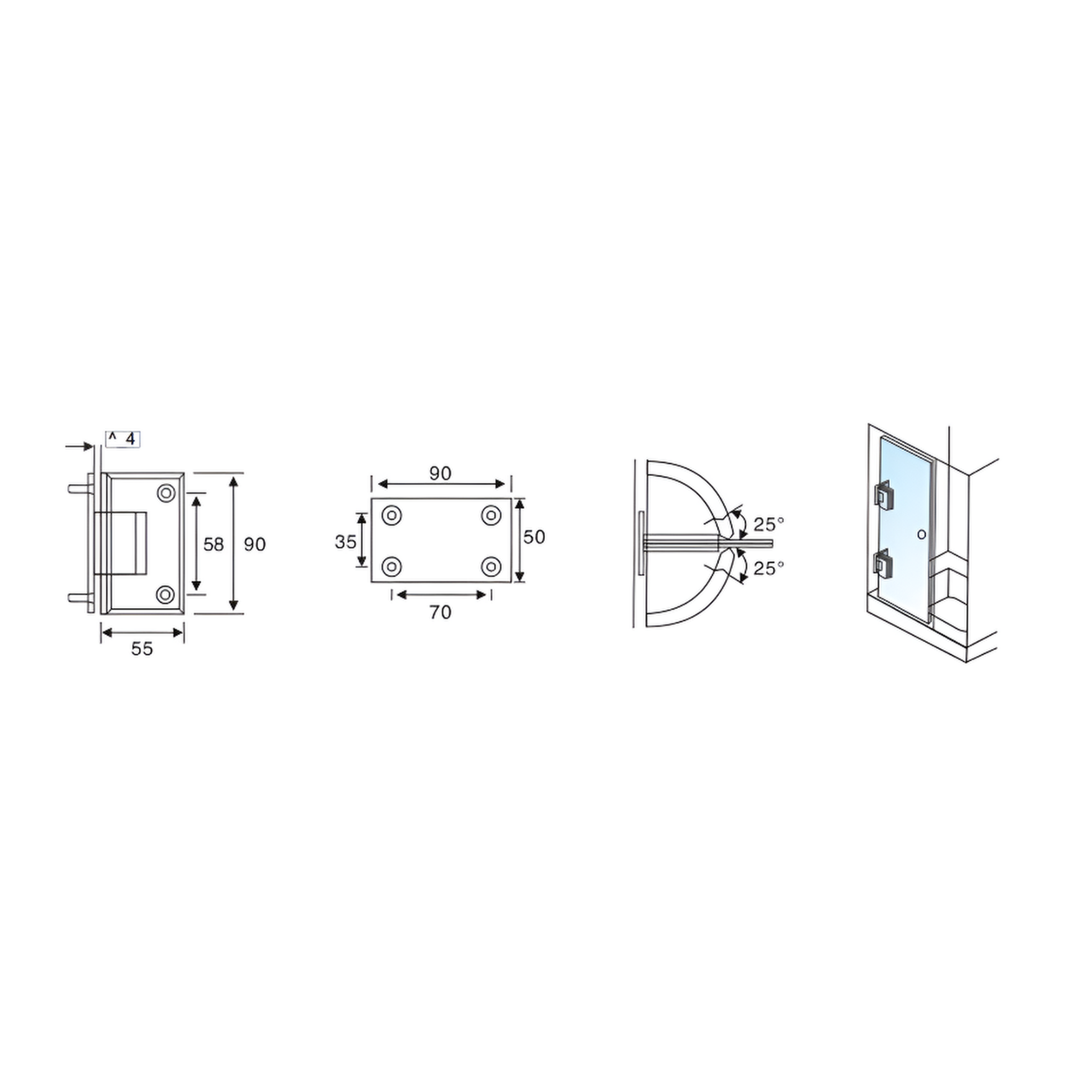

HD-F-11/90/ZN/OS

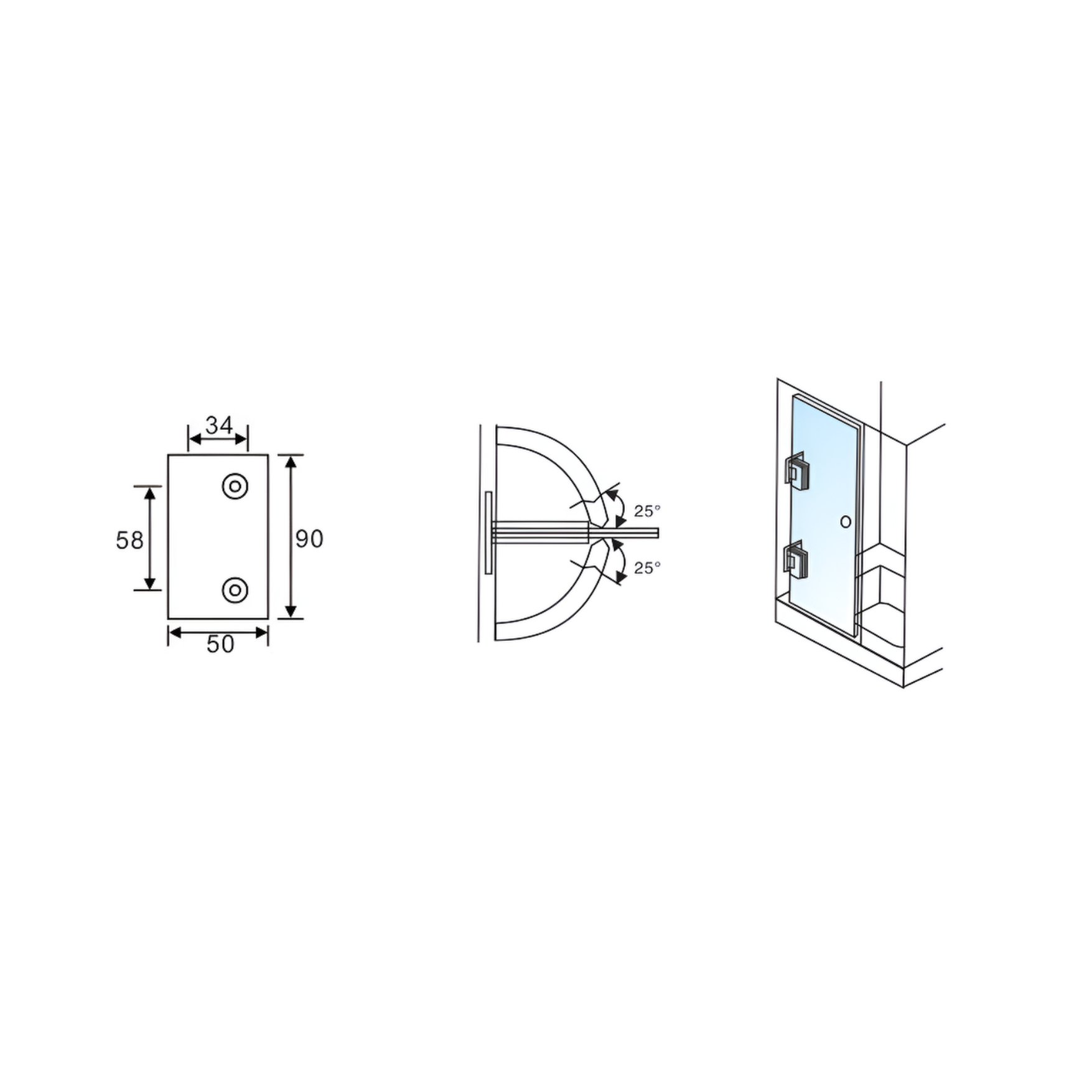

HD-F11/90/ZN/WP

HF-11/90/PSS/HYD

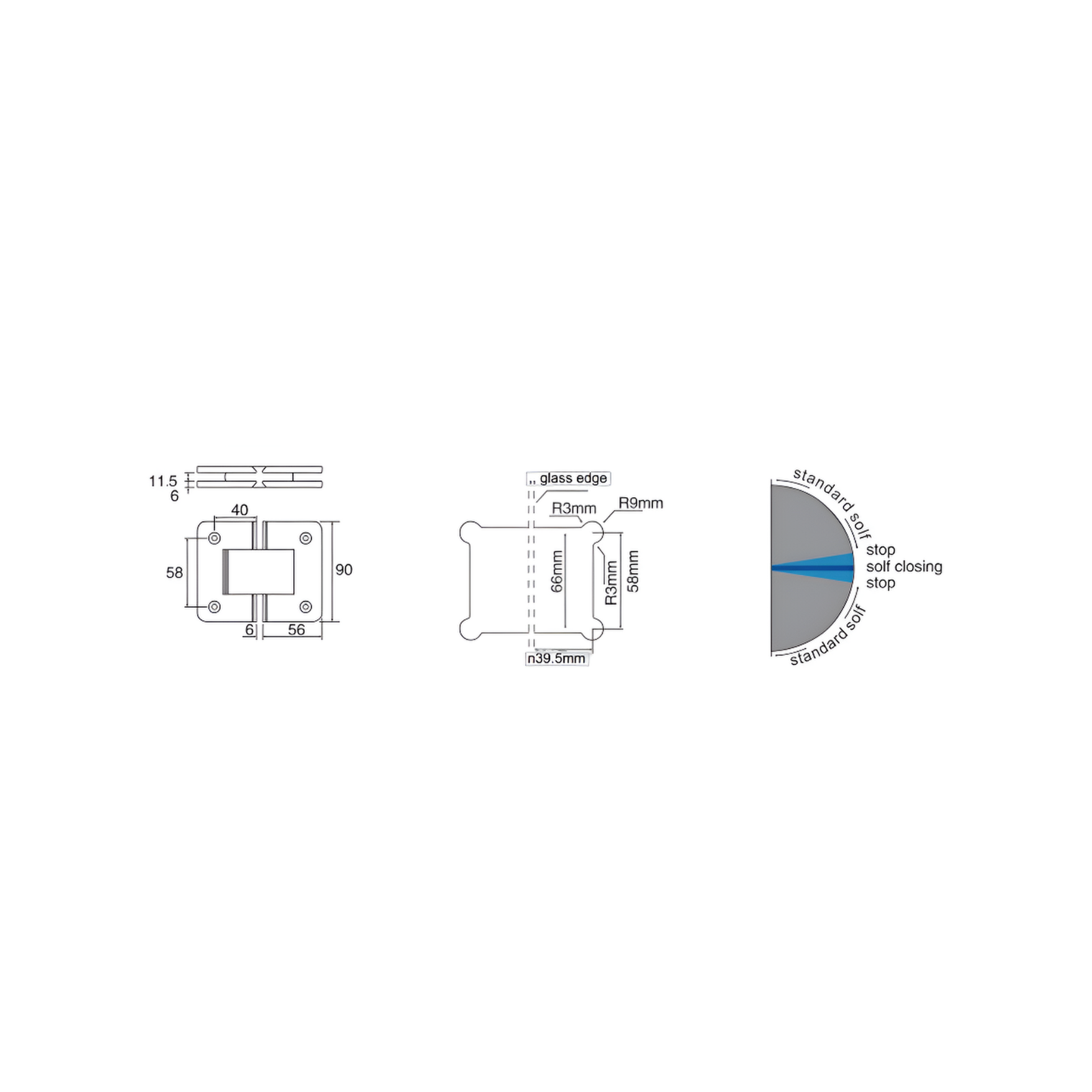

HF-11/180/PSS/HYD

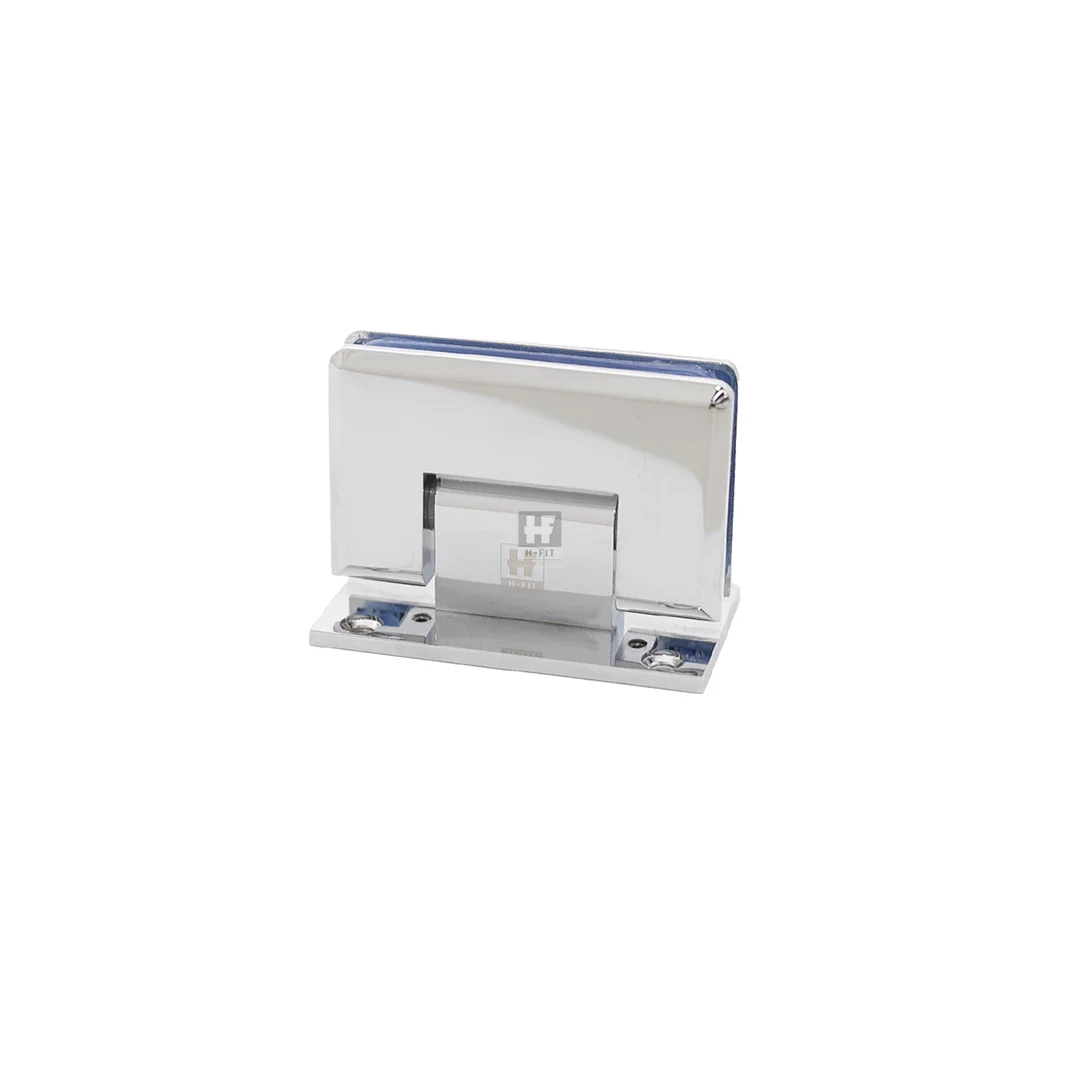

HF-11/90

HF-12/180

HF-12/135

HF-12/90

HF-21/90

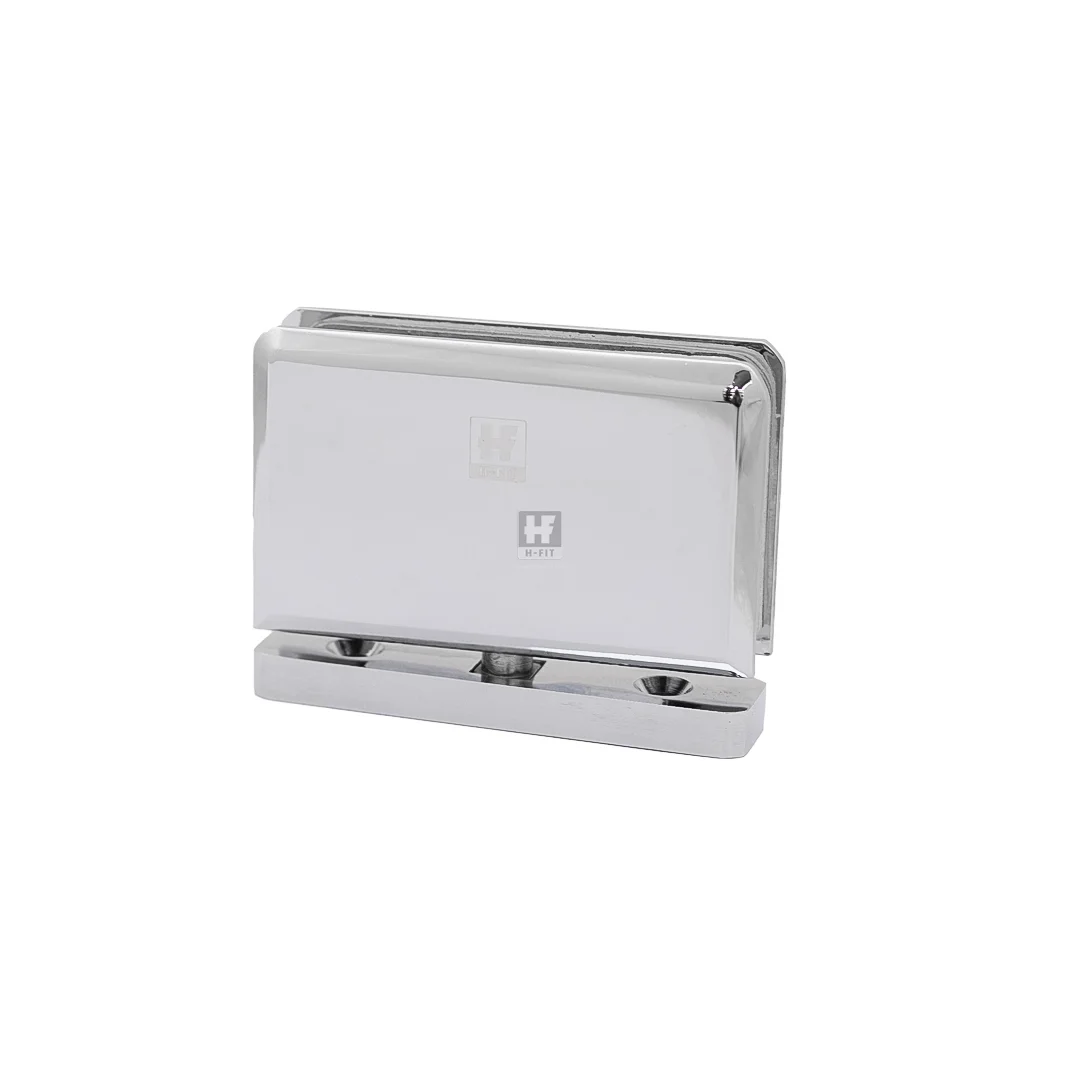

HF-21/104

HF-22/90

HF-22/180/T

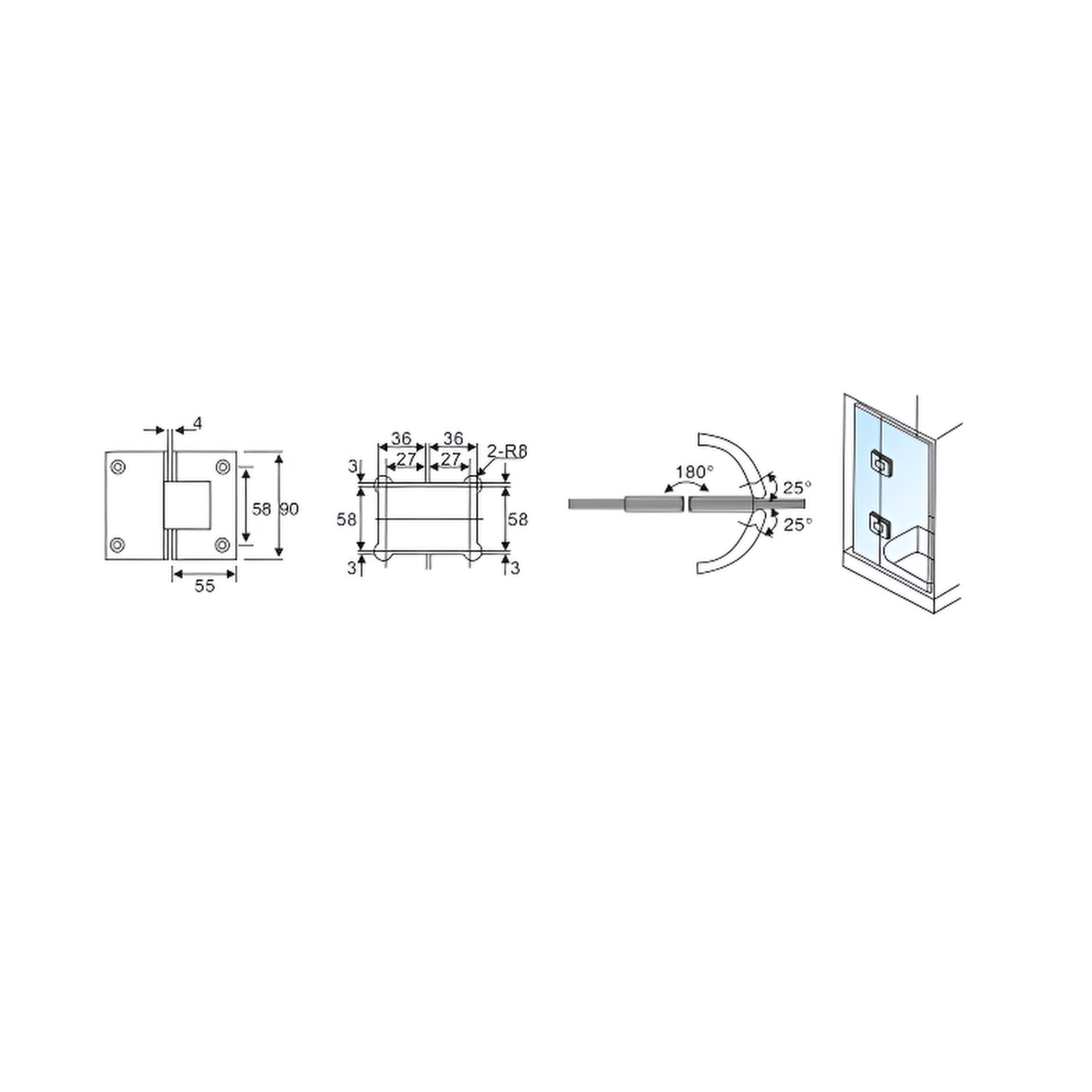

HF-32/180

HF-32/90

HF-51/90

HF-52/180

HF-810

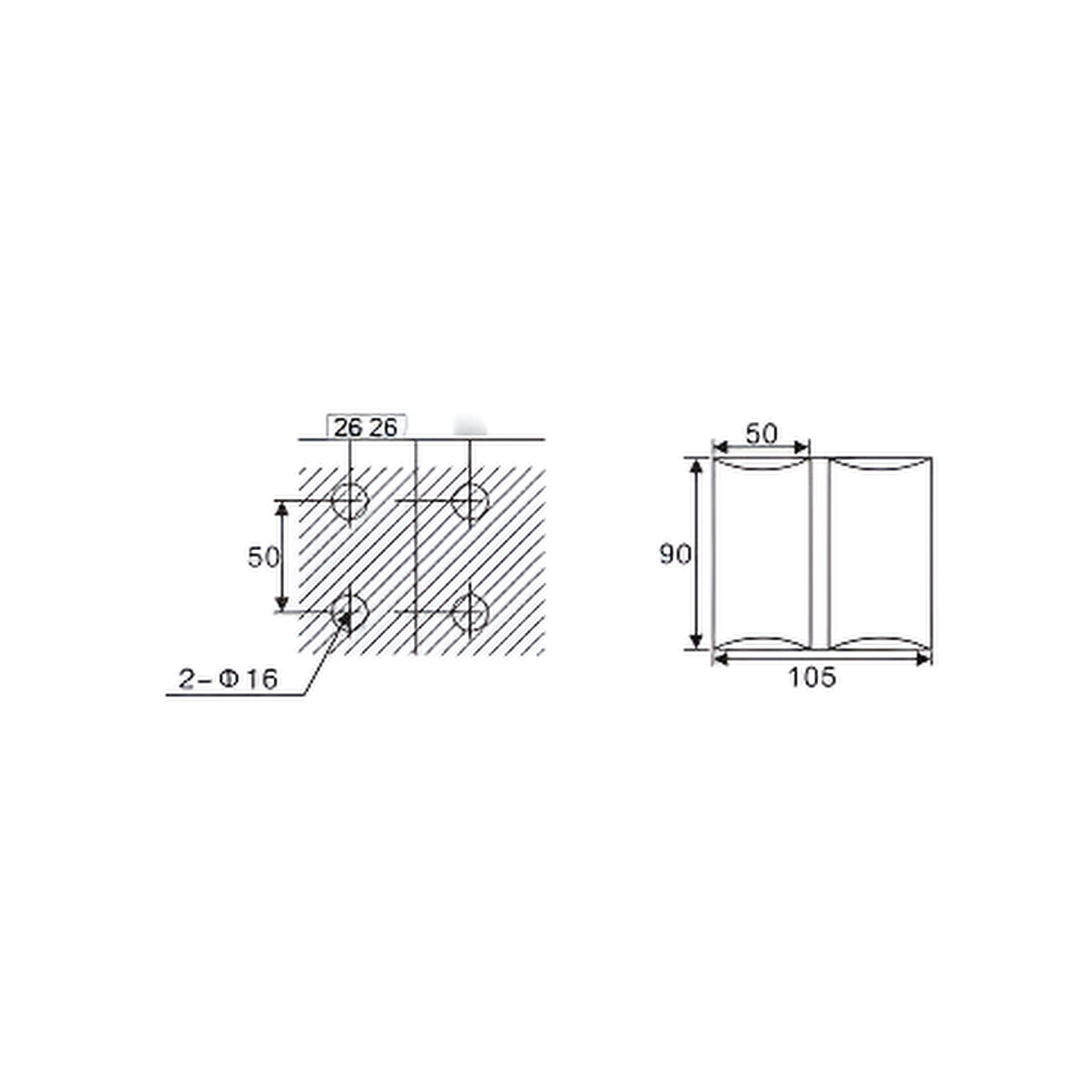

HF-820

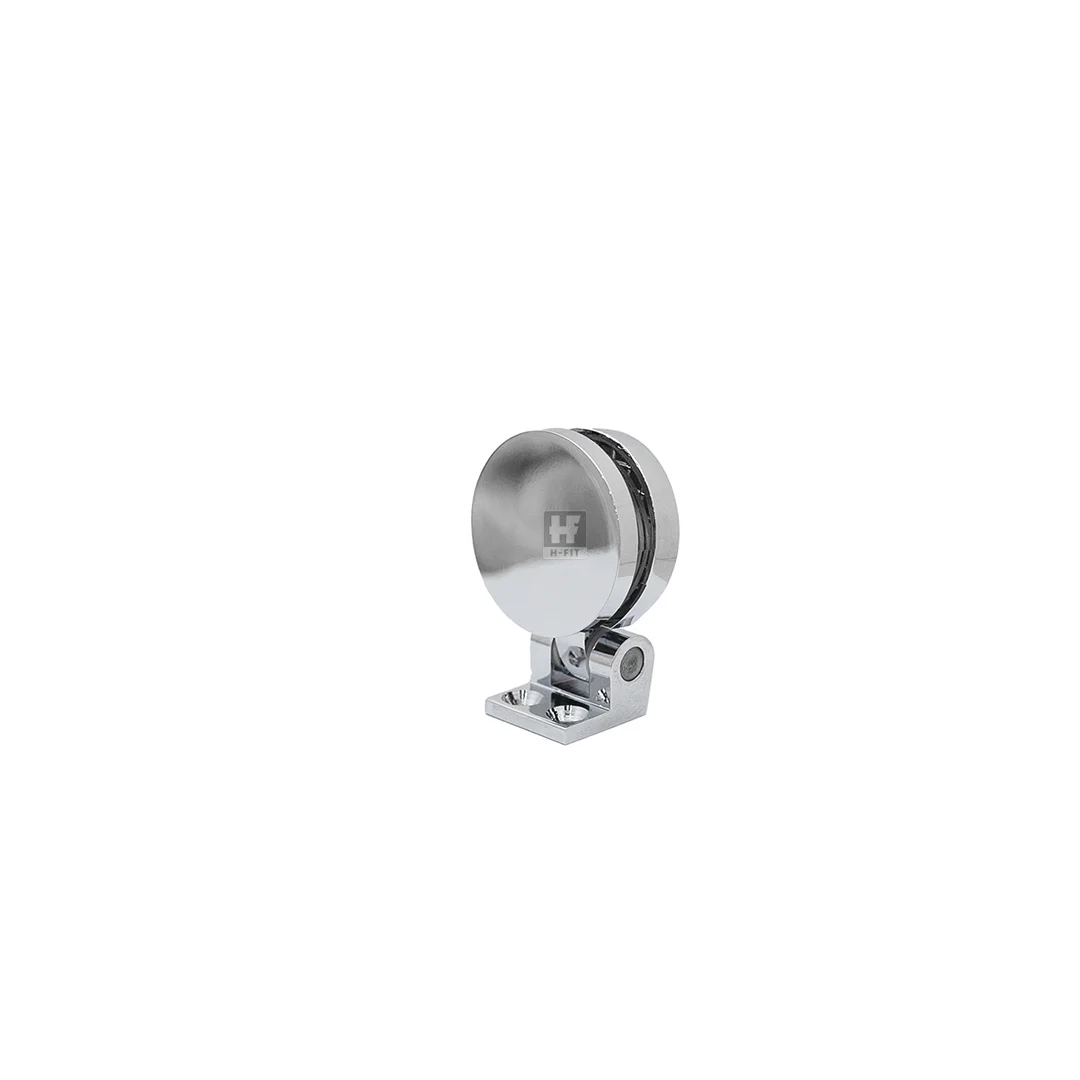

HF-851

HF-852

HF-871

HF-872

HF-891

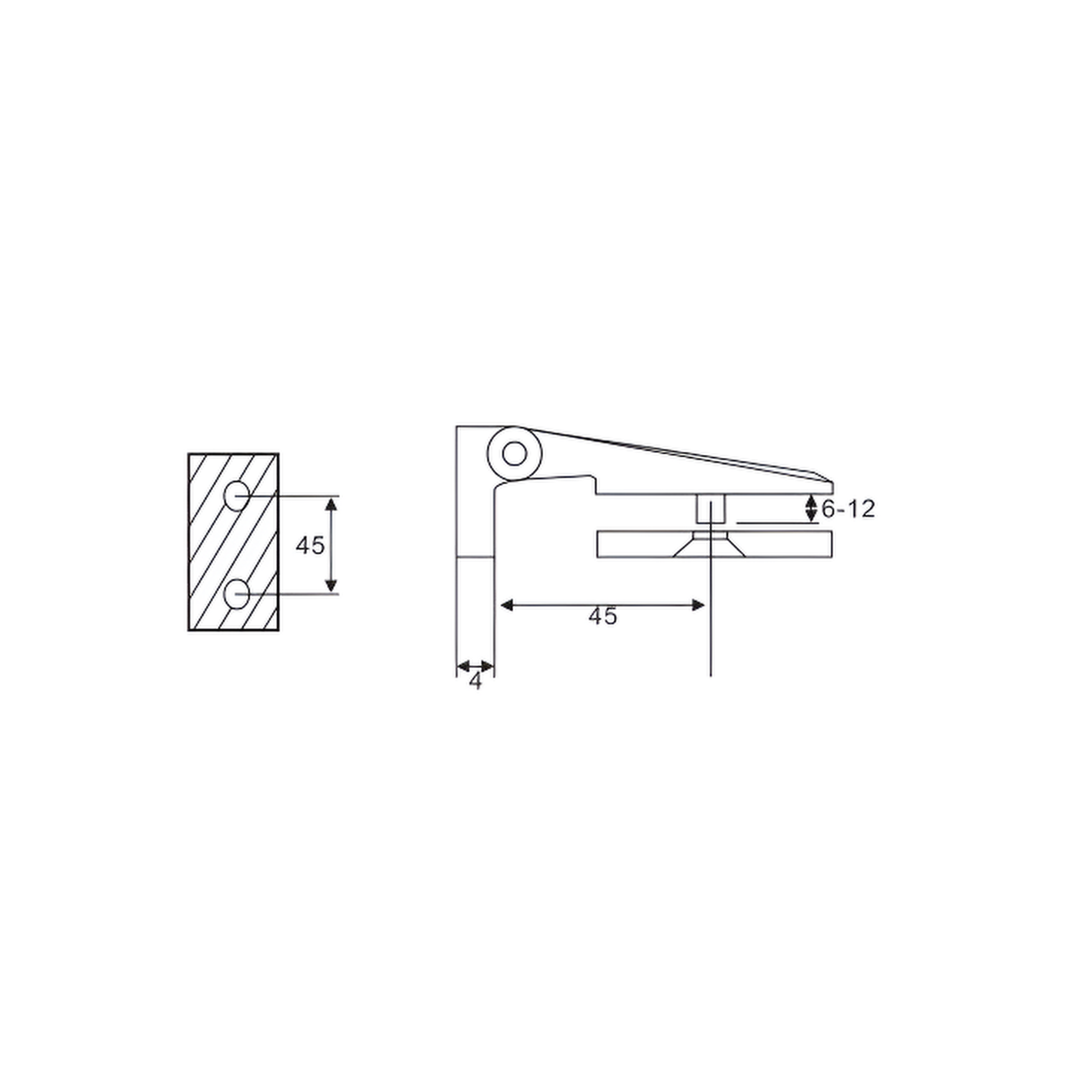

HF-892

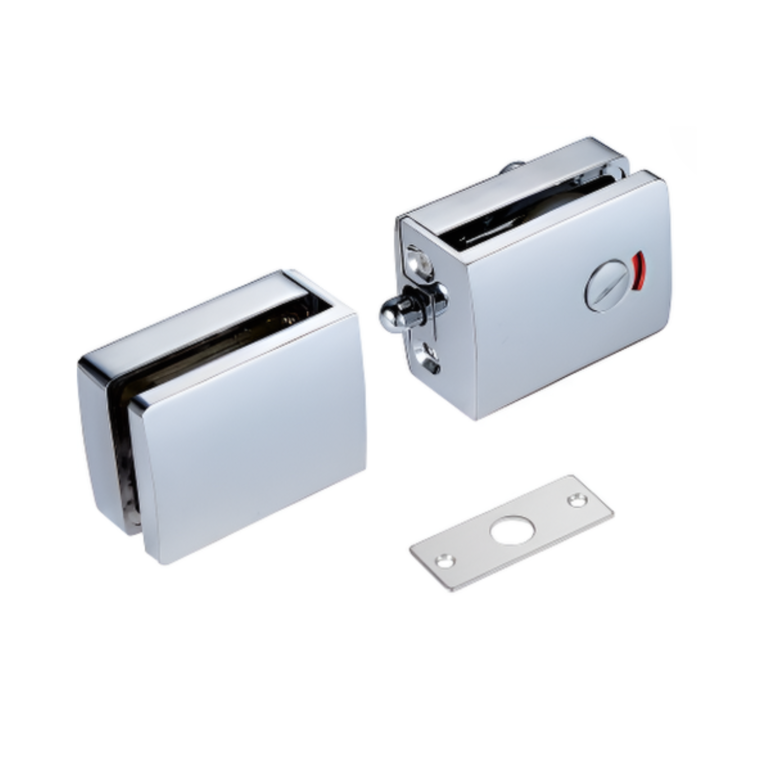

HF-6012(Big) / HF-6012/B (Small)

HF-01

HF-002/3050

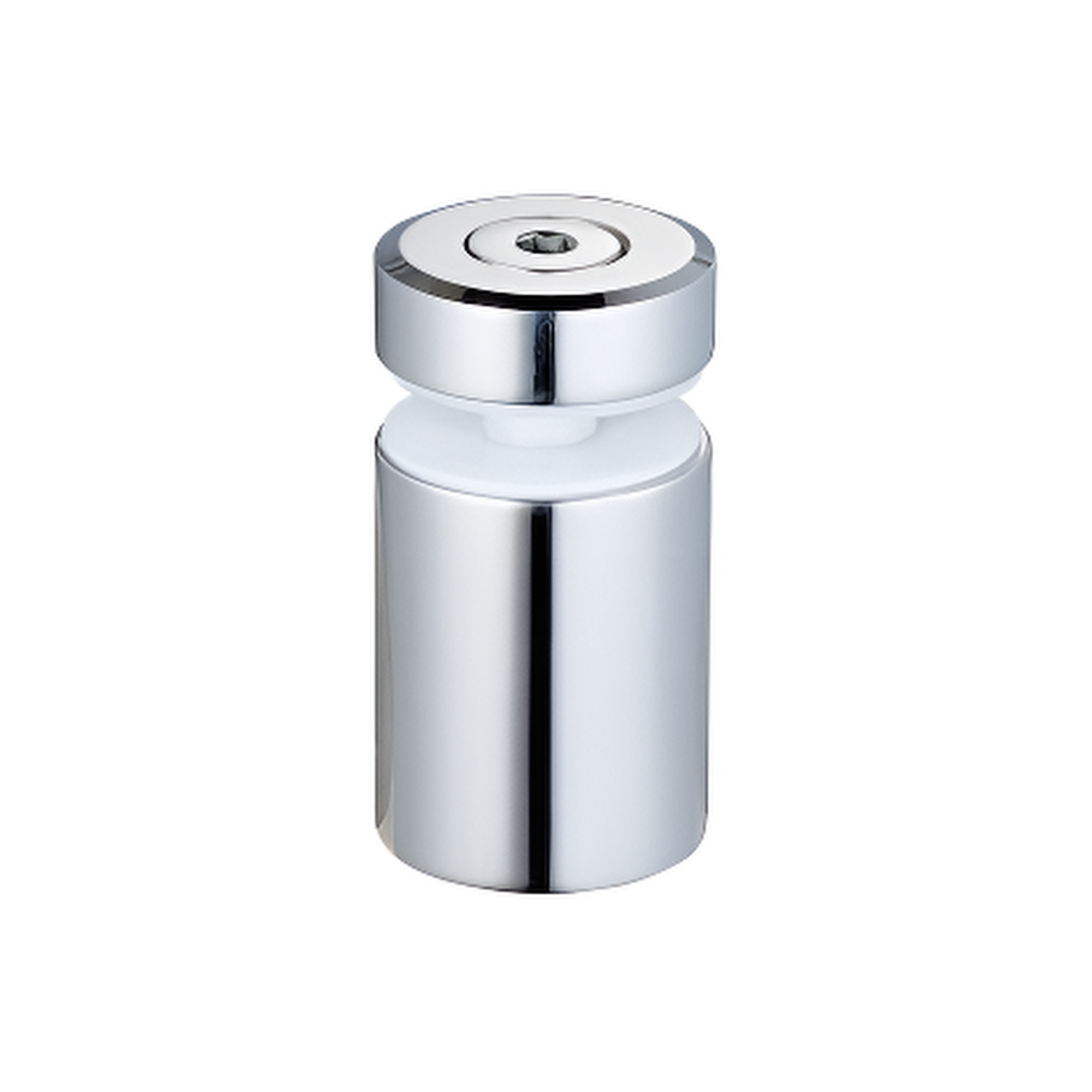

HF-002(S)4030/BOLT/304

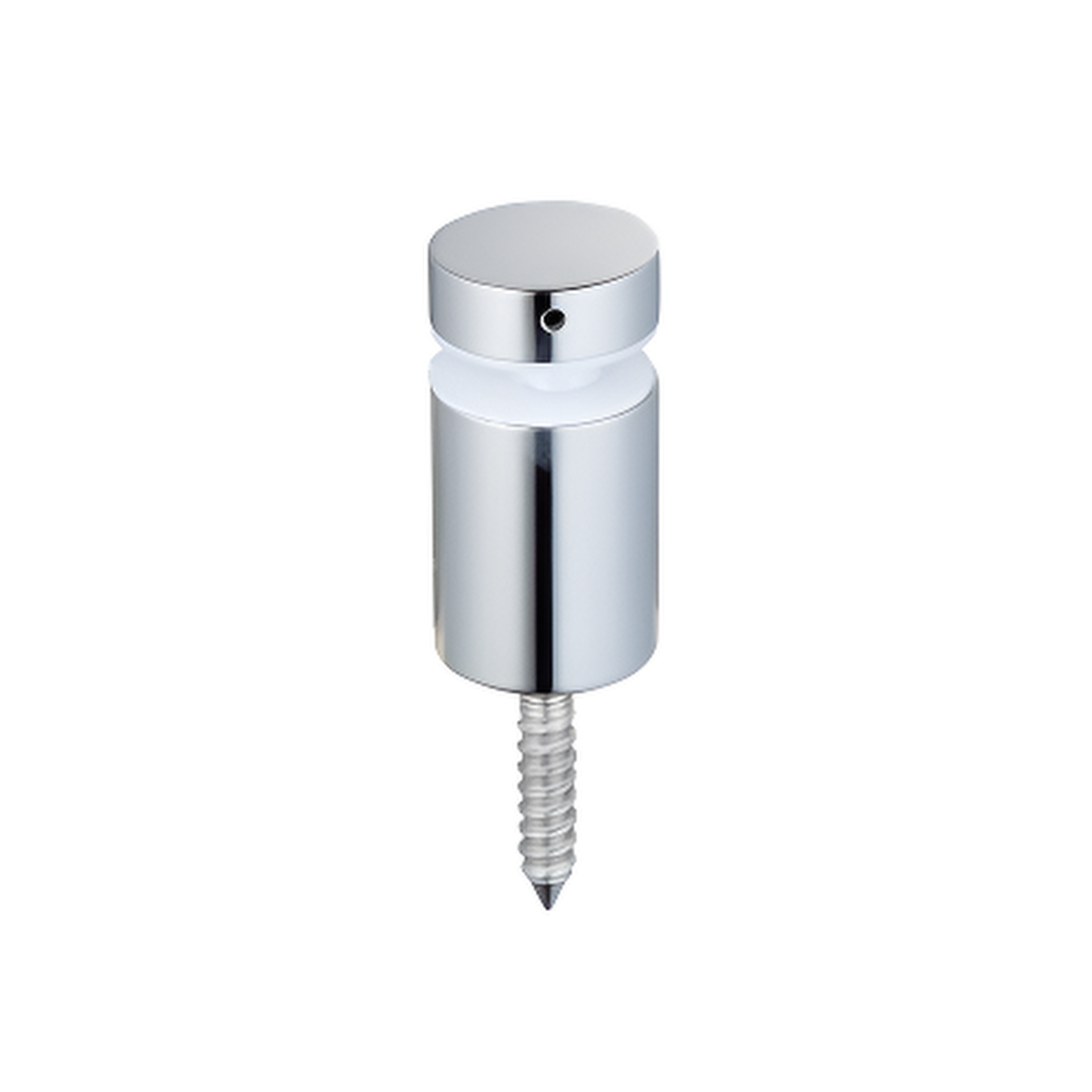

HF-003(S)5040/S

HF-05

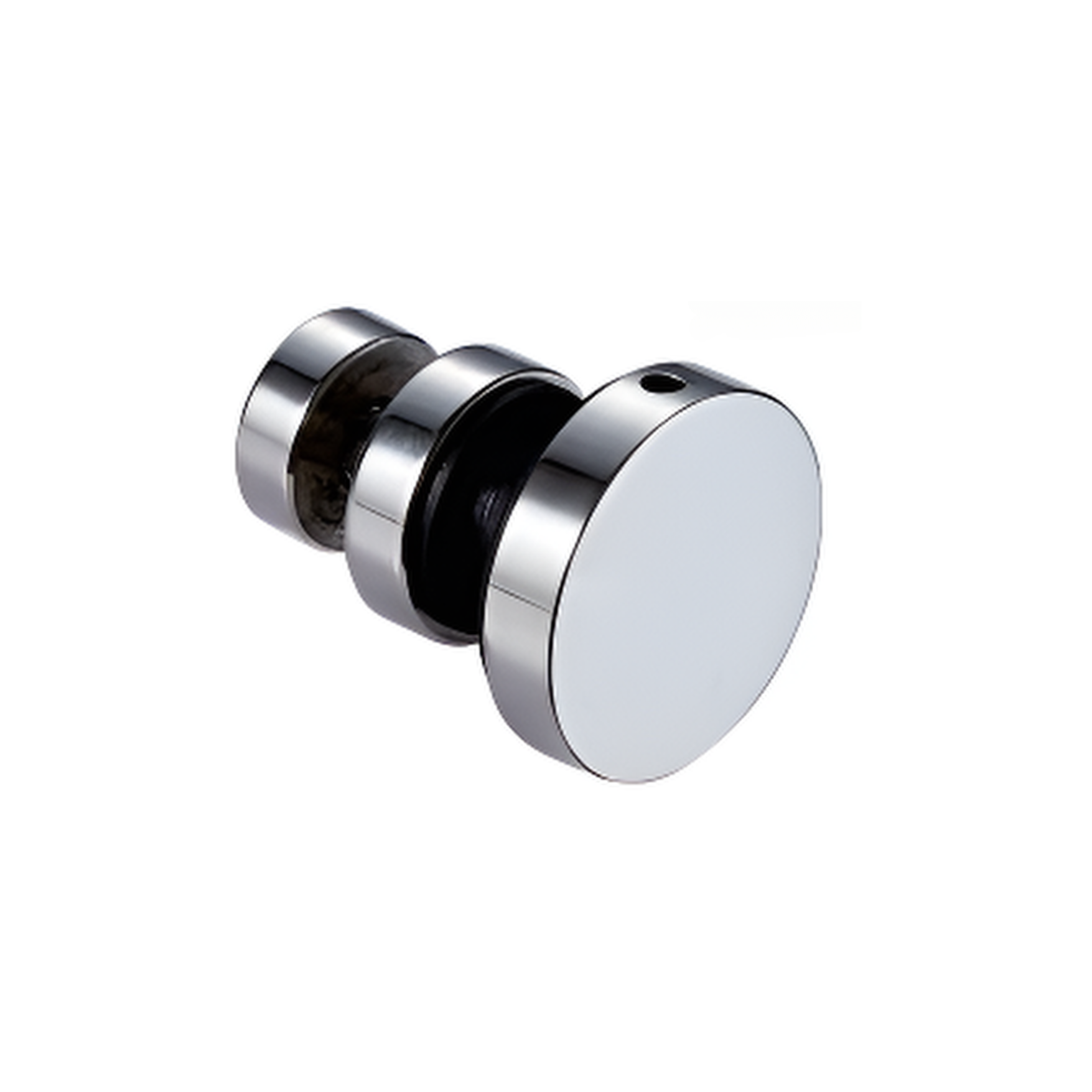

HF- SDSCY05

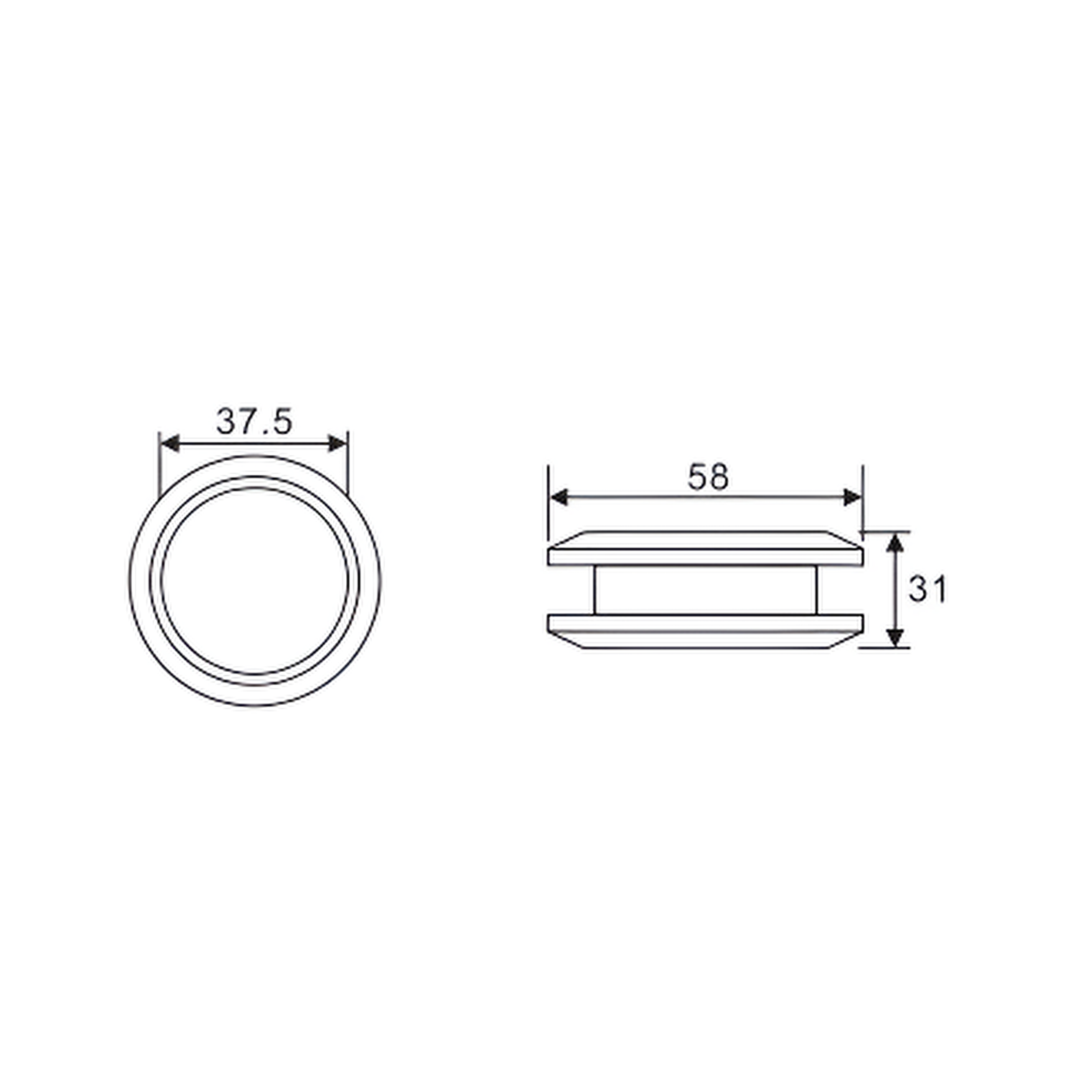

HF-310

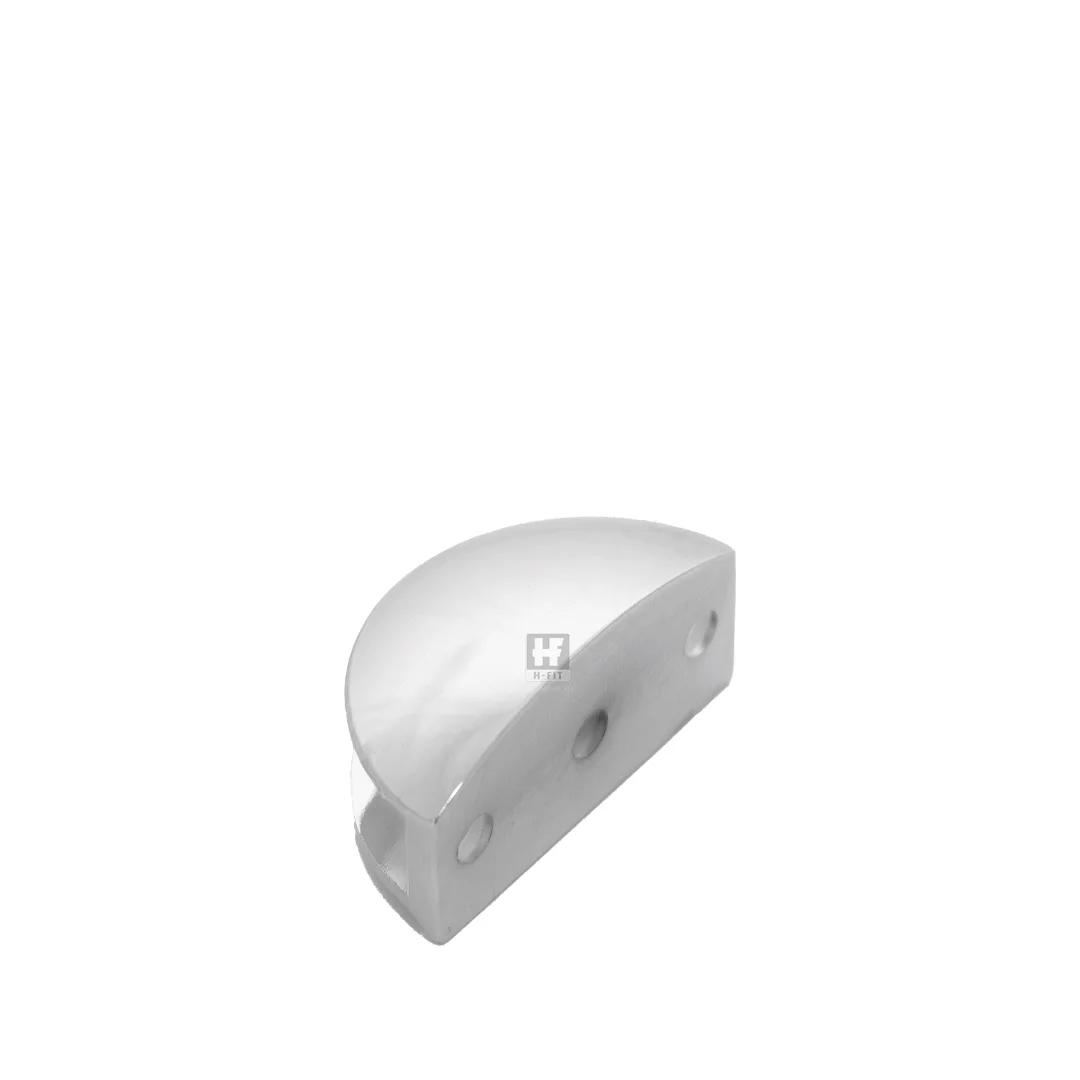

HF-312

HF-840

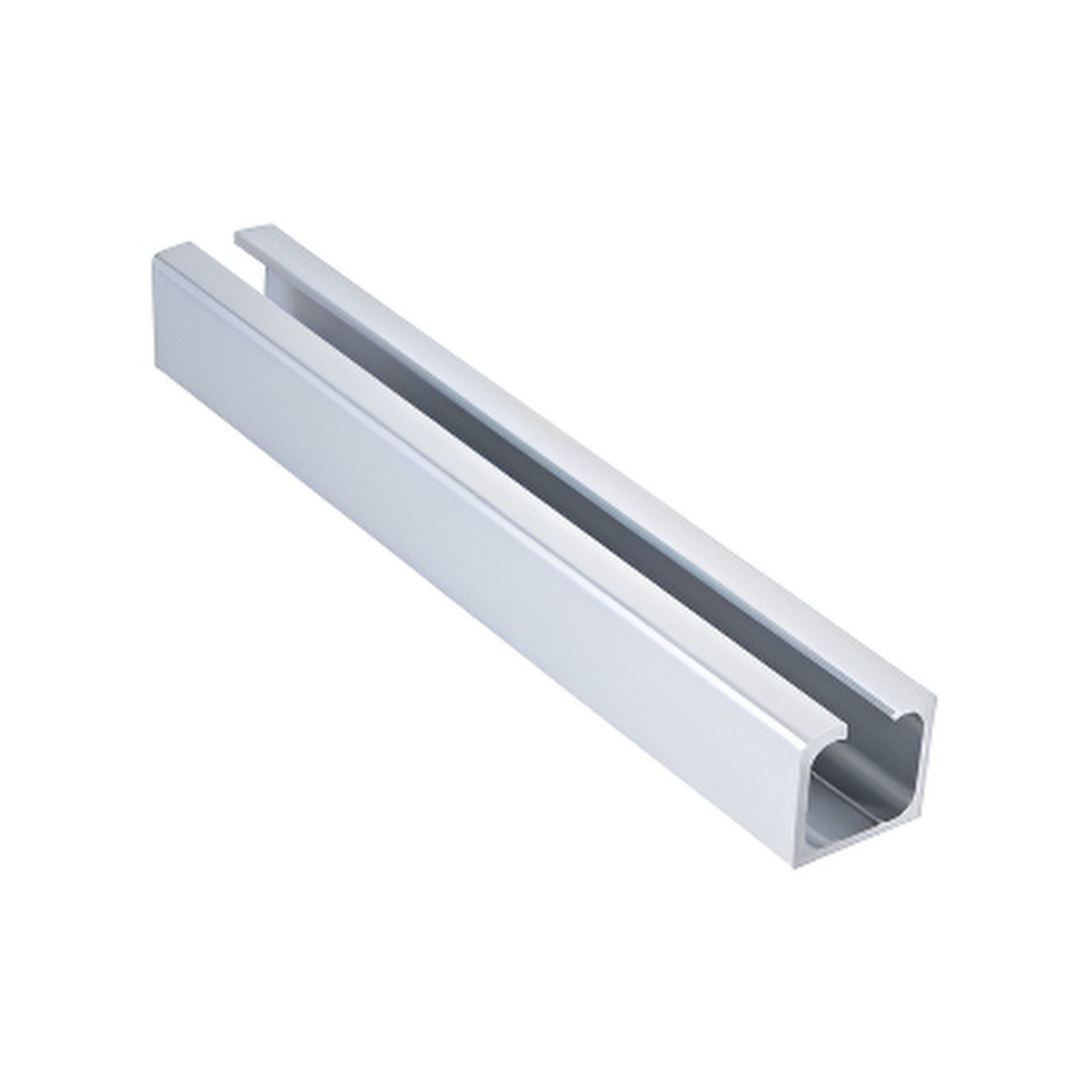

RSR-CY3000

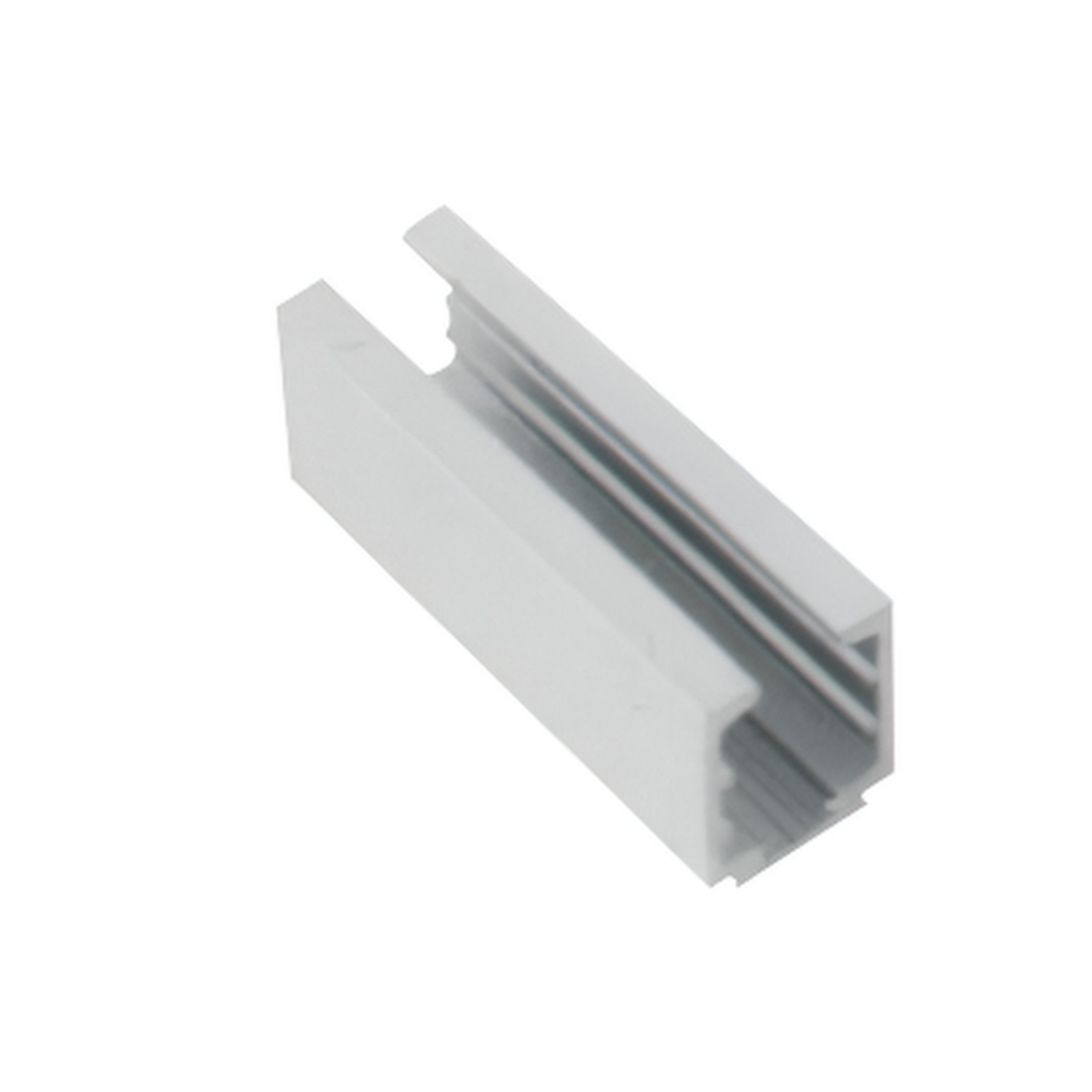

RSR-CY6000

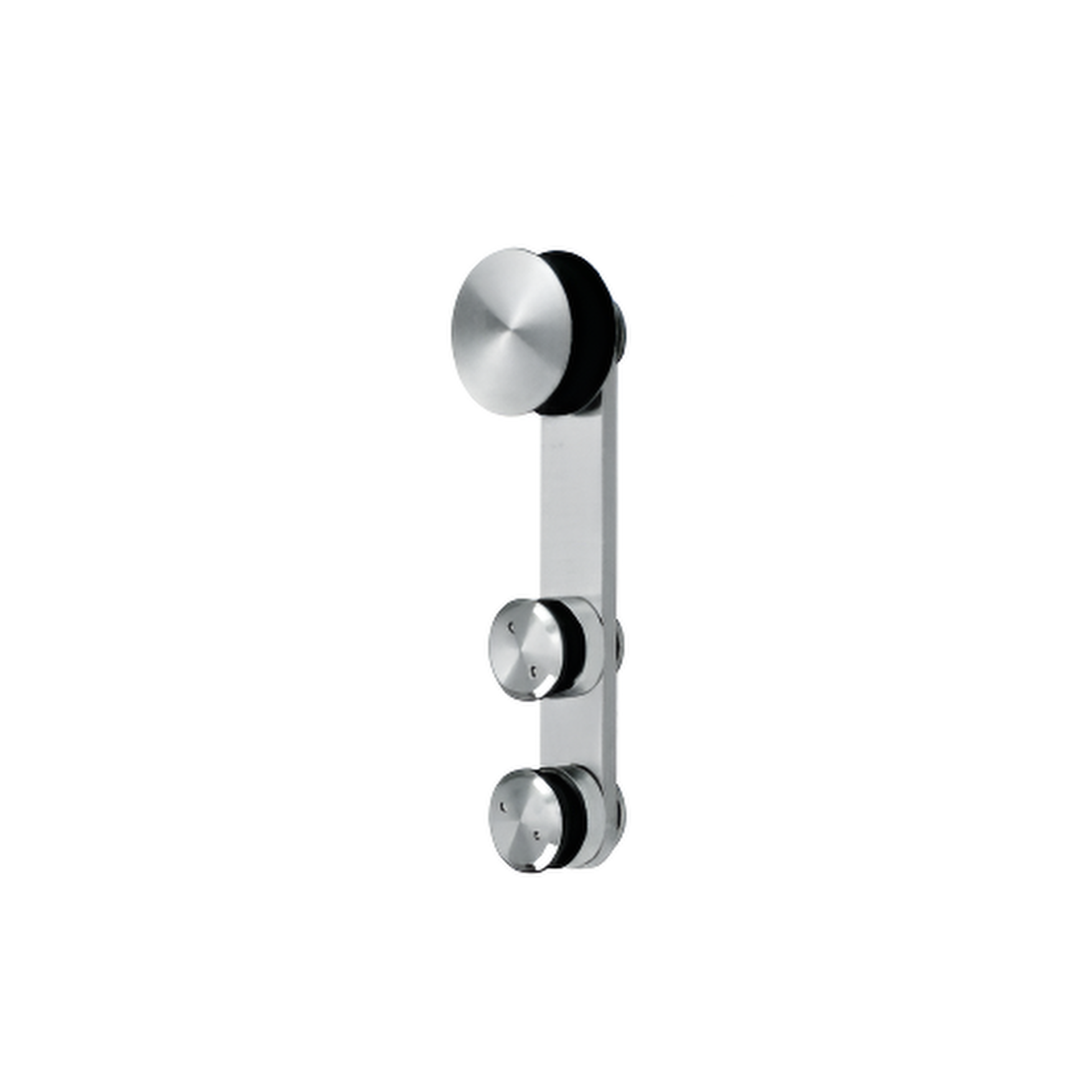

SDS-S 410 D

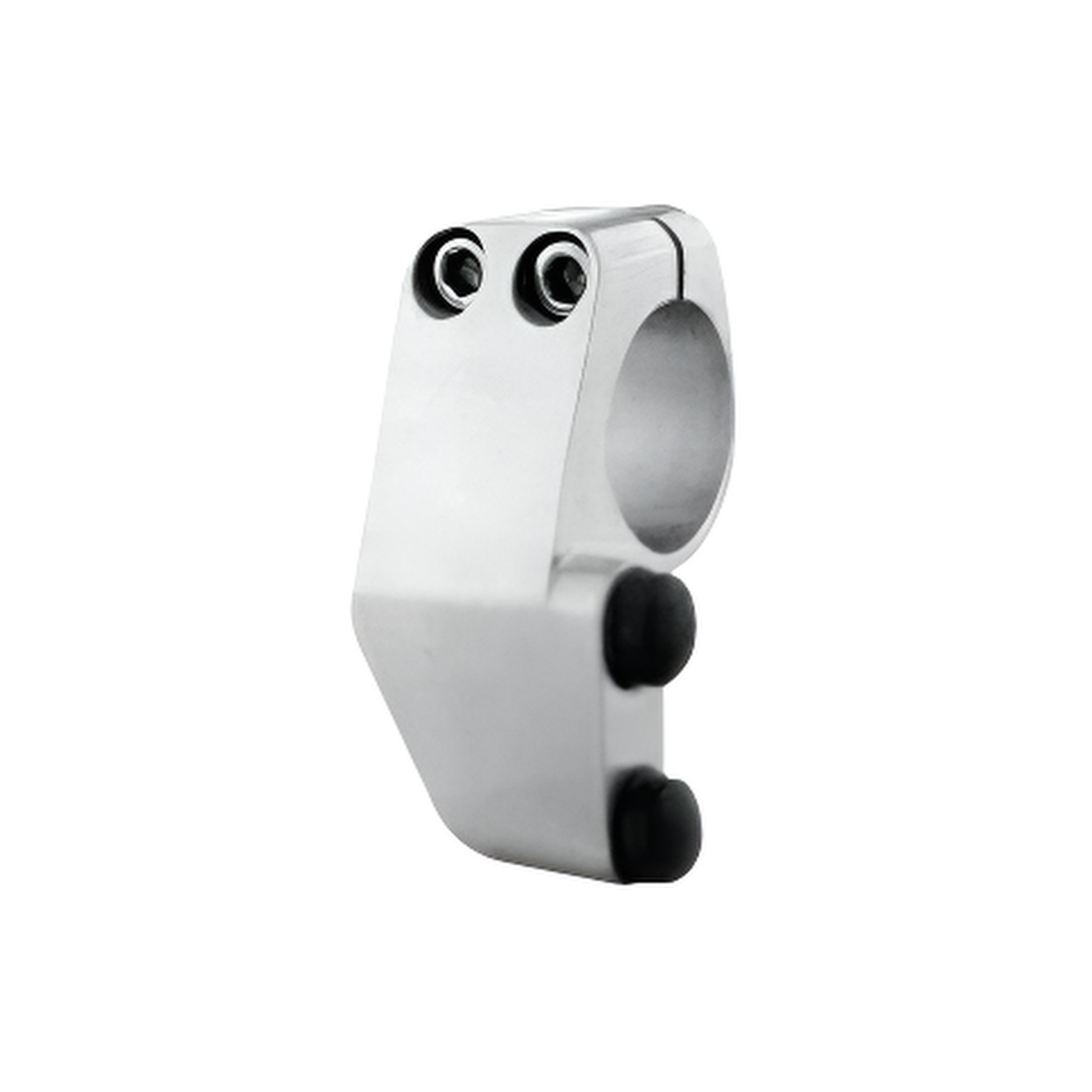

SDS-S 420A/L/R

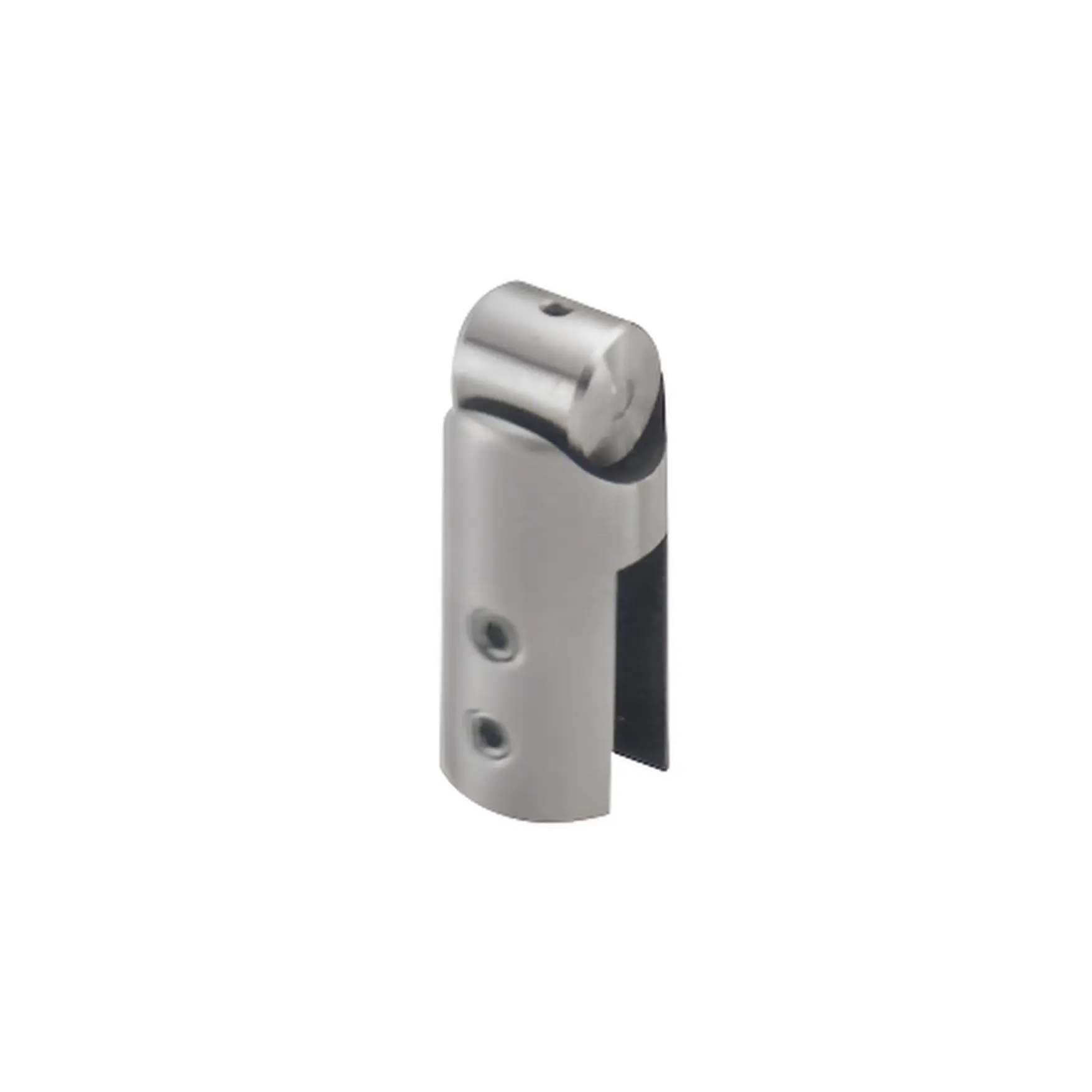

SDS-S 422/22MM

SDS-S-430A/F

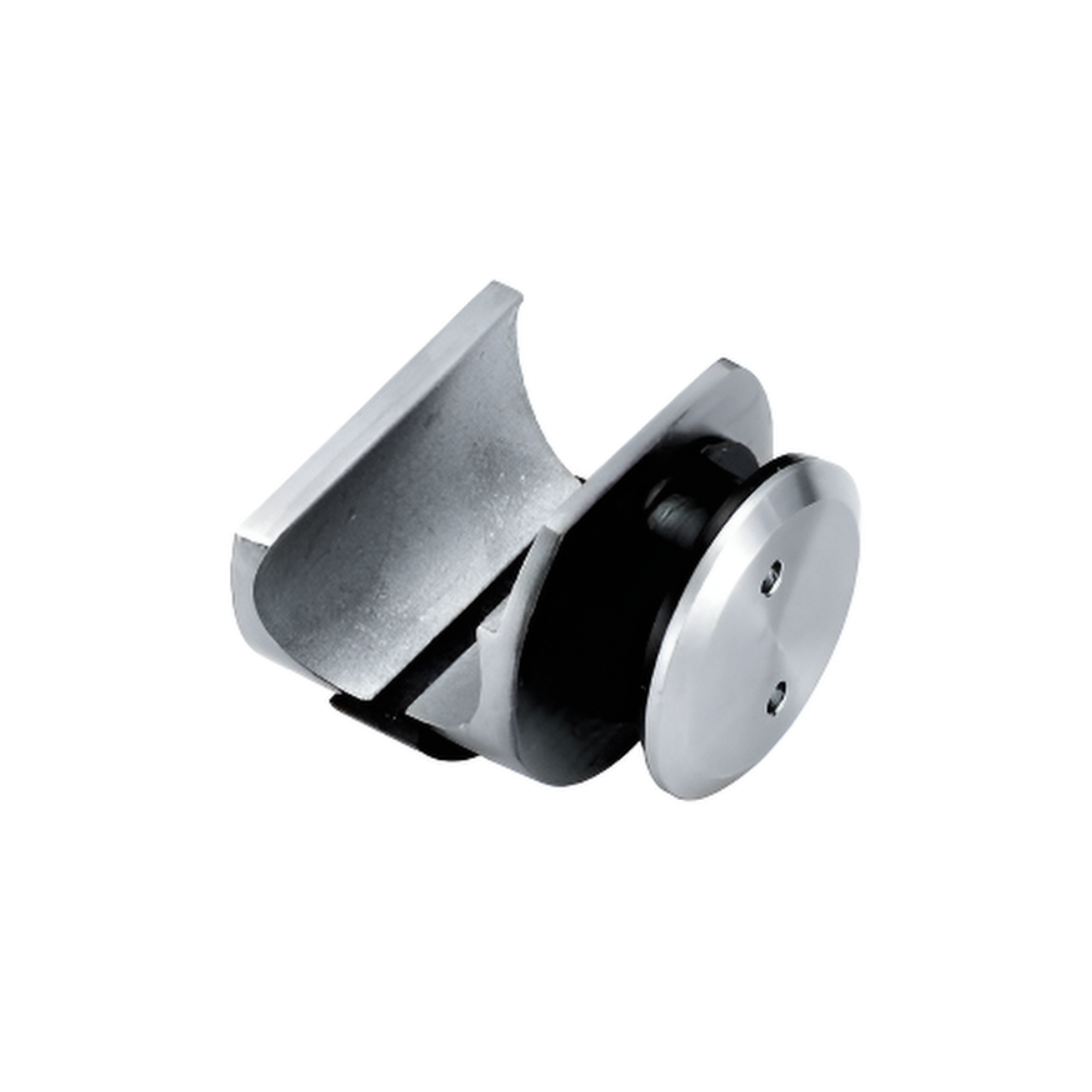

SDS-S-430W

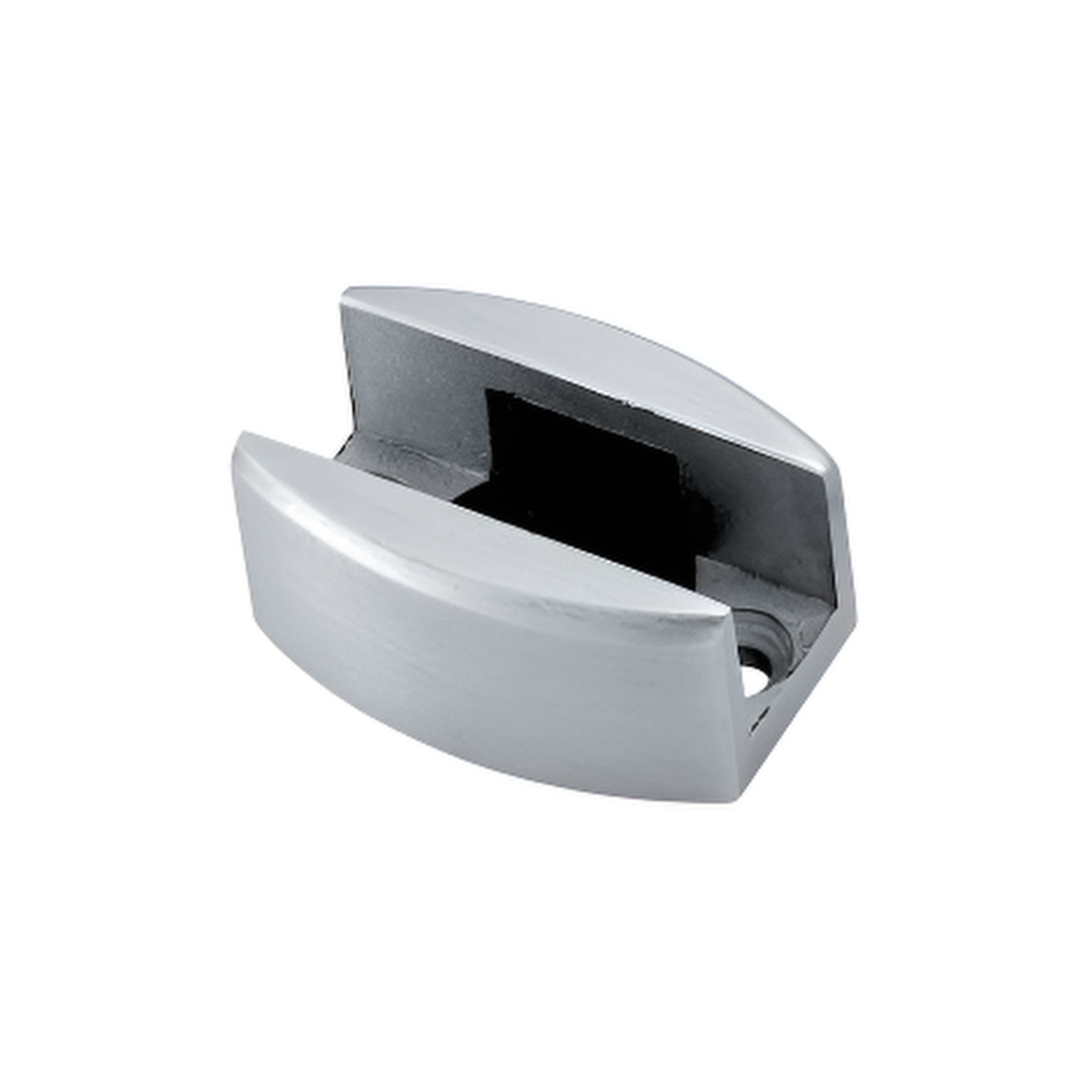

SDS-S 450SSS2

SDS-S 461

SDS-S510/A

SDS-S510/B

SDS-S510/C

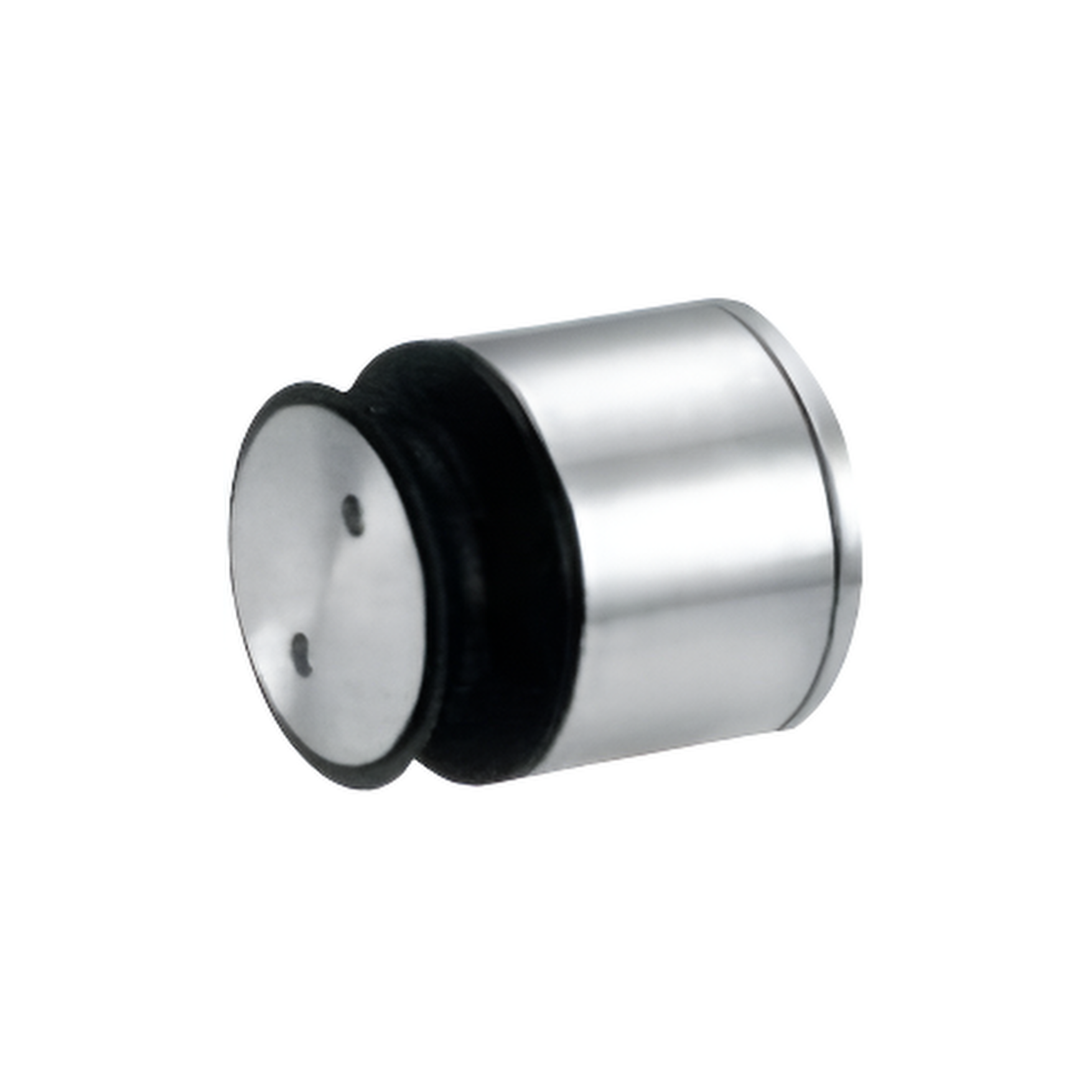

SDS-S510/D

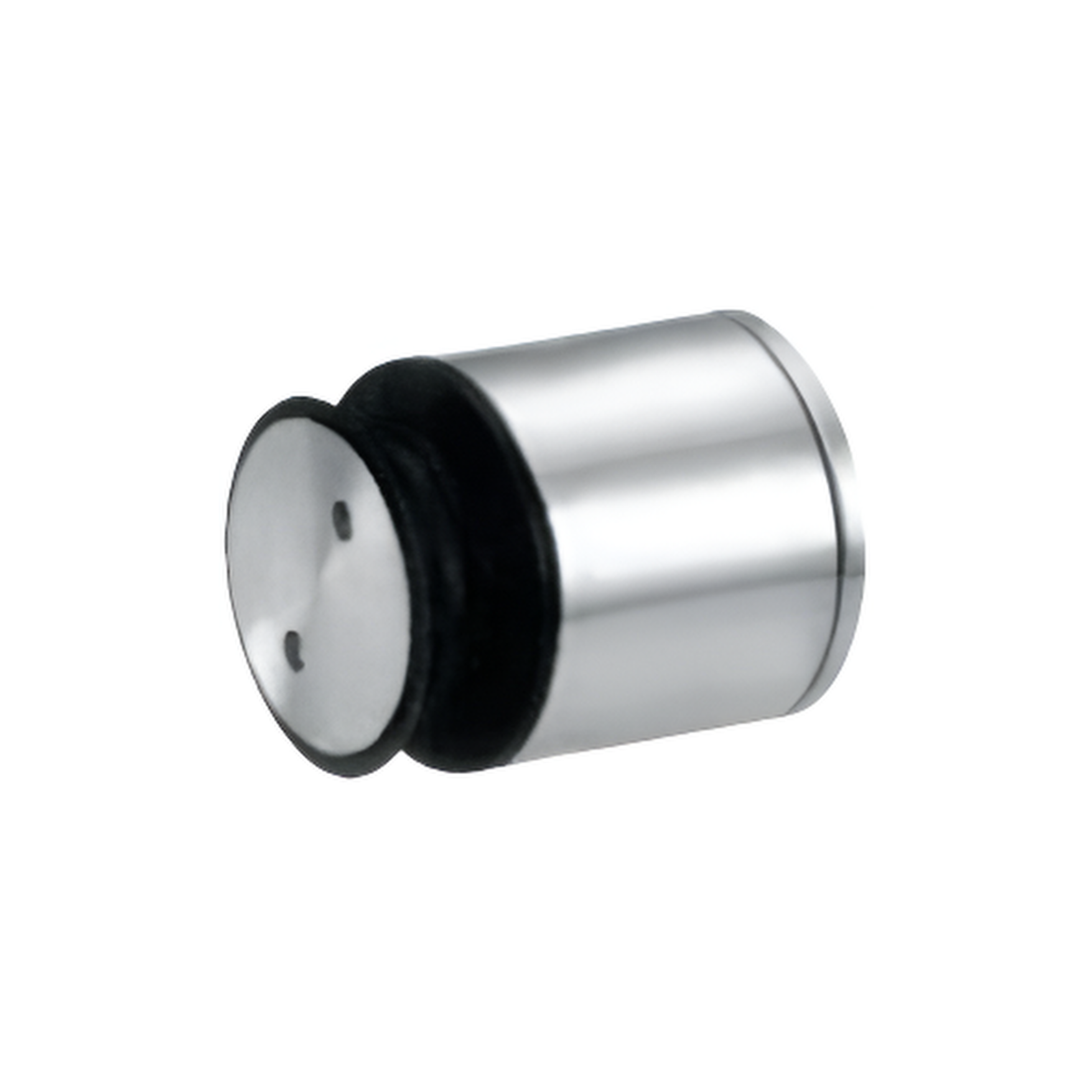

SDS-S510/E

SDS-S810

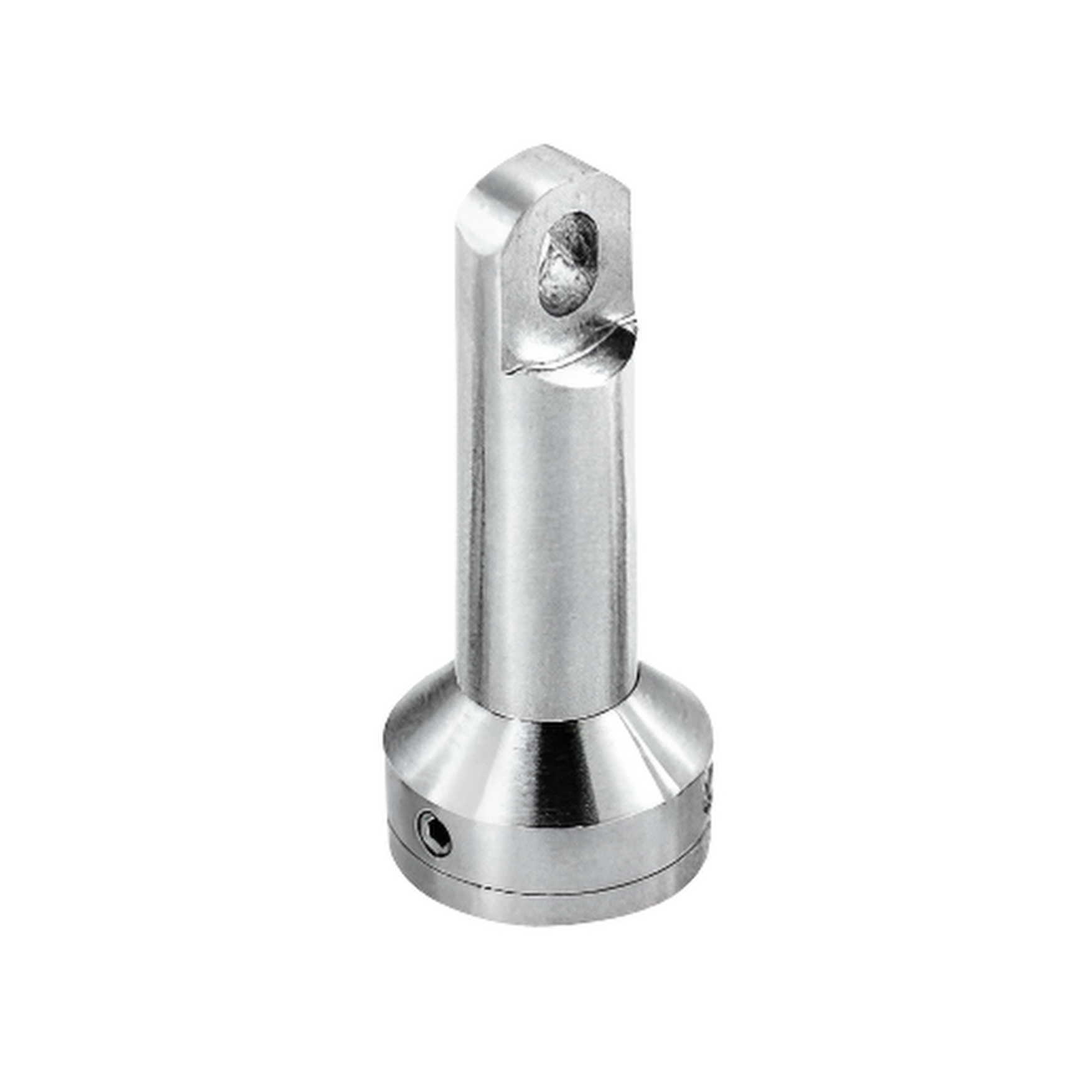

SDS-S812

SDS-S 820

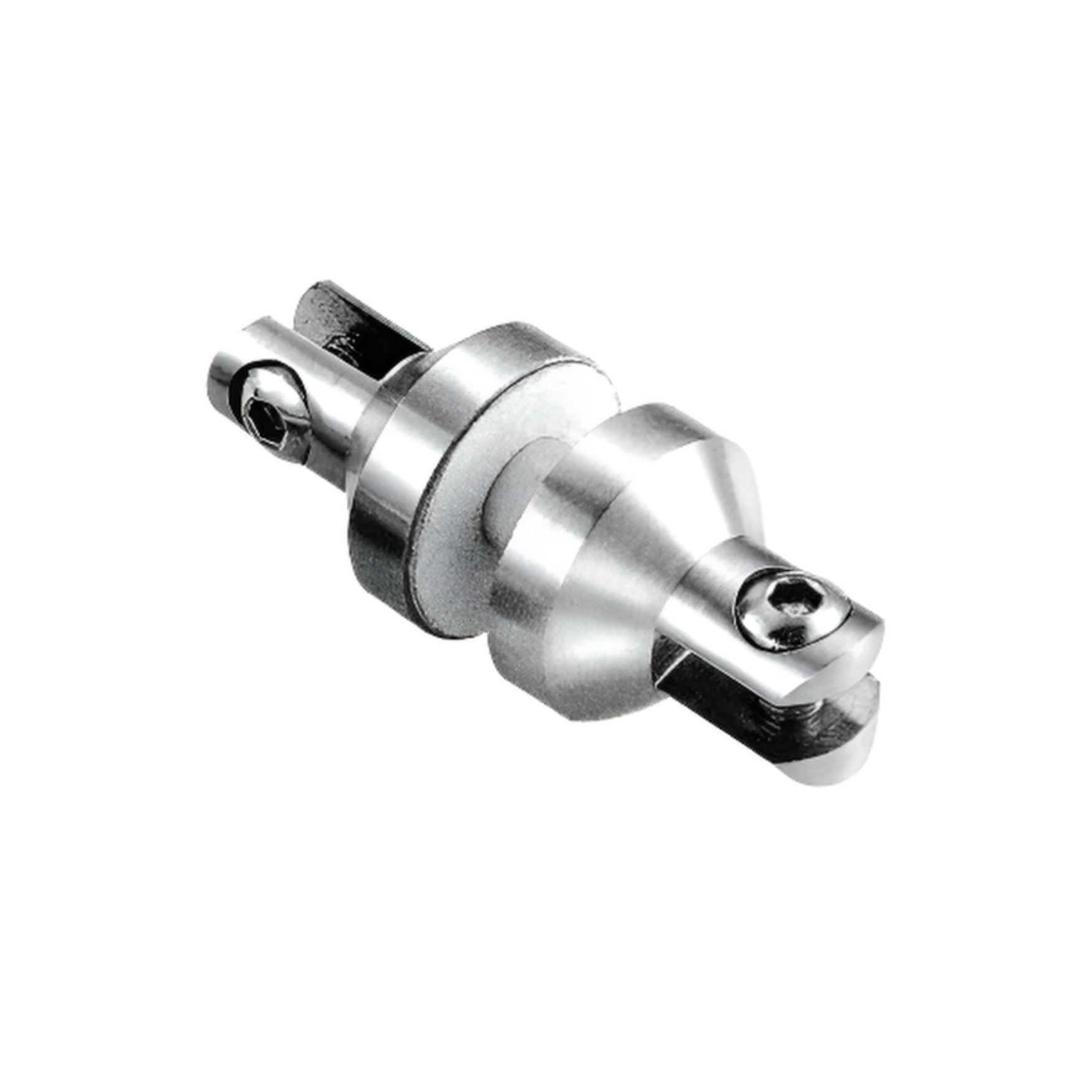

SDS-S830

SDS-S850/A

SDS-S850/B

SDS-S850/C

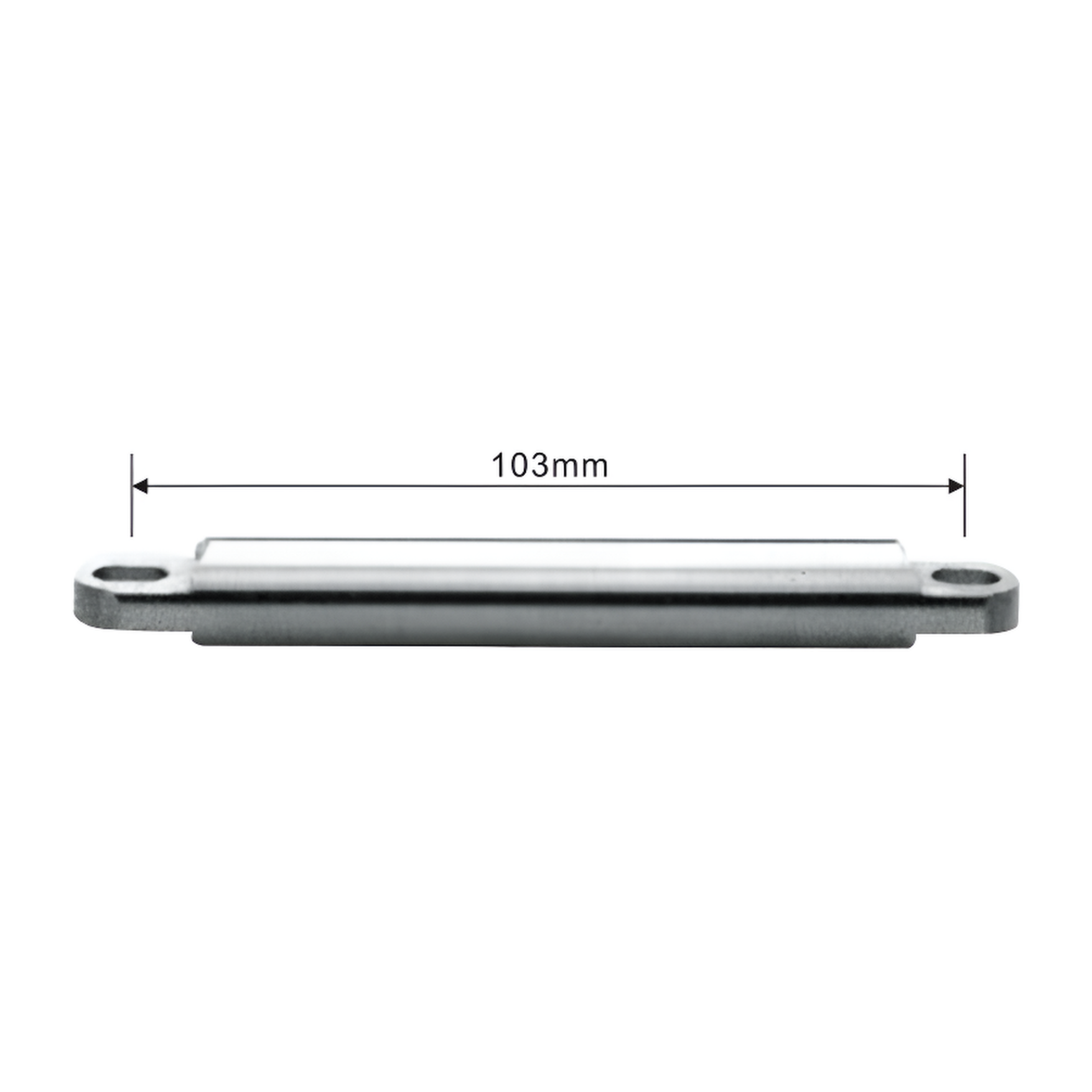

SDS-S850/D

SDS-SET 01

SDS-SET 02

SDS-MANET SET

HF-200 1/2

HF-200L

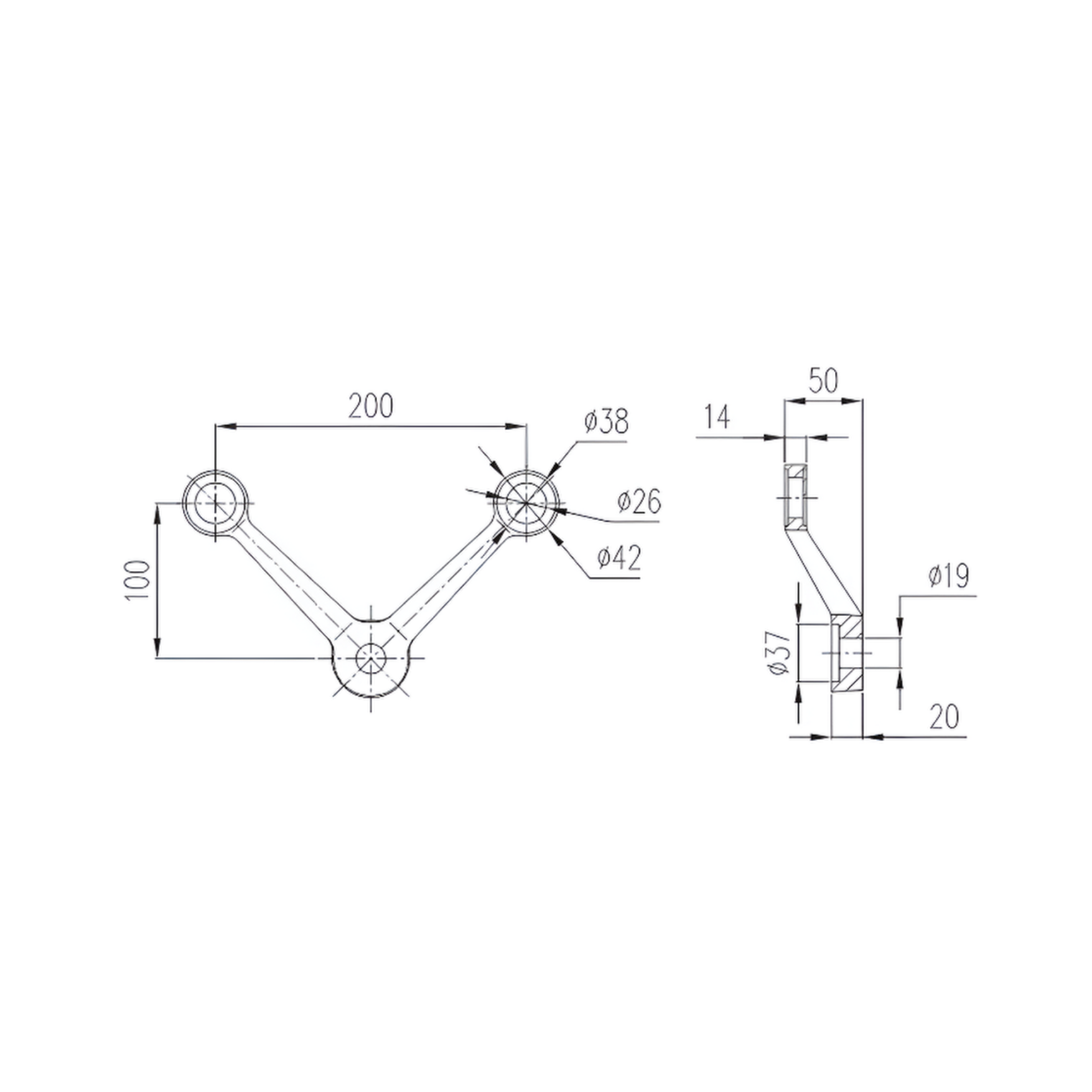

HF-200V

HF-200X

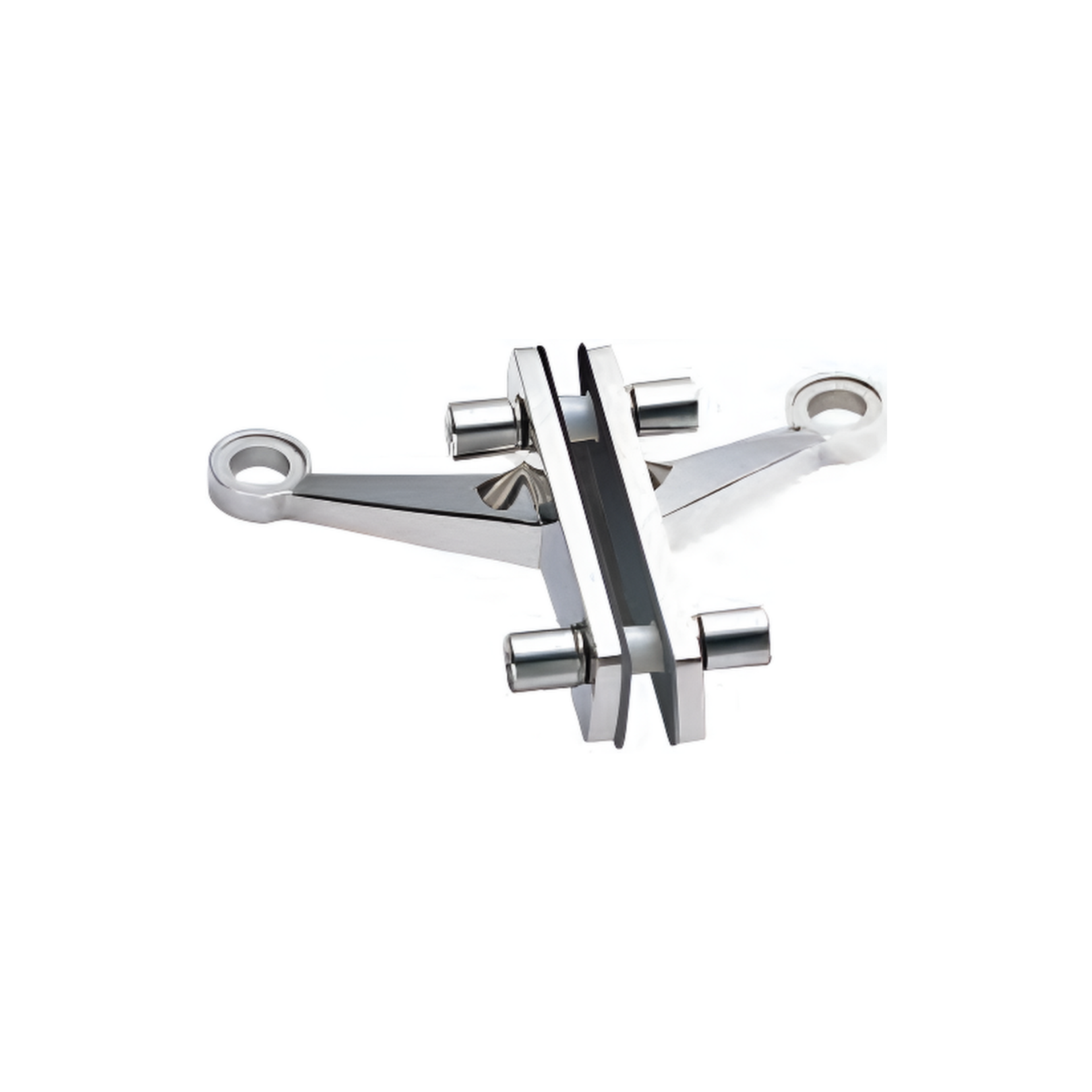

HF-LZ200L

HF-LZ90

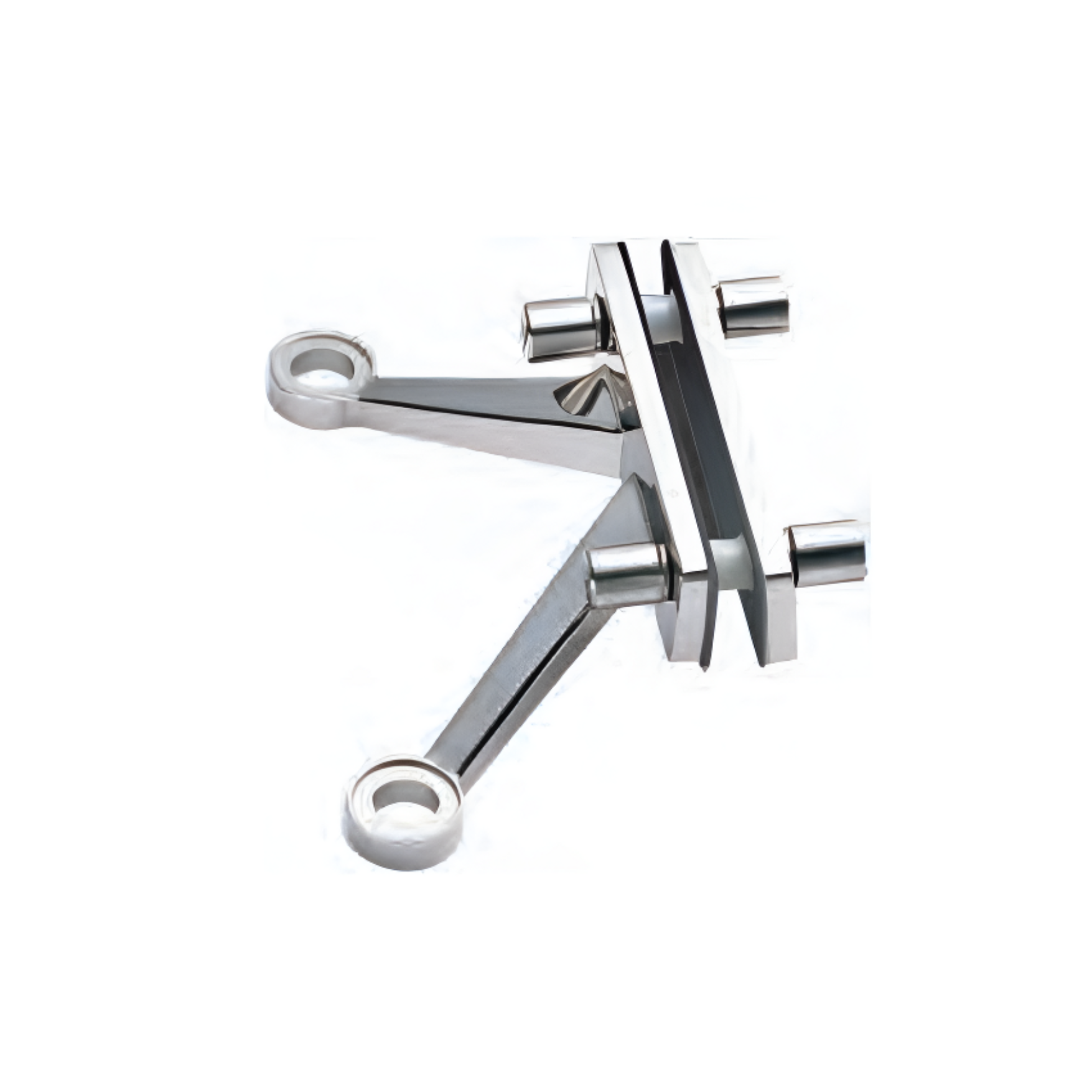

HF-LZ-200V

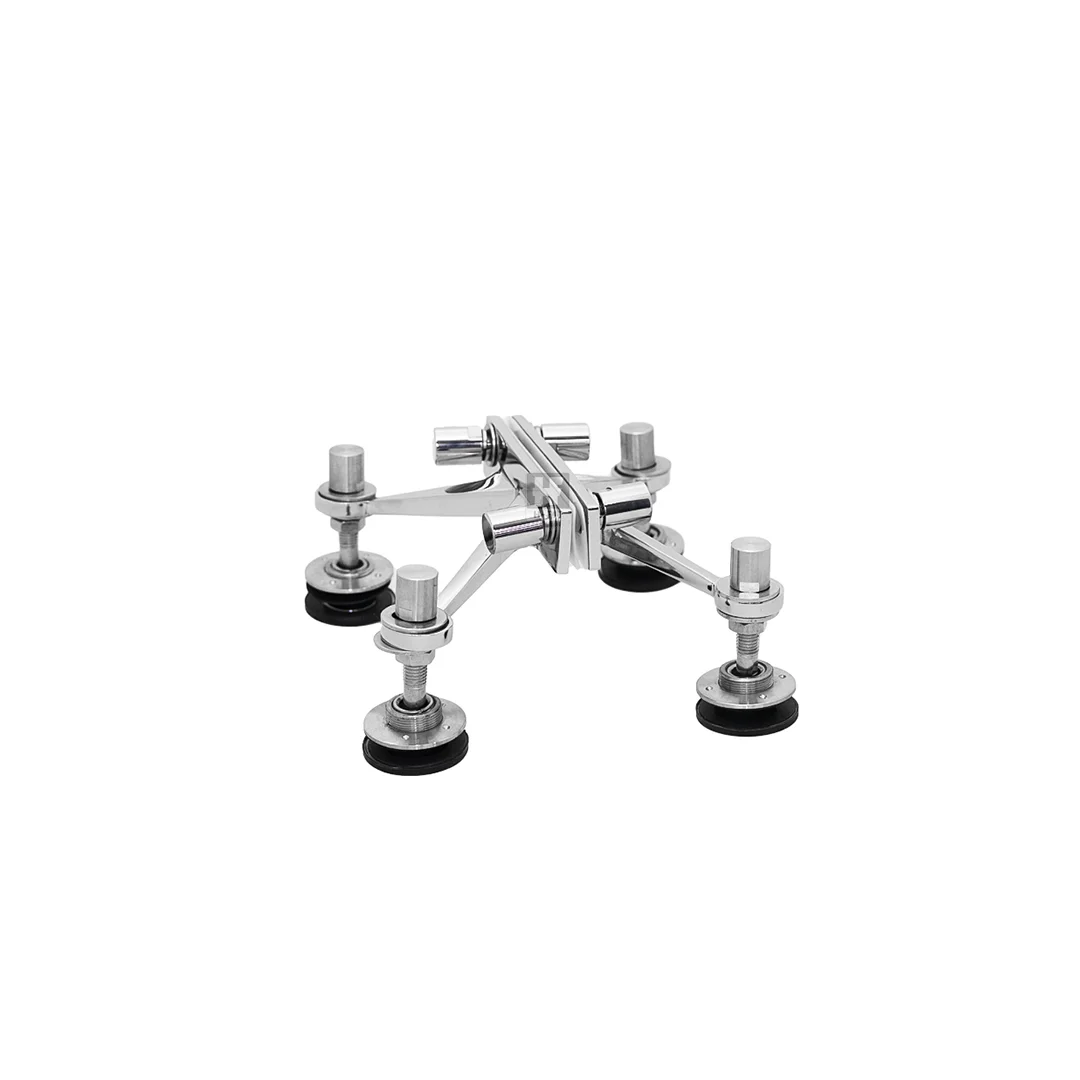

HF-LZ200X

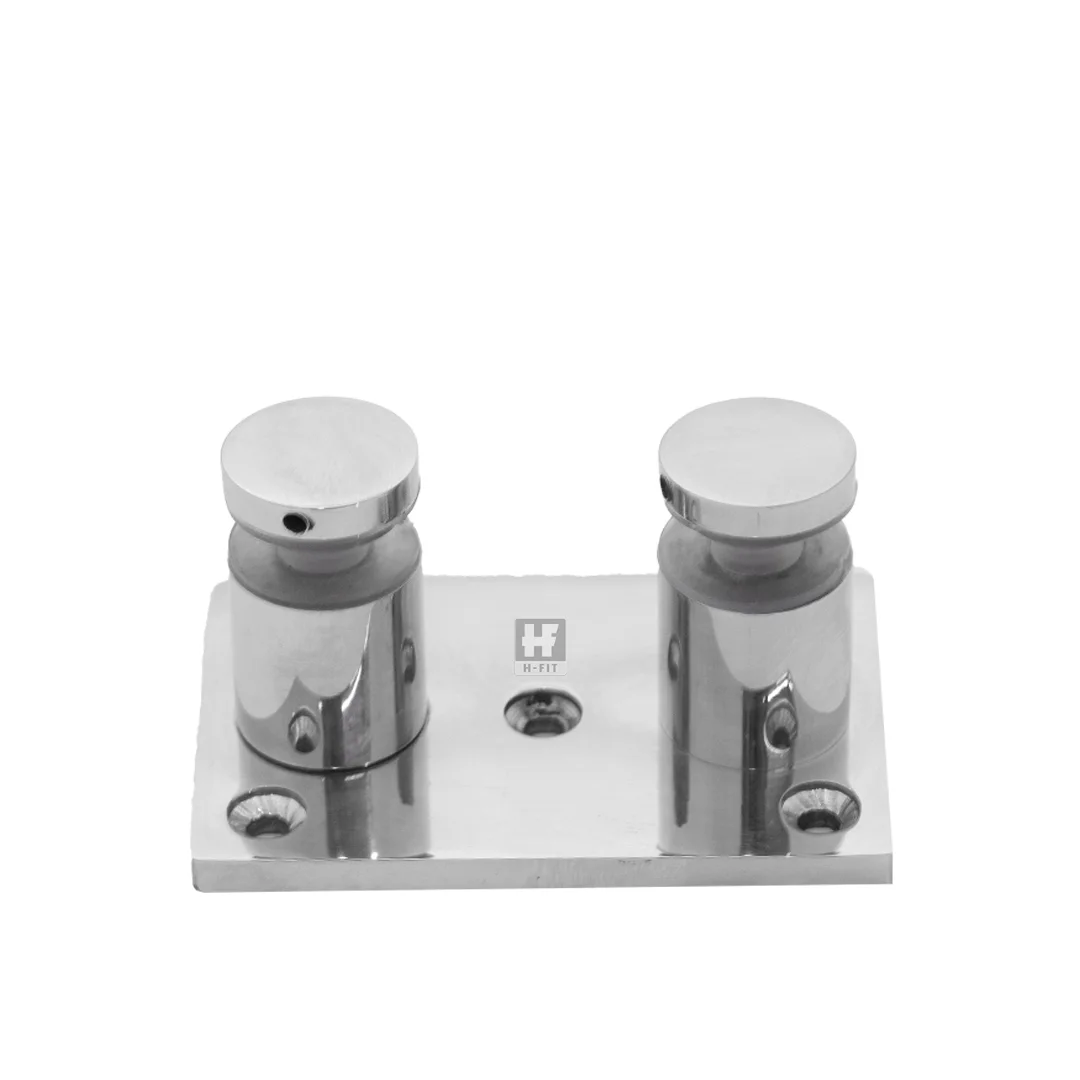

Base Plate SF05094008

Glass Clamp SF0GV851308

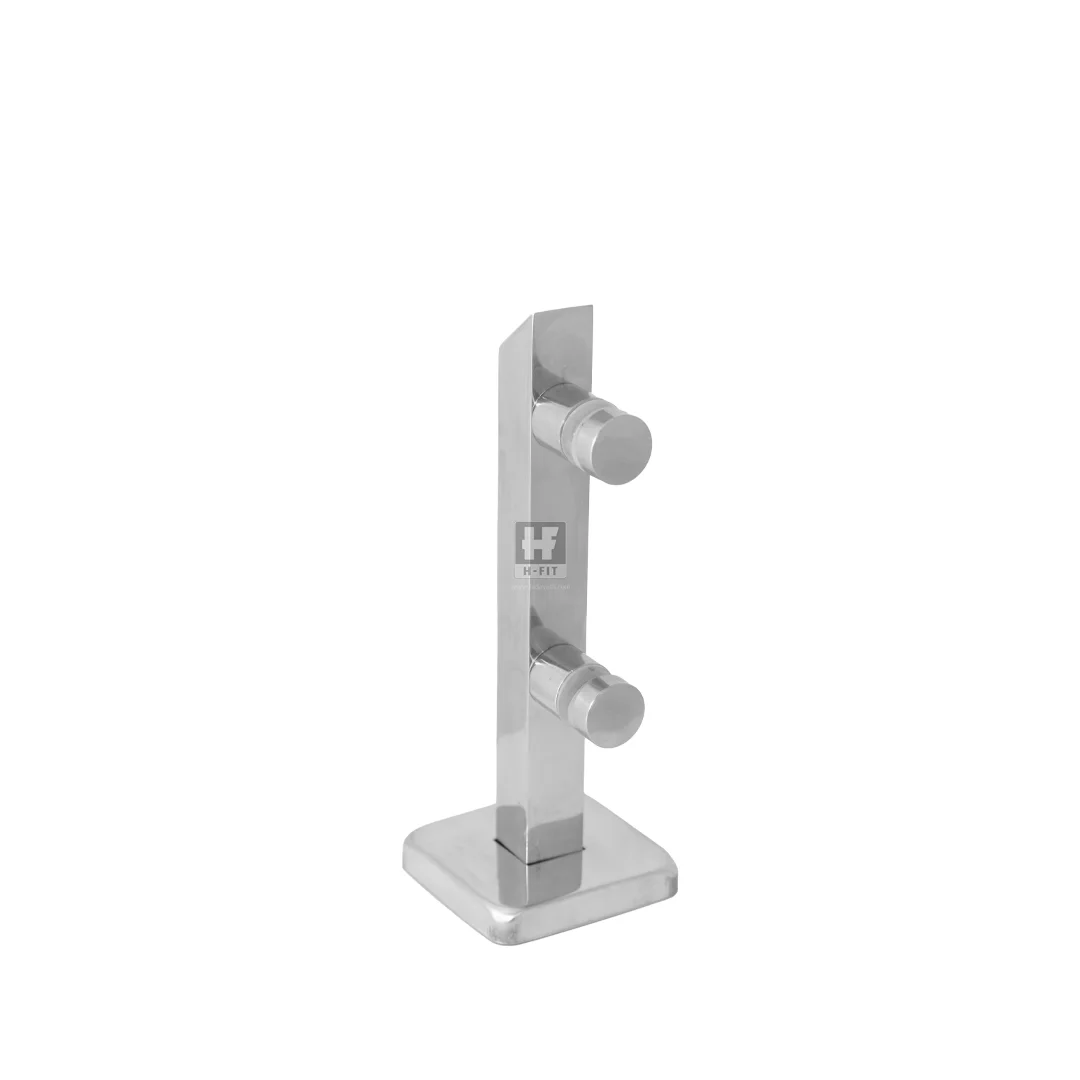

Glass Spigot HF040POST8

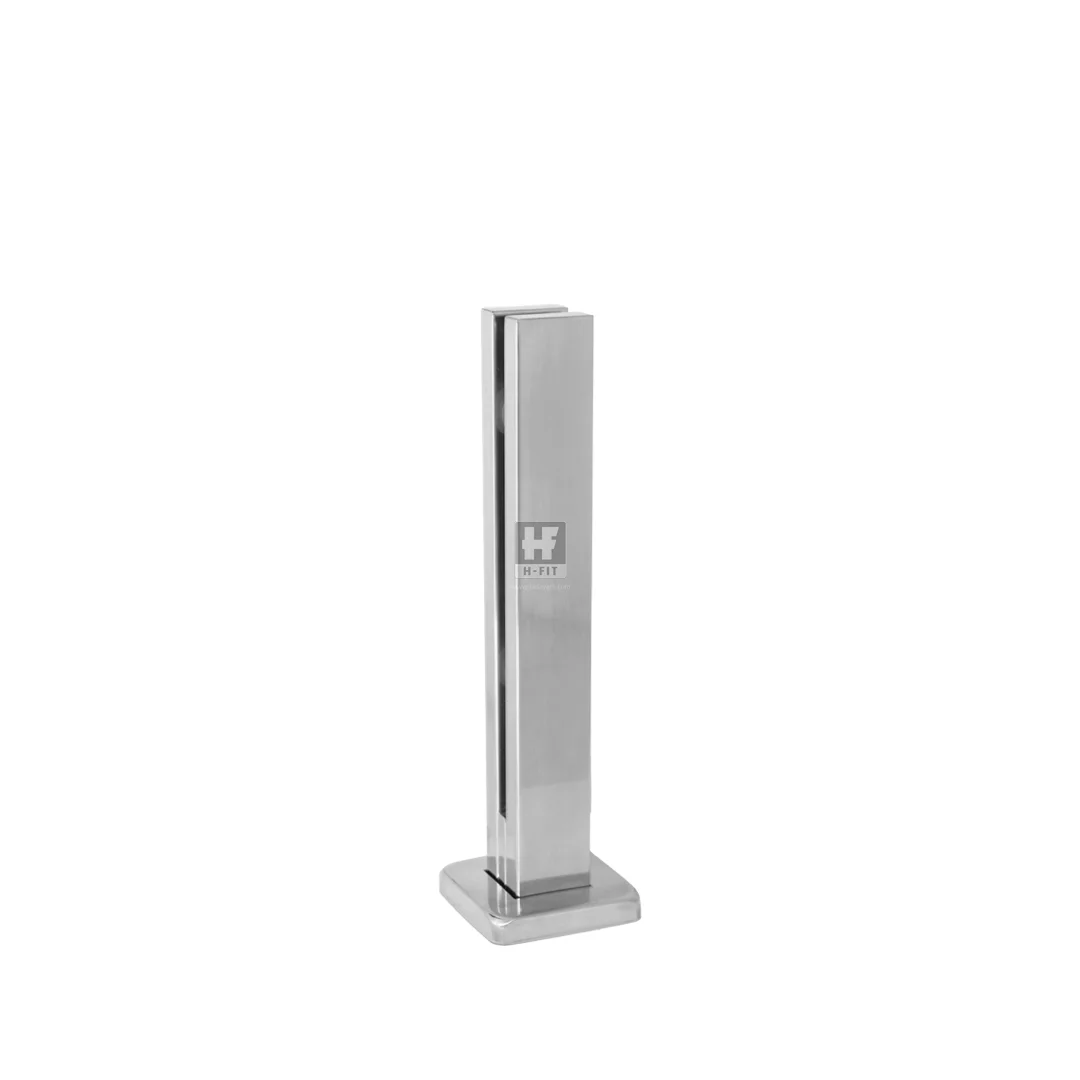

Glass Spigot HF040P3008

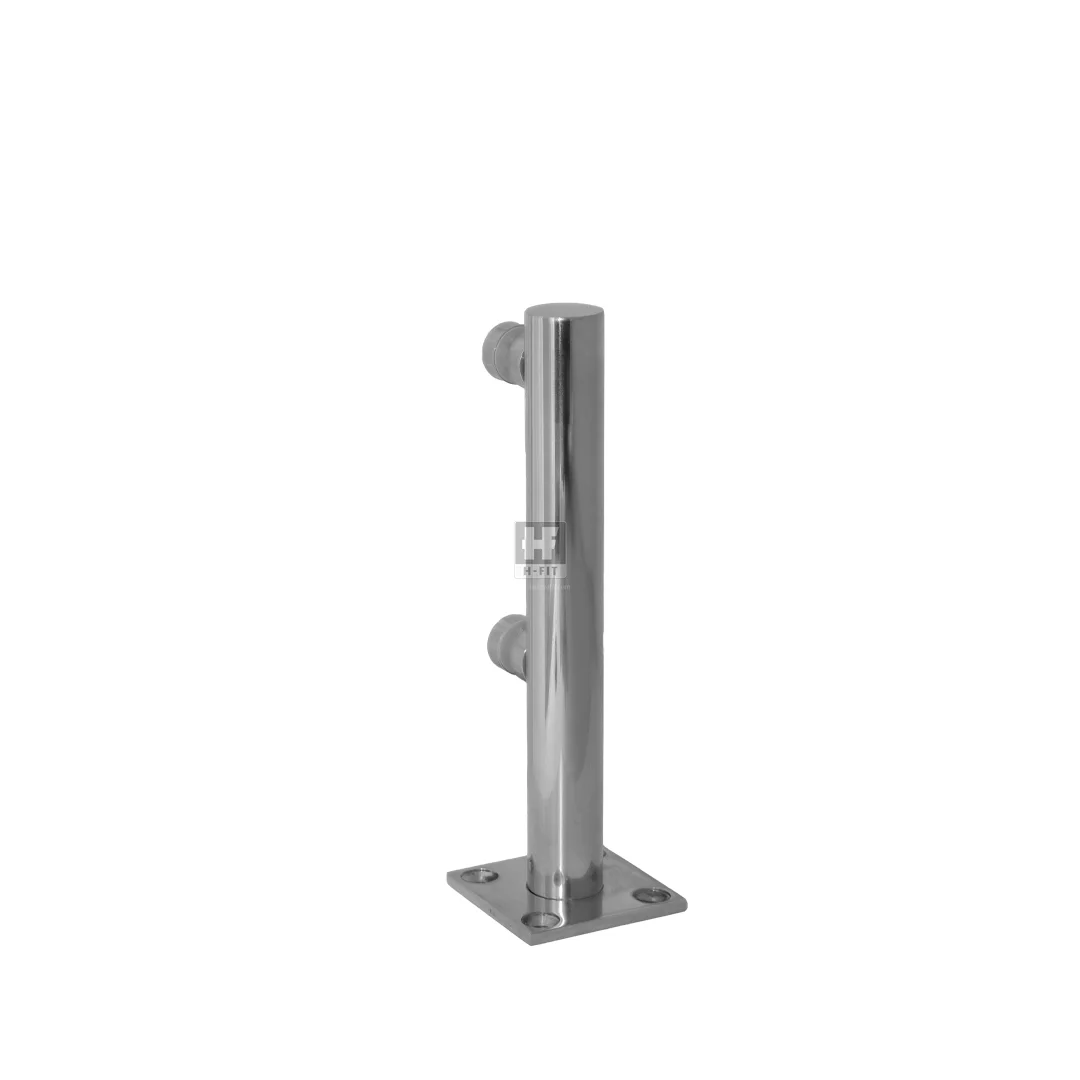

Round Spigot EH-032250-MM8

Square Spigot EH-030302508

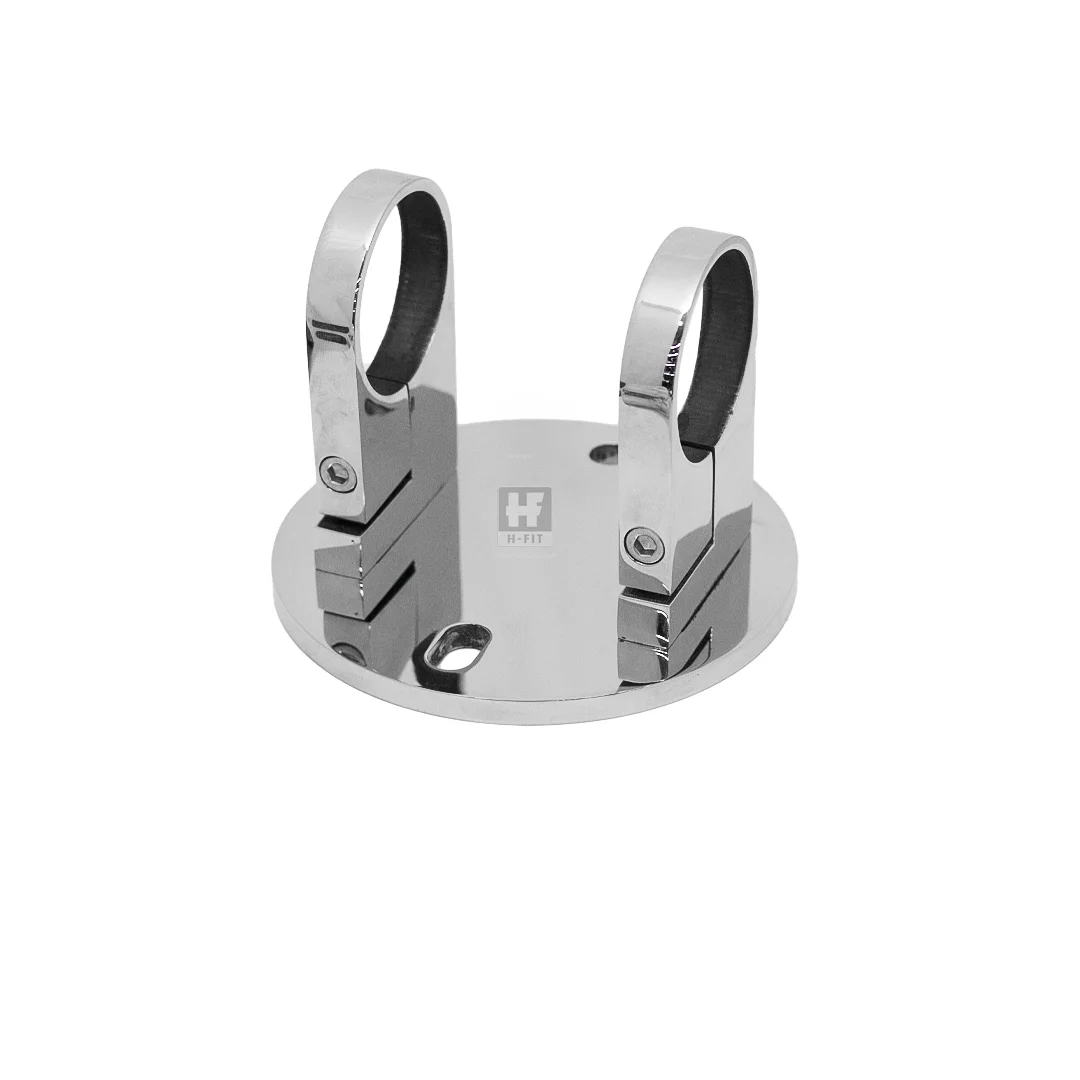

Upper Wall Glass Brake HF080SPLT8

Glass Door Fittings Solutions from Hidayath

Premium Architectural Hardware for Residential, Commercial, and Industrial Glass Doors

Buy Glass Door Hinges in UAE

Reliable and Rust-Free Hinges for Smooth Door Operation.

Every architect and contractor knows smooth door operation is key. Rust-free door hinges are vital for this. Not all hinges are the same; some rust or wear out quickly. Hidayath offers top-quality door hinges known for their rust-free performance. We supply stainless steel, brass, aluminum, and powder-coated hinges that fit your needs perfectly.

Stainless Steel Glass Door Hinges

316 stainless steel glass door hinges for corrosion resistance

Hidayath offers stainless steel butt hinges made from SUS 316 grade stainless steel. This material is durable and resistant to corrosion. It also has a sleek finish. These butt hinges work well for internal doors in homes and businesses. They provide reliable performance and are easy to install.

Each hinge measures 50 mm x 38 mm x 1.2 mm. It has a screw-fixing design for secure mounting. The surface is vibration polished, giving it a smooth satin stainless finish. This finish fits well with modern interior designs. Hidayath provides both washered and unwashered variants for quieter operation.

These hinges are designed for light-duty use and are ideal for internal wooden or metal doors. They come in packs of 2 pieces per bag, without screws. Each box contains 25 bags, and there are 250 bags per carton. This makes them perfect for bulk purchases by distributors, OEMs, and contractors.

Hidayath is a trusted name in the UAE for architectural stainless steel door hardware. Their SS304 butt hinges are built for performance and come in packaging that meets industrial and commercial needs.

Adjustable Glass Door Hinges

Adjustable self-closing hinges for glass doors

Hidayath offers adjustable glass door hinges. These hinges have a built-in self-closing system. They control the closing speed for doors weighing up to 45 kg (99 lbs).

Frameless Glass Door Fittings

Glass doors need special care. Hidayath knows this and offers a variety of glass door fittings. They provide options for single-action and double-action doors. These fittings are made for daily use and can handle heavy door usage without compromise. We provide corner fittings and frameless glass patch fittings for both offices and homes.

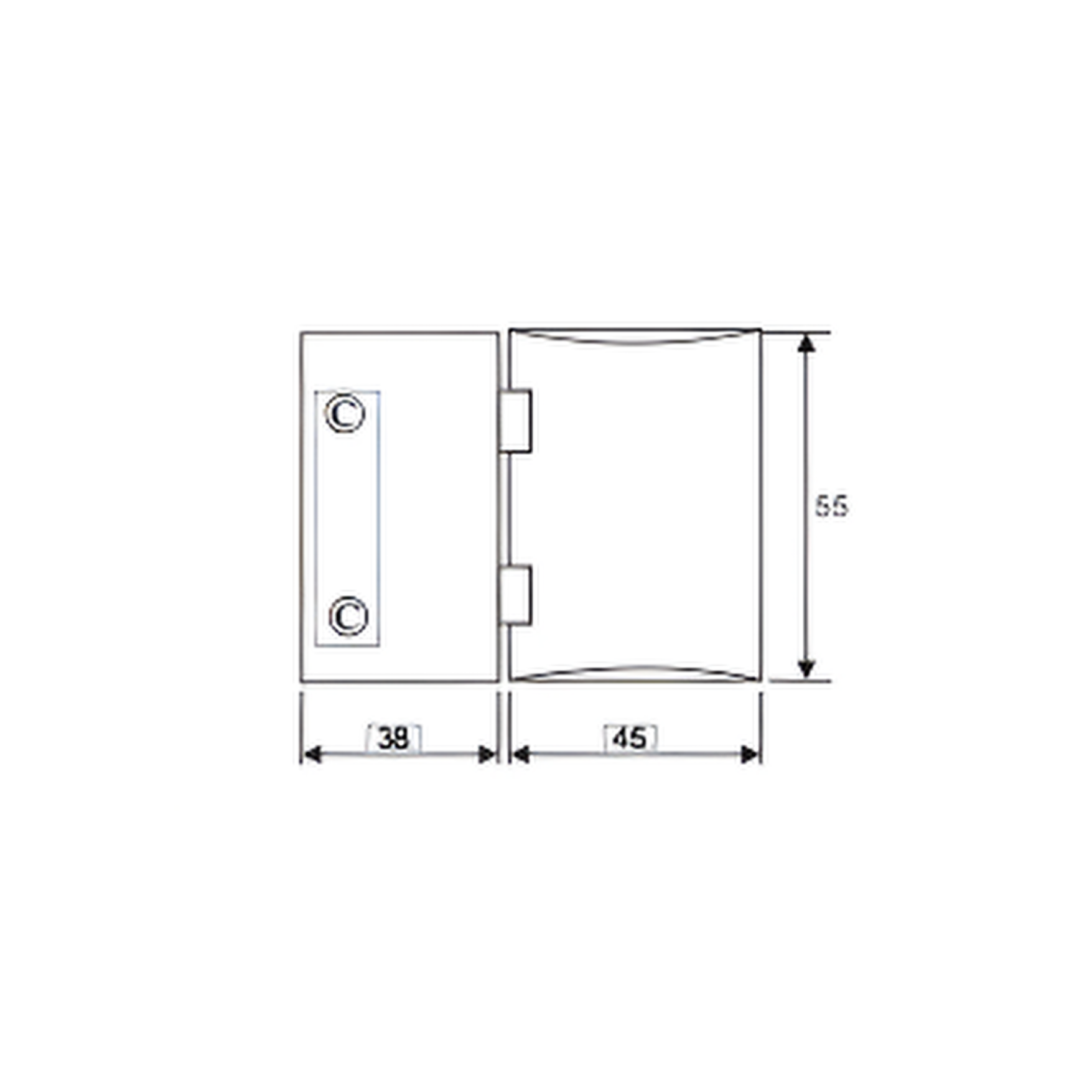

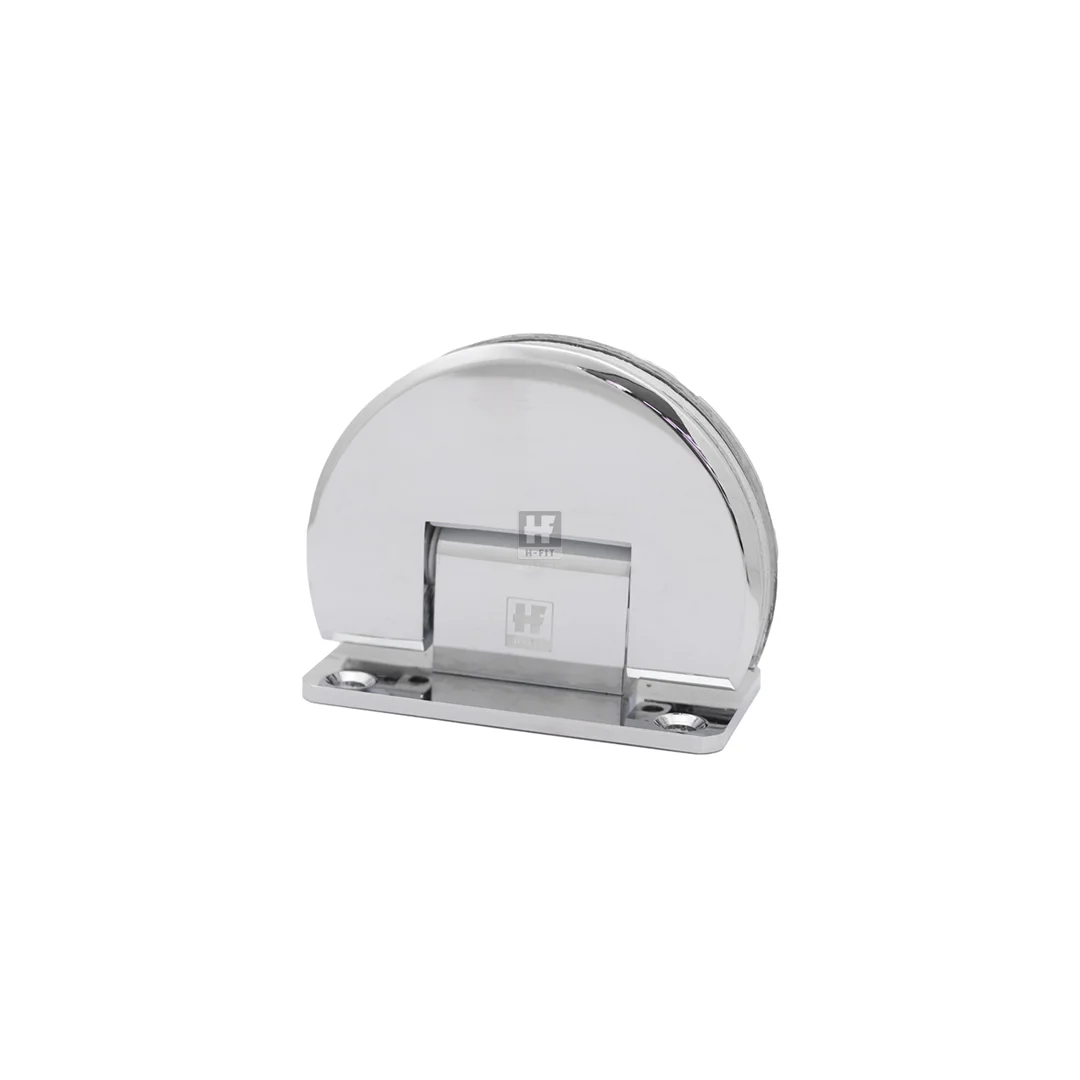

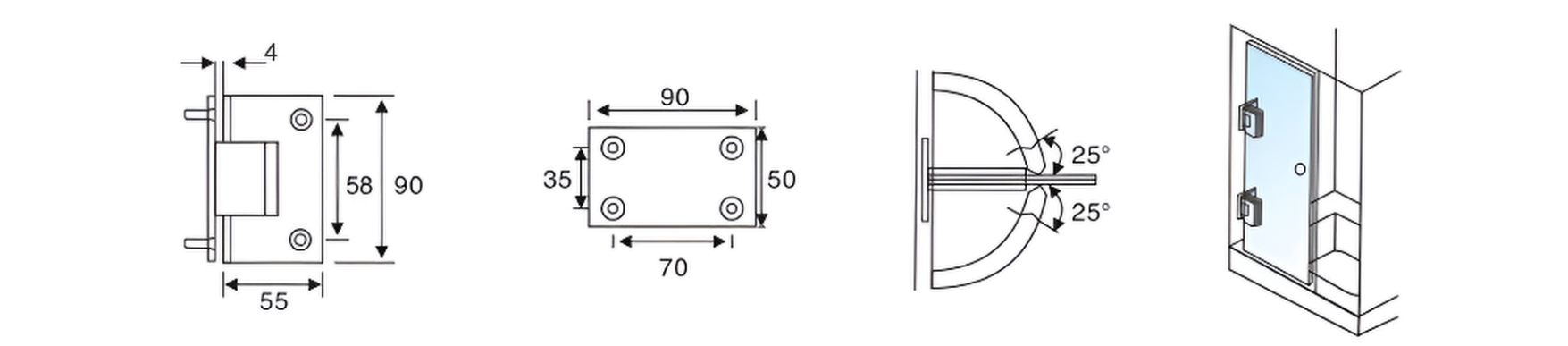

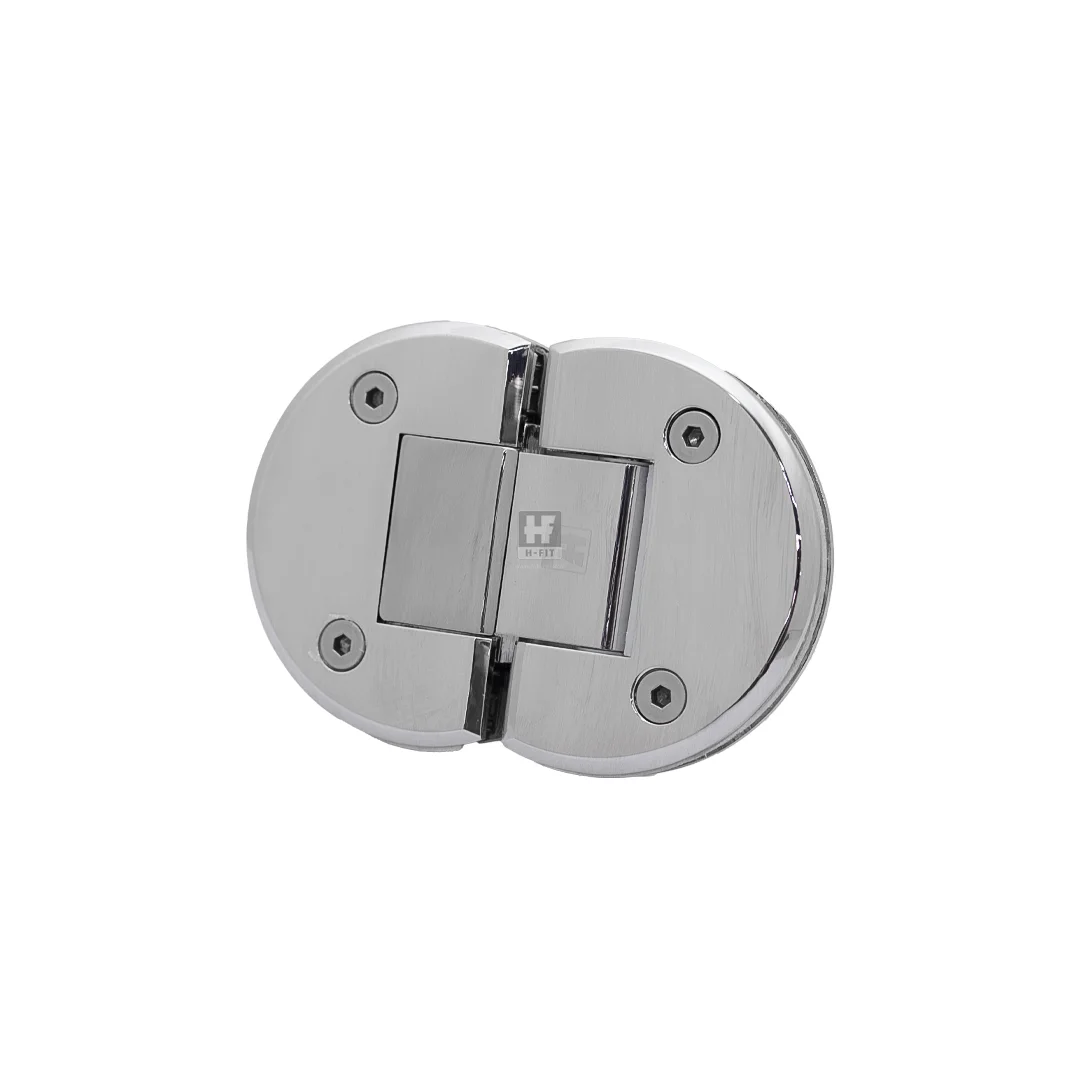

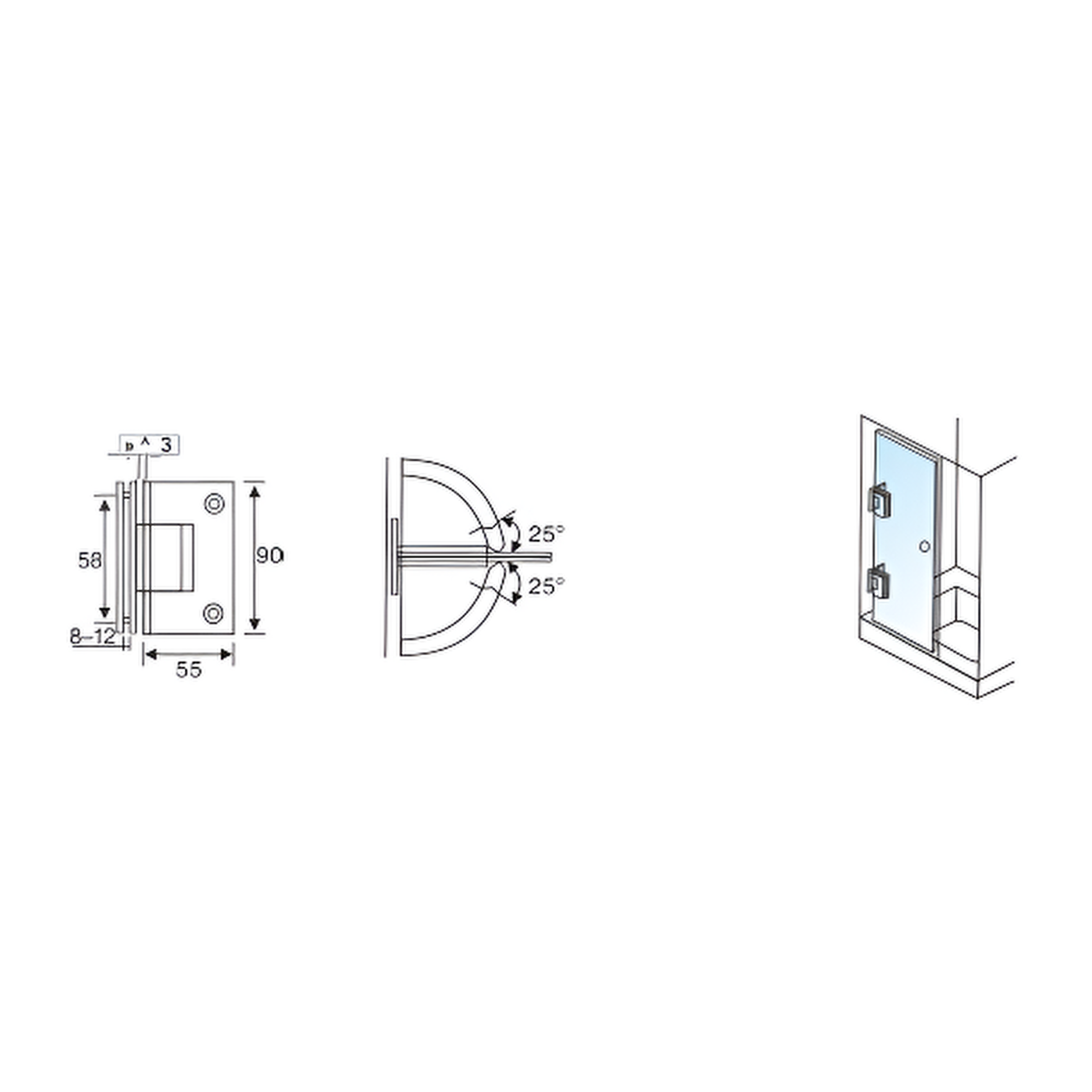

Frameless Shower Glass Hinges and Connectors

We supply frameless shower hardware, including hinges, clamps, swing limiters, and pull knobs. Our frameless glass shower fittings with concealed hardware include a top/bottom mount pivot with an attached U-clamp. It self-centers within 15 degrees of the closing position. Hidayath offers various finishes, including polished chrome, brushed nickel, matte black, and oil-rubbed bronze.

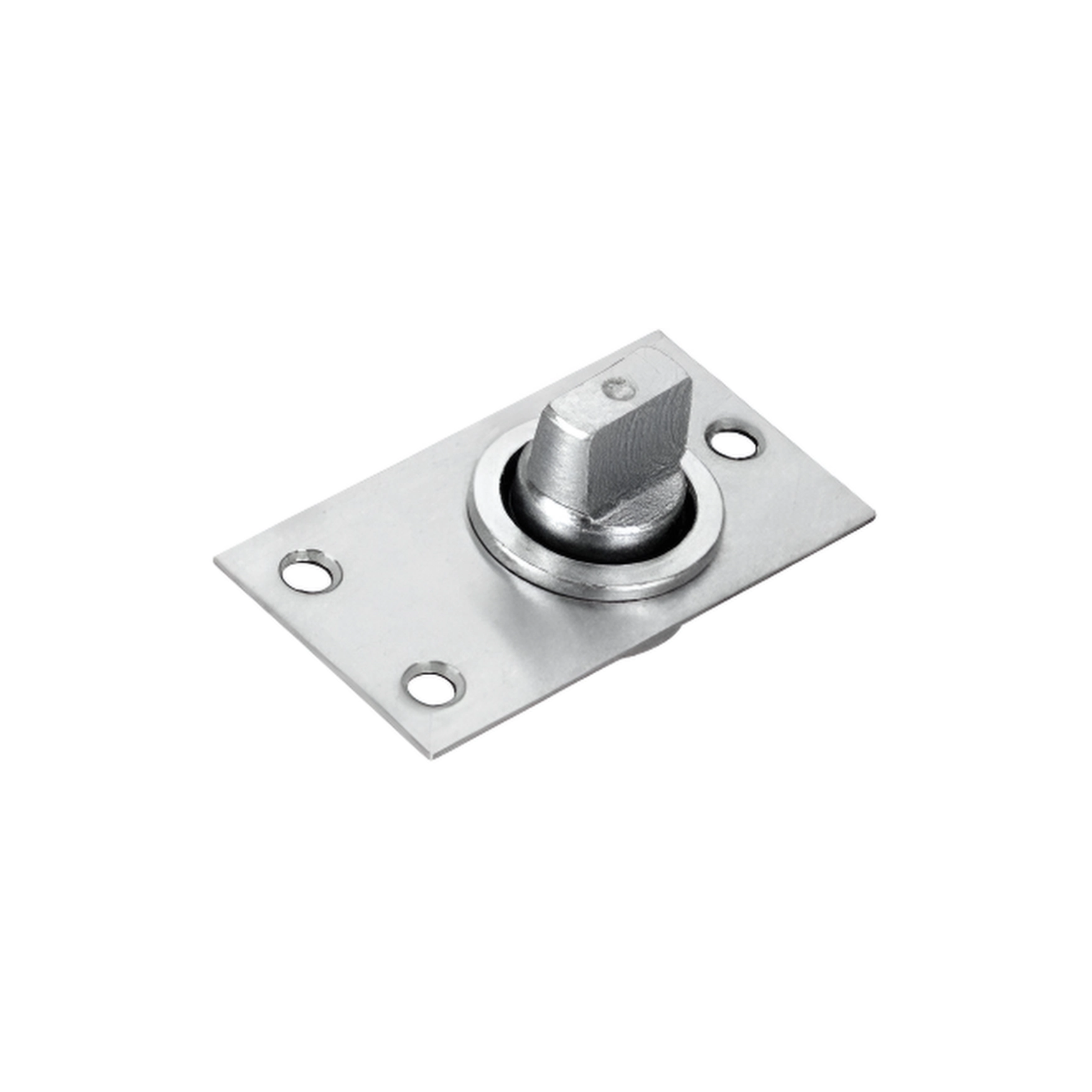

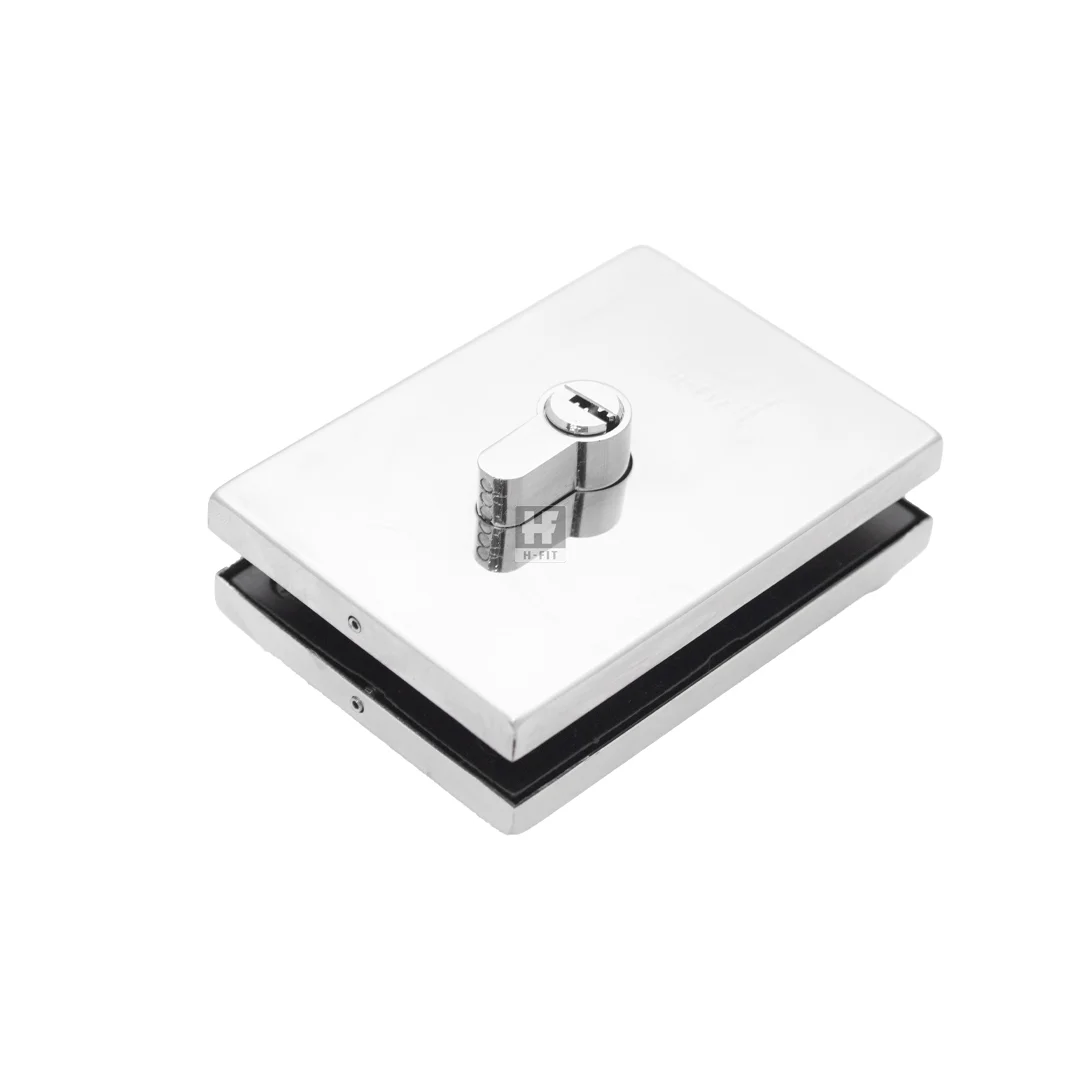

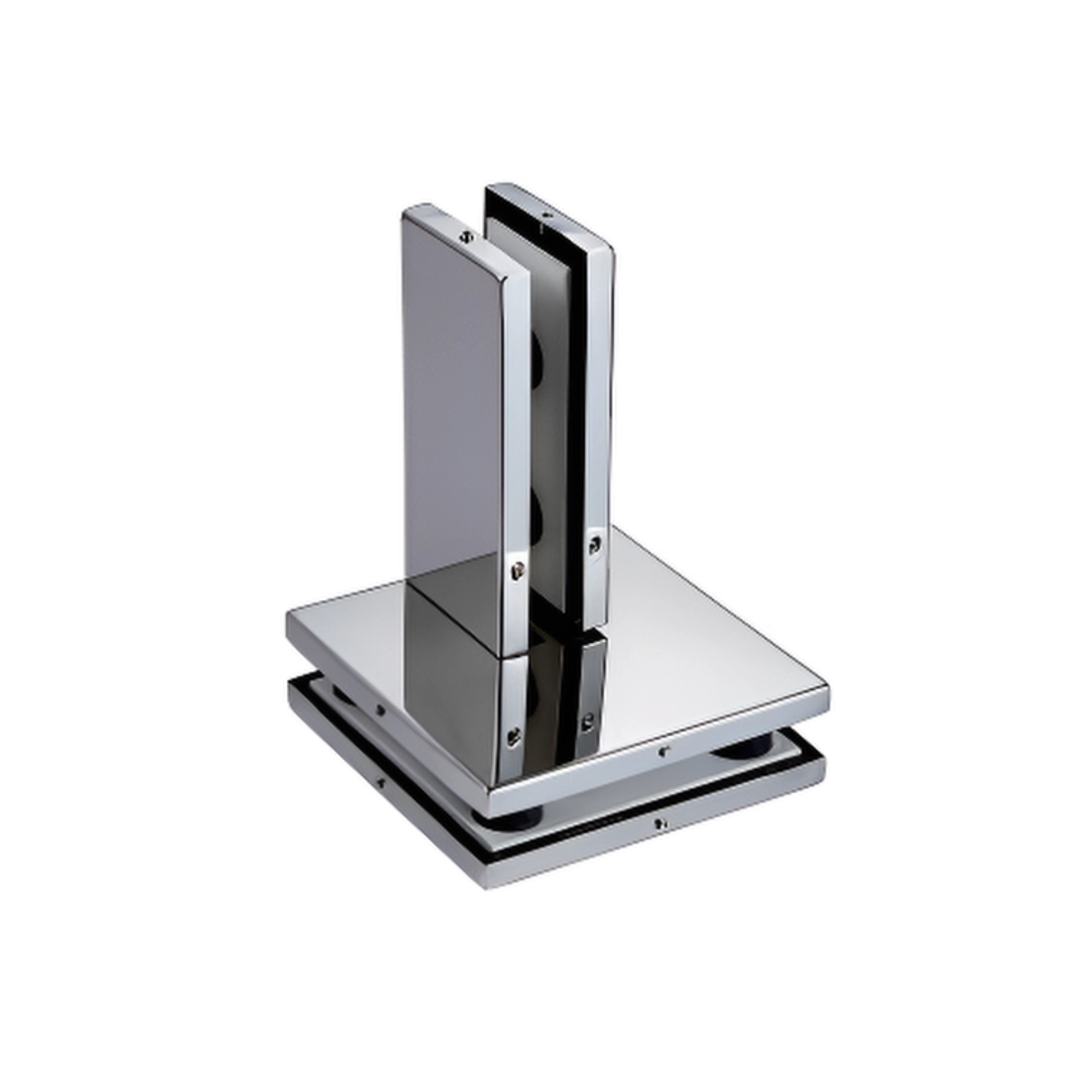

Patch Fittings for Glass Doors

Overpanel and Side Panel Patch Fittings

Hidayath provides high-performance glass door patch fittings with top/bottom pivots. The Top Door Patch is made for 15mm pivots. The Specialized Overpanel Patch features a Fixing Plate for better support and easy installation. These fittings are available in satin and polished stainless steel finishes.

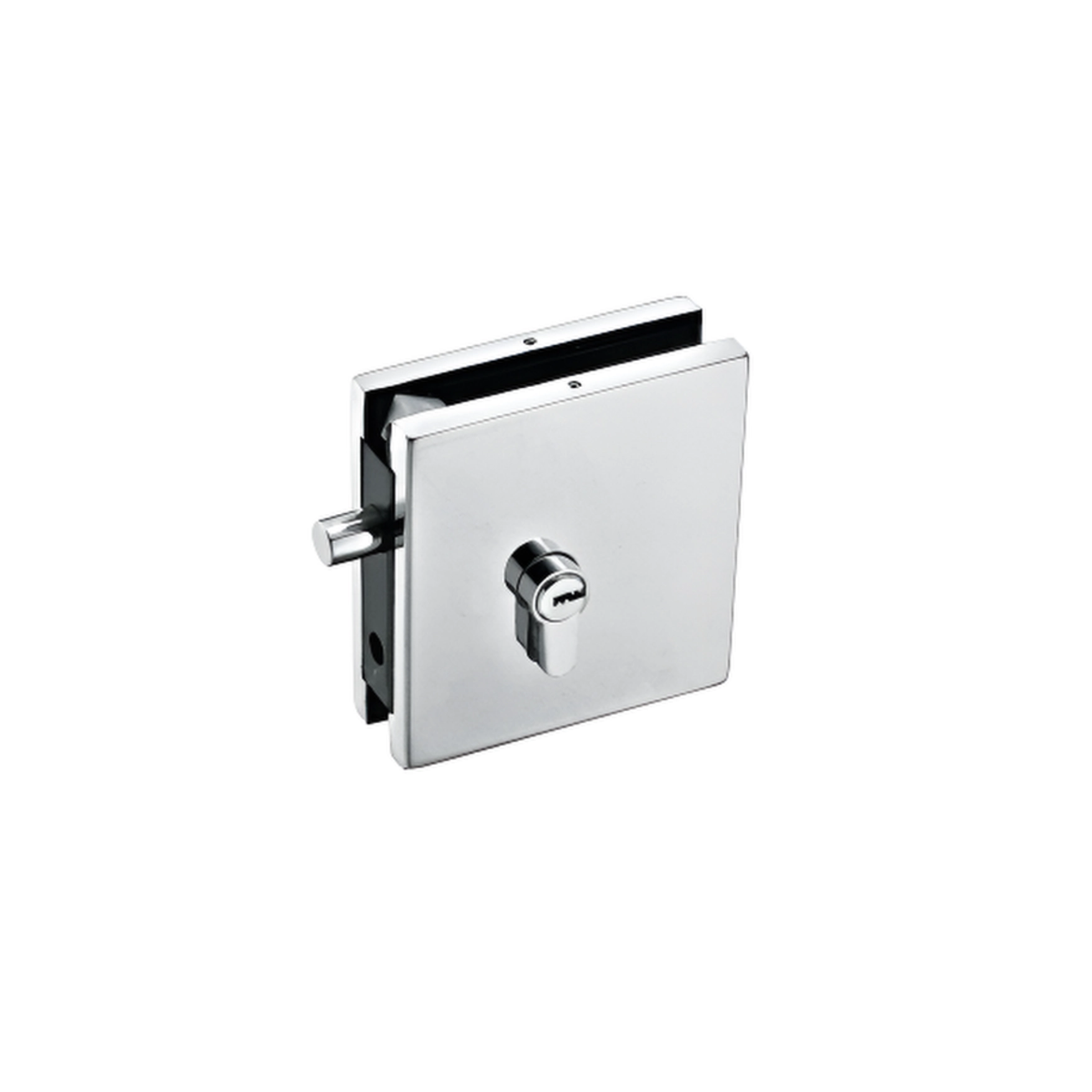

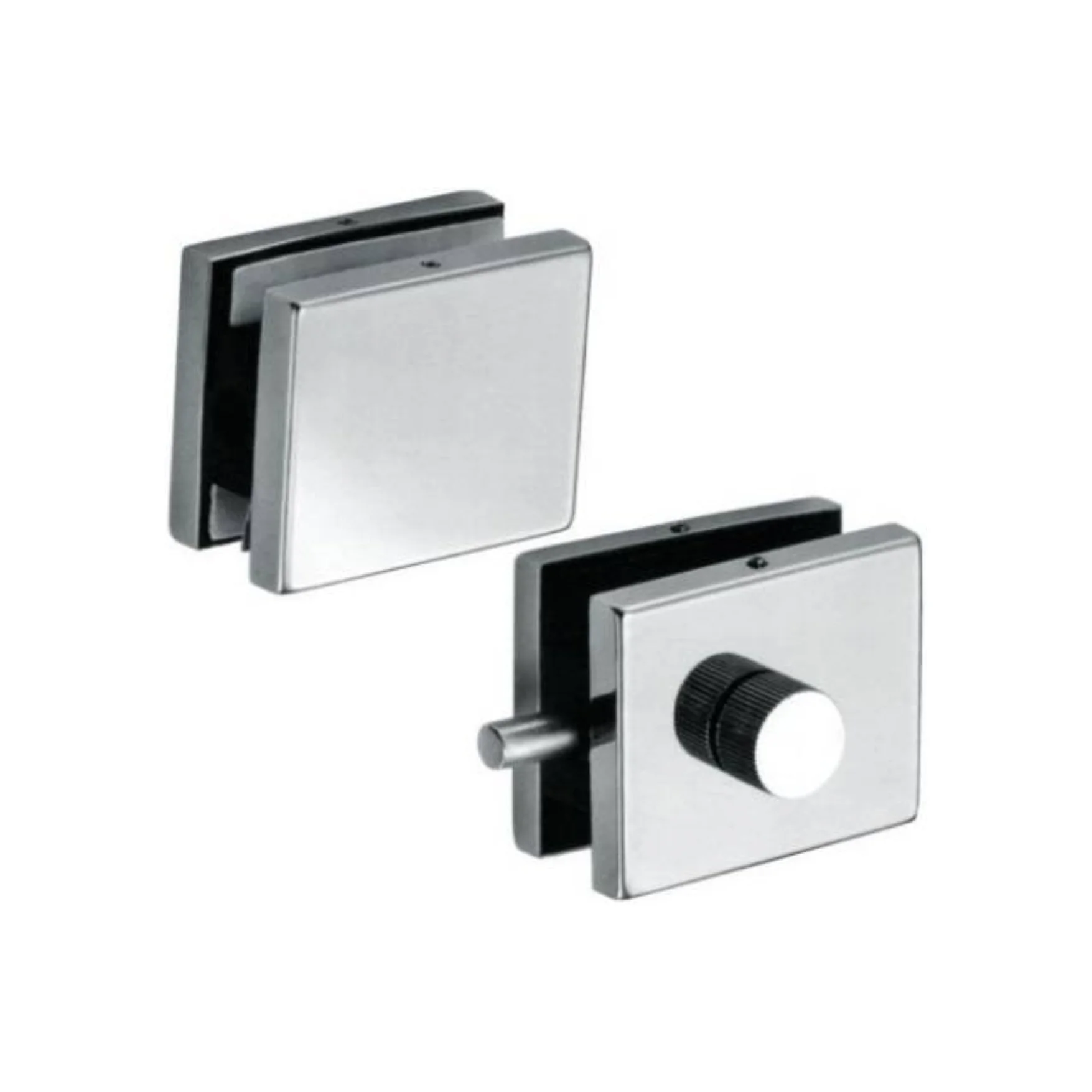

Lockable Patch Fittings

Patch fittings with center lock for glass doors are made for toughened glass doors and fixed panels. Hidayath engineered them for strength, precision, and style. Our patch fittings fit 10mm and 12mm thick glass. They come in premium finishes like Satin Stainless Steel (SSS), Polished Stainless Steel (PSS), and Black Matte (BM). They connect four glass panels at a junction point.

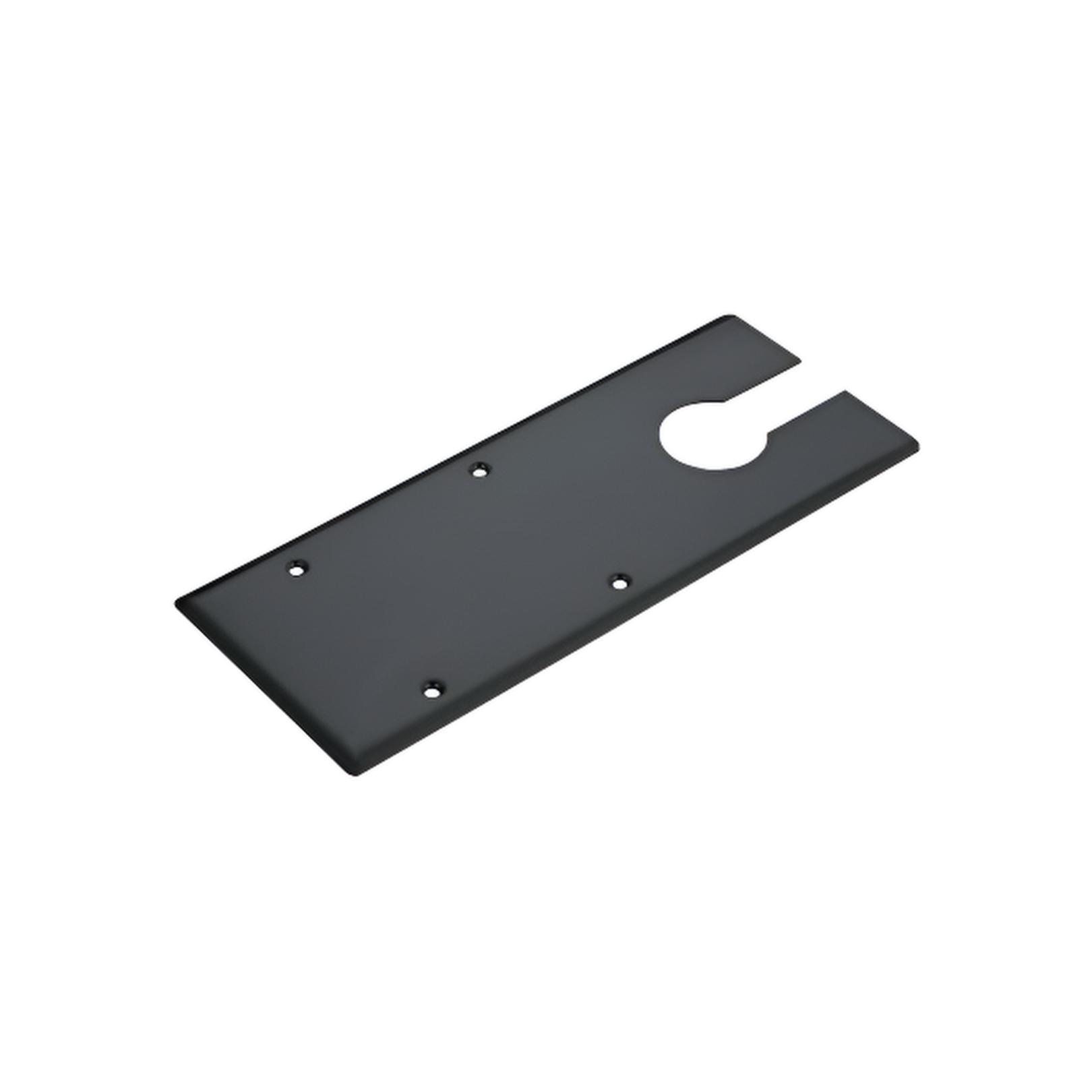

Hydraulic Floor Springs for Glass Doors

Heavy-Duty Floor Spring Mechanisms

Floor Spring is known for its ultra-slim design. This makes it ideal for single and double action doors. It has an overall height of just 40mm or 50mm. This feature allows for easy installation, even in tight spaces.

EN-certified hydraulic floor springs for glass doors are built for durability and precision. This heavy-duty floor spring does more than control doors. It gives a clean, minimalist look. The closing mechanism hides in the floor or door bottom. This makes it almost invisible after installation.

Floor Springs for Frameless Glass Doors

Hidayath’s universal floor spring with 90° hold open for glass doors is designed for flexibility and accuracy. It offers a 15 mm vertical adjustment to fit uneven floors without removing the door. Its durable cast iron body works for right-handed, left-handed, or double-action doors. This makes it perfect for frameless glass, timber, and metal doors.

The floor spring has high-quality finishes. You can choose from polished stainless steel or satin stainless steel cover plates. These finishes provide both beauty and lasting performance.

Key features include a fixed closing force of EN3, meeting EN 1154 standards. It supports single-action doors or fanlights up to 120 kg. The mechanism has a hold-open function at 90° and allows the door to open up to 180° in both directions. Hydraulic control starts at about 150°, and the final part to 180° allows free rotation. This ensures smooth, easy door movement in busy areas.

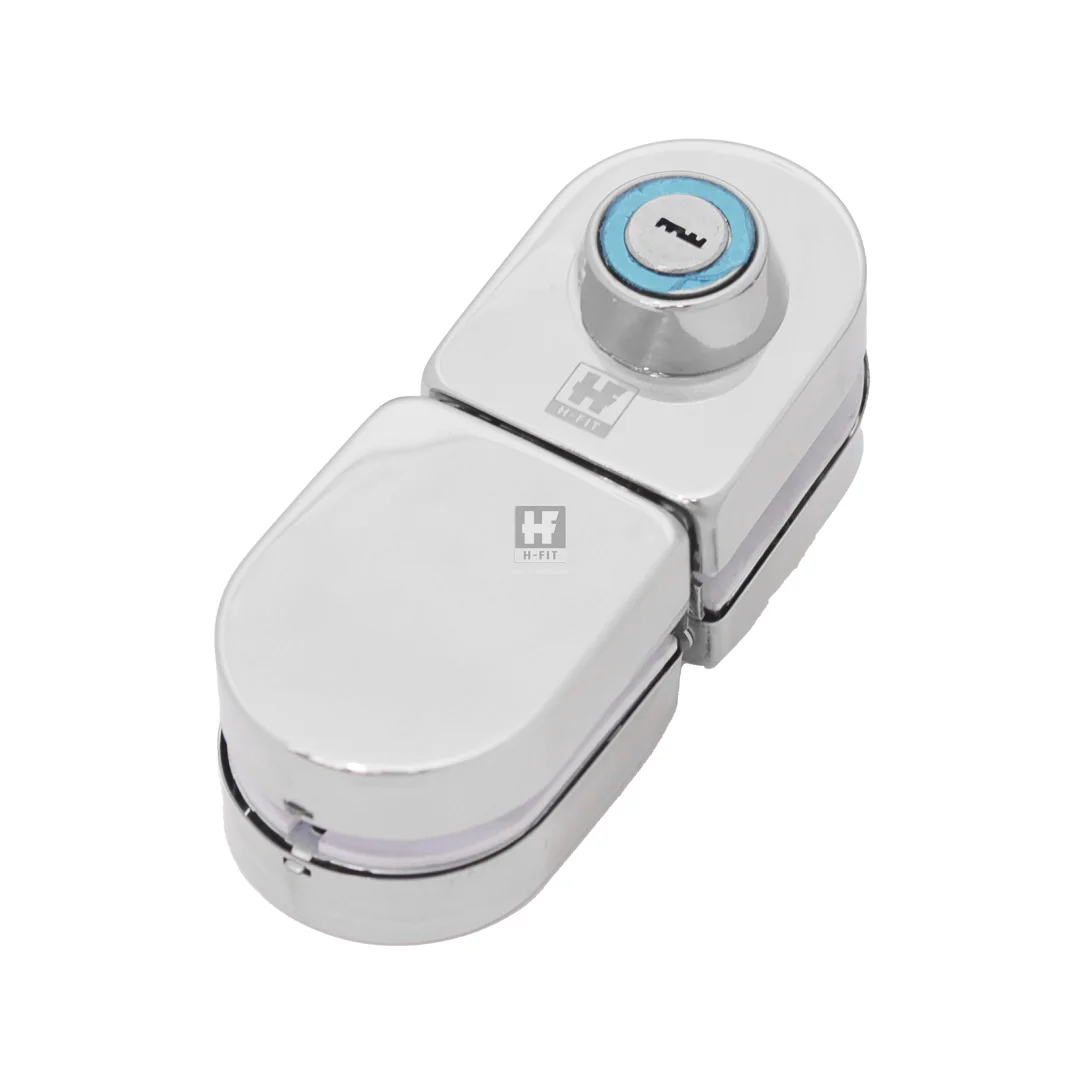

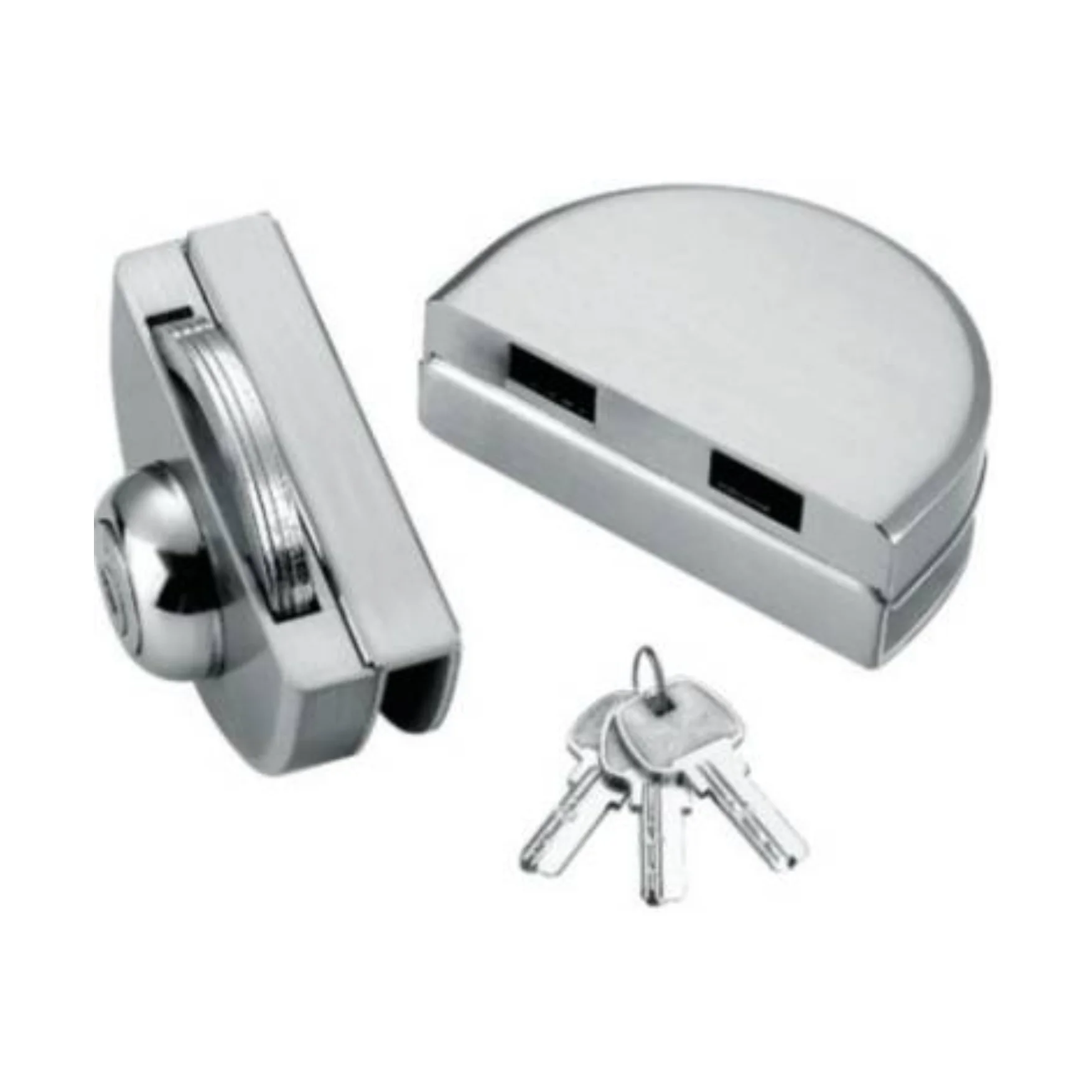

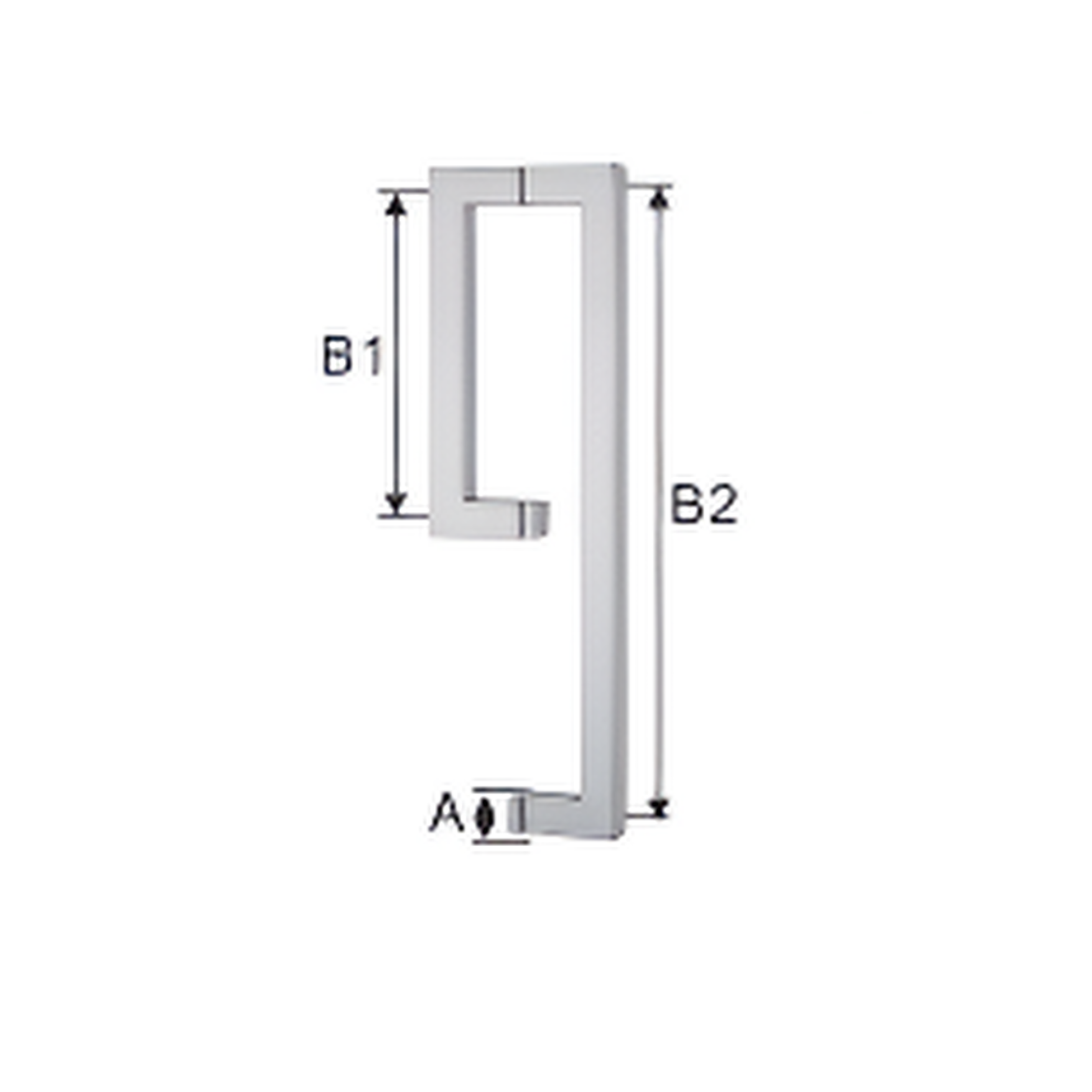

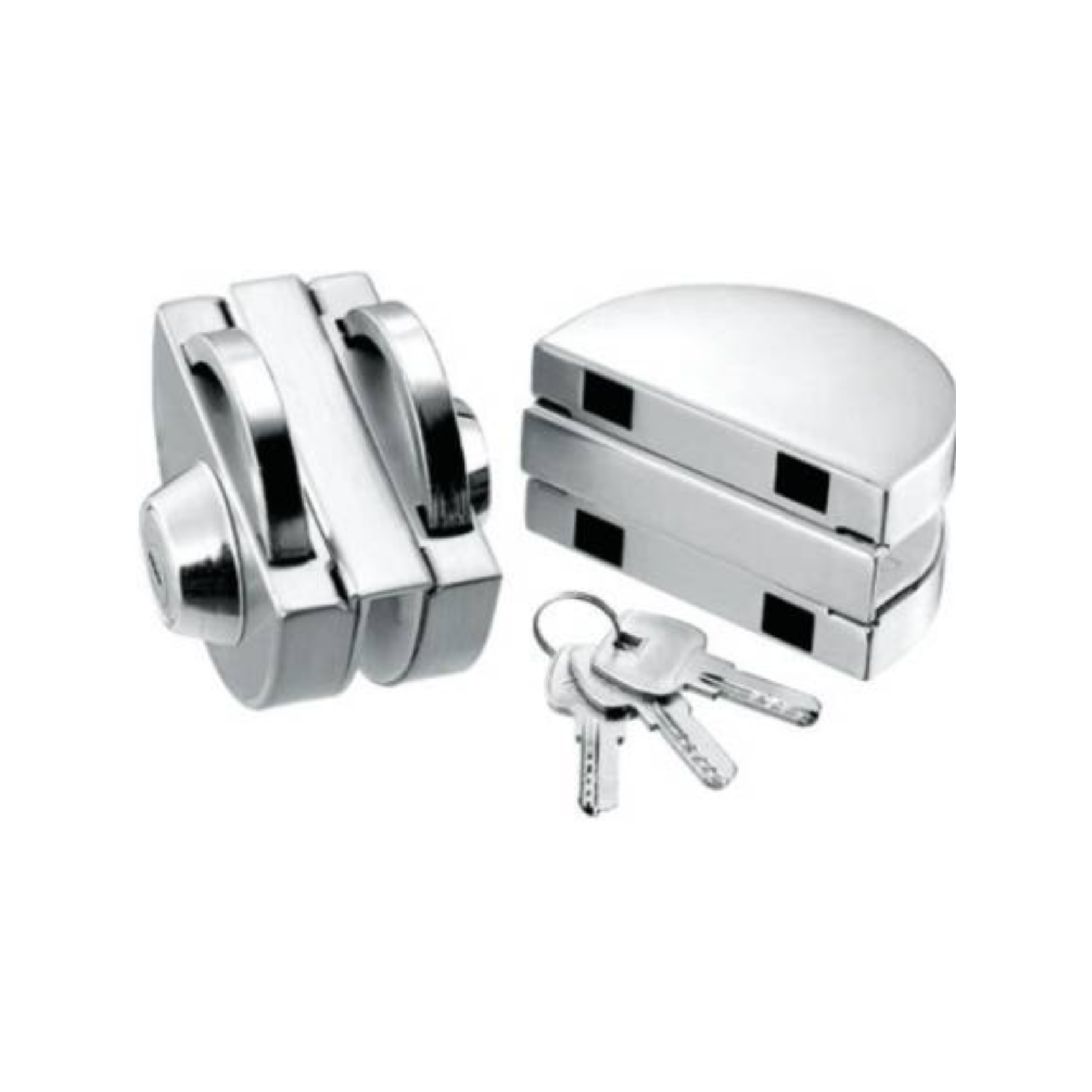

Glass Door Handles with Lock

Pull Handles with Integrated Locking System

The stainless steel glass door handles with cylinder lock from Hidayath offer high performance and style. Made from premium AISI 316L stainless steel, they ensure durability and corrosion resistance. This handle has a built-in locking mechanism that combines function with modern design.

Each set comes with a pair of stainless steel pull handles. They have a diameter of 35mm and are spaced 1000 mm apart, with an overall length of 1250mm. The built-in cylinder lock with a push rod secures the door at the floor level, on the side opposite the keyhole. This design allows for discreet and effective locking.

This version is without a locking knob. This feature allows for clean operation from the key side while securing from the opposite side.

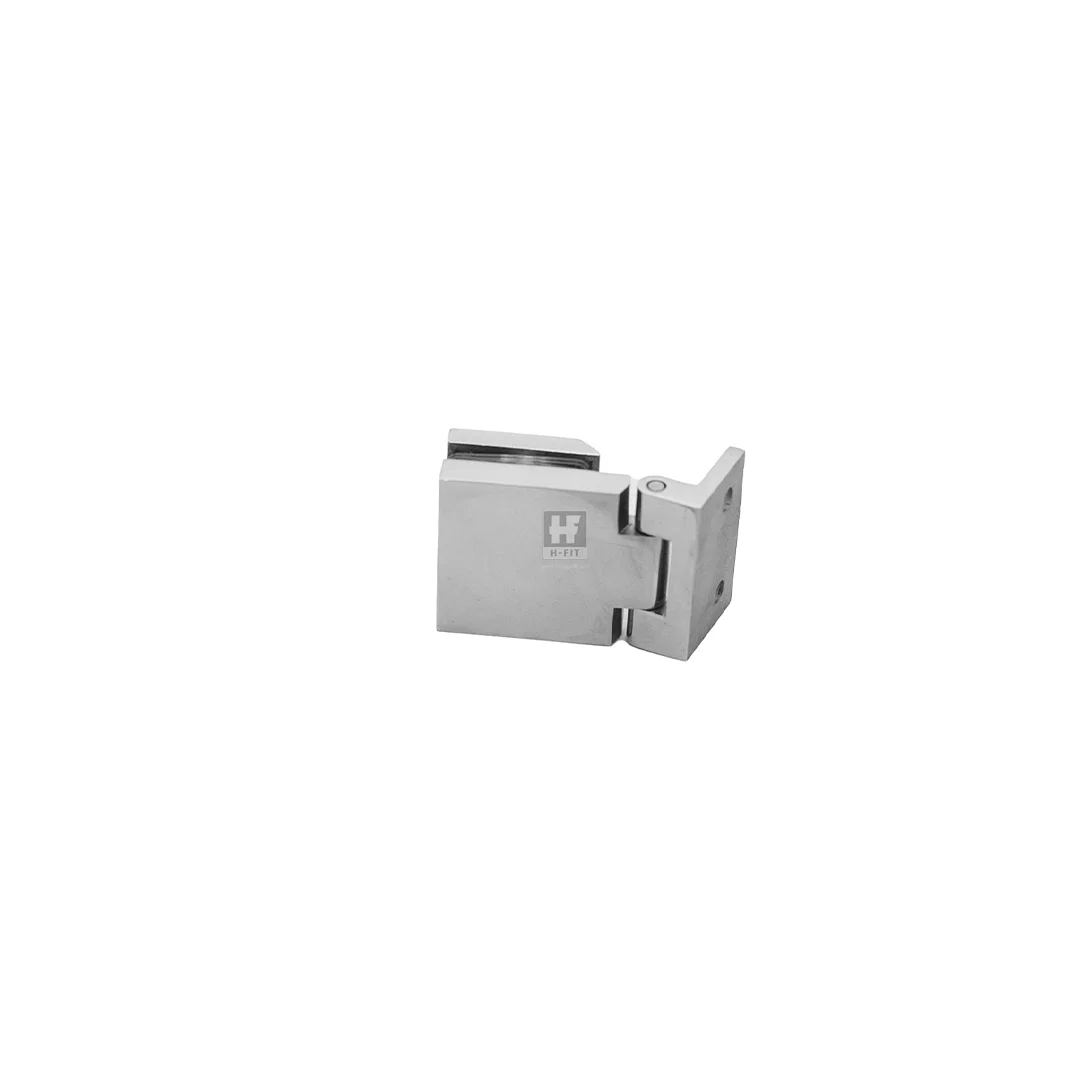

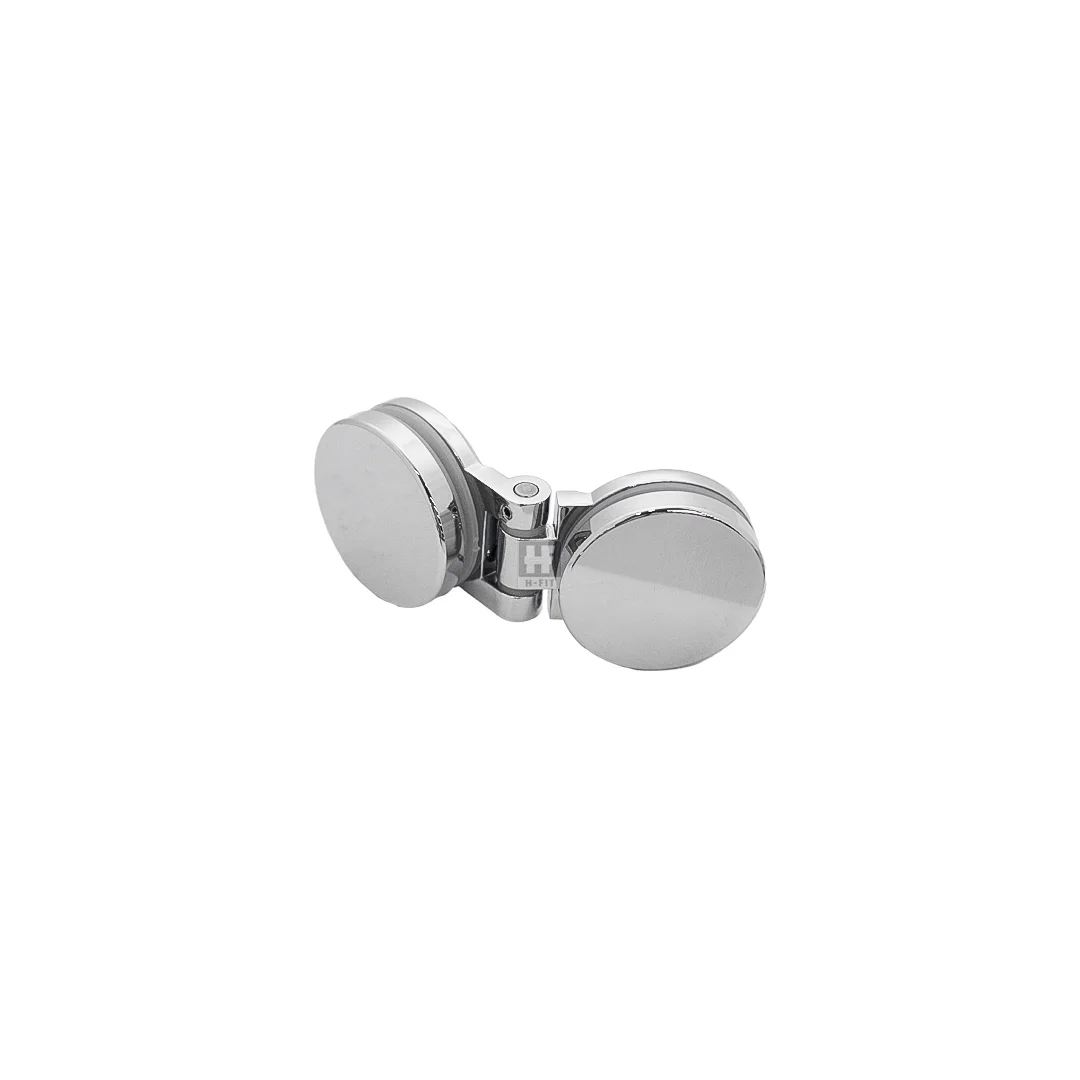

Shower Glass Door Fittings

Hinges and Connectors for Shower Enclosures

We offer a complete selection of premium shower glass door corner connectors, clips, hinges, and connectors for frameless shower enclosures. All our products are made from high-quality steel.

Shop our items, including:

Glass-to-Glass Shower Hinge – 90° (Straight Edge)
Wall-to-Glass Shower Clamp – 90° (Straight Edge)
Wall-to-Glass Shower Clamp – 90° with Back Plate
Wall-to-Glass Glass Connector – 90° (Round Edge) and more

Top and Bottom Pivots for Glass Doors

Stainless Steel Pivot Sets

Hidayath’s concealed top and bottom pivots for heavy glass doors combine elegance and function. They fit double-action glass doors and work well in both homes and commercial spaces. These pivot sets support glass doors weighing up to 100 kg.

These hydraulic hinges have adjustable closing speeds. They also feature a final latch adjustment for smooth and reliable door movement. Designed for pivoting, the hinges stop at +90° and -90°. They close on their own from +80° to -80°. This makes bi-directional use easy and means you don’t need extra door closers.

These pivot sets work well with frameless glass systems. They provide a minimalist look and ensure strong performance and durability.

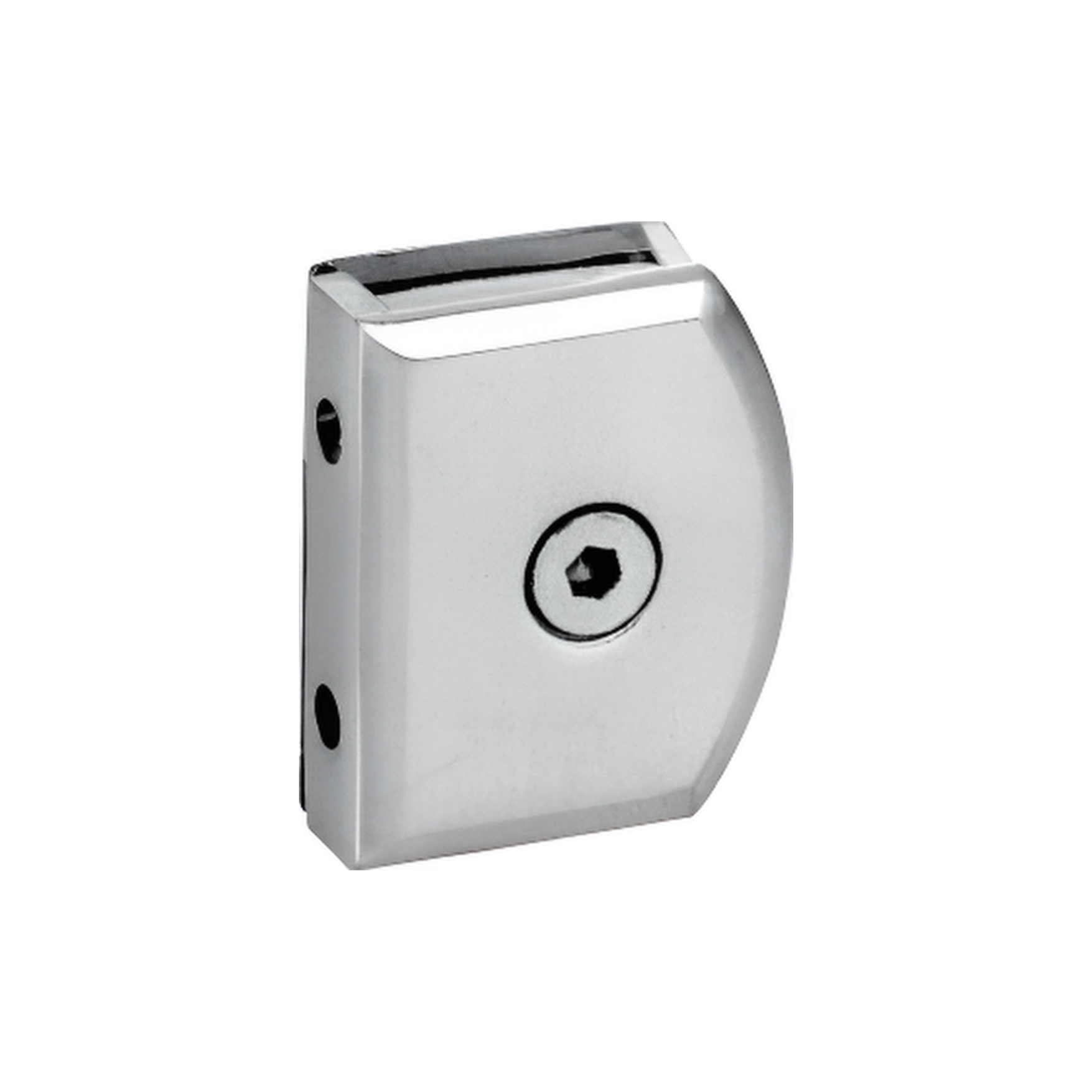

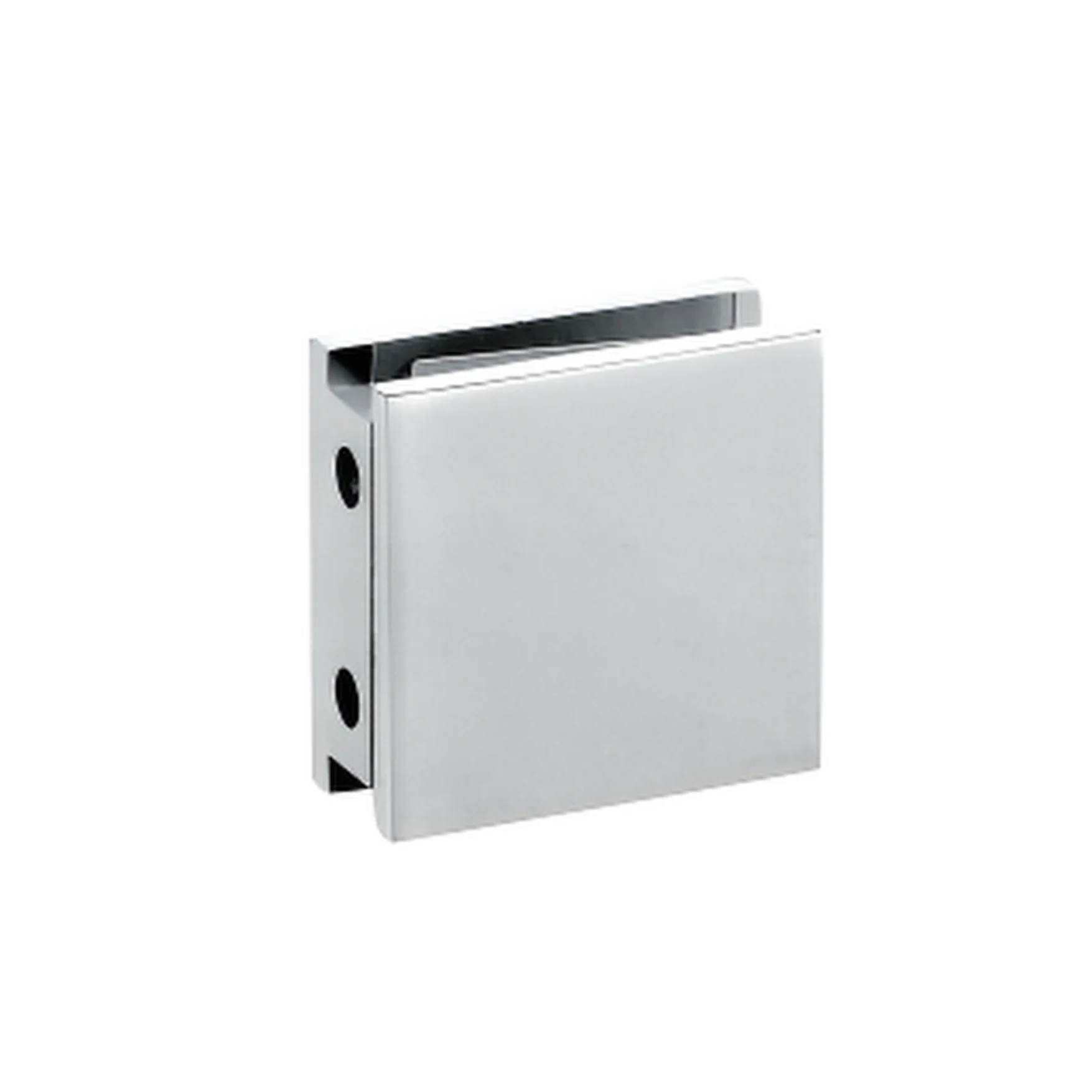

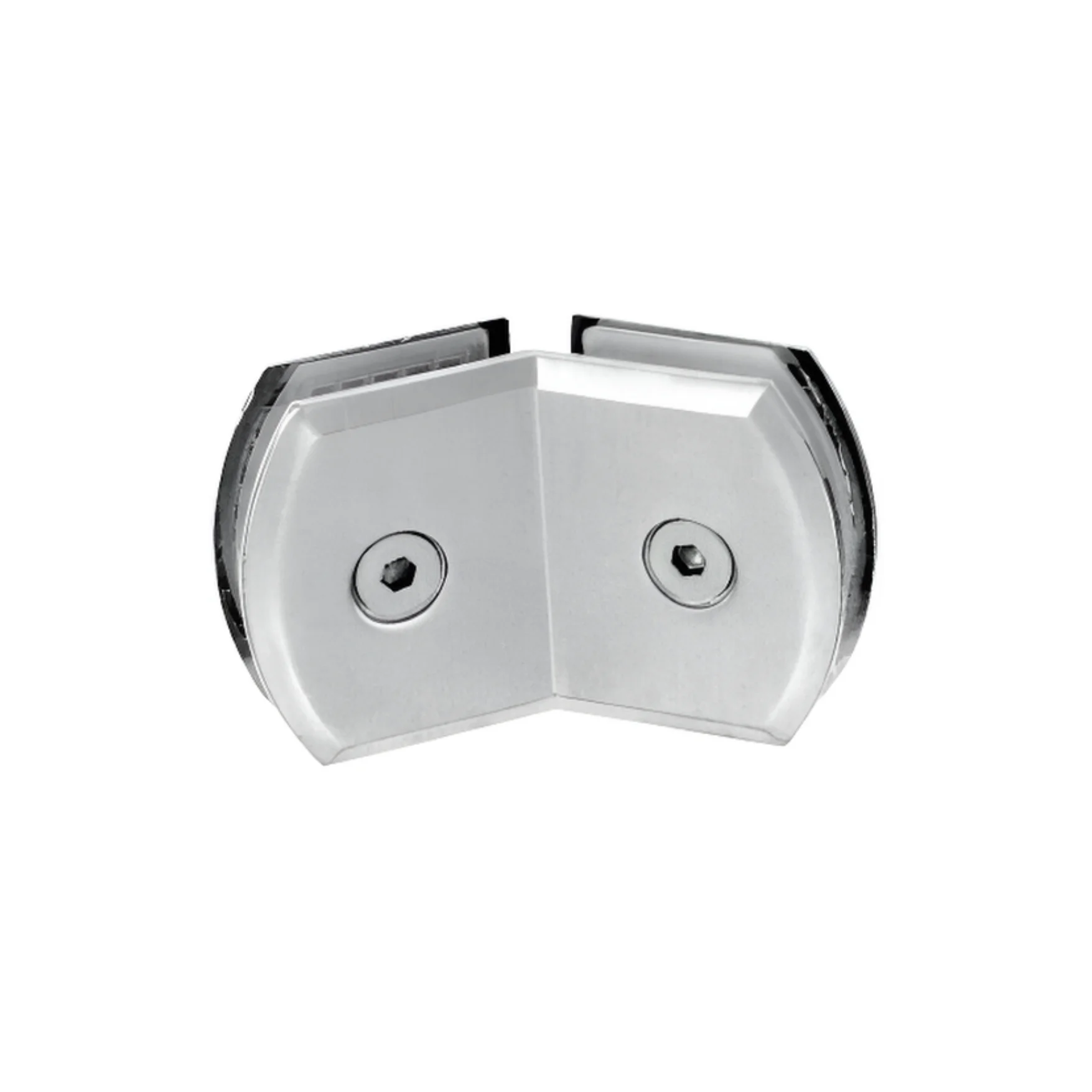

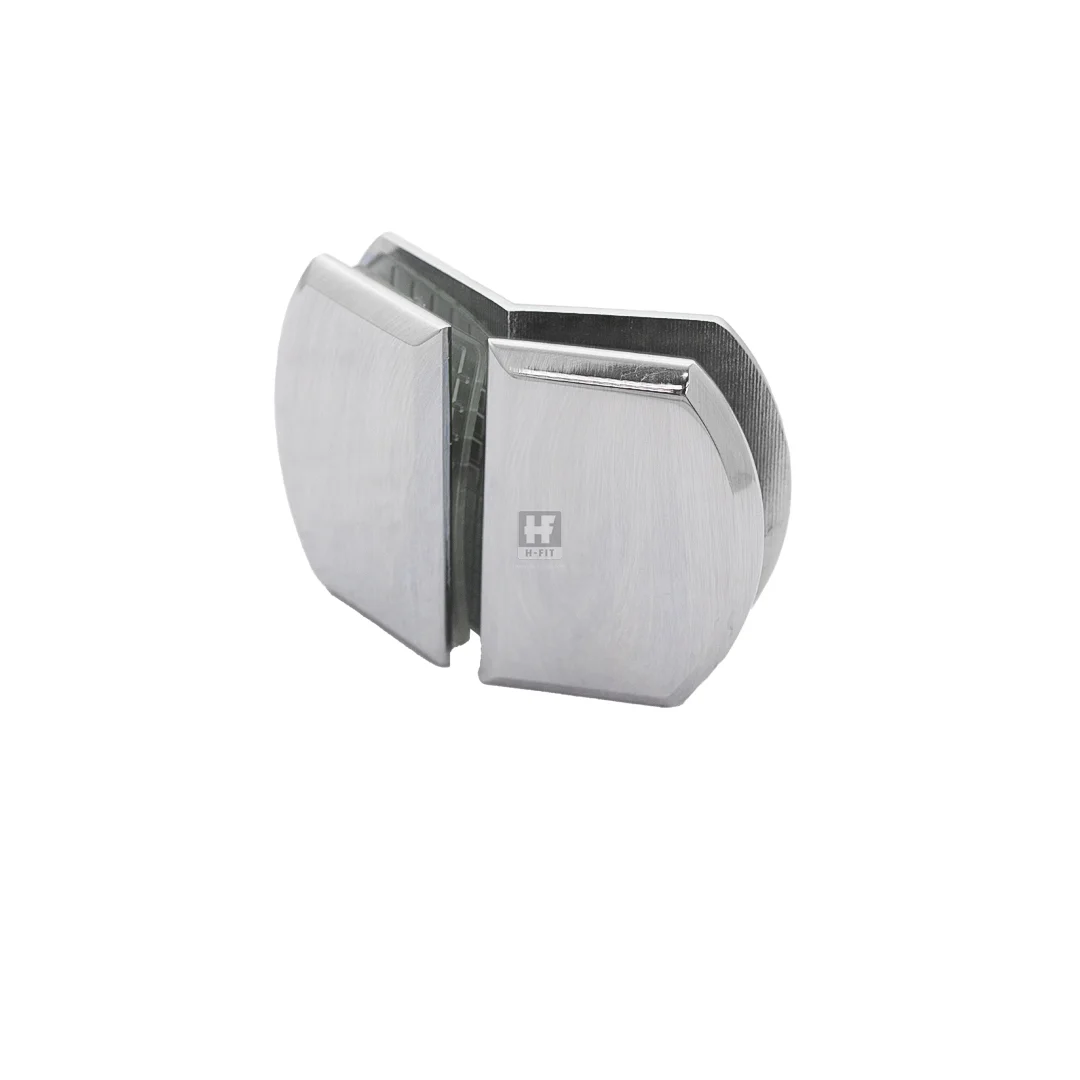

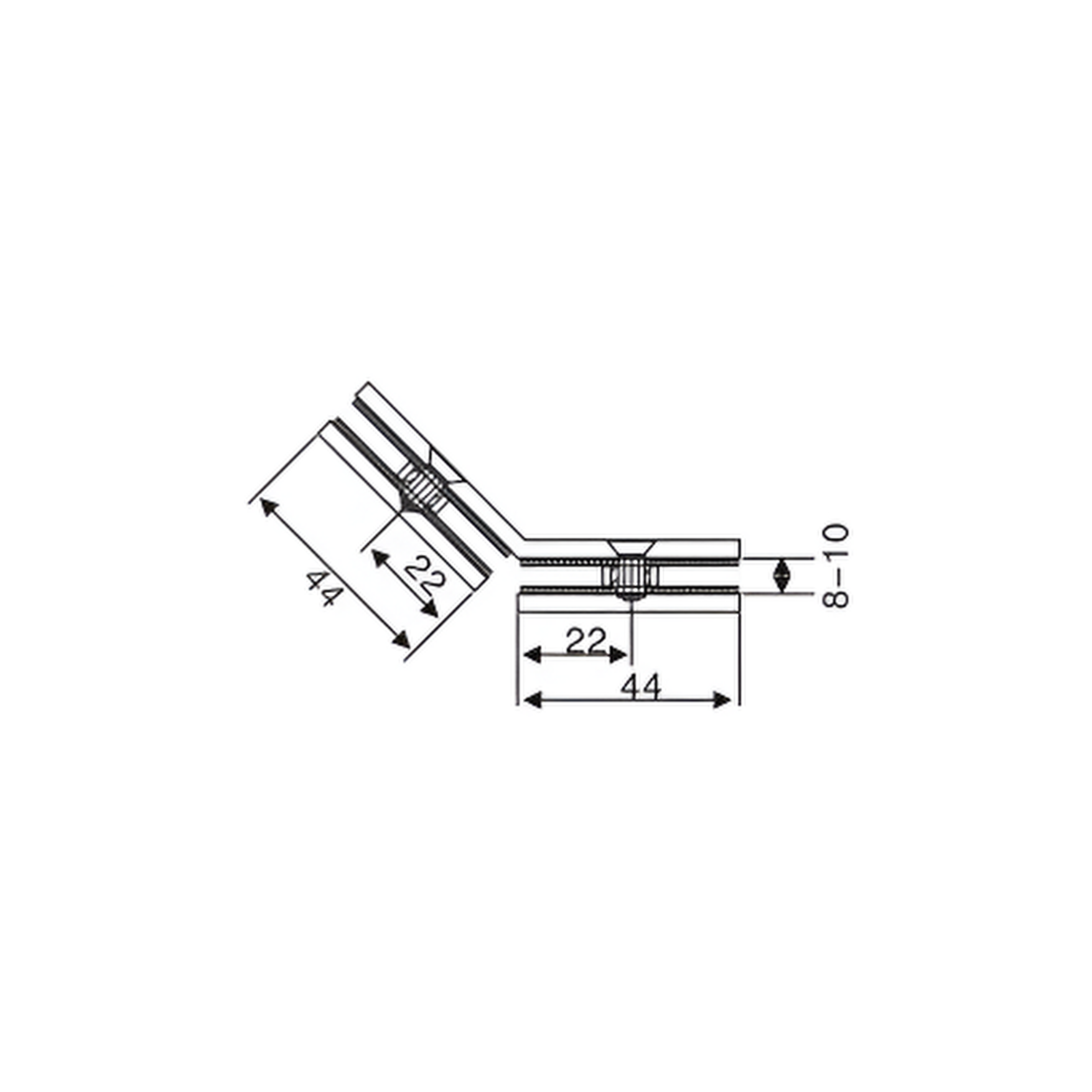

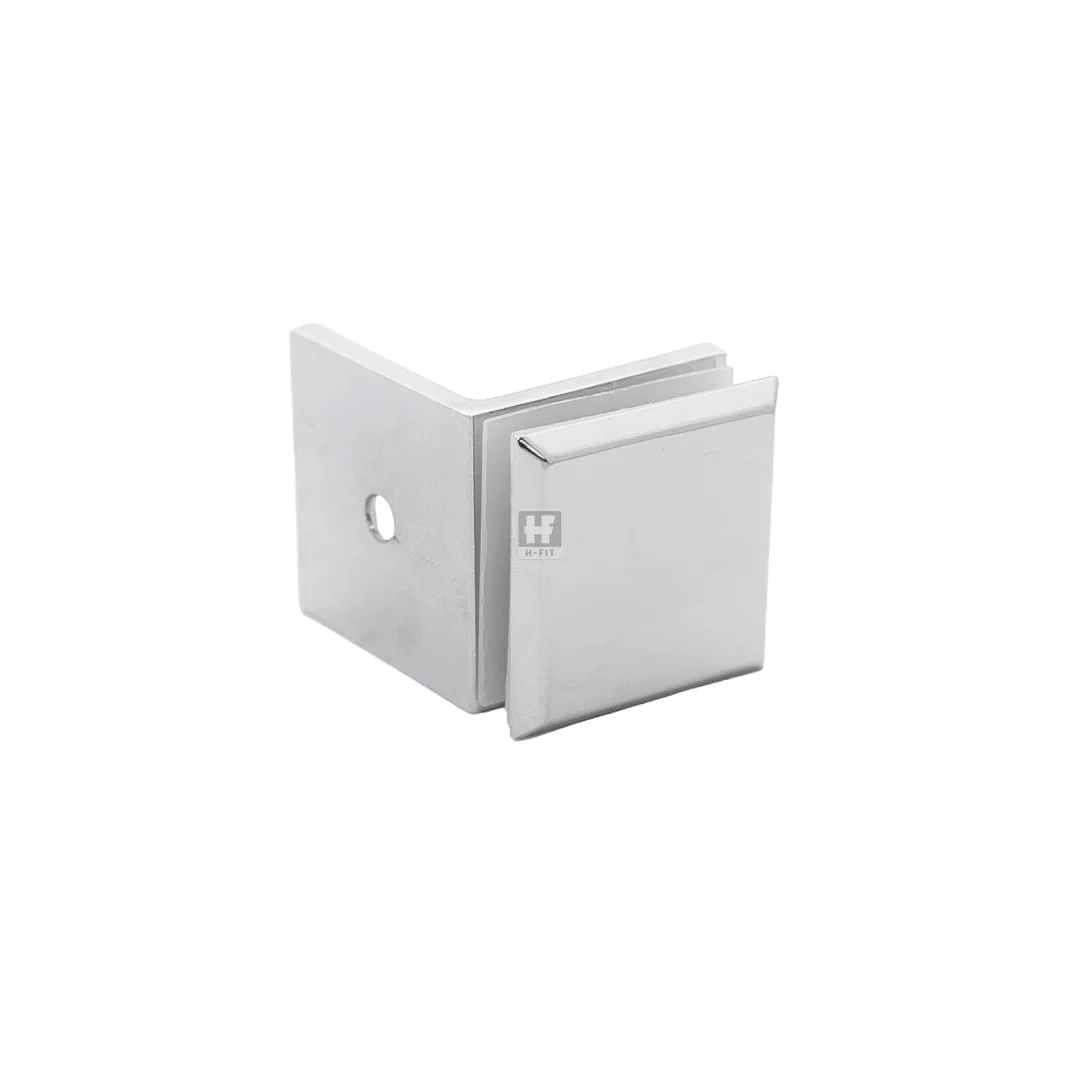

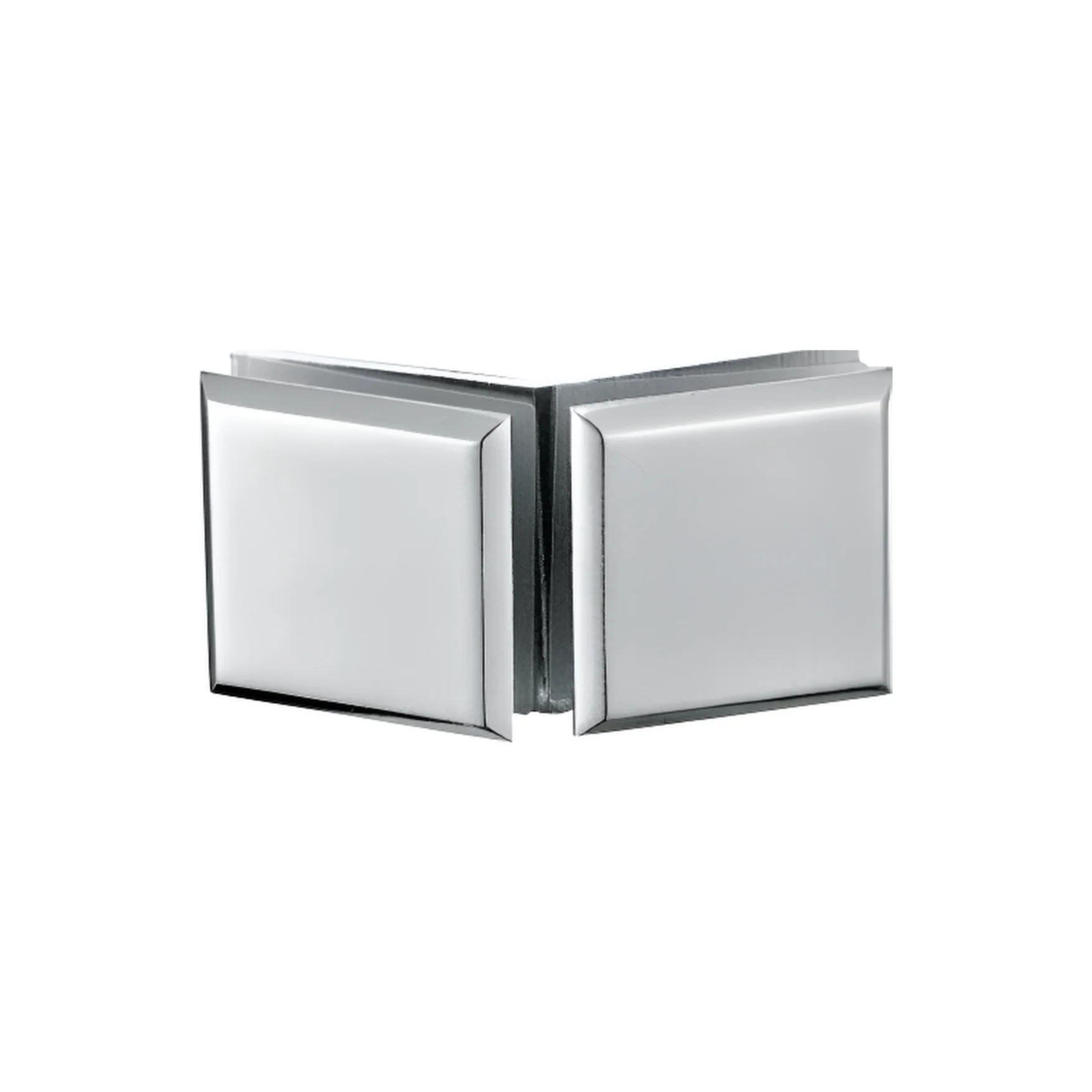

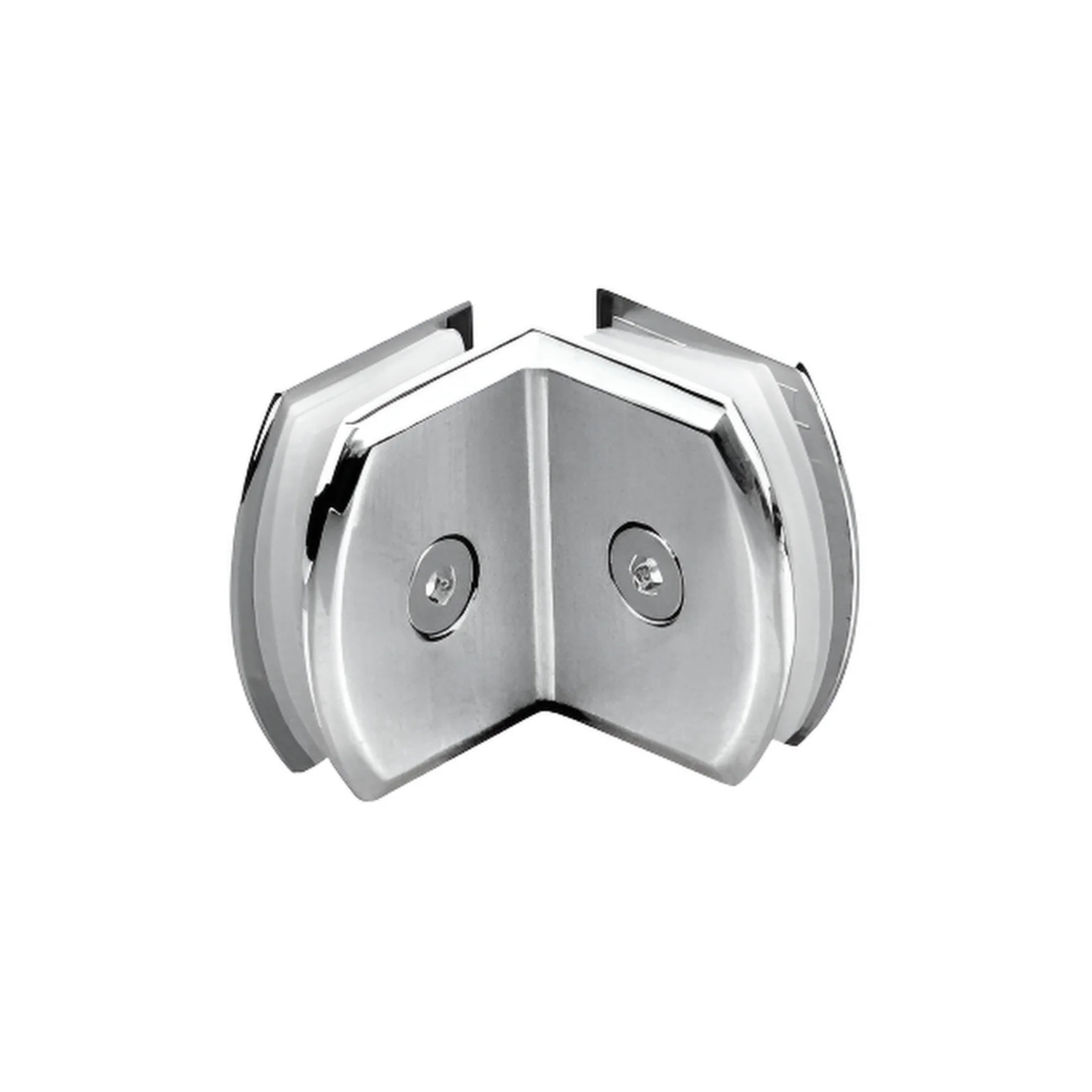

Corner Connectors for Glass Doors

2-Way and 3-Way Glass Corner Connectors

These frameless glass 90° corner joint fittings make clean right-angle junctions in shower cubicles, L-shaped enclosures, and display cases. Each connector installs easily and lasts long in humid, busy areas. Hidayath's corner connectors provide the strength, elegance, and flexibility your project needs. Get a quote instantly.
