GLASS DOOR FITTINGS

HF-650/D

  • Images for HF-650/D
  • Images for HF-650/D
  • Images for HF-650/D

Product Overview

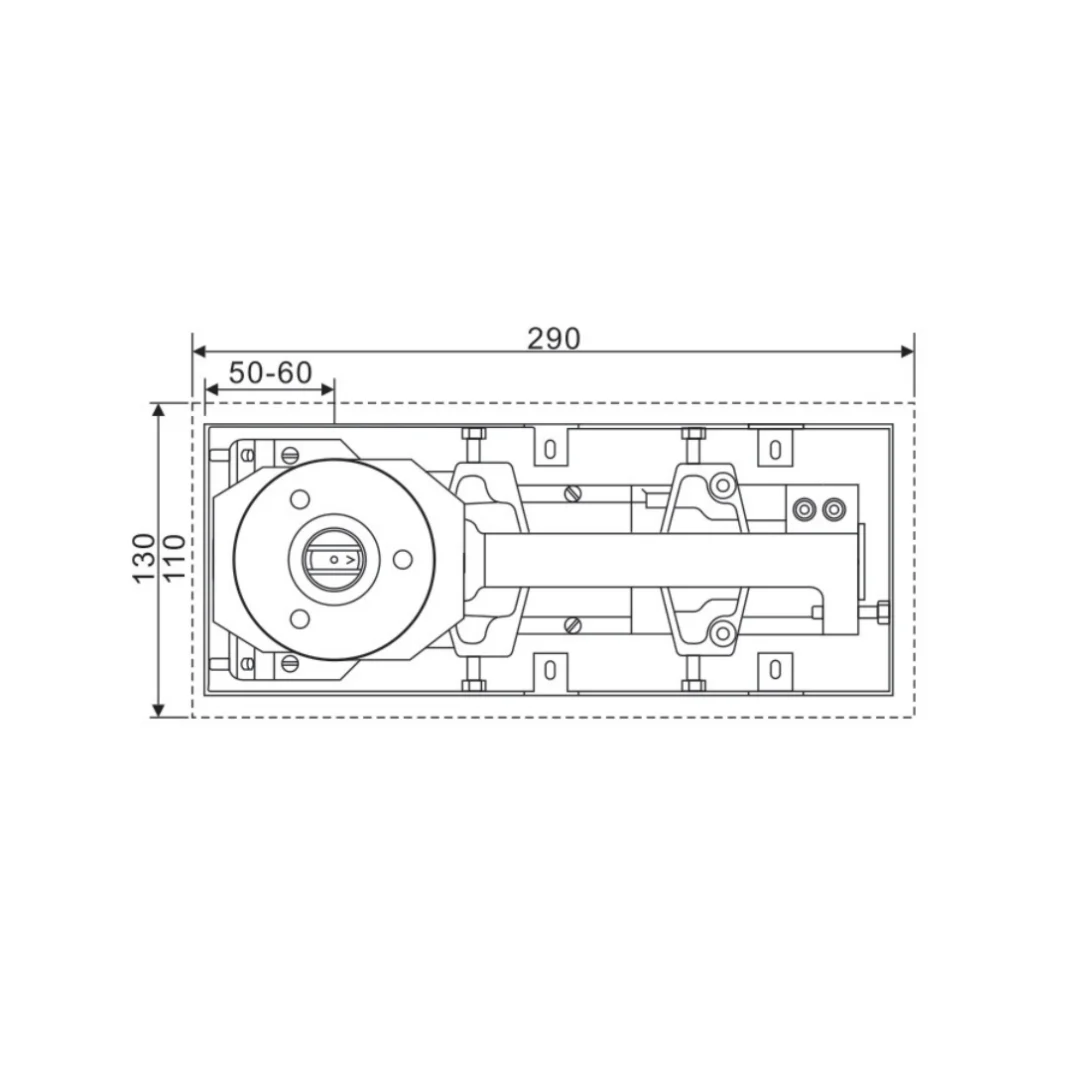

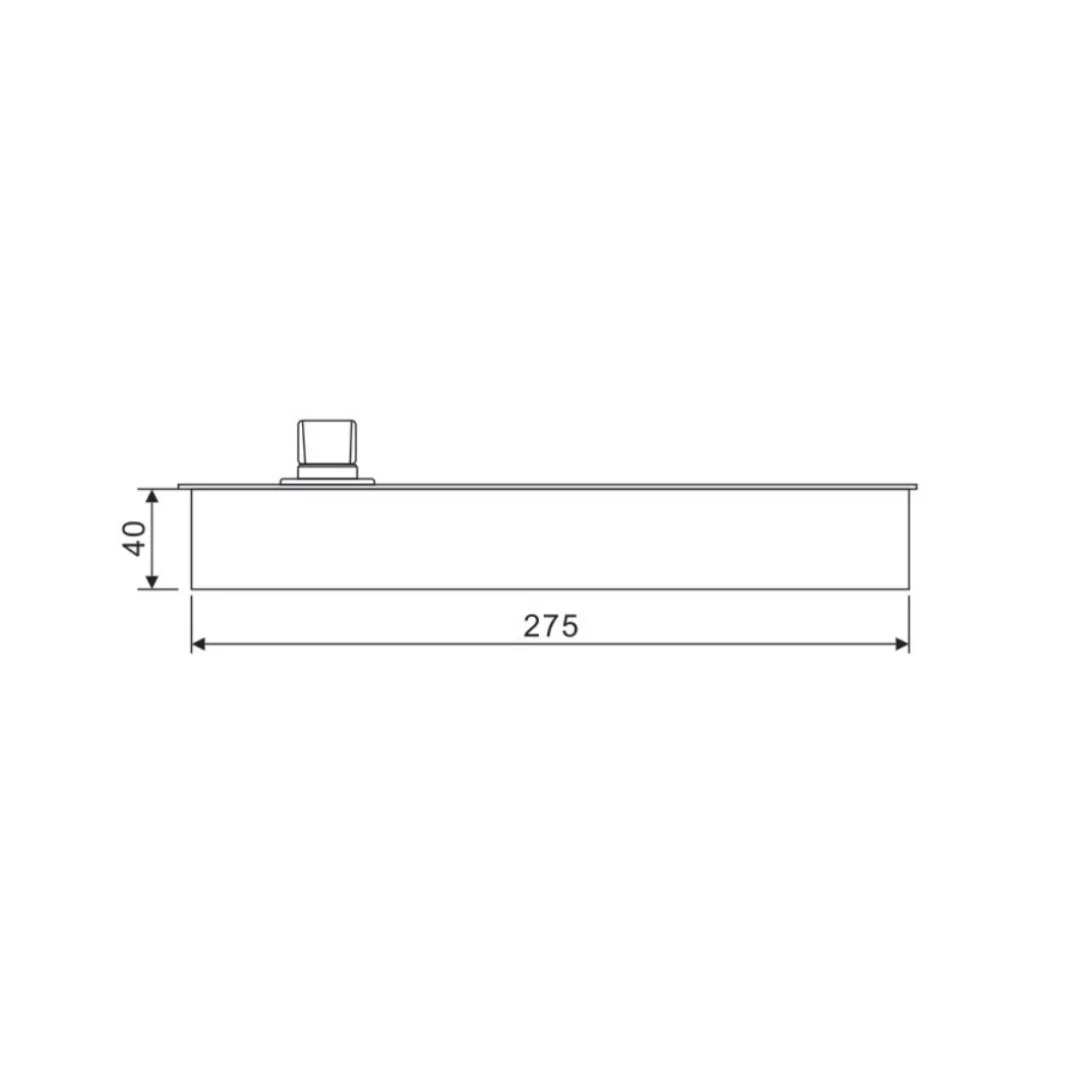

Cement Box Size: 275x110x40mm
Cover Size: 290x130mm
Front and Back Adjust +5mm
Capacity: 120kg
Door Width: 1000mm
Dorma/Mab
Maximum Closing Time x 46s
Minimum Closing Time – 3s
Max Open Degree 105°
90oH0 or NHO


Click here to view more.

MATERIAL SELECTION CHART

Mild Steel Corten Steel Stainless Steel Aluminium Galvanised Steel Copper Wood
Indoor
Covered Outdoor
Exposed Outdoor
Seaside
