GLASS DOOR FITTINGS

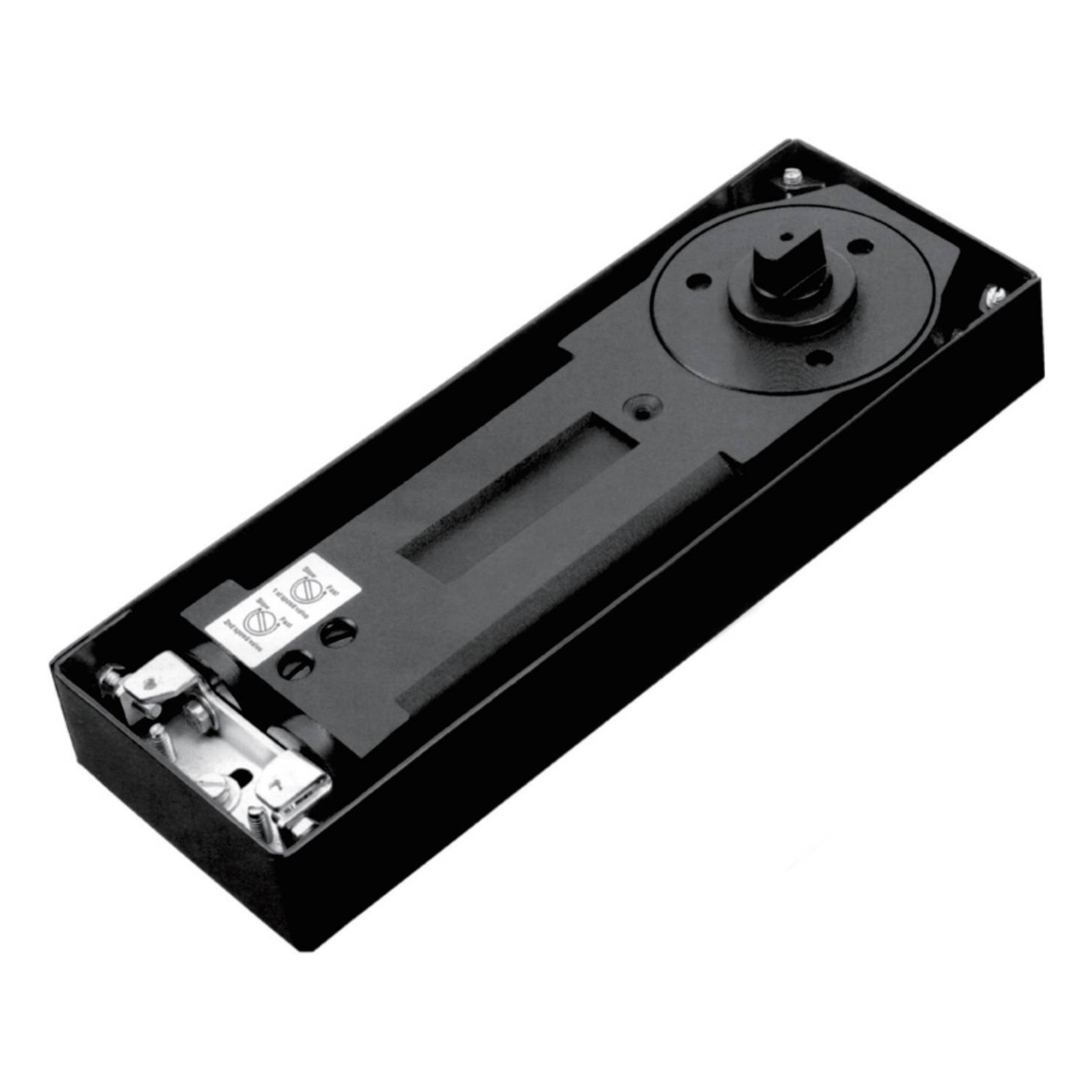

HF-840/D

  • Images for HF-840/D
  • Images for HF-840/D
  • Images for HF-840/D
  • Images for HF-840/D

Product Overview

Description

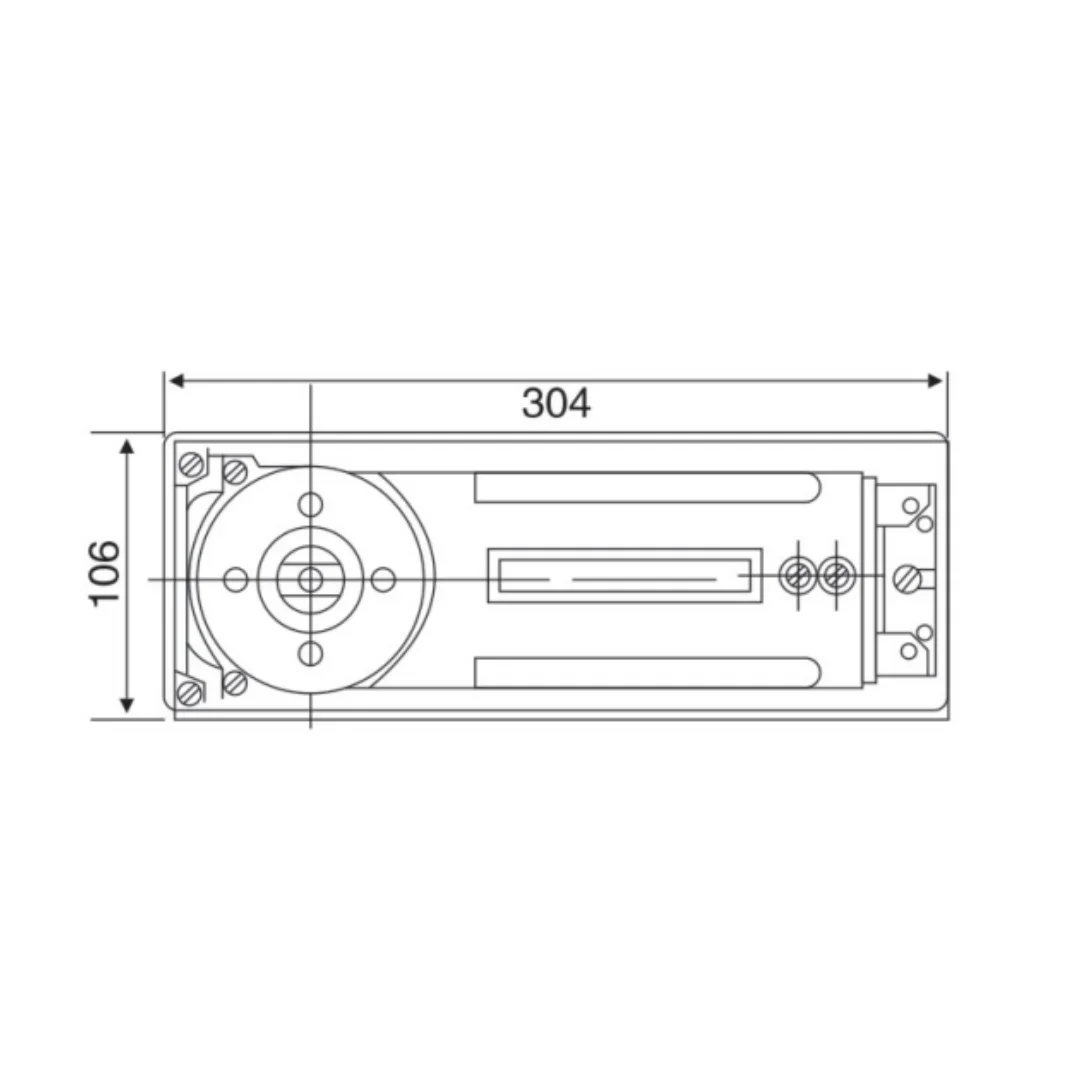

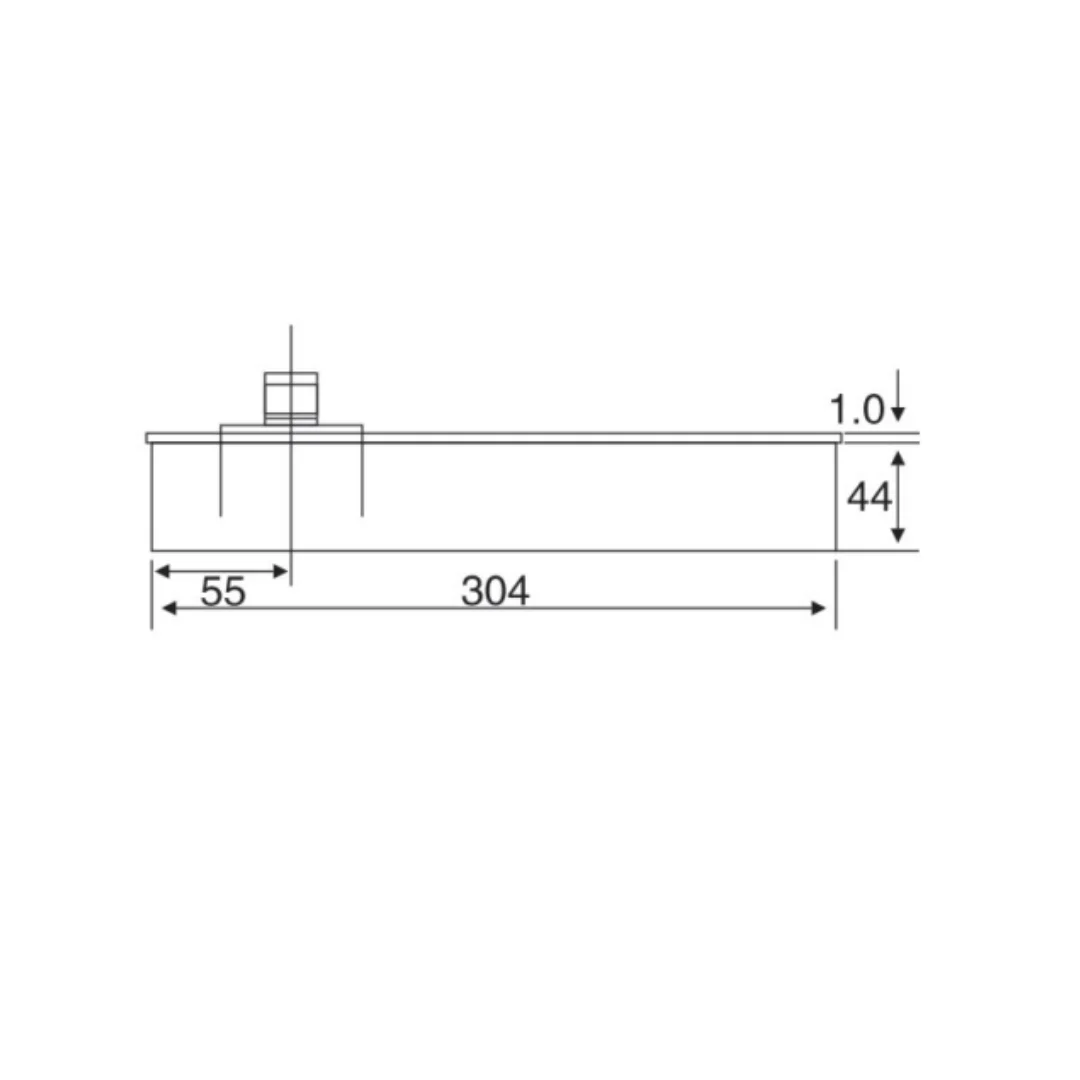

Cement Box Size: 304x106x44mm

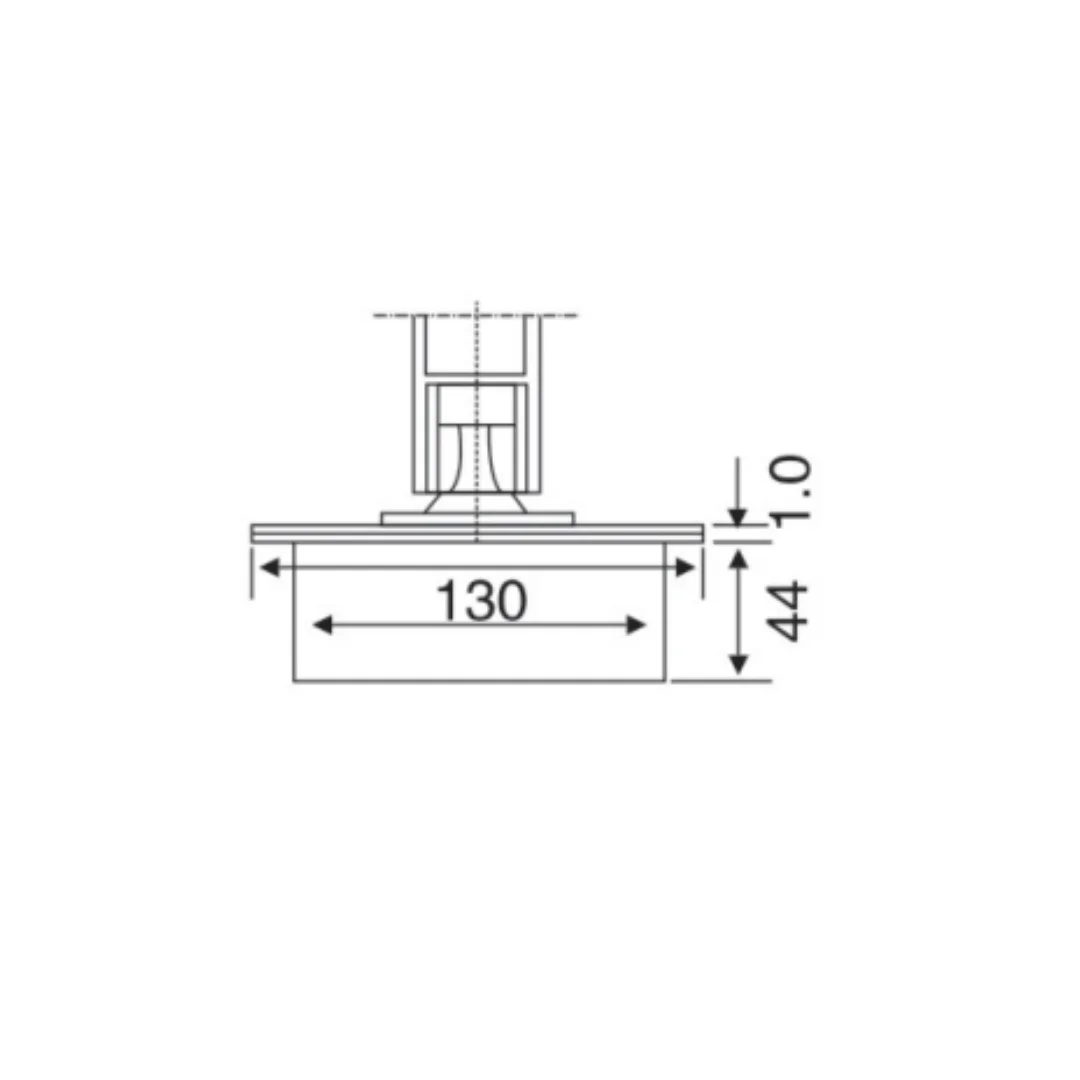

Cover Size: 310x130mm
Front and Back Adjust +5mm
Door Width: 1100/1000mm
Capacity: 130kg/100kg
Dorma/Mab
Dimension of appearance



Interchangeable Spindle,Up to 50mm
Maximum Closing Time x 46s
Minimum Closing Time – 3s
90 oH0 or NHO
Max Open Degree 105°
D/B


Click here to view more.

MATERIAL SELECTION CHART

Mild Steel Corten Steel Stainless Steel Aluminium Galvanised Steel Copper Wood
Indoor
Covered Outdoor
Exposed Outdoor
Seaside
